The beautiful complete Alpha P-shape bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Basic Suite includes :-
Bath
Basin and pedestal
Close-coupled toilet and seat
Front Panel
Bath Screen

Optional :-

Heavyweight toilet seat
Tap Pack 1 + Basin/Bath Waste
Tap Pack 2 + Basin/Bath Waste
Tap Pack 3 + Basin/Bath Waste



Toilet Technical Specification

• Toilet Total Height : 748mm
• Toilet Width : 382mm
• Toilet Projection : 635mm
• Toilet Pan Height : 380mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 26.33kg
• Includes : Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

Basin Technical Specification

• Total Height : 845mm
• Width : 555mm
• Projection : 445mm
• Basin Bowl Height : 205mm
• Outlet Connection Size : 70mm
• Wall to Waste Outlet : 180mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Round
• Weight 23.44kg
• Includes : Overflow

Bath Technical Specification

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 415mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Excludes : End Panel (Sold separately)
• Bath Thickness: 4mm
• Capacity: 200 Litre
• Configurable left or right hand options

Bath Screen Technical Specification

• Bath Screen Height : 1435mm
• Bath Screen Width : 720mm
• Adjustment Range : 720 - 740mm
• Glass Thickness : 6mm
• Swing Radius : 550mm
• Bath Screen Design : Curved
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded

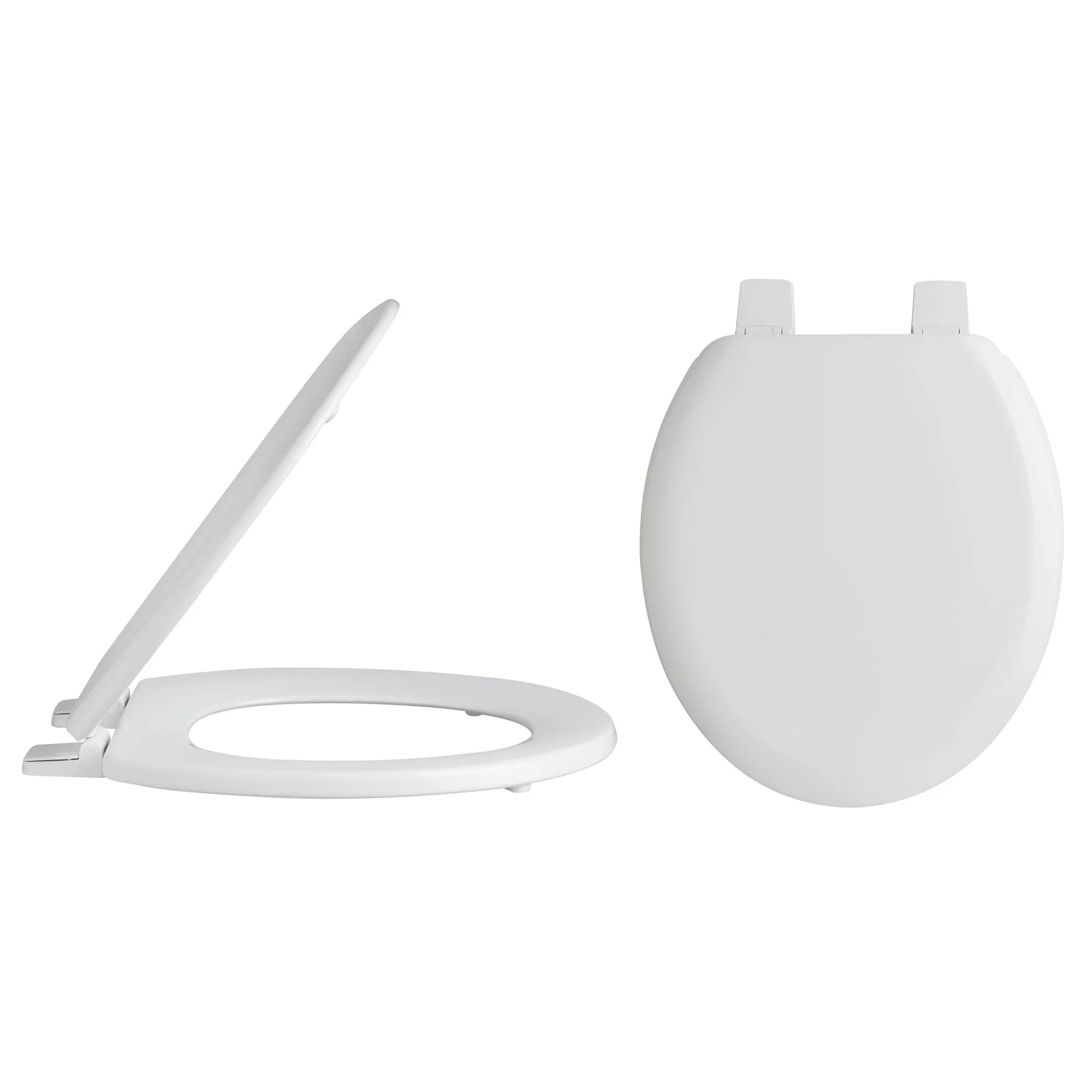

Optional Toilet Seat Technical Specification

• Width: 370mm
• Depth: 410mm
• Top and bottom fix installation options
• Hinge Material Polypropylene

Optional Bath Waste Technical Specification

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick

Optional Tap Pack 2 Technical Specification

• Basin Tap Height : 148mm
• Basin Tap Projection : 105mm
• Basin Tap Base to Spout : 56mm
• Basin Tap Inlet Connection Size : 1/2" BSP
• Easy to use one lever operation controlling both on/off and hot and cold supply
• Ceramic disc technology for long life and smooth operation
• High quality brass internals with luxury chrome finish

• Complete with FREE push button basin waste
• Flow Rate - 0.1 Bar 2.9 l/min
  Flow Rate - 0.5 Bar 5.7 l/min
  Flow Rate - 1.0 Bar 7.9 l/min
  Flow Rate - 2.0 Bar 11.1 l/min
  Flow Rate - 3.0 Bar 13.6 l/min
• Bath Shower Mixer Height : 155mm
• Bath Shower Mixer Tap Spout Reach : 94mm
• Bath Shower Mixer Base to Spout : 79mm

• Bath Shower Mixer Inlet Connection Size : 3/4 BSP
• Tap Holes : 2
• Flow Rate 0.1 Bar : 7 Litres per Min
• Flow Rate 3.0 Bar : 40 Litres per Min

Optional Tap Pack Technical Specification
