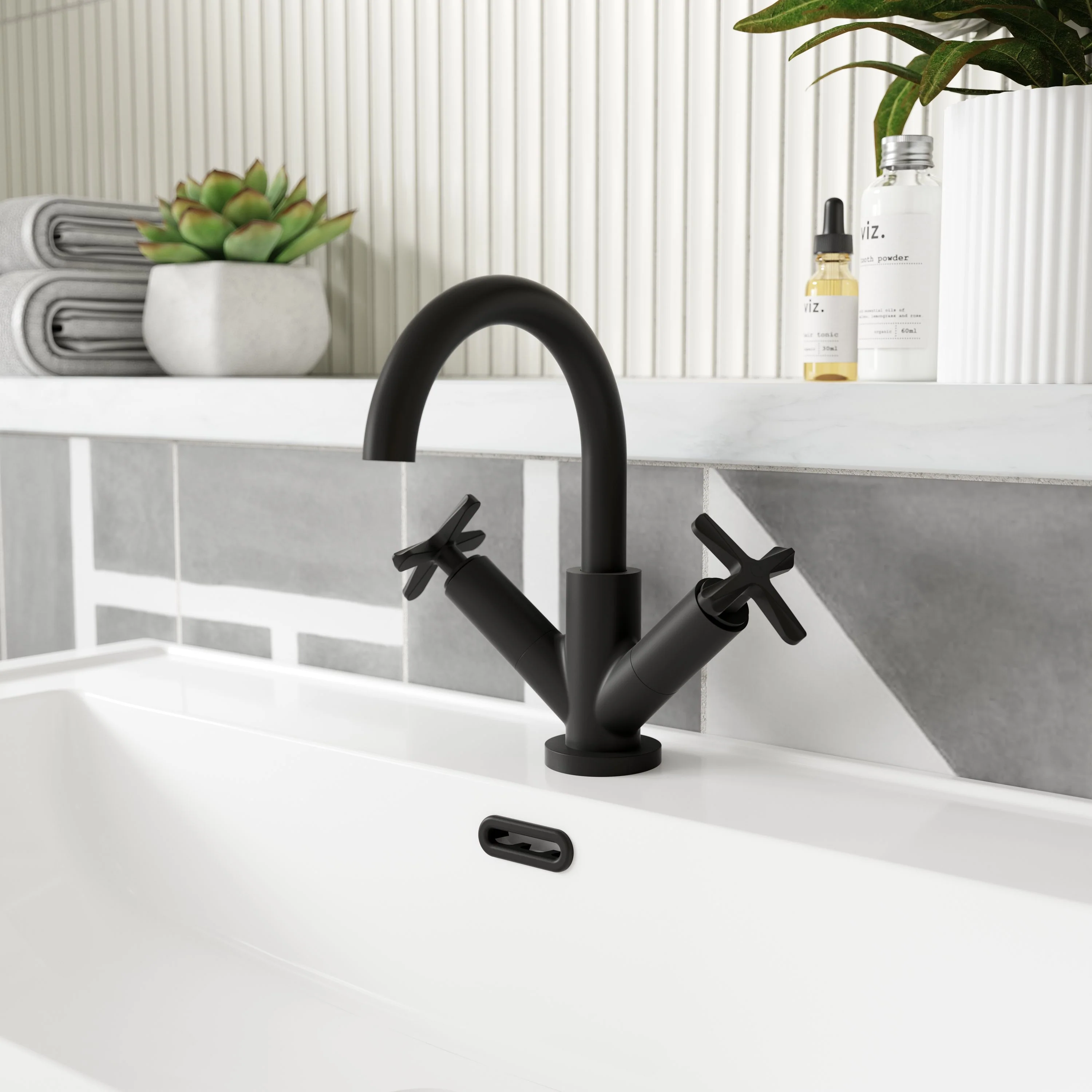

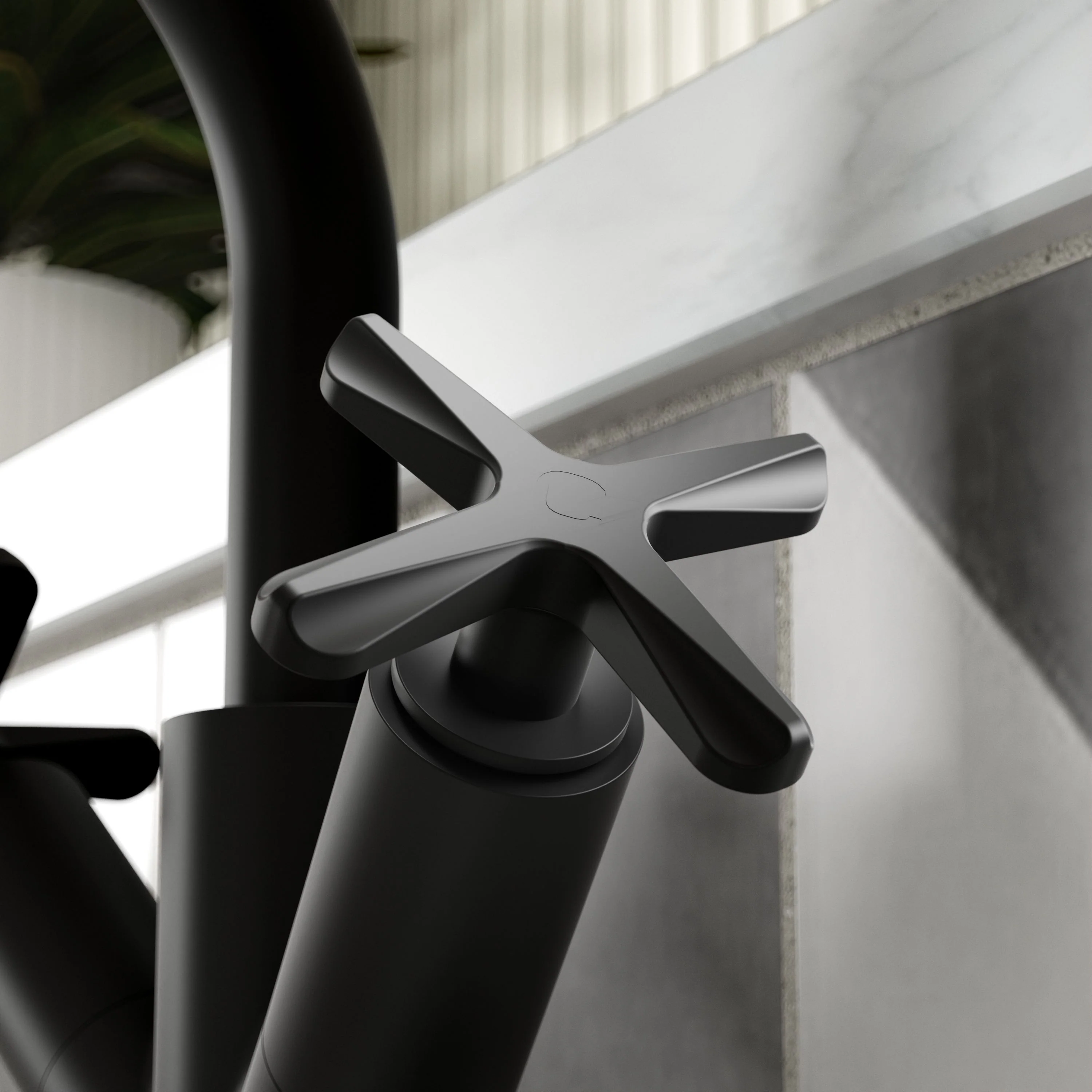

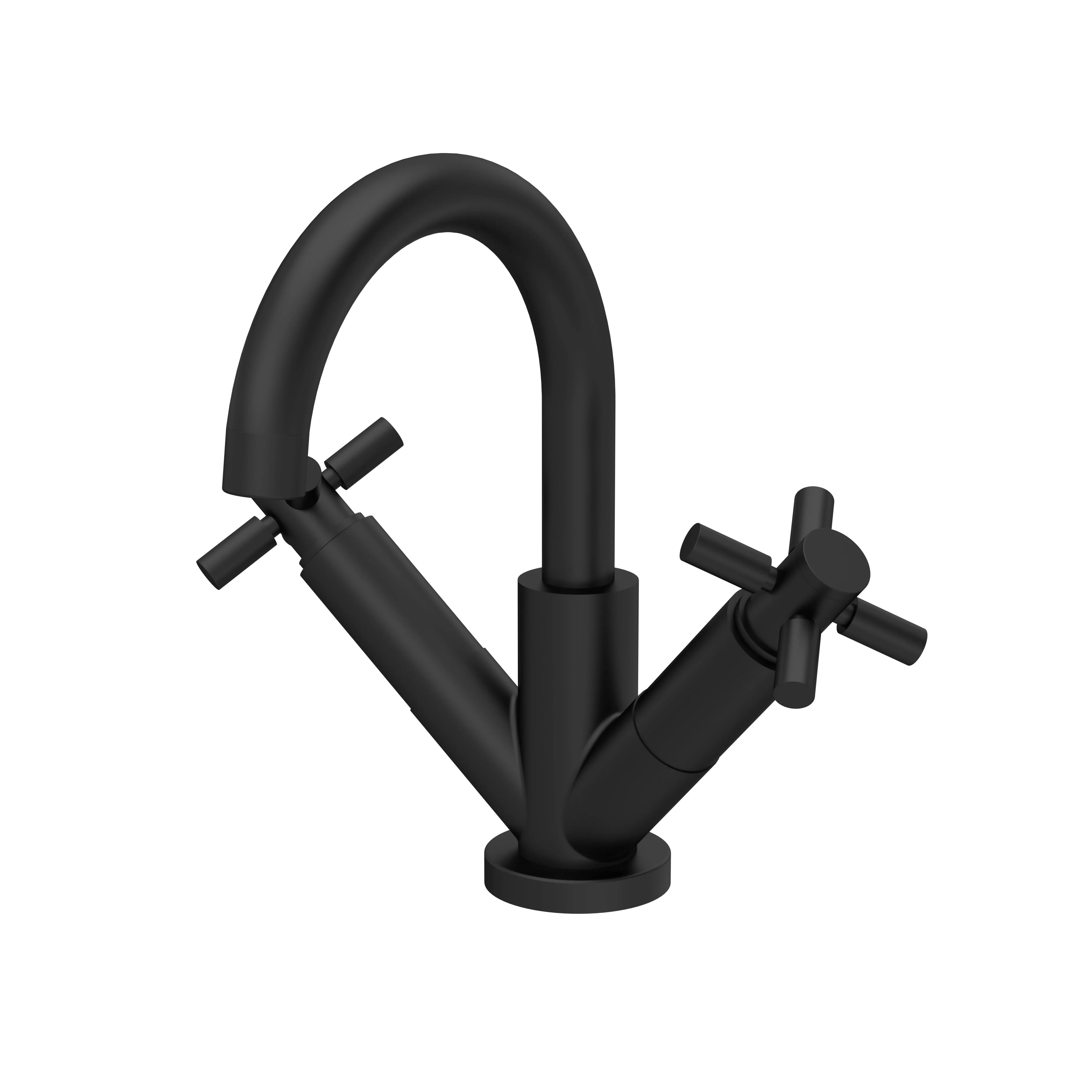

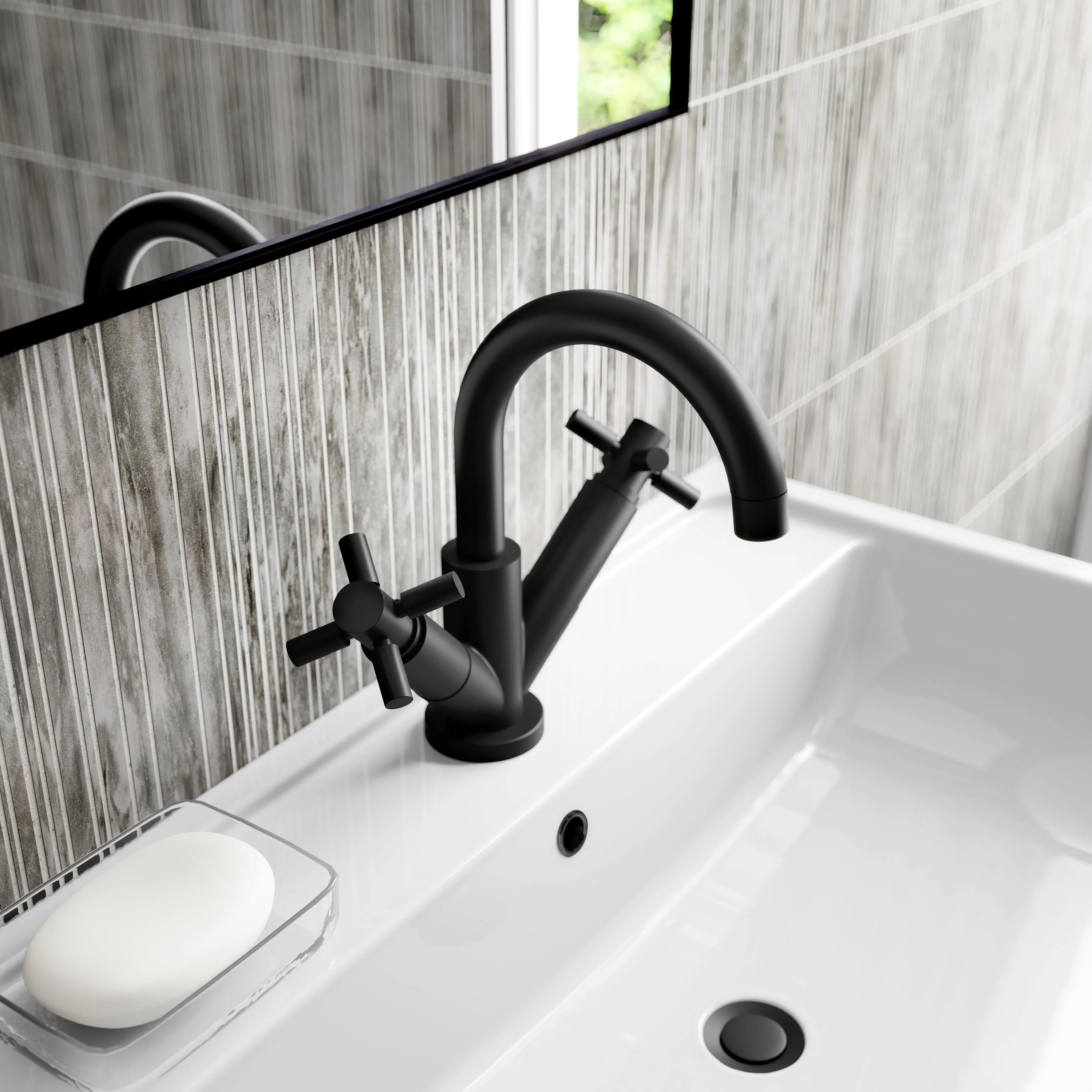

Timeless symmetry with crosshead . Swivel spout. Ceramic disc technology for long life and smooth operation. High quality brass internals with luxury matt black finish. WRAS approved.

Technical Specification

Height: 217 mm

Weight: 2.5 kg

Width: 230 mm

Depth: 175 mm

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.1 Bar

Valve/Cartirdge Type: 1/4 Turn Ceramic Disc

WRAS Approved: Yes

WRAS Approval Number: 2206030

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 3.0000

Flow Rate at 0.5 Bar (L/min): 16.0000

Flow Rate at 1 Bar (L/min): 22.0000

Flow Rate at 2 Bar (L/min): 31.0000

Flow Rate at 3 Bar (L/min): 38.0000

Tap Holes Required: 1

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
