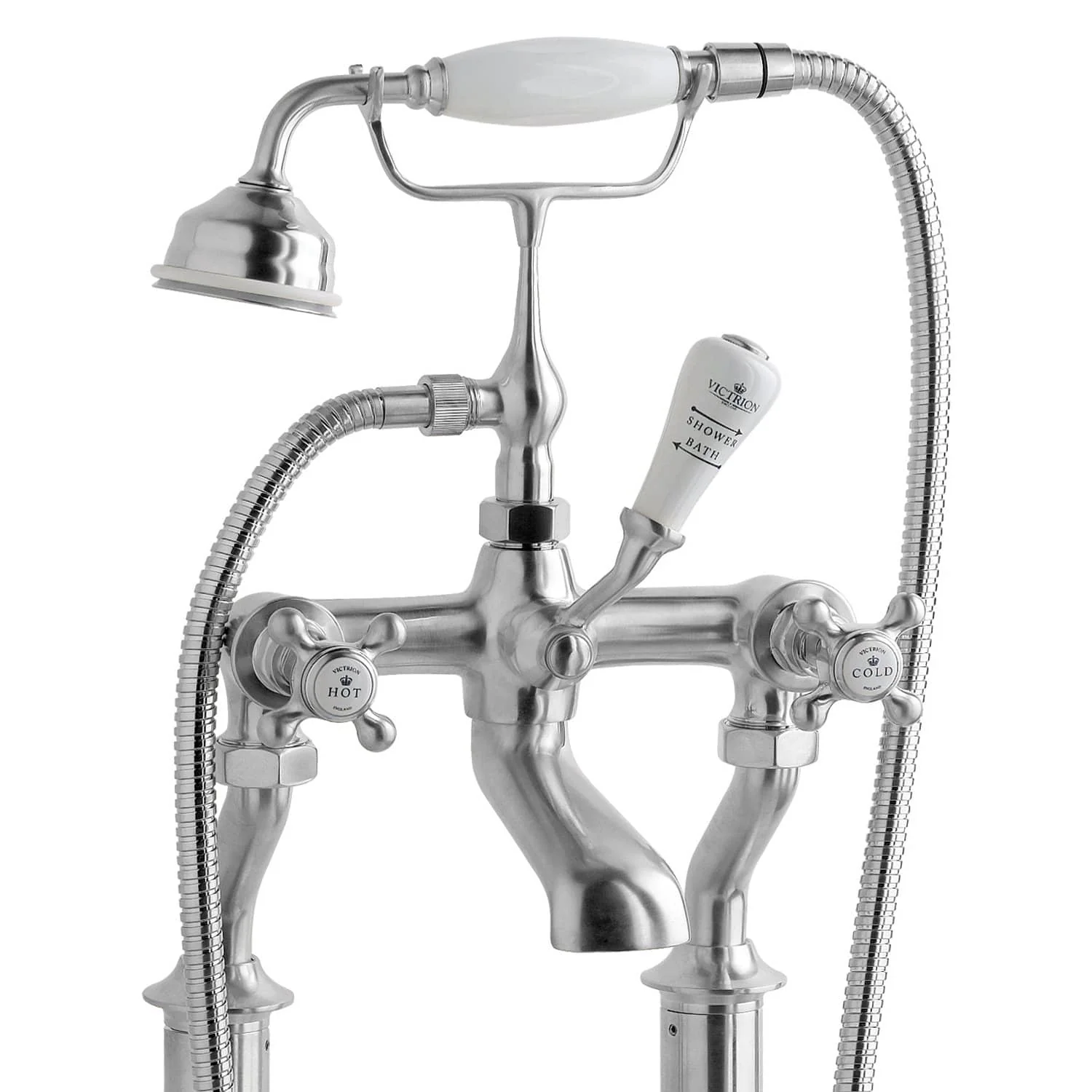

The BC Designs Victrion Bath Shower Mixer with crosshead handles combines elegance with excellent functionality. It can be mounted either on the rim of the bath or mounted on our solid brass freestanding legs when there are no tapholes in your bath. The classic handset and spout give dual use. Both Exposed and Domed collars are provided as standard for you to install in whichever way you prefer. All Victrion Brassware is available in six special finishes.

Technical Specification

• Height: 320mm
• Width: 350mm
• Projection: 155mm
• Weight: 4.7kg
• Material: Brass
• Finish: Brushed Chrome
• Traditional Style
• 1/4 Turn Ceramic Disc
• Operating Pressure (bar): 0.2
• Flow Rate 0.1 Bar : 10.6 Litres per Min
• Flow Rate 0.5 Bar : 28.6 Litres per Min
• Flow Rate 1 Bar : 41.4 Litres per Min
• Flow Rate 2 Bar : 59 Litres per Min
• Flow Rate 3 Bar : 72.8 Litres per Min
• Pipe Size: 22 mm (3/4" Bsp)
• Delivery: 3-21 Working Days
