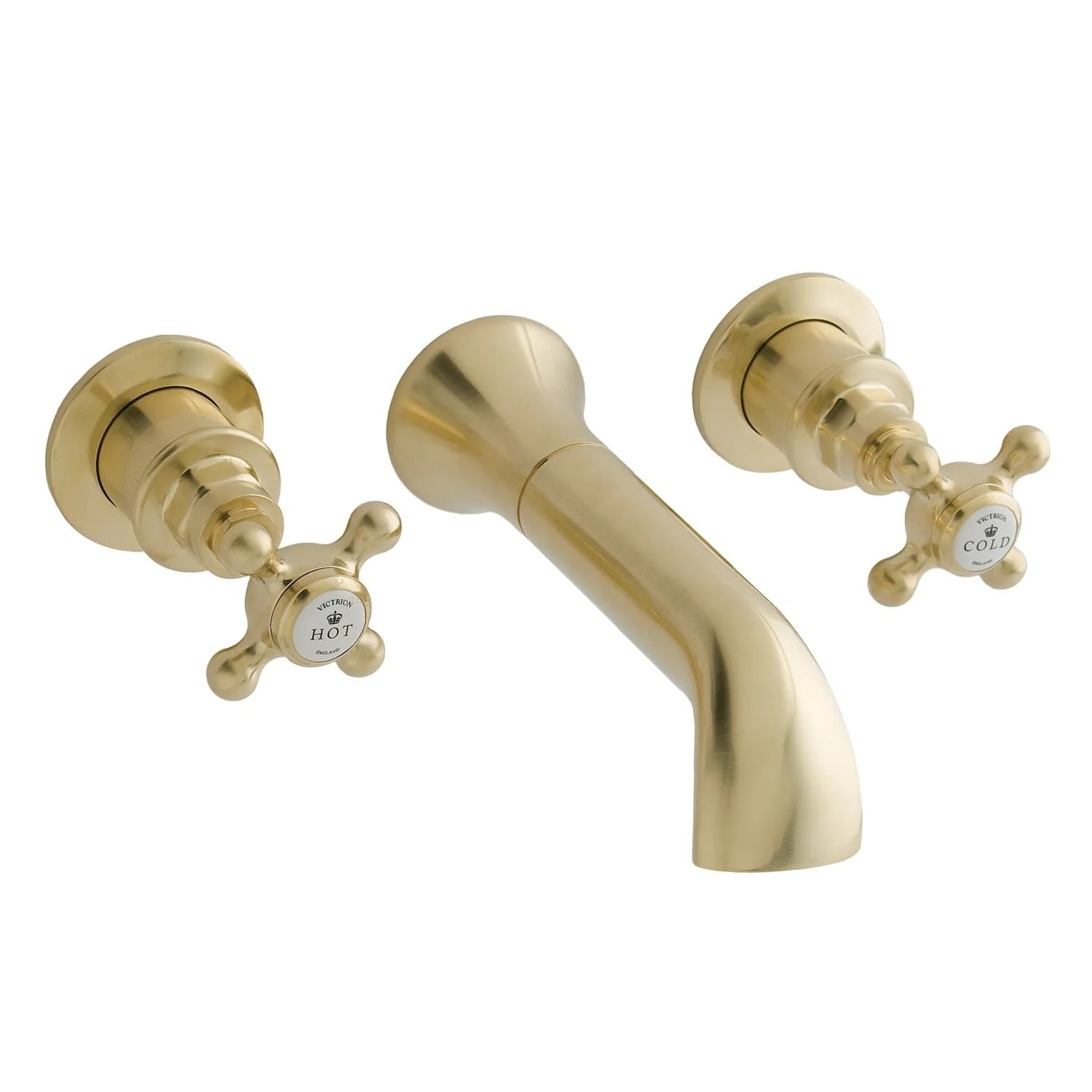

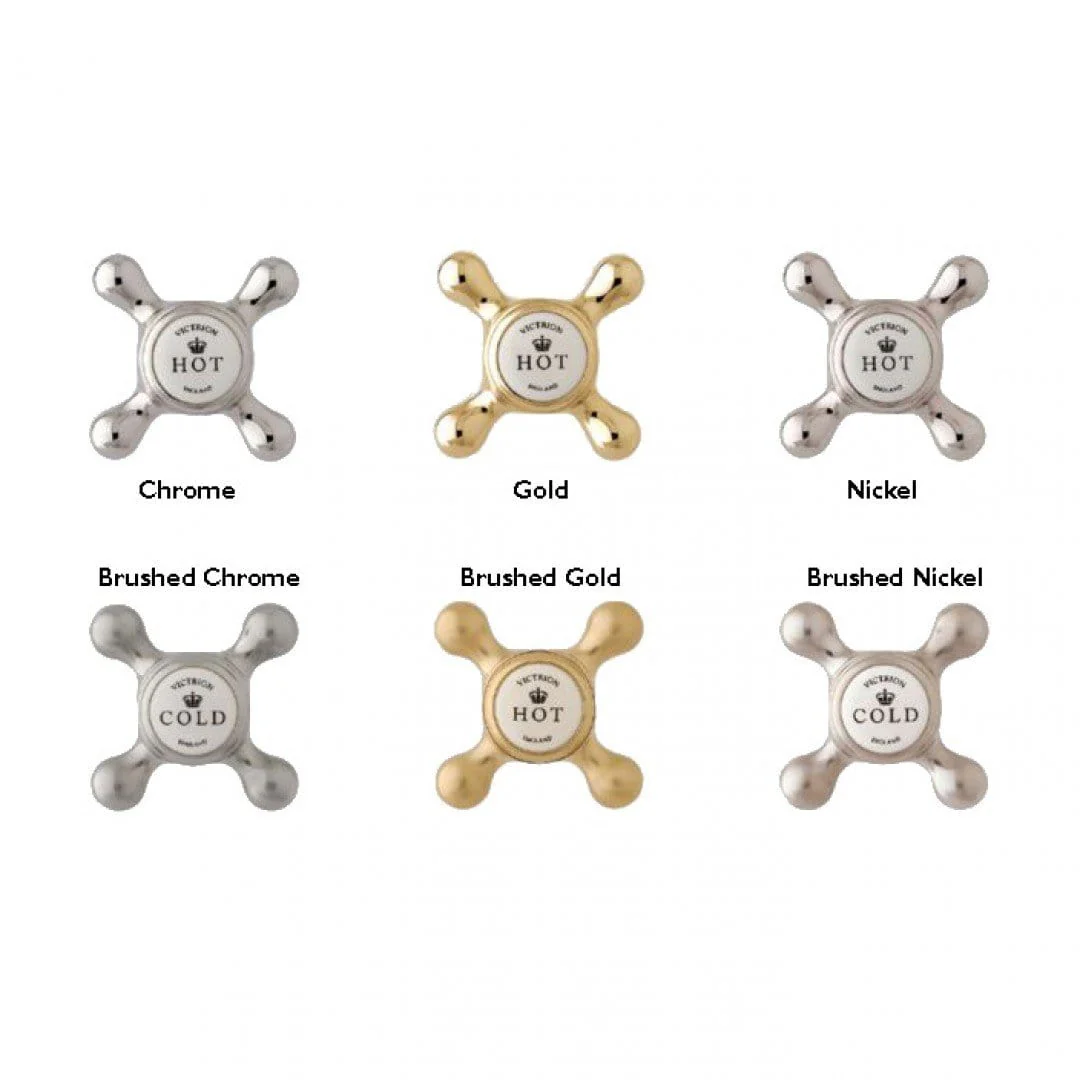

The BC Designs Victrion Wall Mounted Bath Filler consists of two 1/4 turn ceramic disc valves and a solid cast brass spout to fill your bath. A truly classic design. Both Exposed and Domed collars are provided as standard for you to install in whichever way you prefer. All Victrion Brassware is available in six special finishes.

Technical Specification

• Height: 182mm
• Width: 181mm
• Projection: 192mm
• Weight: 2.3kg
• Material: Brass
• Finish: Brushed Gold
• Traditional Style
• 1/4 Turn Ceramic Disc
• Pop-Up waste included
• Operating Pressure (bar): 0.1
• Flow Rate 0.1 Bar : 9.6 Litres per Min
• Flow Rate 0.5 Bar : 20 Litres per Min
• Flow Rate 1 Bar : 28 Litres per Min
• Flow Rate 2 Bar : 39.5 Litres per Min
• Flow Rate 3 Bar : 46.8 Litres per Min
• Pipe Size: 22 mm (3/4" Bsp)
• Delivery: 3-21 Working Days
