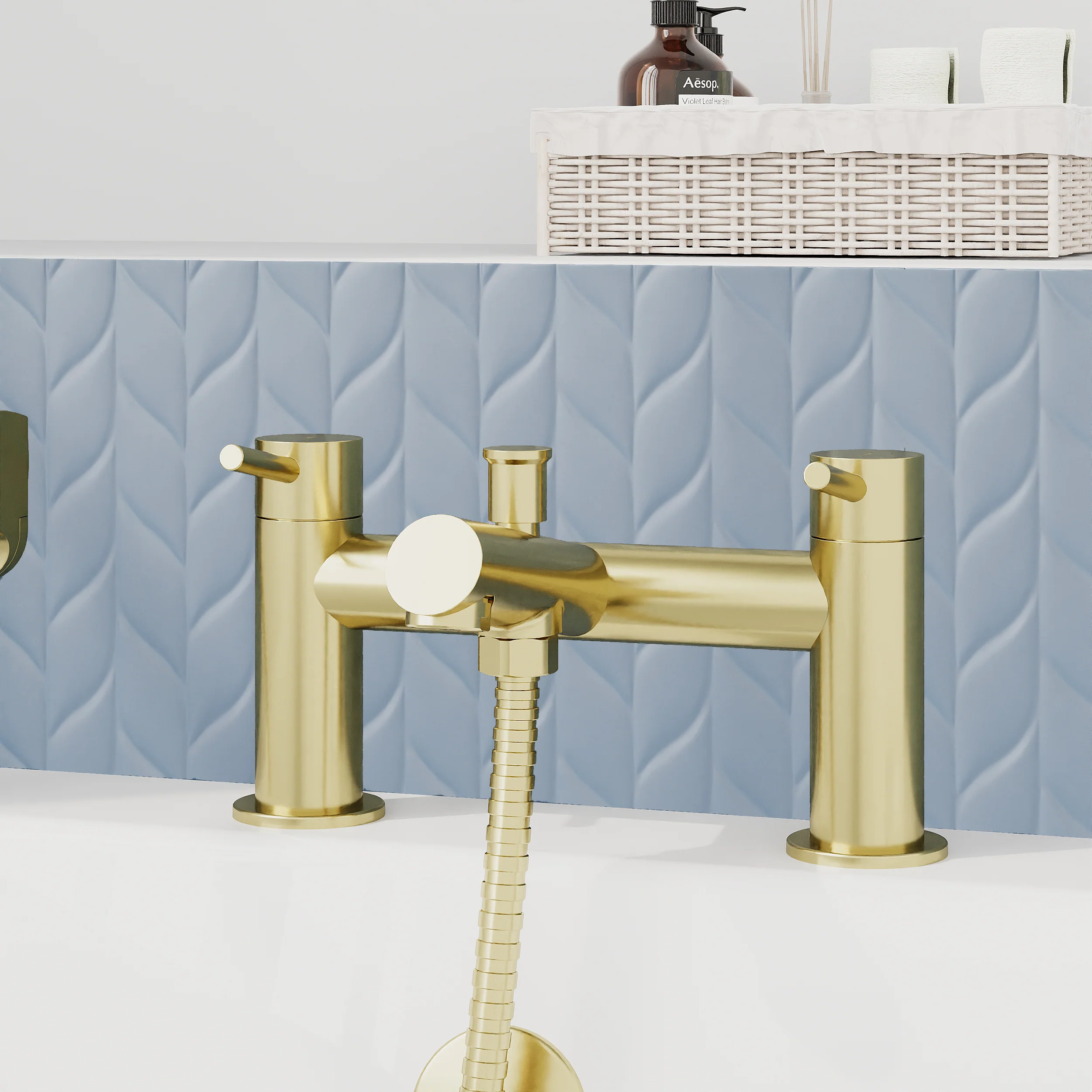

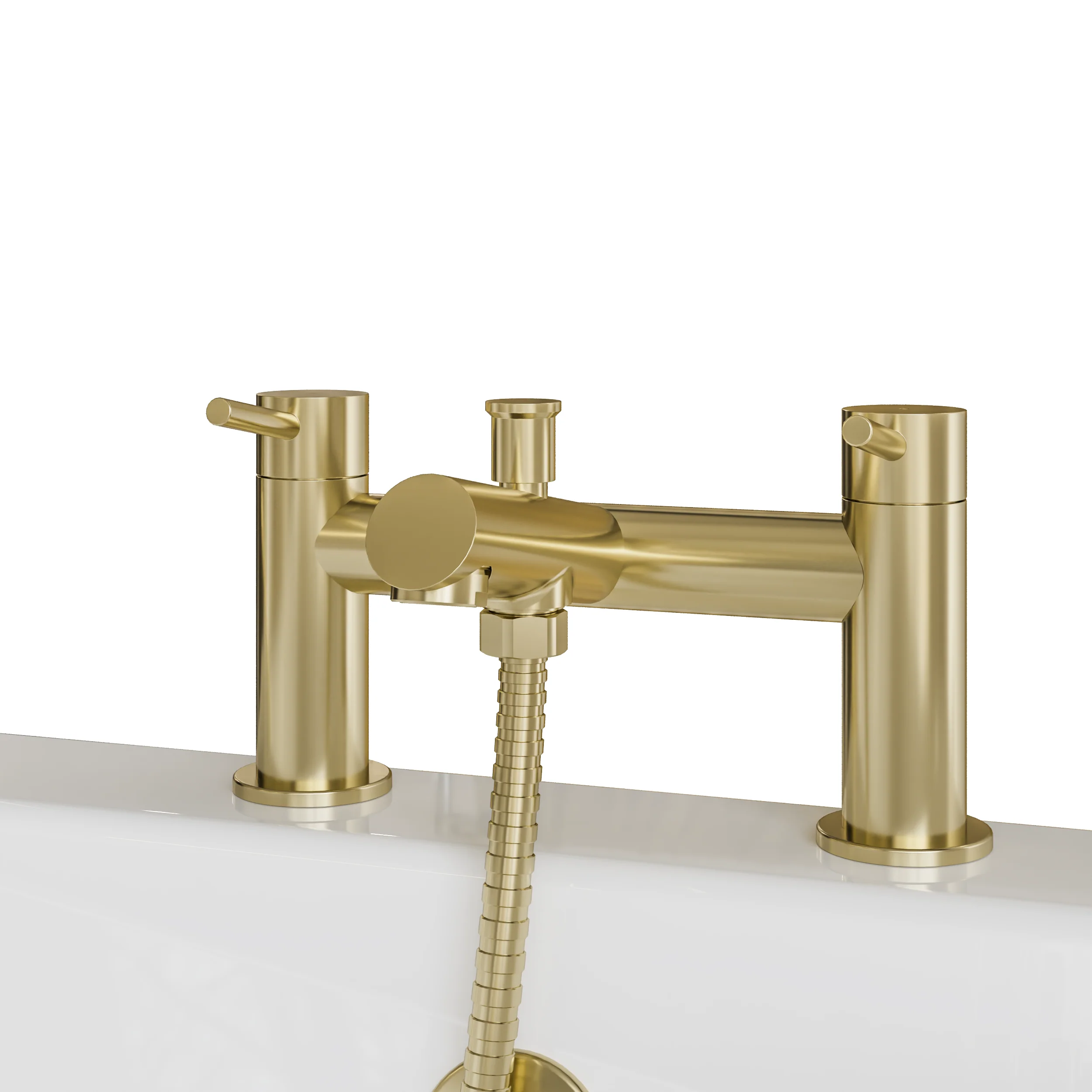

Enhance your bathroom with the Brantley Bath Shower Mixer Tap. Its brushed brass finish adds a touch of elegance and the included handset offers convenience. With this tap, you can easily switch between bath and shower mode for a versatile bathing experience. Upgrade your daily routine with this stylish and functional addition.

Technical information

• Finish : Brushed Brass
• Height :119mm
• Tap Spout Reach : 156mm
• Width : 228mm
• Tap Inlet Centres : 180mm
• 3/4 water inlet feeds
• Working pressure between 0.2 and 5.0 bar pressure
• High quality design and build
• Latest 1/4 turn ceramic disc technology
• Material : brass body
• Hot and cold indicators

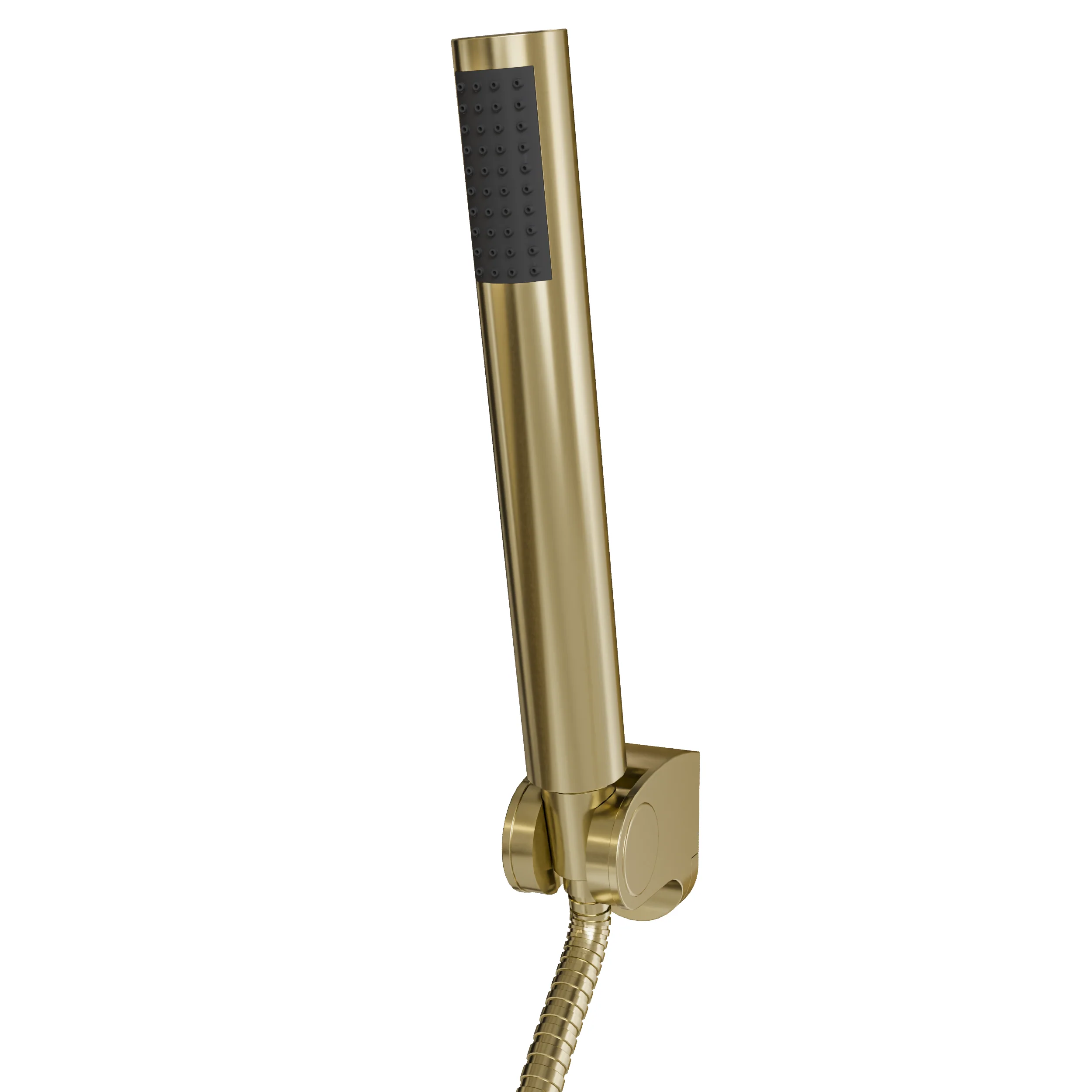

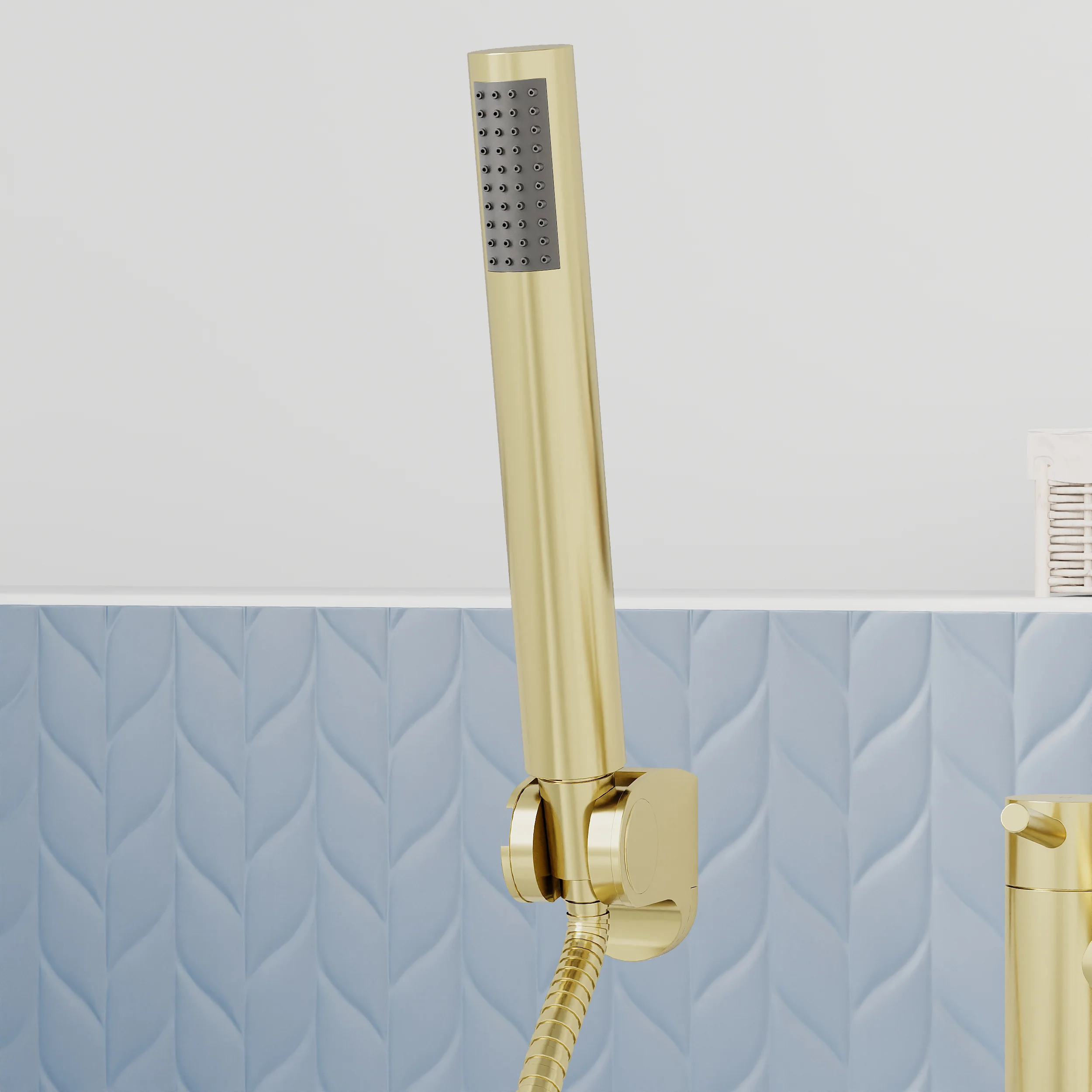

• Includes shower hose, handset and wall bracket
• Deck mounted
• Easy installation
• Gravity systems require minimum of 2 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.2 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years
• Flow rates :-
• 0.5 Bar   29 Litres per minute
• 1.0 Bar   40 Litres per minute
• 2.0 bar   48 Litres per minute

NB:  All measurements are approximate. In line with manufacturing policy we reserve the right to amend specification without prior notice.
