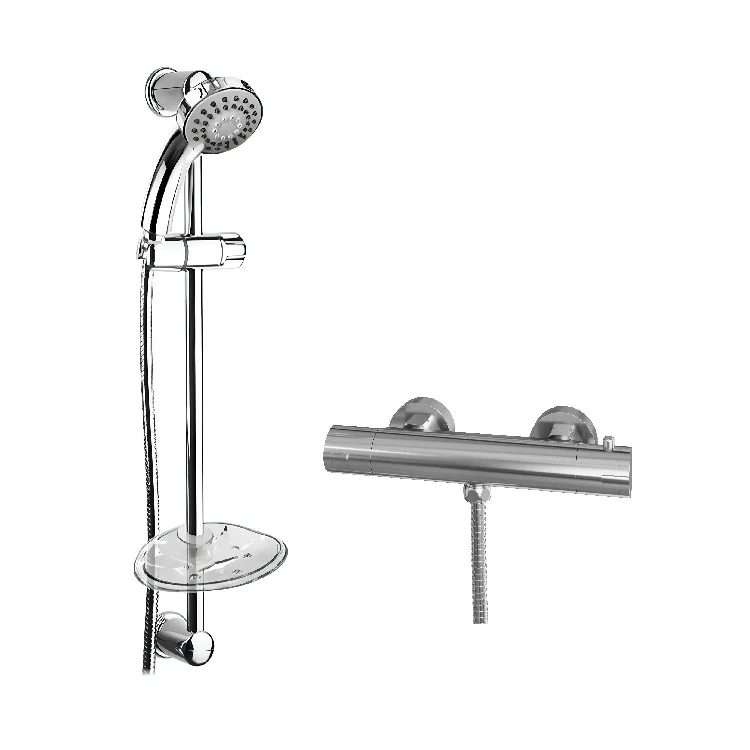

Add a touch of luxury to your new bathroom with this exposed thermostatic chrome shower valve. Manufactured to the highest standards and utilising high-quality components to give you a precision stable temperature.

Technical

Width : 262mm

Fixing inlets : Adjustable 150 to 170mm

Finished in high quality Chrome
Chromed plated to BS EN 248

WRAS approved shower
Dual Control – flow and temperature are controlled separately giving accurate control of both
Thermostatic cartridge maintains showering temperature to +/- 1°c giving a stable outlet temperature
Ceramic disc flow control cartridges
Automatic shut-off in the event of cold water supply failure, to prevent scalding
Temperature factory set to a 38°c to eliminate the ability to select an unsafe temperature without overriding

Working Pressures
Minimum Pressure 0.5 Bar
Max Pressure 6 Bar
Best Performance 3 Bar

Flow Rates
0.5 Bar = 5.3 Litres per minute
1 Bar = 7.6 Litres per minute
3 Bar = 13.9 Litres per minute

Modern shower kit coming complete with rail, hose and handset
Slide rail bar with moveable bracket
Suitable for low pressure
Comes in chrome finish
Supplied with a 5 year guarantee from the manufacturer (12 months on moving parts)

Technical Specification Slide Rail Kit

• Product Height: 770mm
• Product Depth: 70mm

• Material : Brass / ABS
• Product Weight (KG): 1.54
• Finish: Chrome
• Operating Pressure: 0.1
• Guarantee: 5 Year
• Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide a 5 Year Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.



All measurements are approximate
Images are for illustrative purposes only
