The sleek complete Eden Luxury Vanity Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item compliments the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination vanity set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Bath Screen

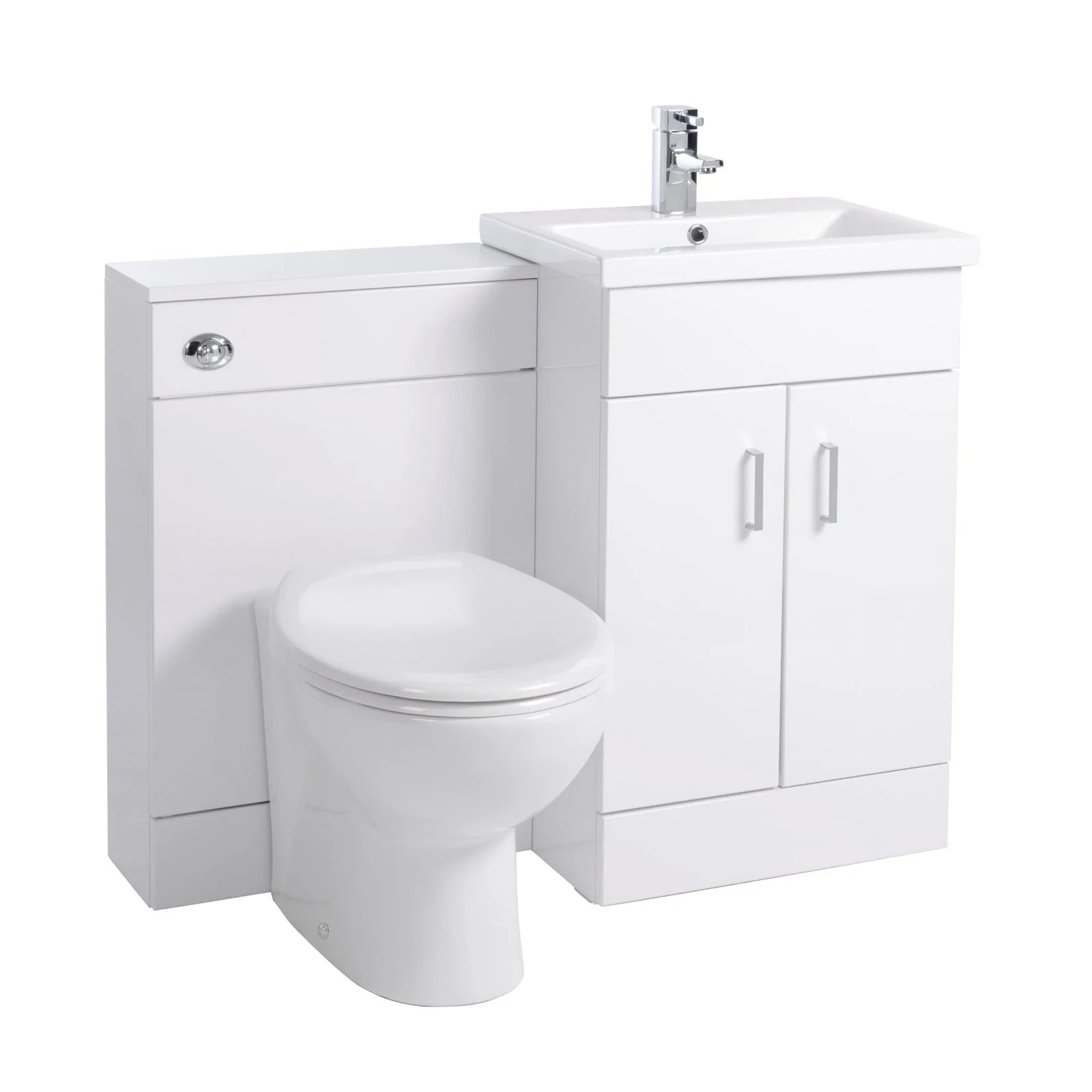

500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet with Seat
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain
Thermostatic Shower Valve
Multi Mode Shower Slide Rail Kit
Bath Panels Not Included

Technical Specification

Bath

• Length : 1500mm
• Width : 700mm
• Height : 430mm
• Waste Position : End
• Material Specification : Acrylic
• Shape : Round
• Bath Thickness : 4mm
• Capacity : 131 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Colour : White
• Style : Single Ended

Screen

• Height : 1400mm
• Adjustable Width : 770 to 790mm
• Glass Thickness : 6mm Toughened
• Bath Screen Design : Sail Hinged
• Material : Toughened Glass / Aluminimum

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

Basin Unit

• Height (Unit + Basin) : 840mm
• Width : 510mm
• Projection : 400mm
• Furniture Type: Vanity Unit
• Style: Floor Standing
• Finish: Gloss White
• Materials Specification: MDF cabinet
• Available Storage: 1 Internal Shelf
• Features: Soft closing doors
• Weight : 31.04kg
• 2 chrome handle
• Some assembly required
• Complete with 1 Tap Hole Luxury Vitreous China Basin
• Manufacturers 5 year guarantee

WC Unit

• Depth: 800mm
• Width: 500mm
• Height: 200mm
• 18mm MDF Construction

• Finish: Gloss White

Concealed Cistern

• Height : 303mm
• Width : 334mm
• Depth : 136mm
• Cable concealed dual flush
• Operating Type : Push Button
• Cistern Lever Type : Chrome finished dual flush button
• Button is not fixed but cable connected so can be moved to position of choice
• Cable from cistern to button is 450mm
• Internal overflow
• Water inlet can be left or right hand side
• Material Specification : Plastic
• Connection Size : 1/2" BSP
• Finish : Chrome
• Features : Water Saving Dual Flush 3 / 6 Litre Action
• WRAS approved product

Toilet

• Height : 400mm
• Width : 355mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Weight : 17kg
• Excludes : Bottom Fixing Soft Close Seat

Shower Valve & Slide Rail Kit

• Contemporary round design exposed thermostatic bar shower valve
• Separate controls for temperature and flow.
• 150mm inlet water centres
• Finish in polished chrome
• Manufactured from brass
• Water pressure 0.2 bar minimum
• Suitable for combination boilers, pumps and pressurised systems
• Thermostatic cartridge with anti-scald protection
• Water temperature controlled to +/- 2 degrees
• Mixed water bottom outlet
• Does not include shower hose
• Dimensions : H40mm x W285mm x D65mm
• Flow Rates

  0.1 Bar - 3 l/m
  0.5 Bar - 8 l/m
  1.0 Bar - 11.5 l/m
  2.0 Bar - 17 l/m
  3.0 Bar - 21 l/m
• Includes multi-function round handset , rail and hose
• Rail height 655mm
• Supplied with soap dish
• Manufacturers guarantee



Bath Tap

• Height : 133mm
• Projection : 120mm
• Tap Base to Spout : 67mm
• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Dual Lever 1/4 Turn Ceramic Disc
• Weight : 1.9kg
• Tap Holes : 2
• Pipe Centres : 180mm
• Inlet Connection Size : 3/4"
• Mounting : Deck Mounted
• Style : Modern
• Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems & Gravity Fed Systems
• Minimum Pressure : Subject to a minimum of 0.2 Bar
• Excludes : Waste Kit

Basin Tap

• Height : 129.5mm
• Tap Spout Height : 95mm
• Tap Spout Reach : 102mm
• Width : 46mm

• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Single Lever

• Mounting : Deck Mounted
• Style : Modern
• Features : Ceramic Disc Technology
• Minimum Pressure : 0.2 Bar
• Includes push button waste

Waste

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
