The Foundation Quadrant Shower Enclosure Bathroom Suite makes a powerful statement, transforming your bathroom into an even more luxurious and stylish domain without breaking the Bank. Included is everything you'll need to innovate and rejuvenate your current bathroom setup whilst still allowing options for you to purchase options to add your own style.

Suite includes :-
Quadrant Shower Enclosure - options for 3 sizes
Shower Tray - options for 3 sizes
Basin and pedestal
Close-coupled toilet and seat

Technical Specification

Enclosure

• Height : 1850mm
• Width : Available to choose in 700, 800 or 900 x 900mm sizes
•  3 Door Adjustments depending on which size quadrant chosen :
  675mm - 695mm, 775mm - 795mm, 875mm - 895mm
• Material  : Aluminium
• Frame Finish : Chrome
• Glass Finish : Clear Toughened Glass
• Shower Door Type : Double Sliding Doors
• Quick release doors for easy cleaning
• Patented EasyFit profile assembly system
• Enclosure Shape : Quadrant
• Handed : Reversible
• Guarantee : Lifetime (12 months on serviceable moving parts from the date of purchase),

Tray

• Type : Quadrant
•  3 Sizes available : 700  x 700mm, 800 x 800mm, 900 x 900mm
• Height : 40mm
• Waste position : side
• High quality design and build
• Flat top
• Low profile design
• Material : ABS top stone resin tray
• Made with Phthalate free materials
• Excludes waste. Designed for 90mm high flow waste
• The sleek Low Profile design is available in a range of sizes
• Supplied with a lifetime guarantee from the manufacturer.

Toilet

• Toilet Total Height : 748mm
• Toilet Width : 382mm
• Toilet Projection : 635mm
• Toilet Pan Height : 380mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 26.33kg
• Includes : Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

Basin

• Total Height : 845mm
• Width : 555mm
• Projection : 445mm
• Basin Bowl Height : 205mm
• Outlet Connection Size : 70mm
• Wall to Waste Outlet : 180mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Round
• Weight 23.44kg
• Includes : Overflow

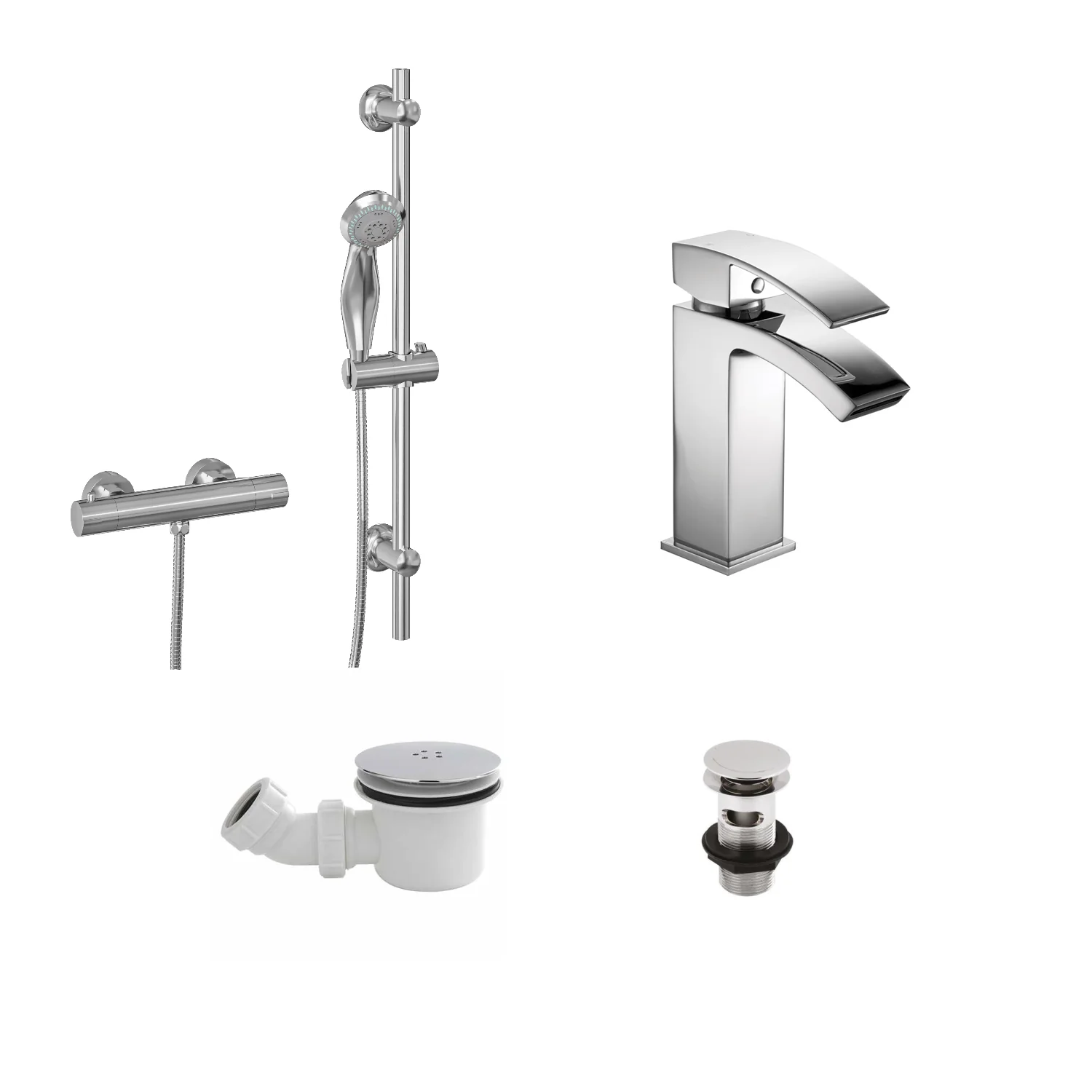

Foundation  Optional Extra Pack 1

Comprises :-

• Round thermostatic bar valve C/S slide rail kit

1. Slide rail with adjustable bracket
2. Multi-mode shower head & hose
3. Latest ceramic disc technology
4. Latest thermostatic system
5. Working pressure between 0.5 and 5,0 bar pressure
6. Easyclean anticalc jets on handset
7. 150mm inlet centres on thermostatic valve
8. 15mm water inlet feeds
9. Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
10. Suitable for combi boilers and pressurised sytems between 0.5 and 5.0 bar pressure
11. Suitable for shower pumps
12. Manufacturers 5 year guarantee

Basin mono tap :-

1. Style: Modern
2. Handle Design: Lever
3. Material: Brass Body
4. Max Water Pressure: 5 bar
5. Min Water Pressure: 0.2 bar
6. Flow Rates 0.5 Bar: 9.3
7. Flow Rates 1 Bar: 12.8
8. Flow Rates 3 Bar: 22
9. Mounting: Deck Mounted
10. No of Handles: 1
11. Operating: Quarter Turn
12. Pipe Size: 1/2" BSP
13. Tap Holes Required: 1
14. Waste Supplied: Yes
15. WRAS Approved: Yes
16. Weight (kg): 0.9
17. Height (mm): 137
18. Projection (mm): 100


Basin waste ;-

• Complete with installation instructions

Shower tray waste :-

• 90mm shower tray waste
• Height : 78mm
• Width : 115mm
• Depth : 780mm
• Finish : Chrome
• Connection Size : 11/2"
• Shape : Round

Foundation  Optional Extra Pack 2 (shower changes to a dual riser kit with shower rose and separate handset)

• Height : Adjustable from 850 to 1250mm
• Shower Head Size : 200mm
• Total Projection: 435mm
• Round modern thermostatic shower
• Latest ceramic disc technology
• High quality design and build
• Adjustable handset height
• Latest thermostatic system
• Working pressure between 0.5 and 5.0 bar pressure
• 1500mm shower hose
• Easyclean anticalc jets on both showerhead and handset
• Thermostatic shower incorporates diverter to control flow to either overhead rose or handset
• Set complete with one 200mm shower rose and one handset
• Lightweight handset provided to minimise risk of damage to shower tray or bath in case of accidental droppage
• Round thermostatic mixing valve of durable brass construction and chrome finish
• Rigid riser with polished chrome finish
• Easy installation

• 150mm inlet centres on thermostatic valve
• 15mm water inlet feeds
• Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised sytems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years
