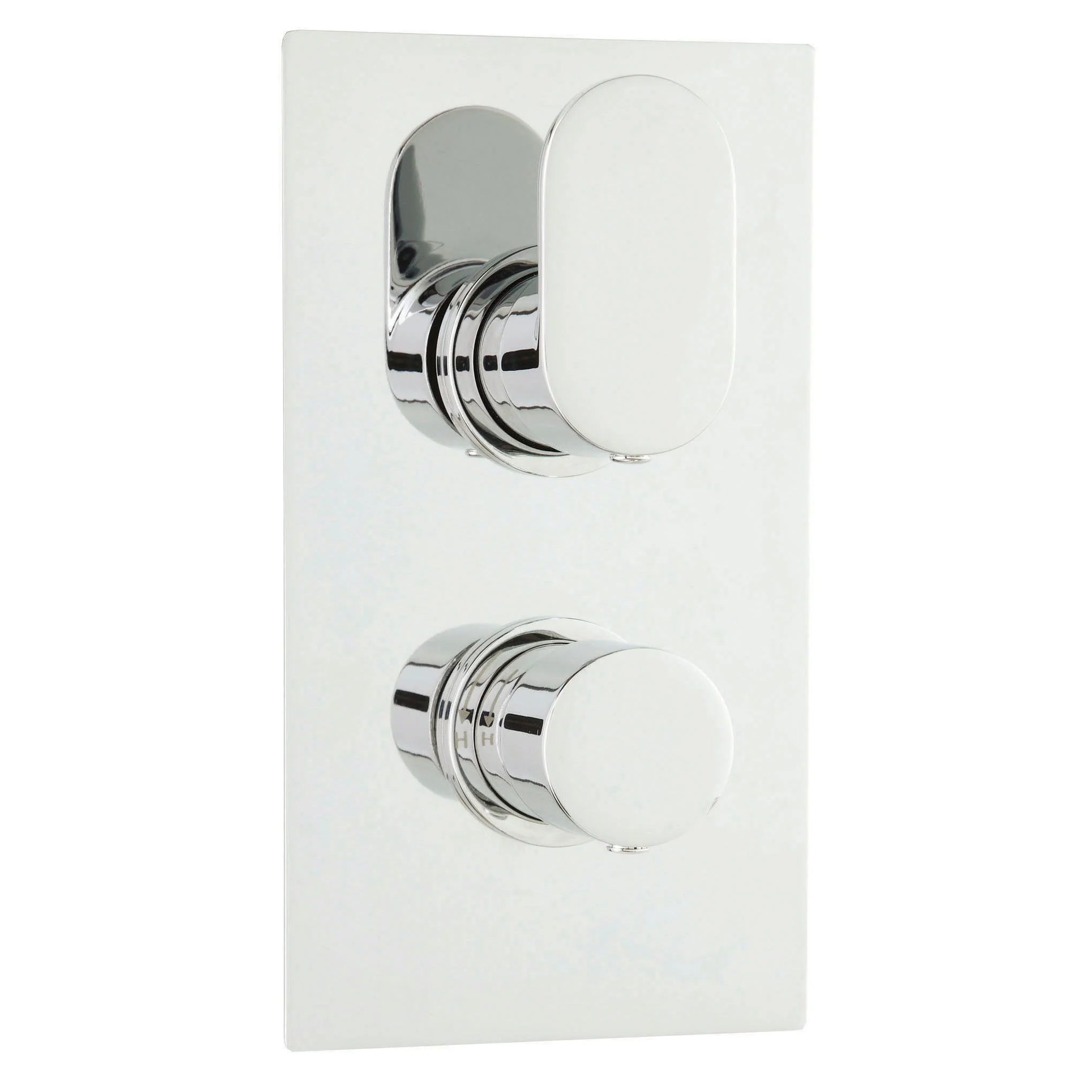

Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.

Technical Specification

Height: 215 mm

Weight: 2.57 kg

Width: 120 mm

Depth: 135 mm

Material: Brass Abs

Mount Type: Recessed/Wall

Handle Type: Lever/Round

Minimum Operating Pressure (Bar): 0.1 Bar

Valve/Cartirdge Type: 1/4 Turn

WRAS Approved: Yes

WRAS Approval Number: 250602040

TMV2 Approval Number: 2603035

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 5.5000

Flow Rate at 0.5 Bar (L/min): 14.0000

Flow Rate at 1 Bar (L/min): 20.0000

Flow Rate at 2 Bar (L/min): 29.0000

Flow Rate at 3 Bar (L/min): 44.0000

Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
