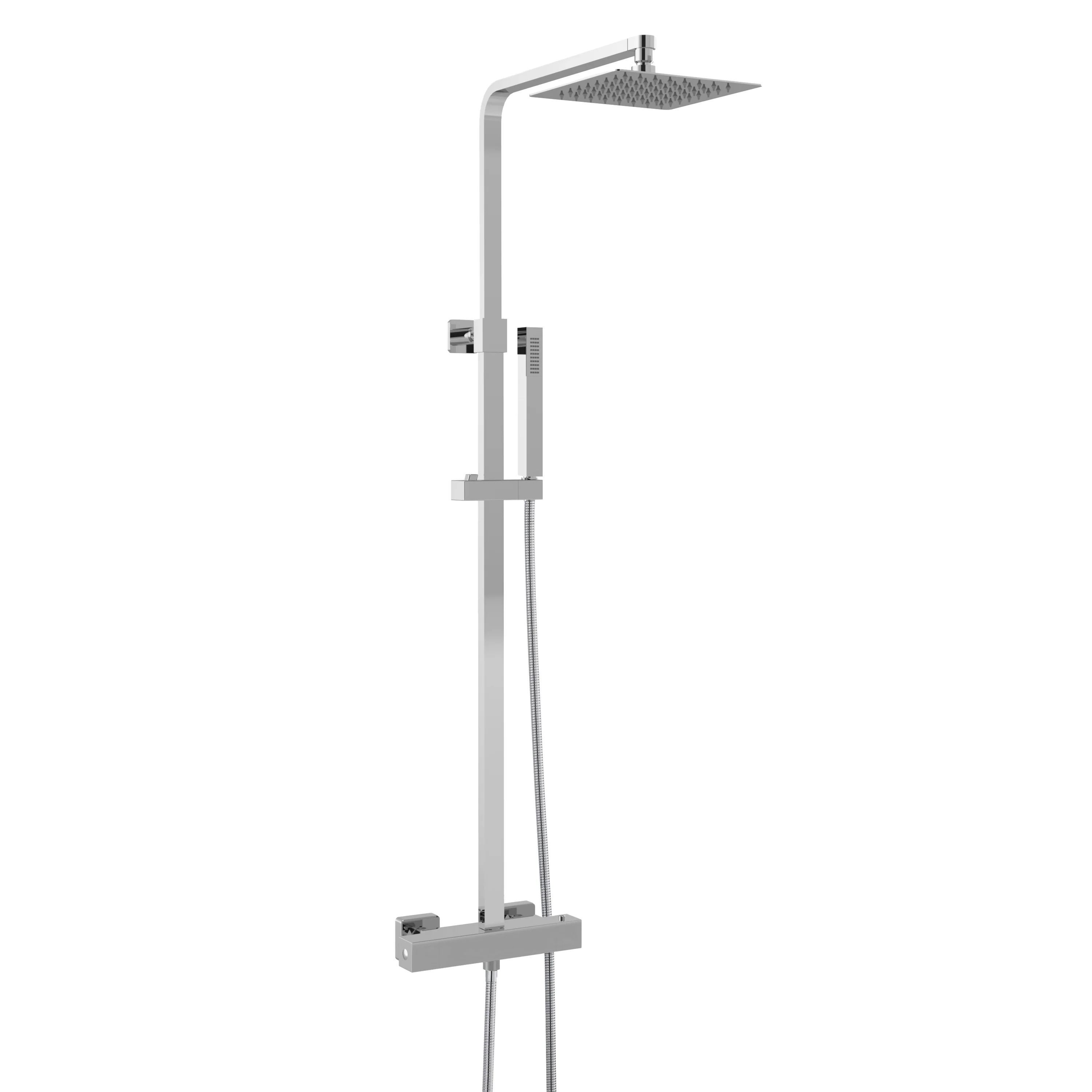

The perfect solution to multi-option showering. Thermostatically controlled. Square shower head. Rectangular handset. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding. Suitable for high pressure water systems. Suitable for combi-boilers and gravity-fed systems. Suitable for unvented mains pressure systems. Suitable for shower pumps. Manufactured from high quality brass.

Technical Specification

Height: 1410 mm

Weight: 4.62 kg

Width: 260 mm

Depth: 458 mm

Material: Brass

Mount Type: Surface/Wall

Minimum Operating Pressure (Bar): 0.5 Bar

Valve/Cartirdge Type: 1/4 Turn

WRAS Approved: Yes

WRAS Approval Number: 2307019

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.5 Bar (L/min): 7.5000

Flow Rate at 1 Bar (L/min): 11.0000

Flow Rate at 2 Bar (L/min): 16.5000

Flow Rate at 3 Bar (L/min): 21.0000

Pipe Centres: 150

Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
