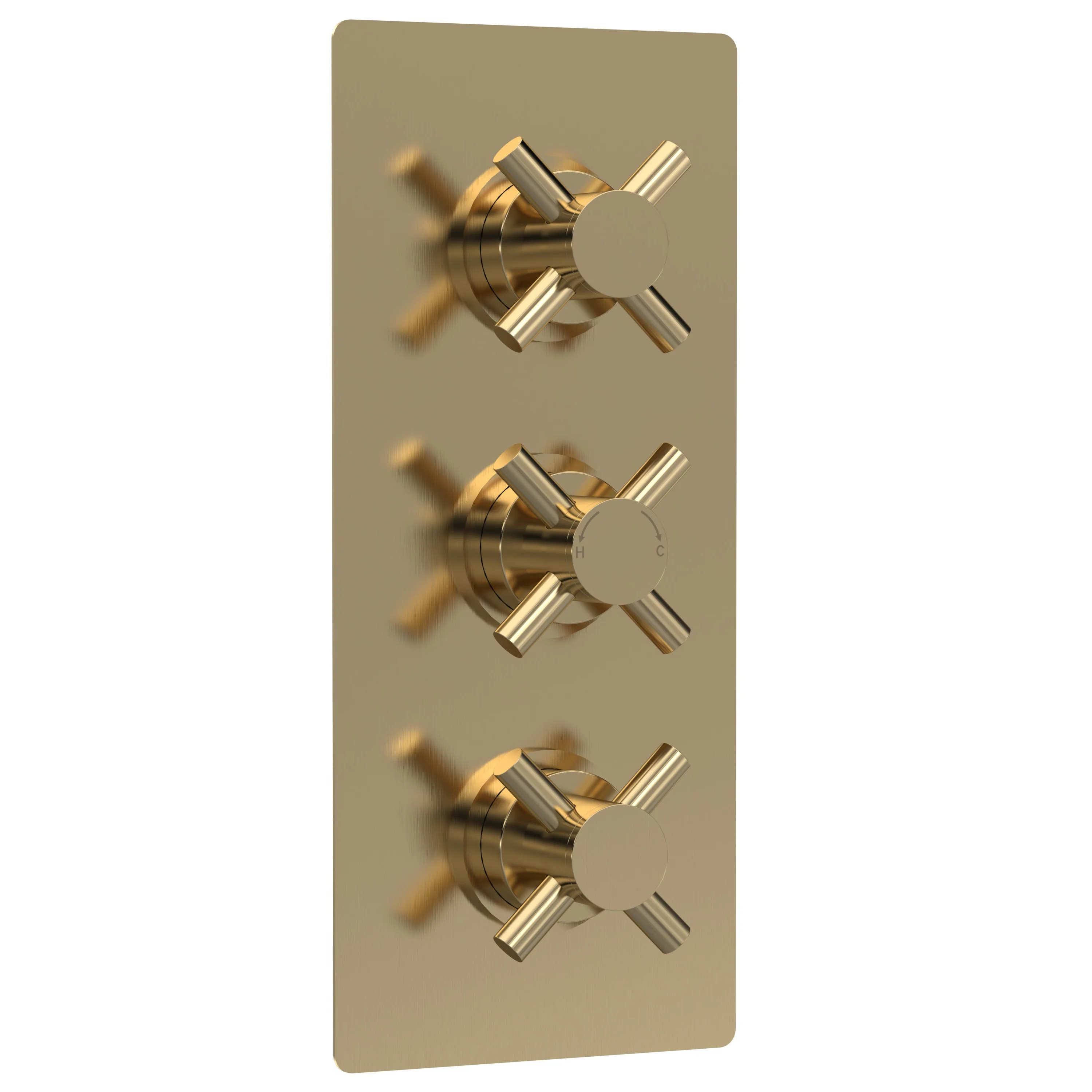

Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates. In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.

Technical Specification

• Height: 280 mm
• Weight: 5.88 kg
• Width: 120 mm
• Depth: 136 mm
• Material: Brass Abs
• Mount Type: Recessed/Wall
• Handle Type: Crosshead
• Minimum Operating Pressure (Bar): 0.1 Bar
• Valve/Cartirdge Type: 1/4 Turn
• WRAS Approved: Yes
• WRAS Approval Number: 250602040
• TMV2 Approval Number: 2603035
• TMV3 Approved: No
• Flow Rate at 0.1 Bar (L/min): 5.5000
• Flow Rate at 0.5 Bar (L/min): 14.0000
• Flow Rate at 1 Bar (L/min): 20.0000
• Flow Rate at 2 Bar (L/min): 29.0000
• Flow Rate at 3 Bar (L/min): 44.0000
• Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
