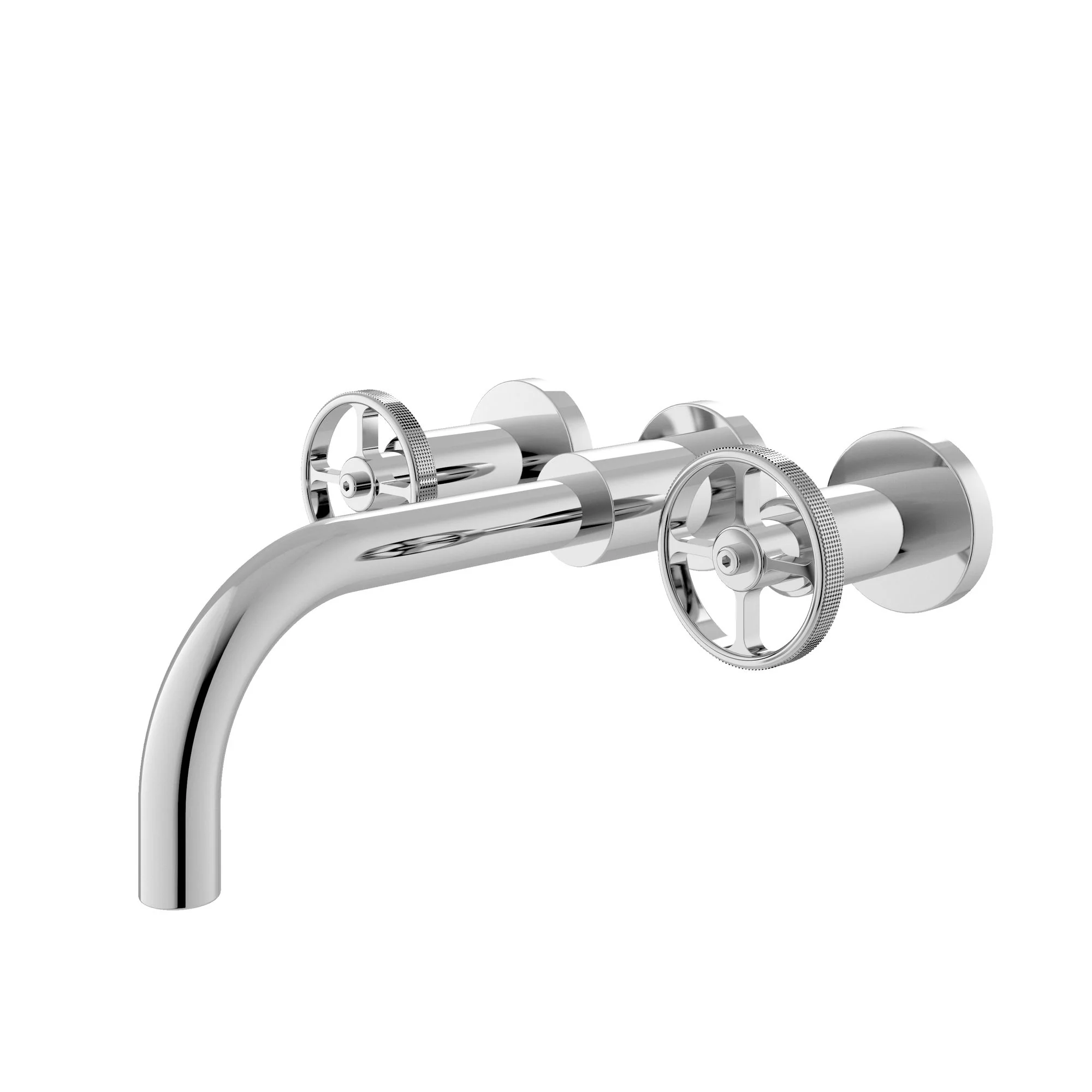

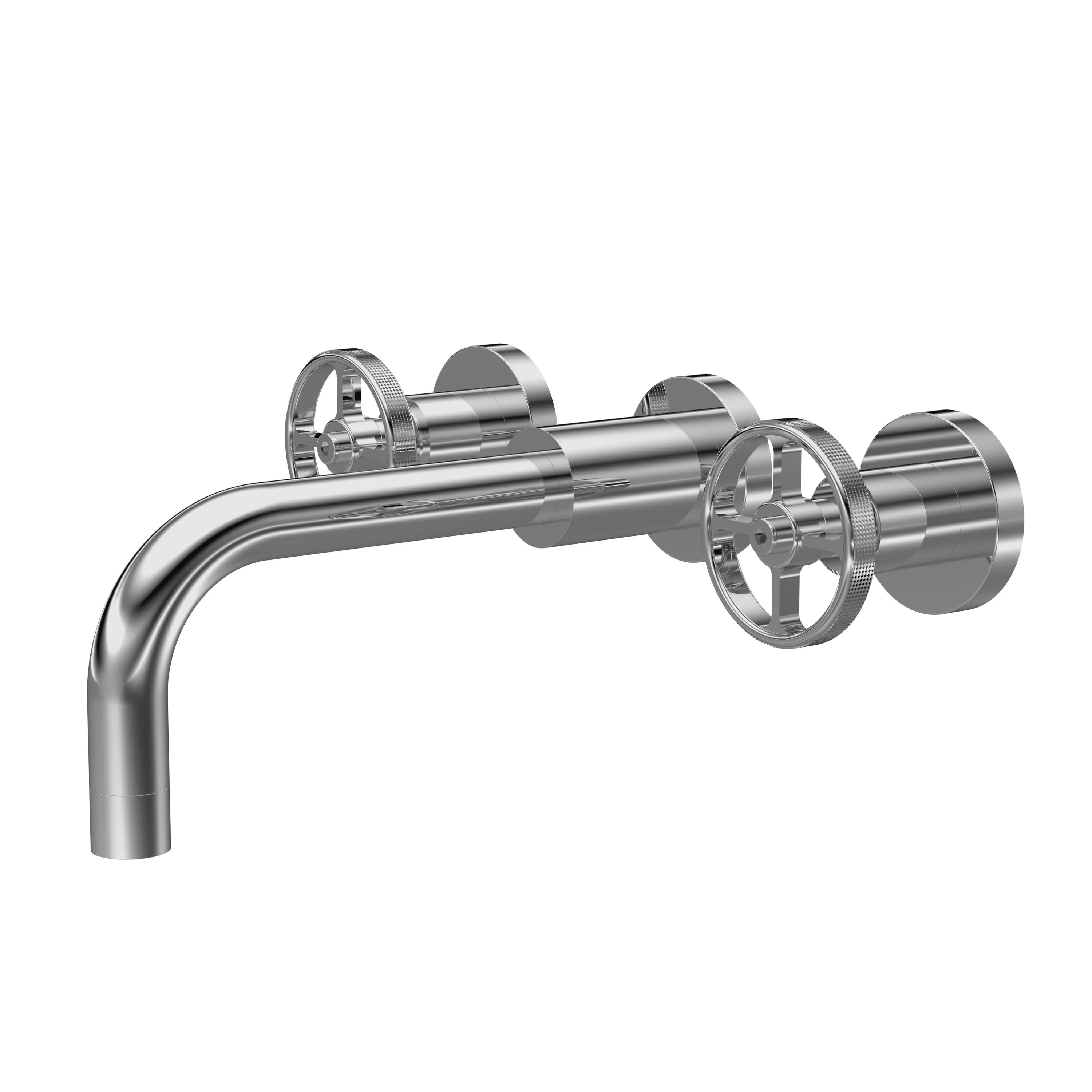

Industrial style wall mounted basin mixer giving a unique design. High quality brass internals with a luxury chrome finish. Features ceramic disc technology for smooth operation. WRAS approved.

Technical Specification

• Height: 113 mm
• Weight: 2.1 kg
• Width: 255 mm
• Depth: 220 mm
• Material: Brass
• Waste: No
• Mount Type: Wall
• Handle Type: Crosshead
• Minimum Operating Pressure (Bar): 0.1 Bar
• Valve/Cartirdge Type: 1/4 Turn Ceramic Disc
• WRAS Approved: Yes
• WRAS Approval Number: 2204064
• TMV2 Approved: No
• TMV3 Approved: No
• Flow Rate at 0.1 Bar (L/min): 5.0000
• Flow Rate at 0.5 Bar (L/min): 12.0000
• Flow Rate at 1 Bar (L/min): 16.0000
• Flow Rate at 2 Bar (L/min): 22.0000
• Flow Rate at 3 Bar (L/min): 27.0000
• Tap Holes Required: 3
• Tap Spout Projection: 210.0000 mm
• Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
