Part of the Hudson Reed Topaz range, built for daily use, this Hudson Reed shower valve combines sleek, design-led styling with smooth water control. It offers WRAS-approved fittings for safe, regulation-compliant water delivery, complemented by TMV2-approved temperature control for safer use around the home. A reliable showering system for main bathrooms and en-suites.

• Traditional design
• Brass and ABS construction
• Brushed Pewter finish
• Shower valve with 2 outlets and diverter
• Concealed installation
• Manual control
• WRAS & TMV2 approved
• Available in a range of finishes
• Ceramic disc cartridge

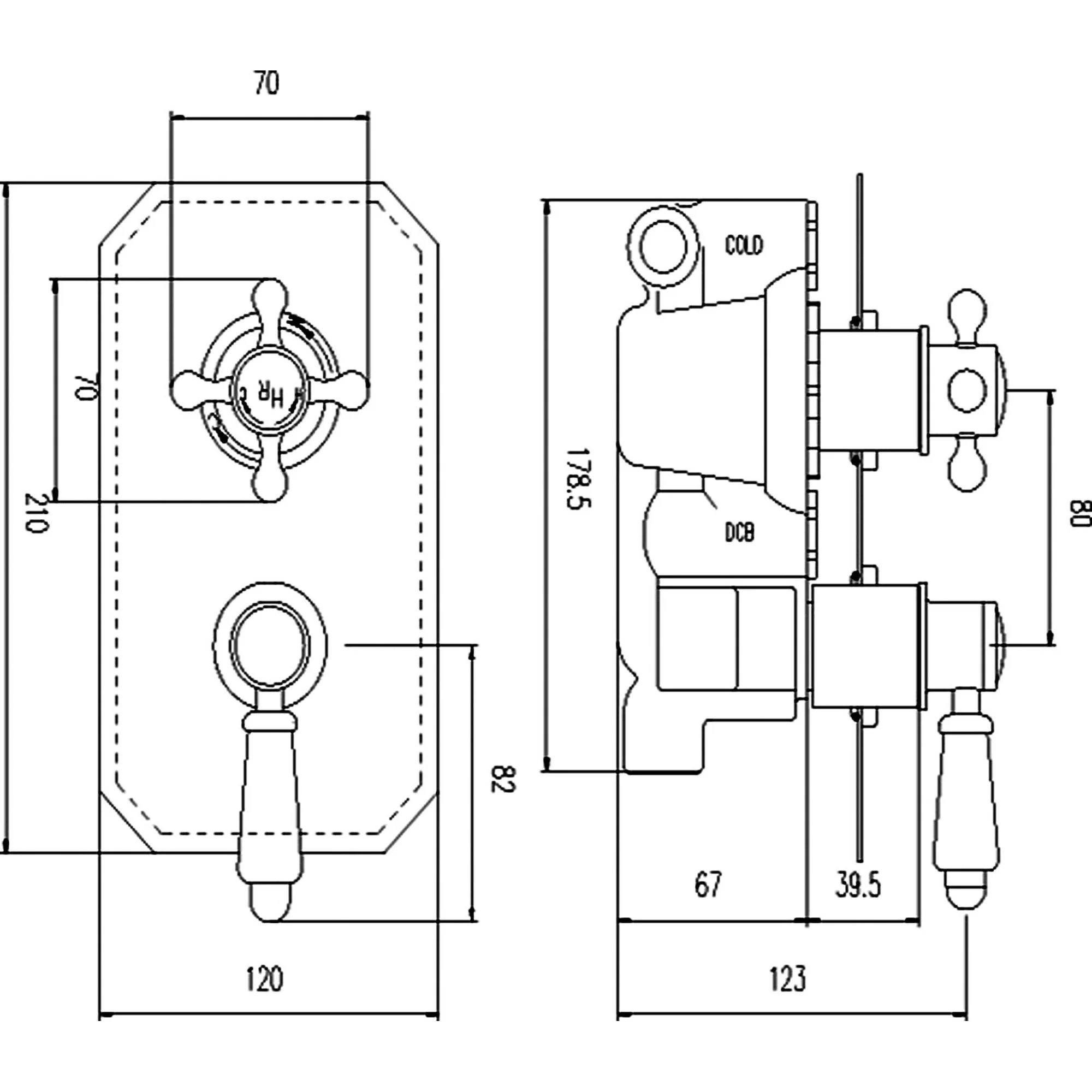

Technical Specification

• Height: 230 mm
• Weight: 2.8 kg
• Width: 120 mm
• Depth: 135 mm

• Material: Brass Abs
• Mount Type: Wall Hung
• Handle Type: Crosshead/Lever
• Minimum Operating Pressure (Bar): 0.1
• Valve/Cartridge Type: 1/4 Turn
• WRAS Approved: Yes
• WRAS Approval Number: 250602040
• TMV2 Approved: Yes
• TMV2 Approval Number: 2603035
• TMV3 Approved: No
• Flow Rate at 0.1 Bar (L/min): 5.5
• Flow Rate at 0.5 Bar (L/min): 14
• Flow Rate at 1 Bar (L/min): 20
• Flow Rate at 2 Bar (L/min): 29
• Flow Rate at 3 Bar (L/min): 44


Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
