A traditional crosshead from Hudson Reed that pairs sleek, design-led styling with ergonomic, comfortable operation. Featuring solid brass body for long-lasting, dependable use. A well-finished fitting that coordinates with a range of basin and bath styles. A polished addition designed to coordinate with the wider bathroom range.

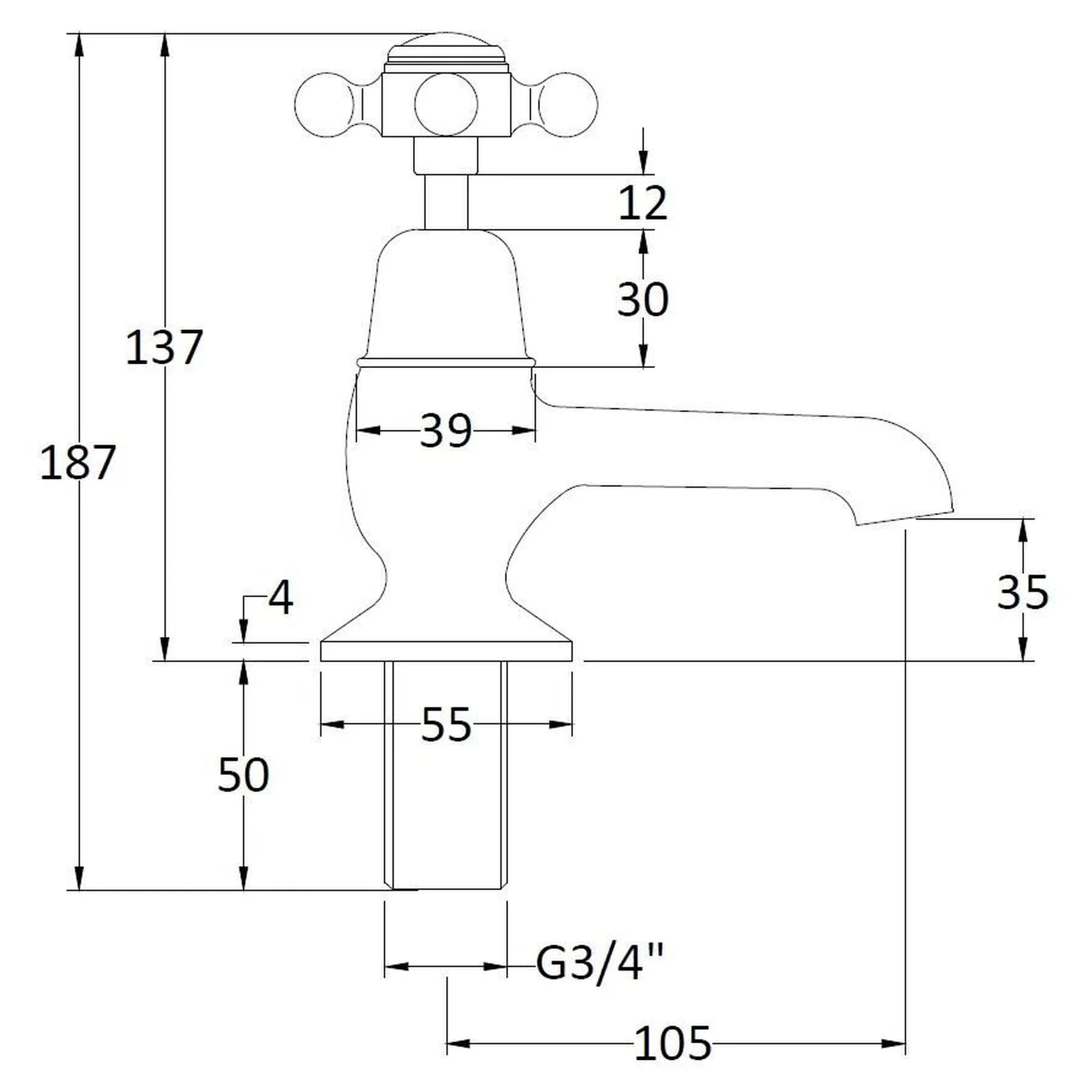

Technical Specification

Height: 137 mm

Weight: 1.89 kg

Width: 66 mm

Depth: 119 mm

Length:

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 10

Flow Rate at 0.5 Bar (L/min): 36.200000000000003

Flow Rate at 1 Bar (L/min): 53

Flow Rate at 2 Bar (L/min): 75.7

Flow Rate at 3 Bar (L/min): 92

Tap Holes Required: 2

Tap Spout Projection: 105

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
