Part of the Hudson Reed Topaz range, built for daily use, this Hudson Reed bath filler combines sleek, design-led styling with reliable water delivery. It offers solid brass body for long-lasting, dependable use. A well-finished fitting that coordinates with a range of basin and bath styles.

Technical Specification

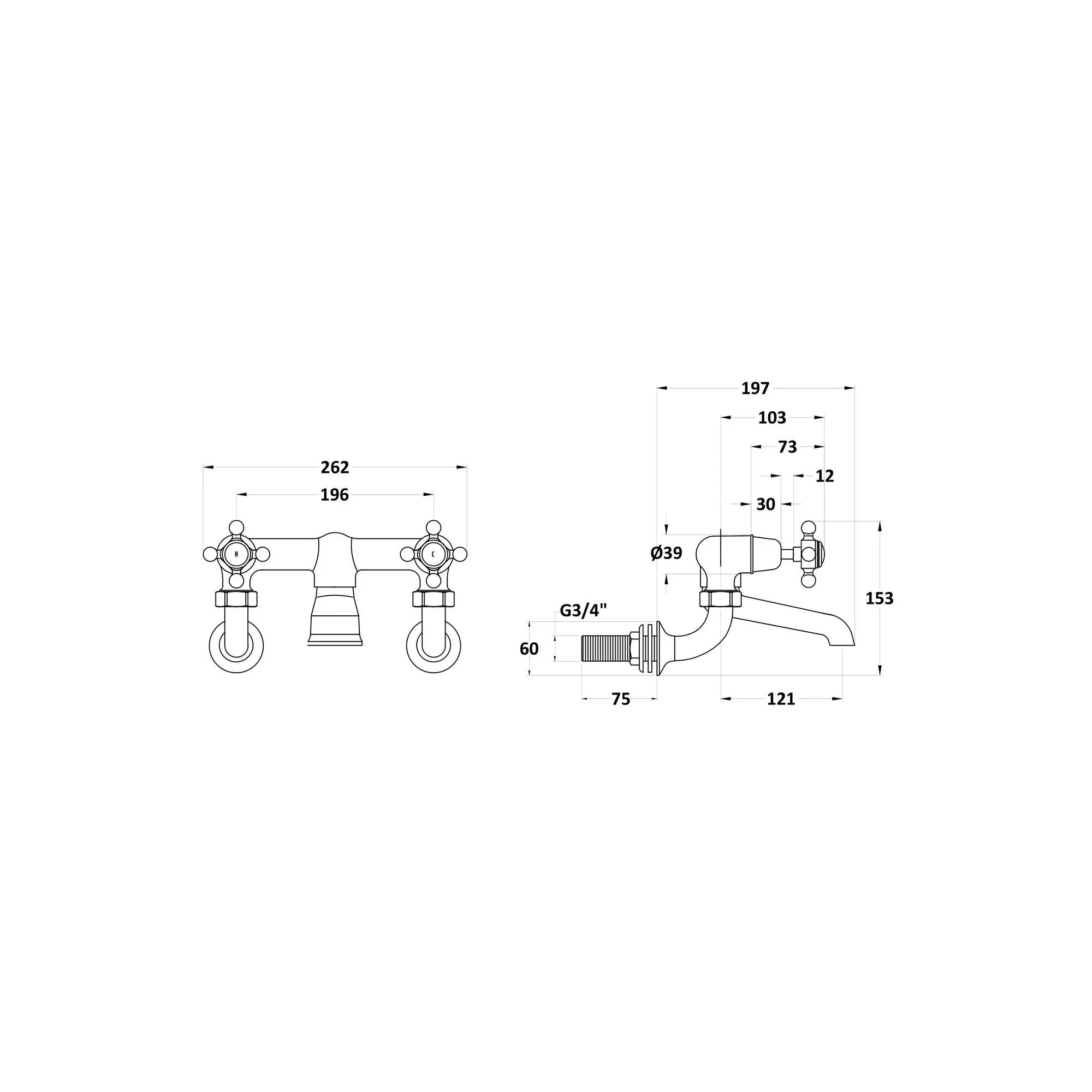

Height: 142 mm

Weight: 2 kg

Width: 262 mm

Depth: 197 mm

Length:

Material: Brass

Waste: No

Mount Type: Wall Hung

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.2

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 10.6

Flow Rate at 0.5 Bar (L/min): 28.6

Flow Rate at 1 Bar (L/min): 41.4

Flow Rate at 2 Bar (L/min): 59

Flow Rate at 3 Bar (L/min): 72.8

Tap Holes Required: 2

Tap Spout Projection: 121

Pipe Centres: 196

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
