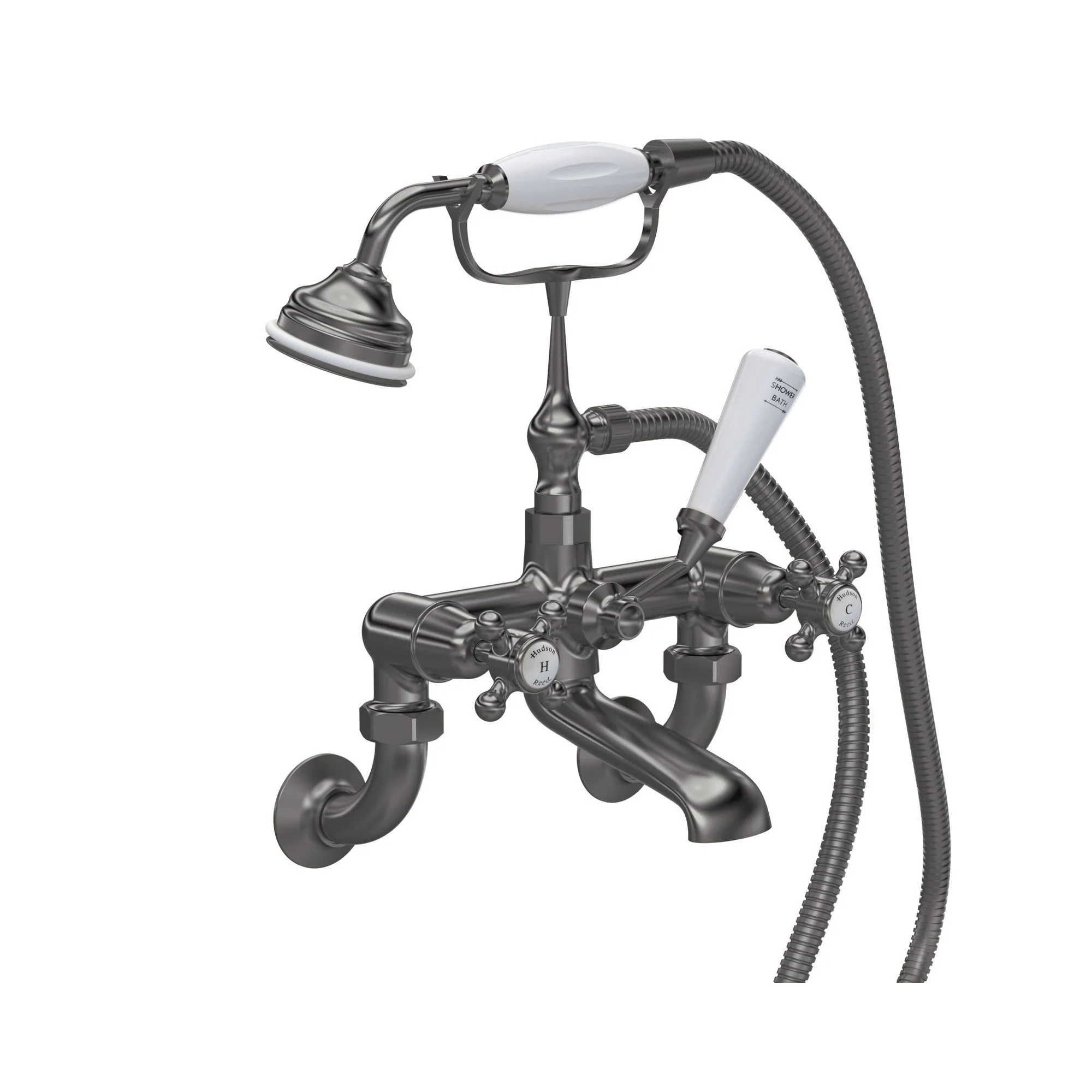

Part of the Hudson Reed Topaz range, built for daily use, this Hudson Reed bath shower mixer combines polished finishes that hold up to daily use with reliable water delivery. It offers solid brass body for long-lasting, dependable use. A dependable choice for daily use across the bathroom.

Technical Specification

Height: 320 mm

Weight: 4.7 kg

Width: 350 mm

Depth: 155 mm

Length:

Material: Brass

Waste: No

Mount Type: Wall Hung

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.2

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 10.6

Flow Rate at 0.5 Bar (L/min): 28.6

Flow Rate at 1 Bar (L/min): 41.4

Flow Rate at 2 Bar (L/min): 59

Flow Rate at 3 Bar (L/min): 72.8

Tap Holes Required: 2

Tap Spout Projection: 121

Pipe Centres: 196

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
