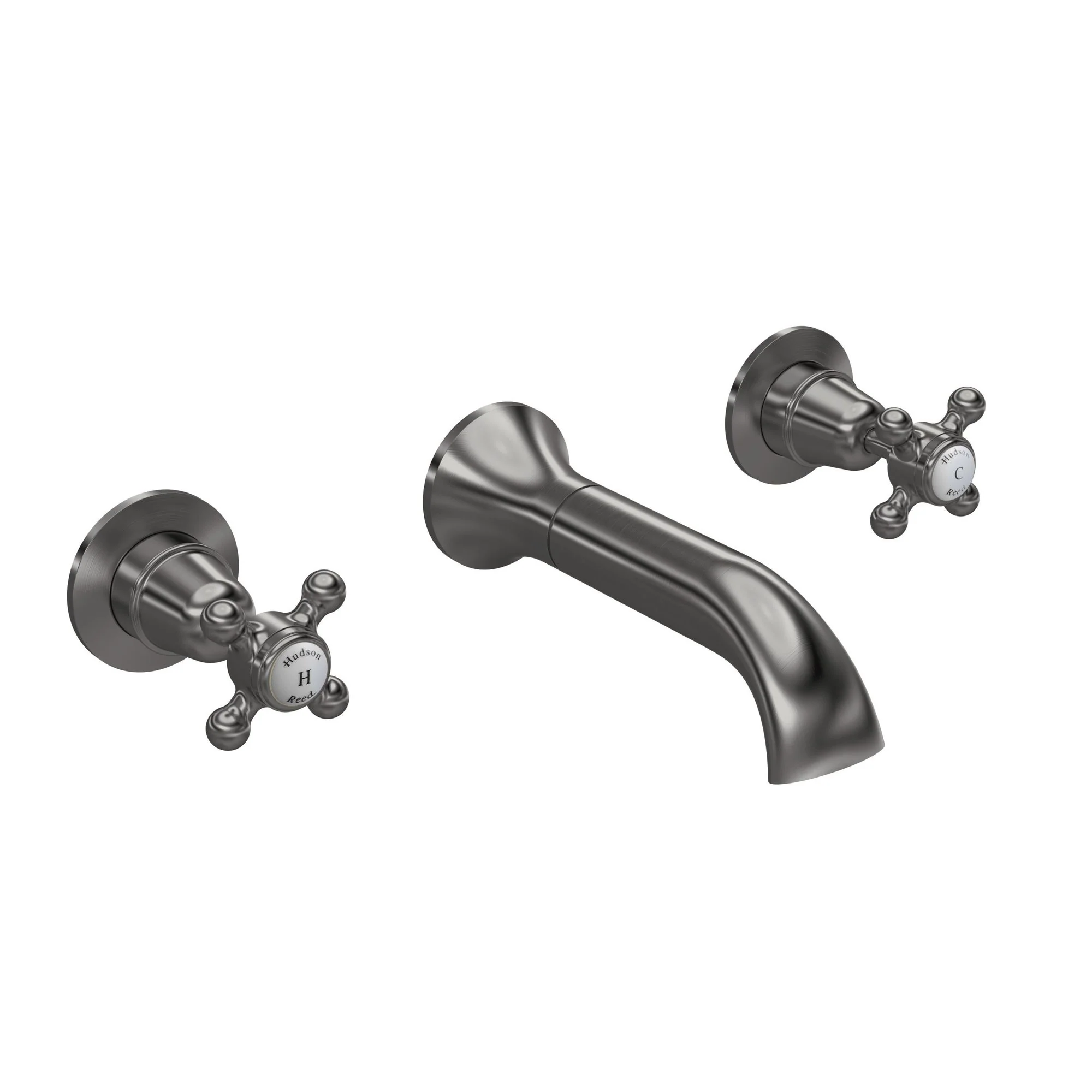

A traditional crosshead from Hudson Reed that pairs polished finishes that hold up to daily use with ergonomic, comfortable operation. Featuring solid brass body for long-lasting, dependable use. A dependable choice for daily use across the bathroom. A design-led choice that complements coordinated bathroom schemes.

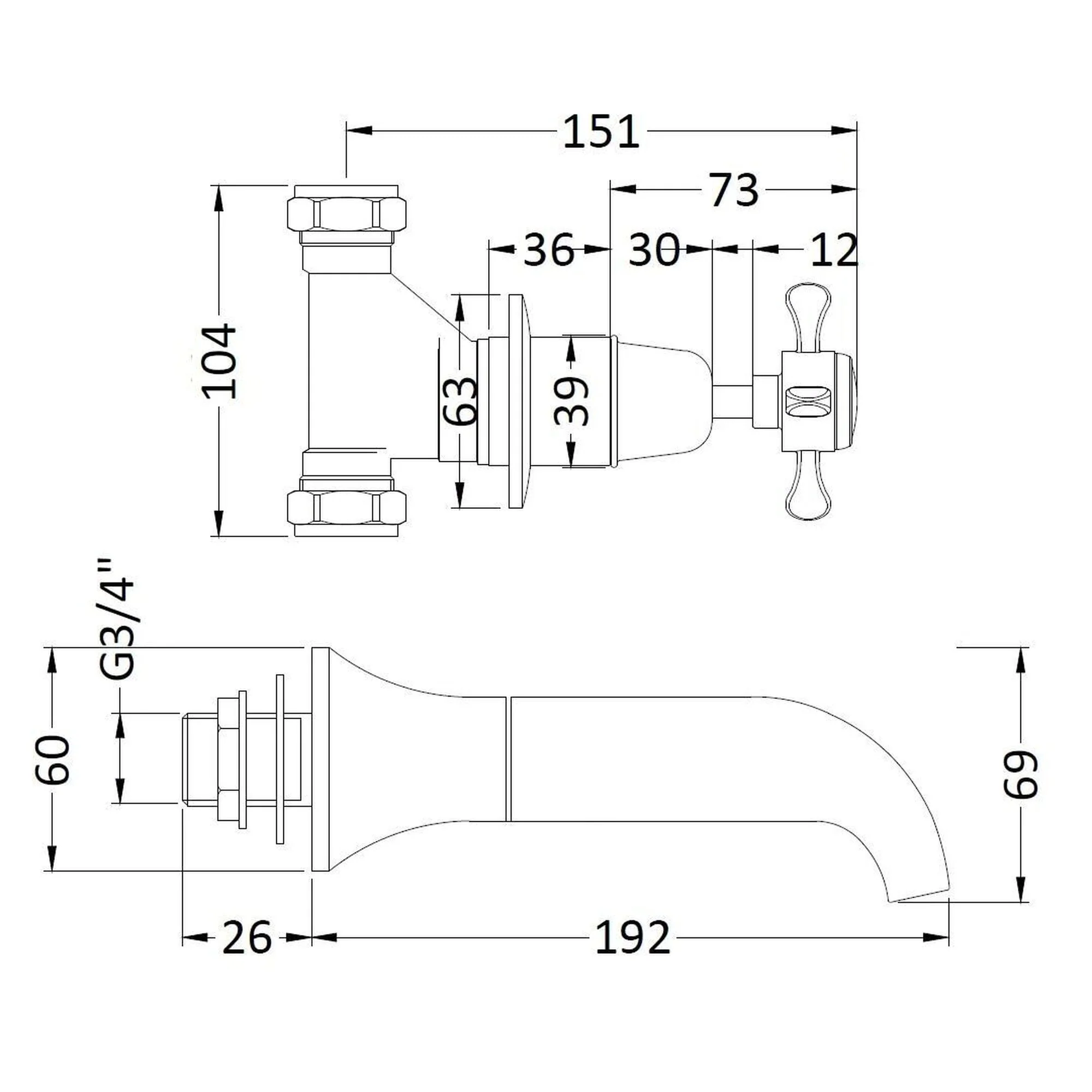

Technical Specification

Height: 69 mm

Weight: 2.5 kg

Width:

Depth: 218 mm

Length:

Material: Brass

Waste: No

Mount Type: Wall Hung

Handle Type: Crosshead

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 10.6

Flow Rate at 0.5 Bar (L/min): 28.6

Flow Rate at 1 Bar (L/min): 41.4

Flow Rate at 2 Bar (L/min): 59

Flow Rate at 3 Bar (L/min): 72.8

Tap Holes Required: 3

Tap Spout Projection: 192

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
