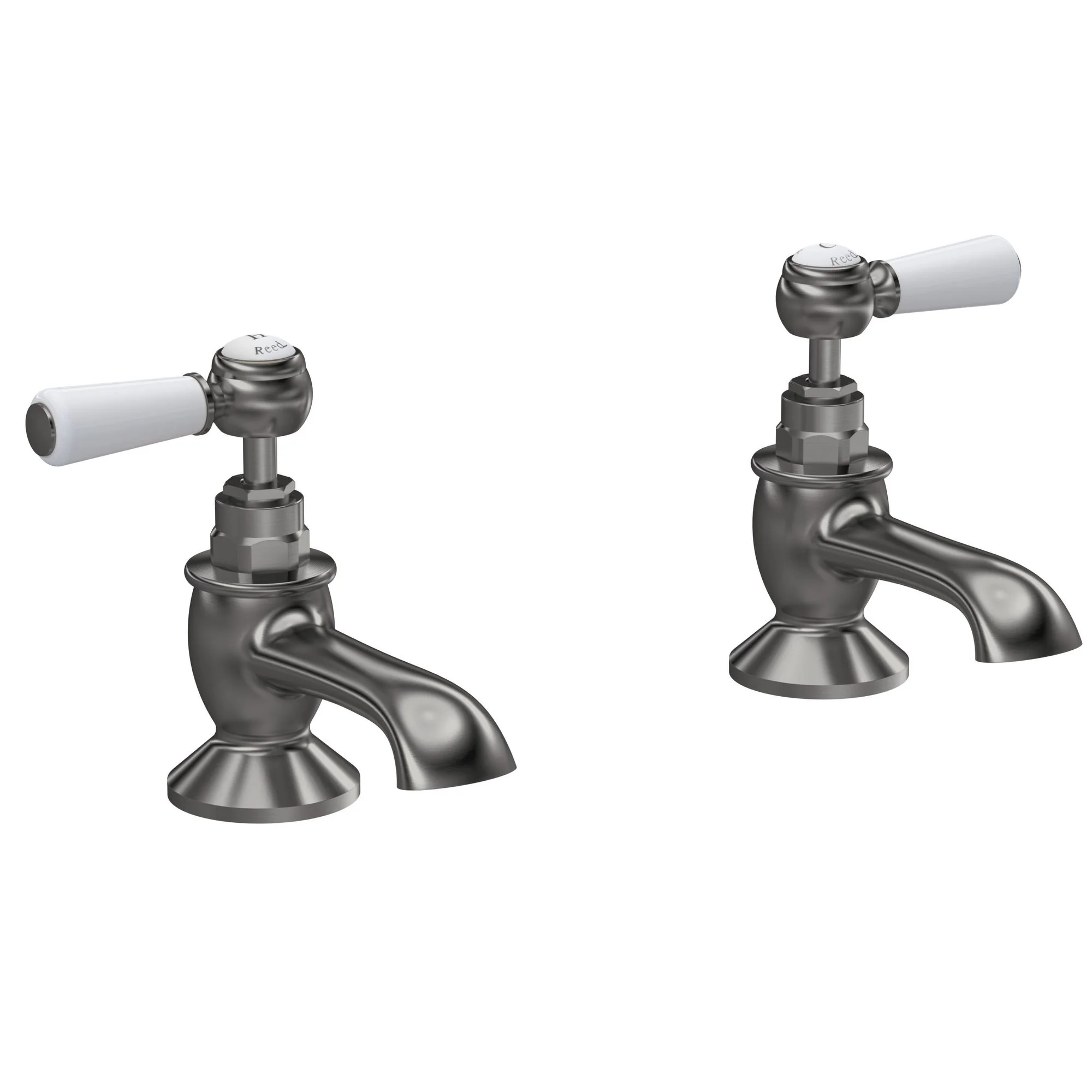

This Hudson Reed handle brings coordinated bathroom solutions to the basin area with a polished, traditional appearance. Equipped with solid brass body for long-lasting, dependable use. Well suited to main bathrooms, en-suites, and cloakrooms. Built for lasting good looks and everyday reliability.

Technical Specification

Height: 141 mm

Weight: 1.9 kg

Width: 66 mm

Depth: 138 mm

Length:

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Lever

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 6.4

Flow Rate at 0.5 Bar (L/min): 16.2

Flow Rate at 1 Bar (L/min): 23.4

Flow Rate at 2 Bar (L/min): 33.5

Flow Rate at 3 Bar (L/min): 41

Tap Holes Required: 2

Tap Spout Projection: 105

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
