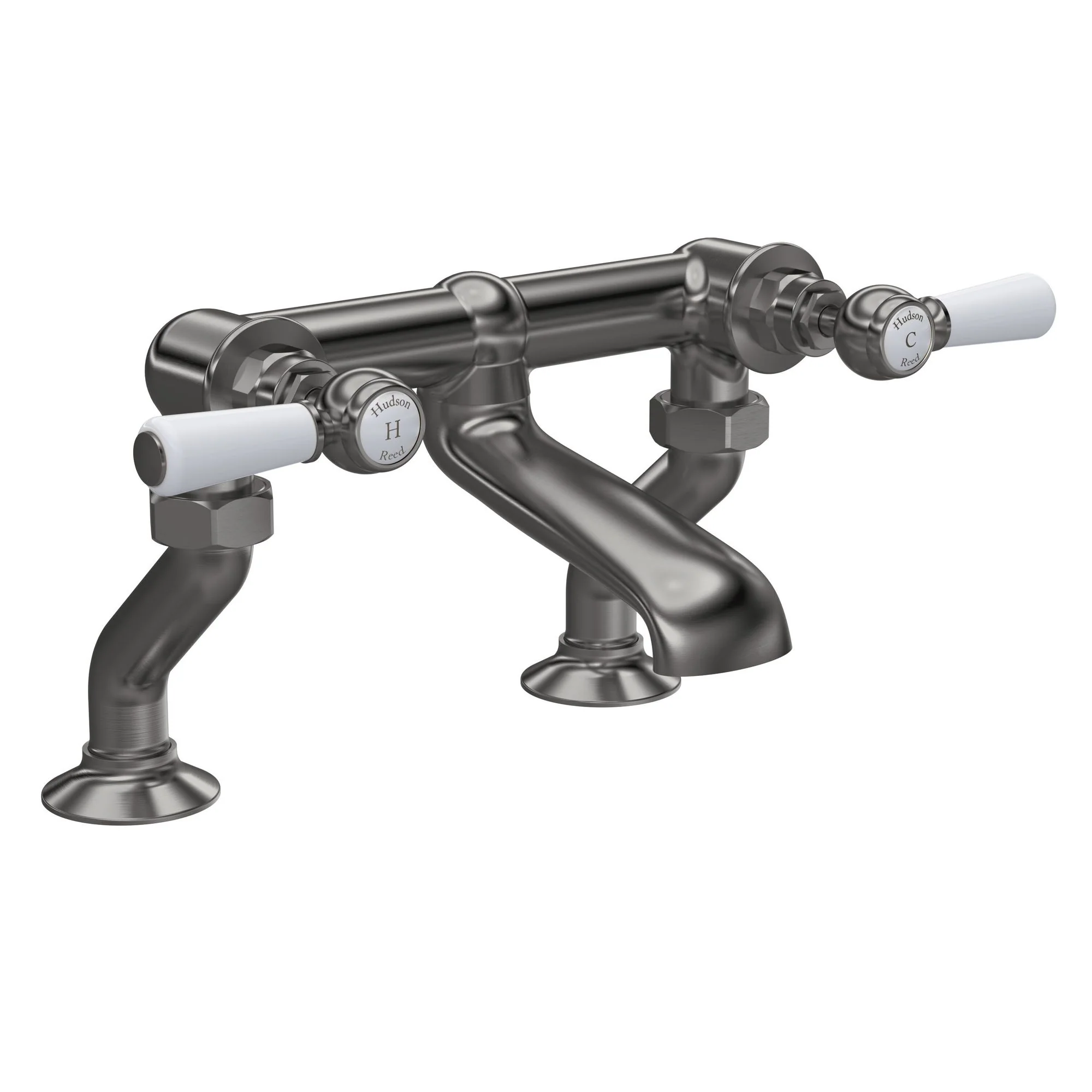

Part of the Hudson Reed Topaz range, this Hudson Reed bath filler delivers smooth water control with coordinated bathroom solutions and a traditional finish. Built with solid brass body for long-lasting, dependable use. Well suited to main bathrooms, en-suites, and cloakrooms.

Technical Specification

Height: 175 mm

Weight: 2 kg

Width: 338 mm

Depth: 217 mm

Length:

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Lever

Minimum Operating Pressure (Bar): 0.2

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 5

Flow Rate at 0.5 Bar (L/min): 16

Flow Rate at 1 Bar (L/min): 24

Flow Rate at 2 Bar (L/min): 33

Flow Rate at 3 Bar (L/min): 38

Tap Holes Required: 2

Tap Spout Projection: 121

Pipe Centres: 90-300

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
