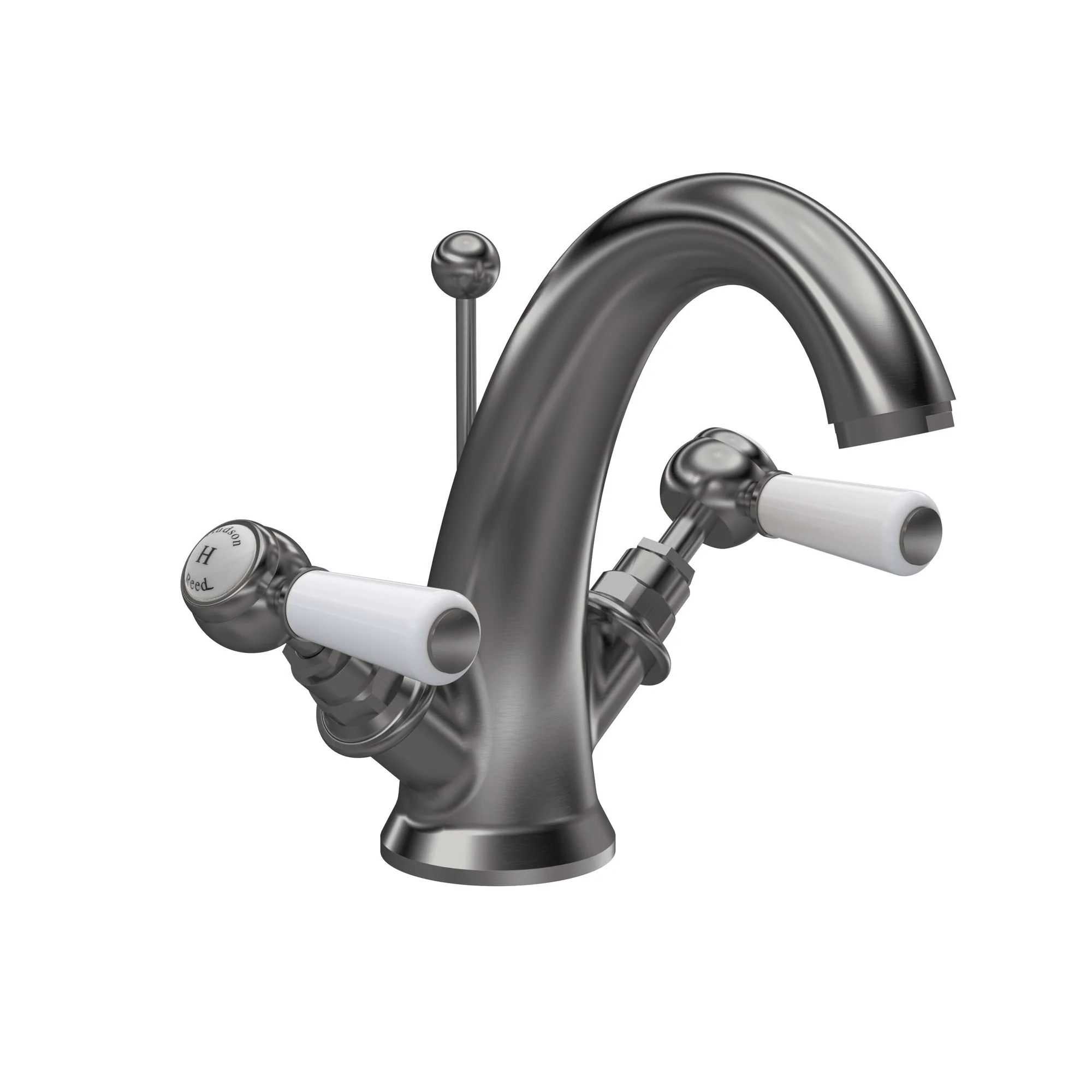

This Hudson Reed basin mixer brings sleek, design-led styling to the basin area with a polished, traditional appearance. Equipped with solid brass body for long-lasting, dependable use. A well-finished fitting that coordinates with a range of basin and bath styles.

Technical Specification

Height: 176 mm

Weight: 2.4 kg

Width: 214 mm

Depth: 158 mm

Length:

Material: Brass

Waste: Yes

Mount Type: Deck

Handle Type: Lever

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 10.6

Flow Rate at 0.5 Bar (L/min): 28.6

Flow Rate at 1 Bar (L/min): 41.4

Flow Rate at 2 Bar (L/min): 59

Flow Rate at 3 Bar (L/min): 72.8

Tap Holes Required: 1

Tap Spout Projection: 130

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
