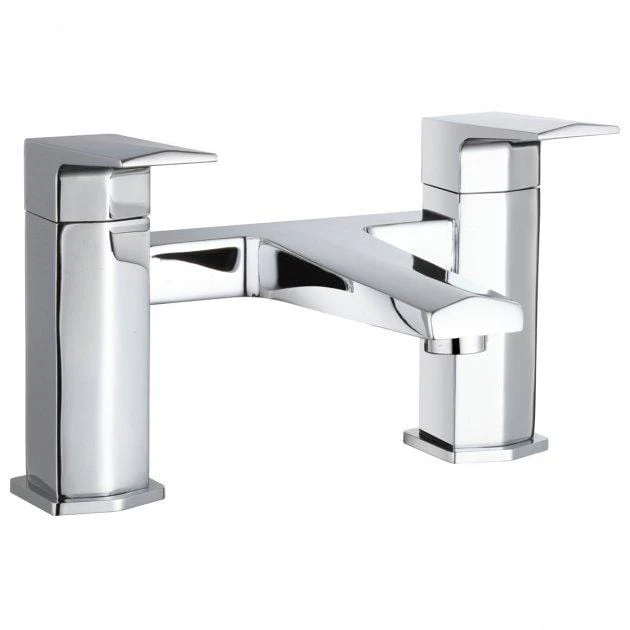

Squared off edges and clean lines give any bath a new and updated look. Ceramic disc technology for long life and smooth operation. High quality brass internals with luxury chrome finish.

Technical Specification

Height: 151 mm

Weight: 2.39 kg

Width: 230 mm

Depth: 175 mm

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Lever/Square

Minimum Operating Pressure (Bar): 0.1 Bar

Valve/Cartirdge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 4.9000

Flow Rate at 0.5 Bar (L/min): 11.8000

Flow Rate at 1 Bar (L/min): 17.1000

Flow Rate at 2 Bar (L/min): 24.2000

Flow Rate at 3 Bar (L/min): 29.8000

Tap Holes Required: 2

Tap Spout Projection: 136.0000 mm

Pipe Centres: 180

Manufacture Guarantee: 5 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
