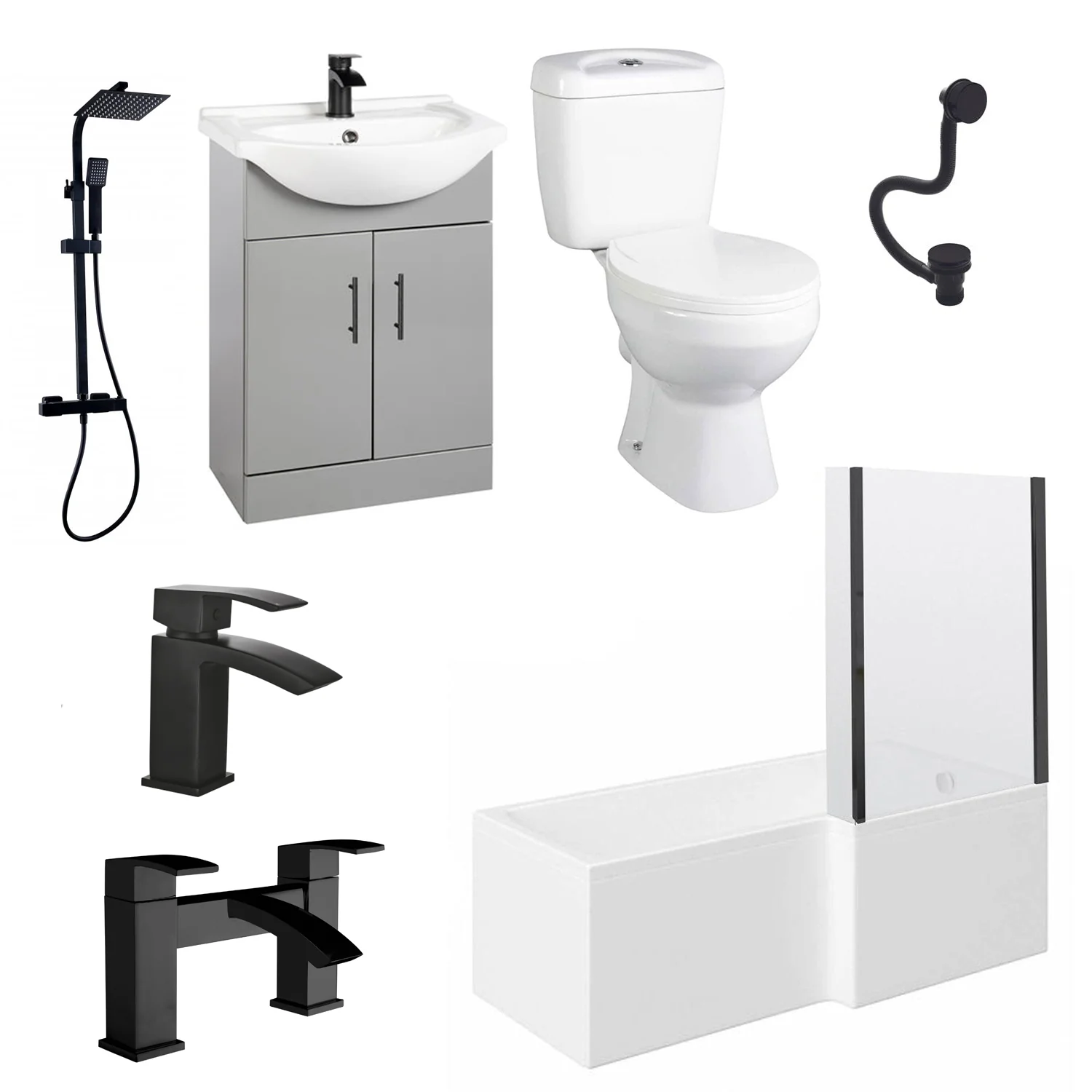

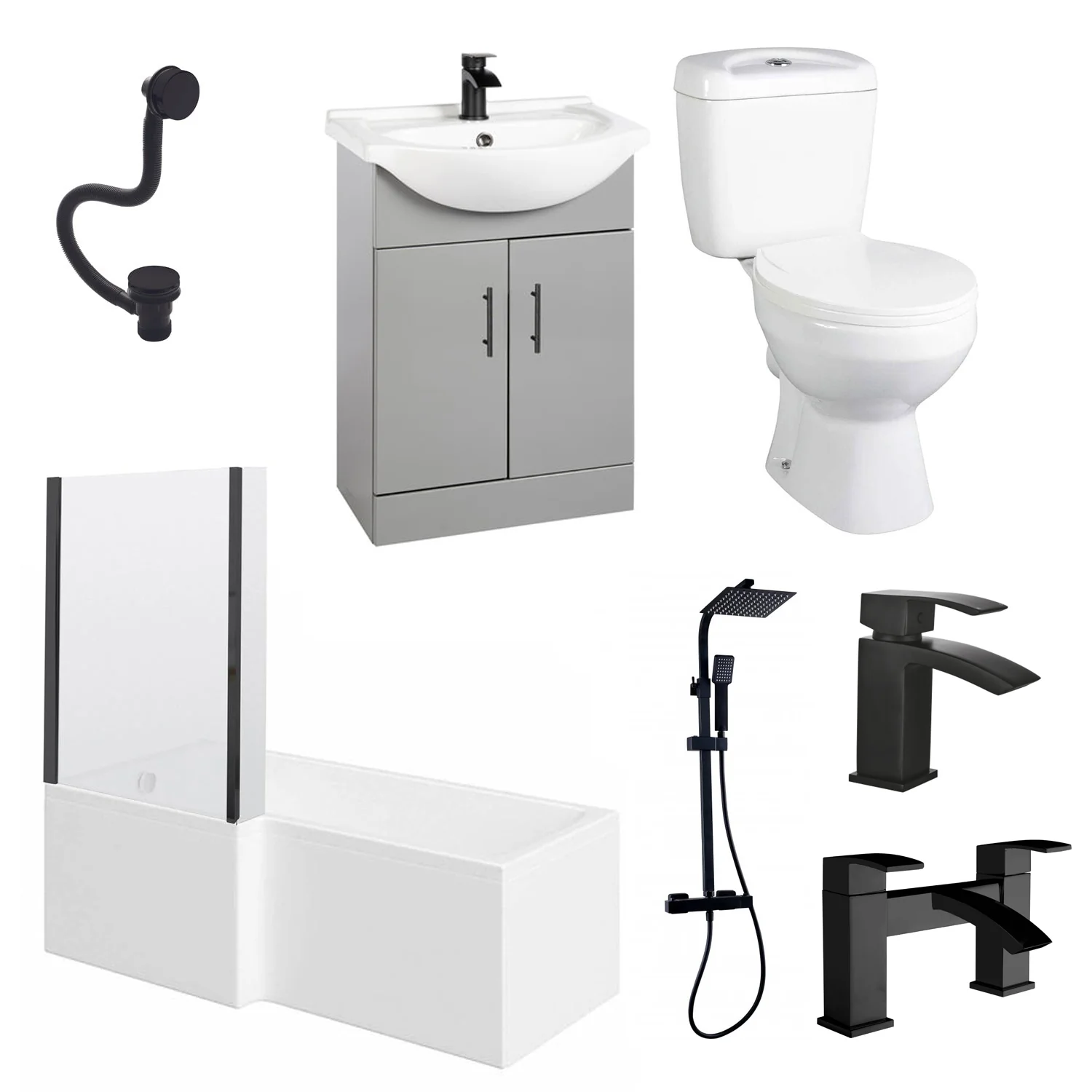

The sleek complete Mayford L Shaped Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item compliments the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination vanity set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality. Suite includes :-
Bath
Bath Screen
550mm Vanity Unit with Basin
Close Coupled Toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath Waste

Technical Specification

Bath

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 400mm + Legs
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Front Panel Included
• Excludes : End Panel



Screen

• Bath Screen Height : 1400mm
• Bath Screen Width : 808mm
• Adjustment Range : 788 - 808mm
• Toughened Glass Thickness : 6mm
• Hinged Bath Screen Design : L-Shaped with fixed small panel
• Material : Glass

• Frame Finish : Matt Black

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded



Vanity Unit

• Height (Unit & Basin): 850mm
• Width (Unit & Basin): 550mm
• Depth (Unit & Basin): 440mm
• 2-Door Design
• MDF Unit Construction
• Unit comes pre-assembled (not flat packed)
• Features Soft-Closing Door
• 1 Central Internal Shelf providing a split storage solution
• Black Door Handles
• Includes : Single Tap-Hole Ceramic Basin
• Manufacturers 5 year guarantee
• Excludes : Tap & Waste but available separately
• Gloss Mid Grey Finish

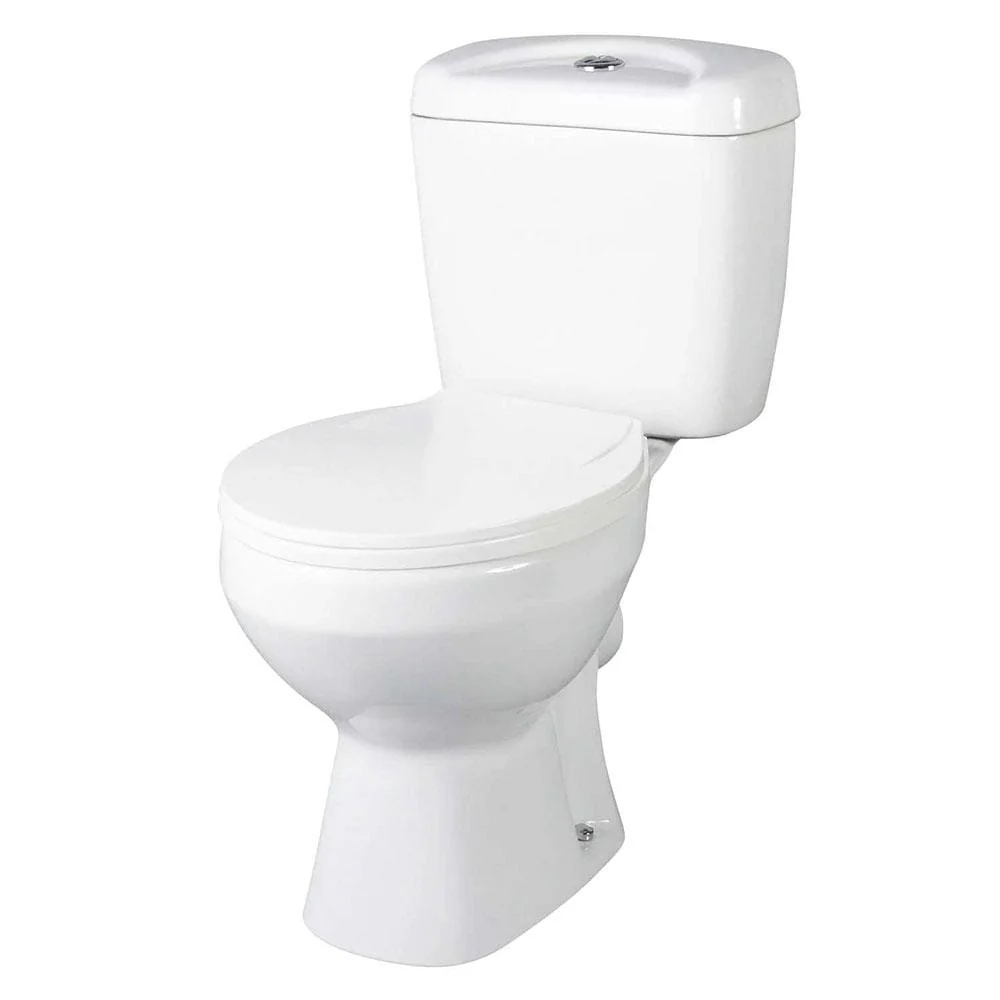

Toilet

• Toilet Total Height : 748mm
• Toilet Width : 382mm
• Toilet Projection : 635mm
• Toilet Pan Height : 380mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 26.33kg
• Includes : Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

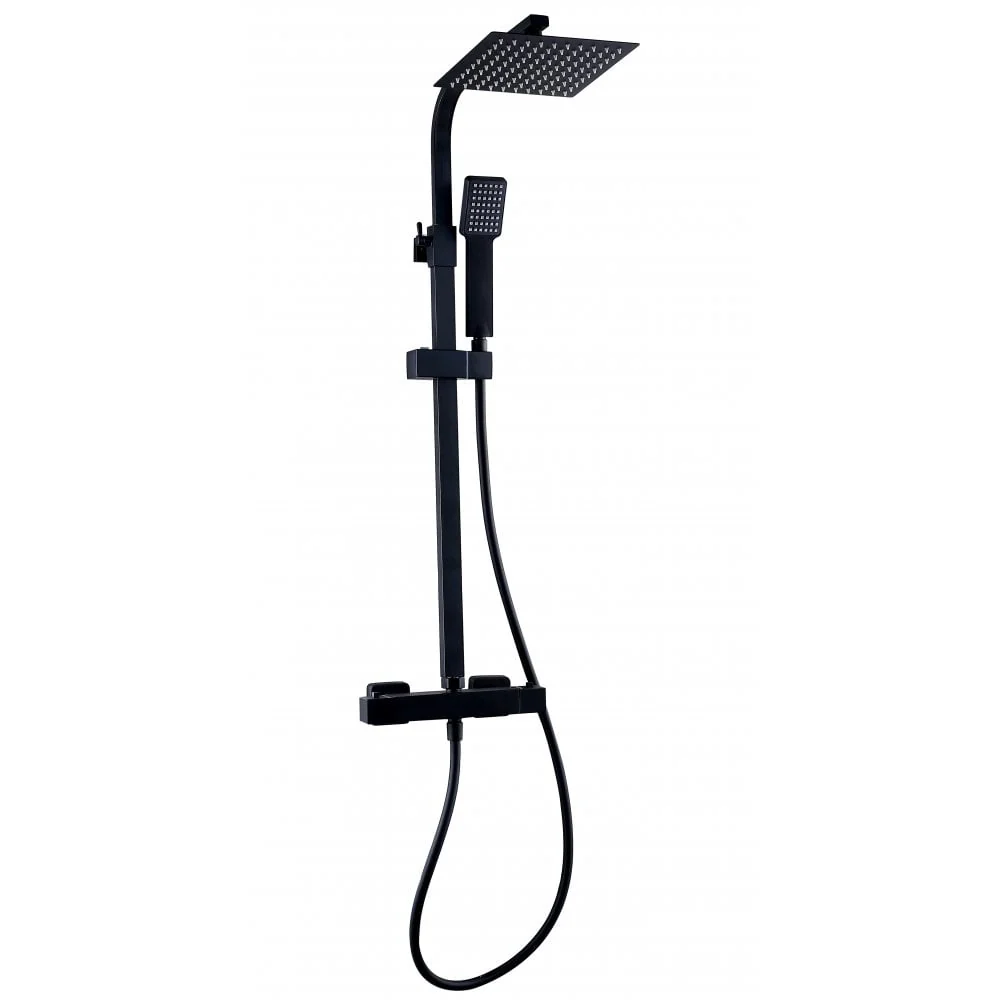

Shower

• The perfect solution to multi-option showering
• Thermostatically controlled
• Square shower head
• Square handset
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• Suitable for high pressure water systems
• Suitable for unvented mains pressure systems
• Suitable for shower pumps
• Manufactured from high quality brass & ABS with luxury matt black finish

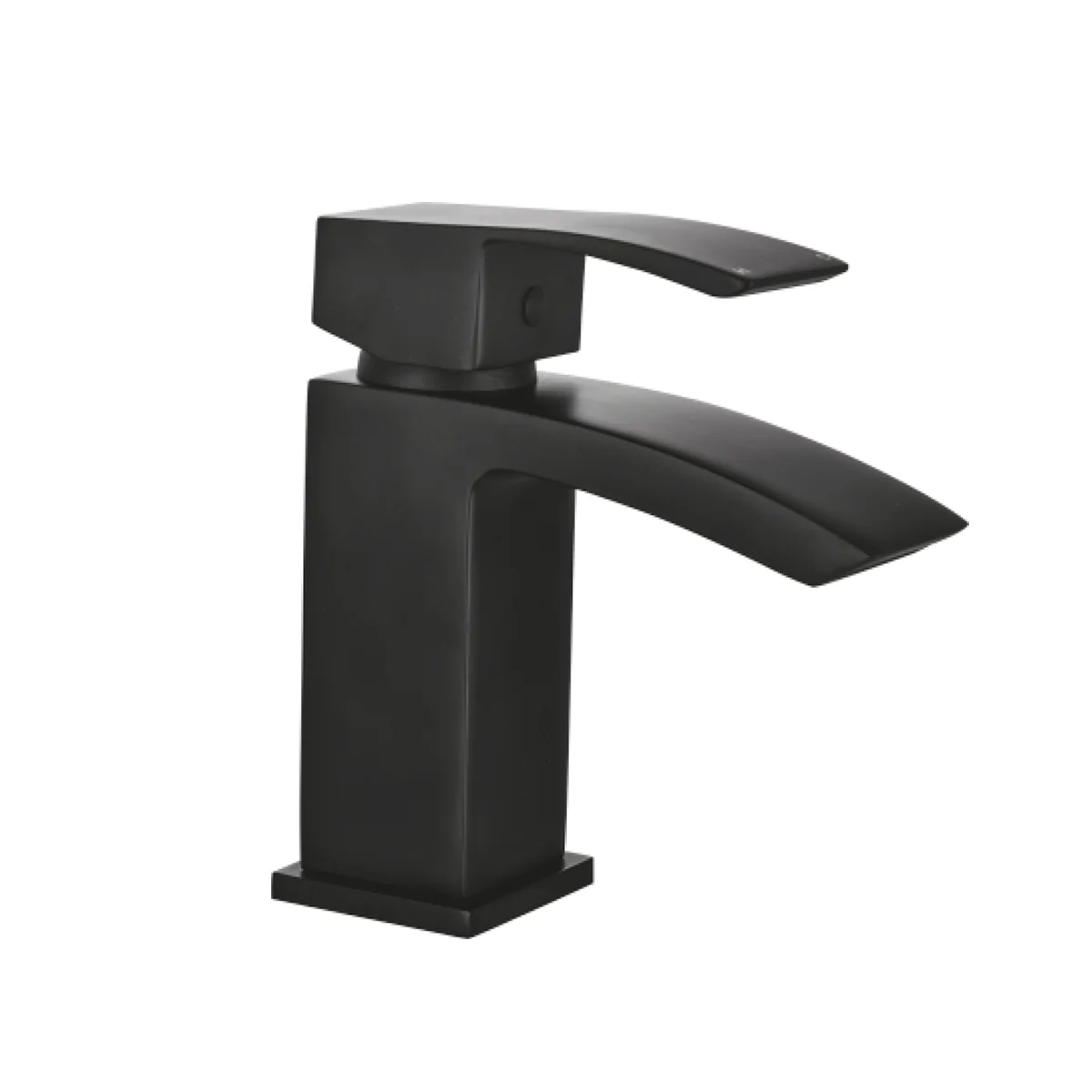

Basin Tap

• Height: 136.5mm
• Tap Spout Reach: 98mm
• Material Specification : Brass
• Finish : Black
• Operation : Single Lever
• Mounting : Deck Mounted
• Tap Hole Diameter: 35mm
• Includes Waste: Yes
• Inlet Connection: 1/2" M10
• Minimum Pressure : 0.2 Bar
• Flow Rate - 0.2 Bar 2.5 l/min
  Flow Rate - 0.5 Bar 5.6 l/min
  Flow Rate - 1.0 Bar 8.2 l/min
  Flow Rate - 2.0 Bar 11.5 l/min
  Flow Rate - 3.0 Bar 14.3 l/min

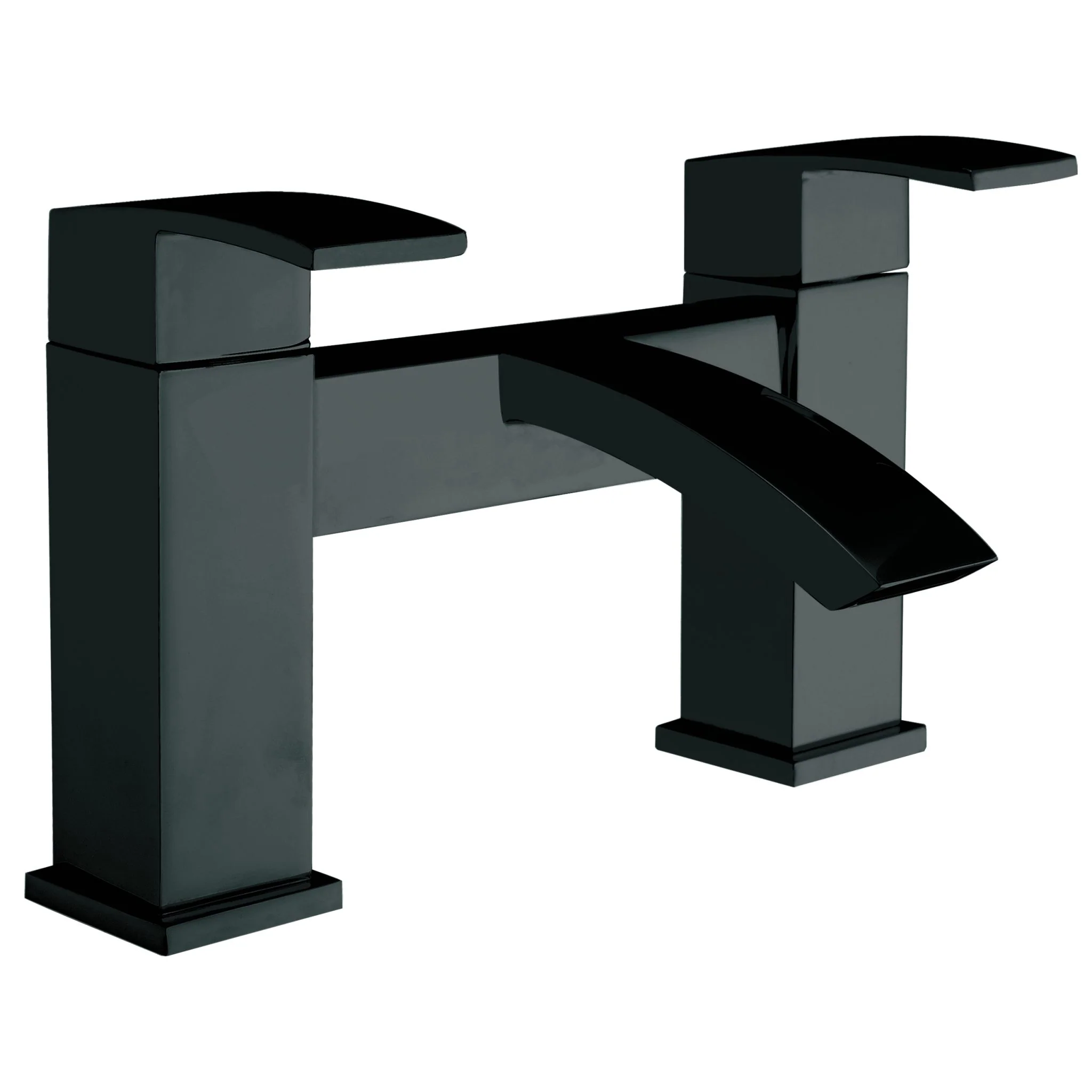

Bath Tap

• Height: 129.5mm
• Tap Spout Reach: 96.1mm
• Inlet Connection Size: 3/4 BSP
• Shape : Square
• Material Specification : Brass
• Finish : Black
• Operation : Dual Lever
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Minimum Pressure: 0.5 Bar
• Flow Rate - 0.2 Bar 15.1 l/min
  Flow Rate - 0.5 Bar 31.1 l/min
  Flow Rate - 1.0 Bar 44 l/min
  Flow Rate - 2.0 Bar 61.8 l/min
  Flow Rate - 3.0 Bar 76 l/min



Waste

• Manufactured from high quality brass with luxury black finish
• Easy clean design
