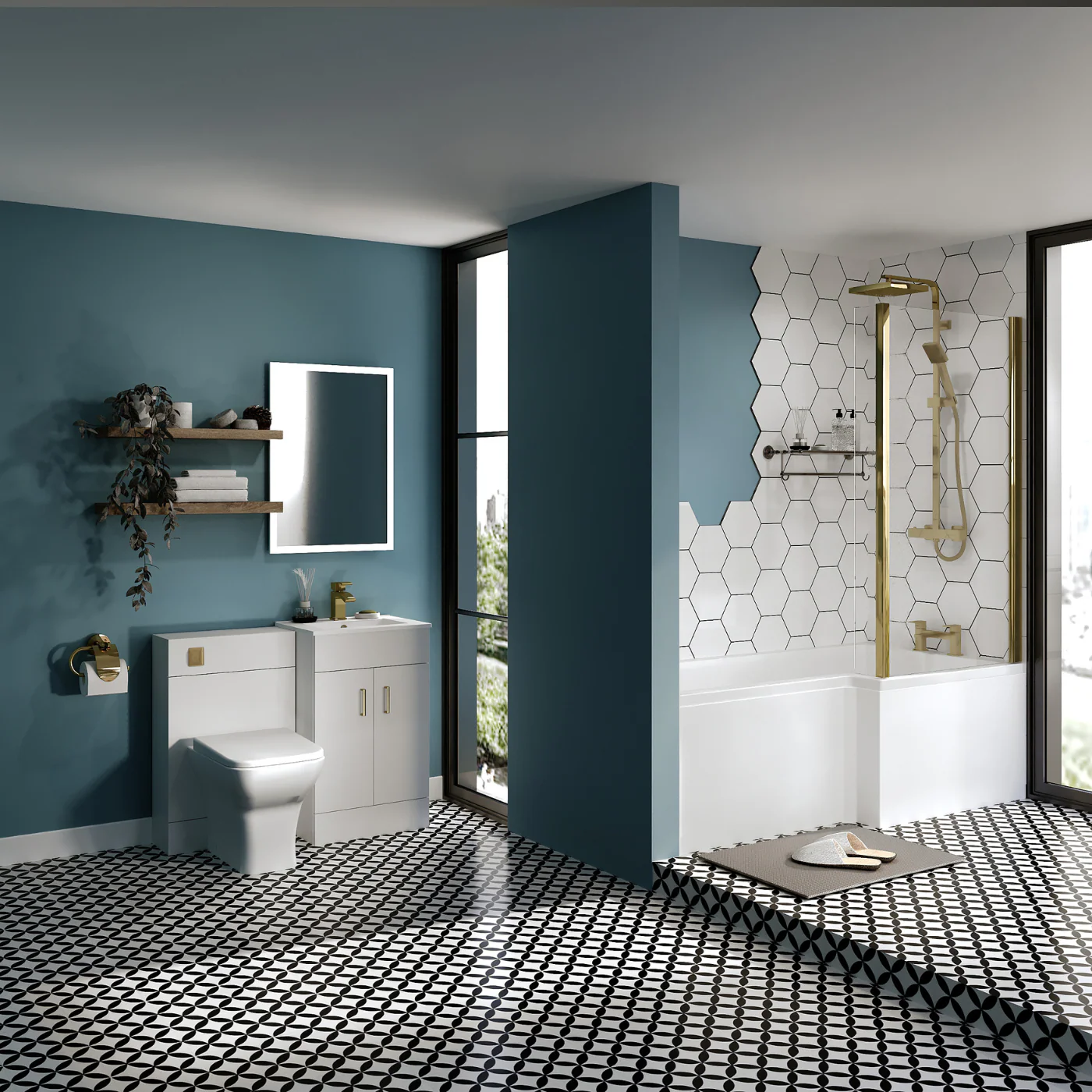

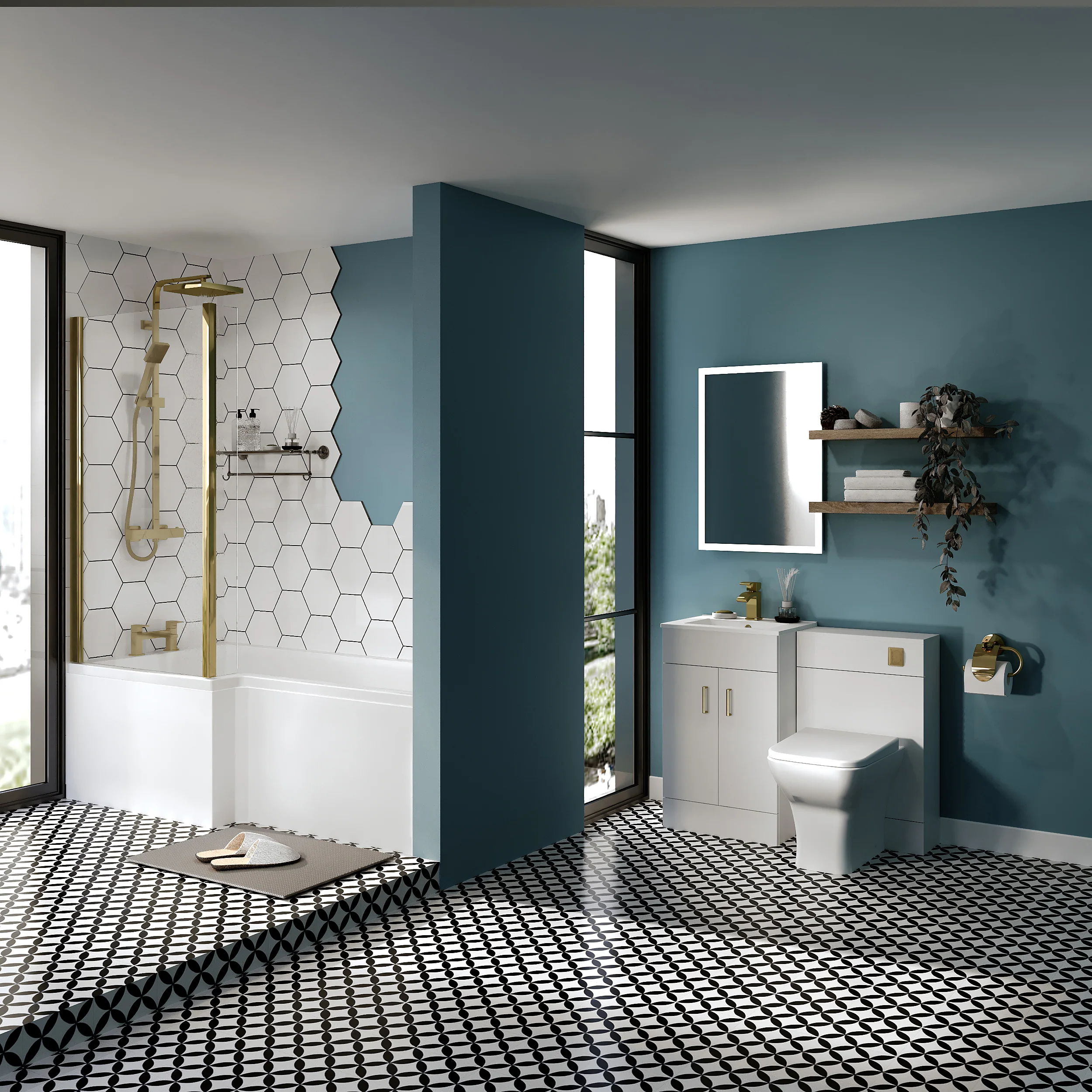

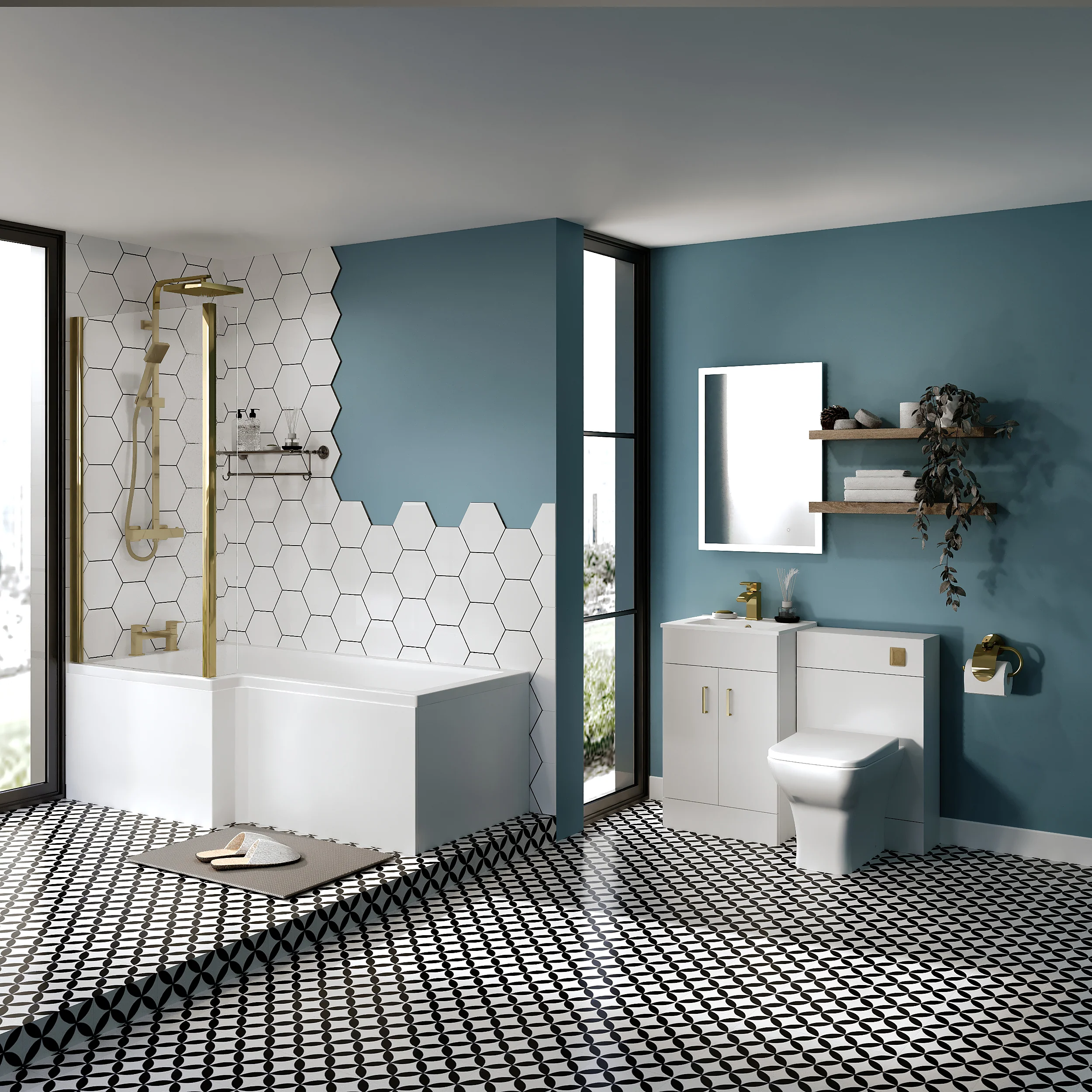

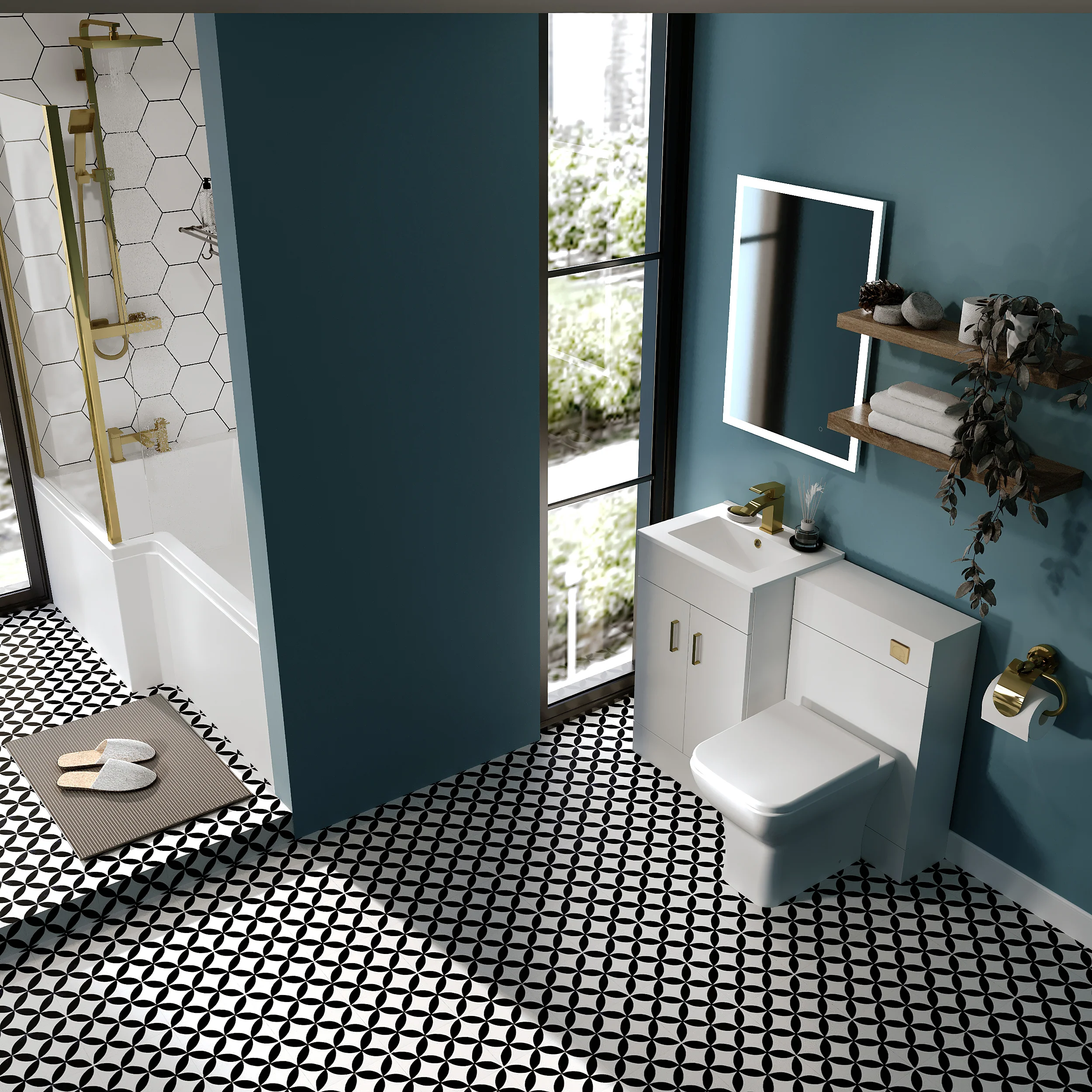

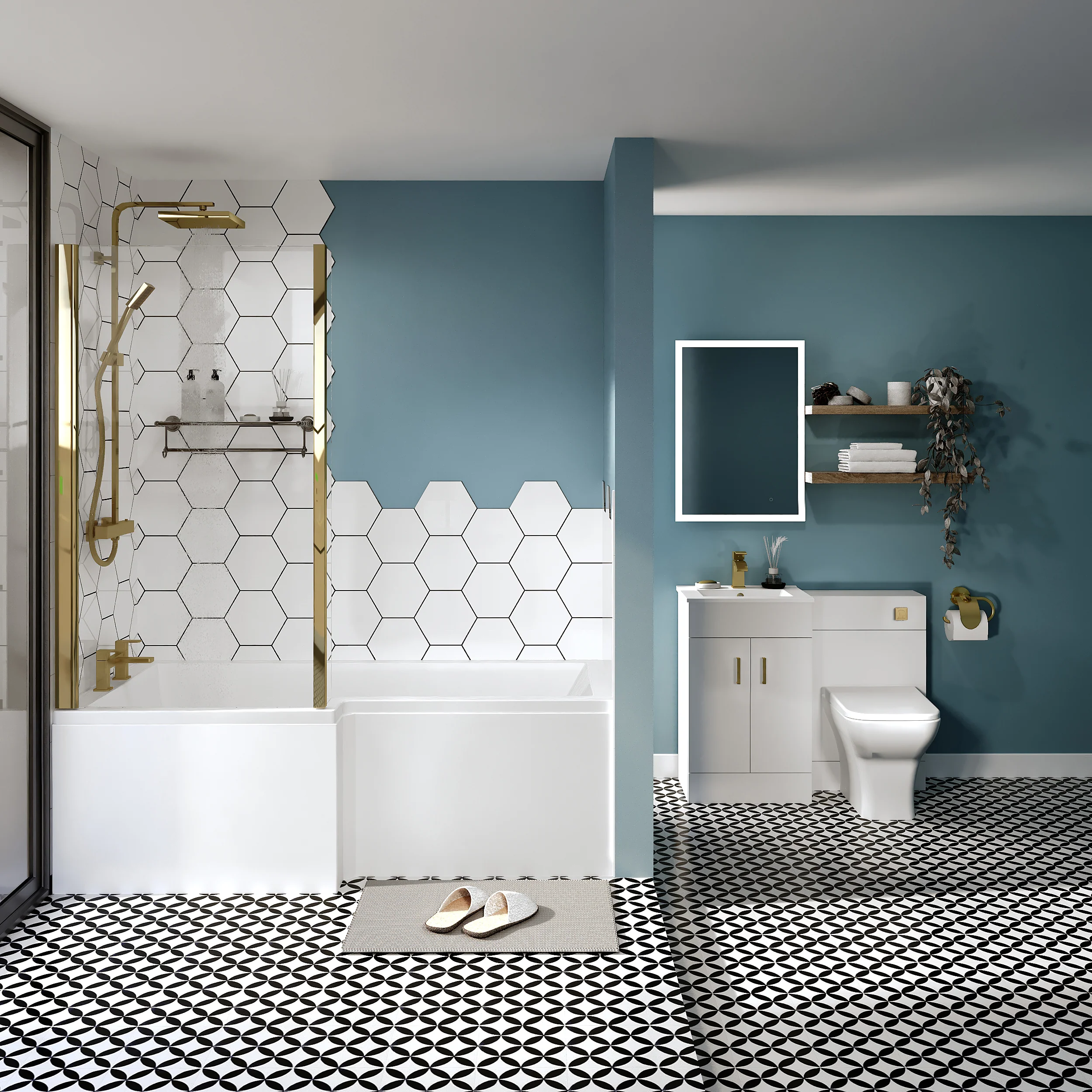

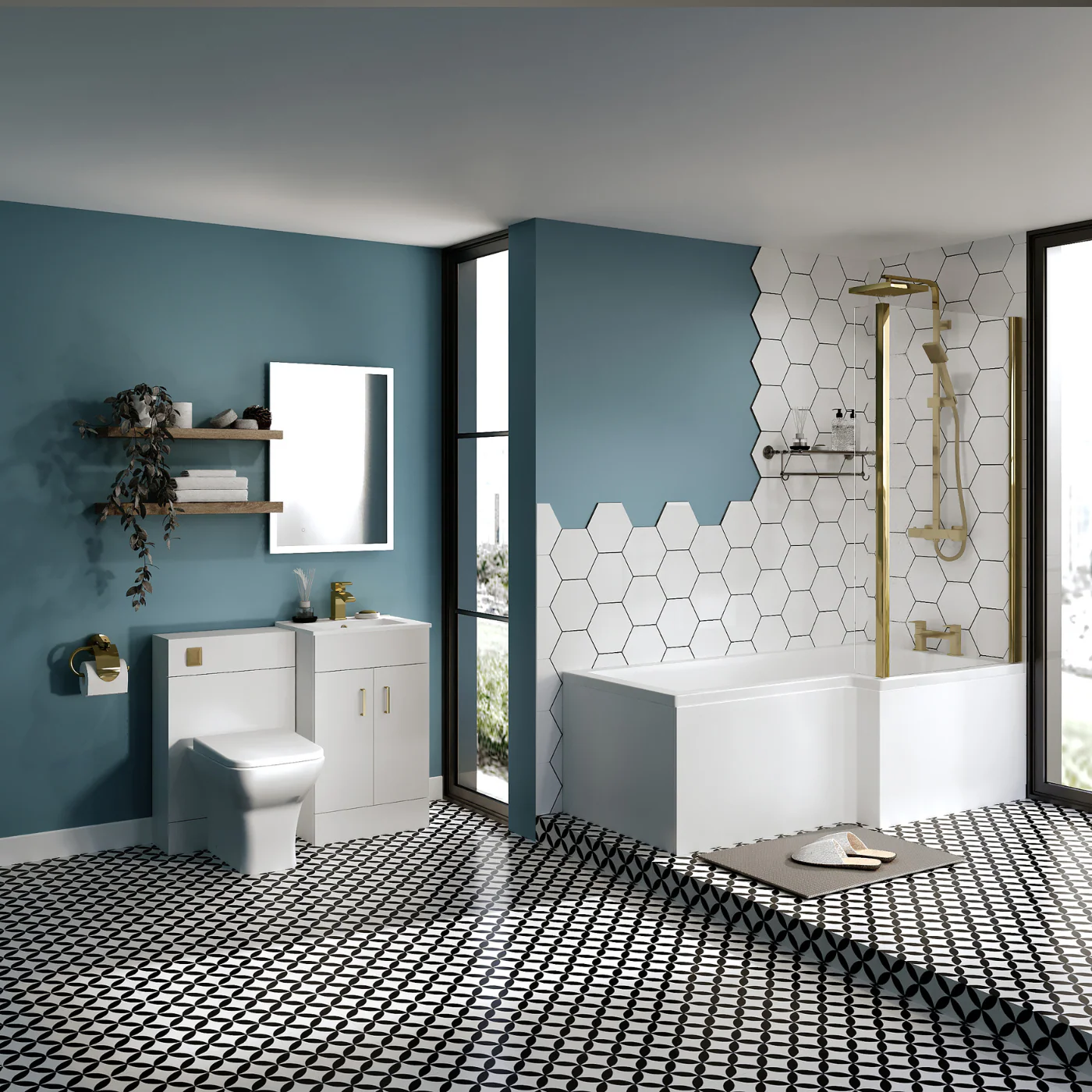

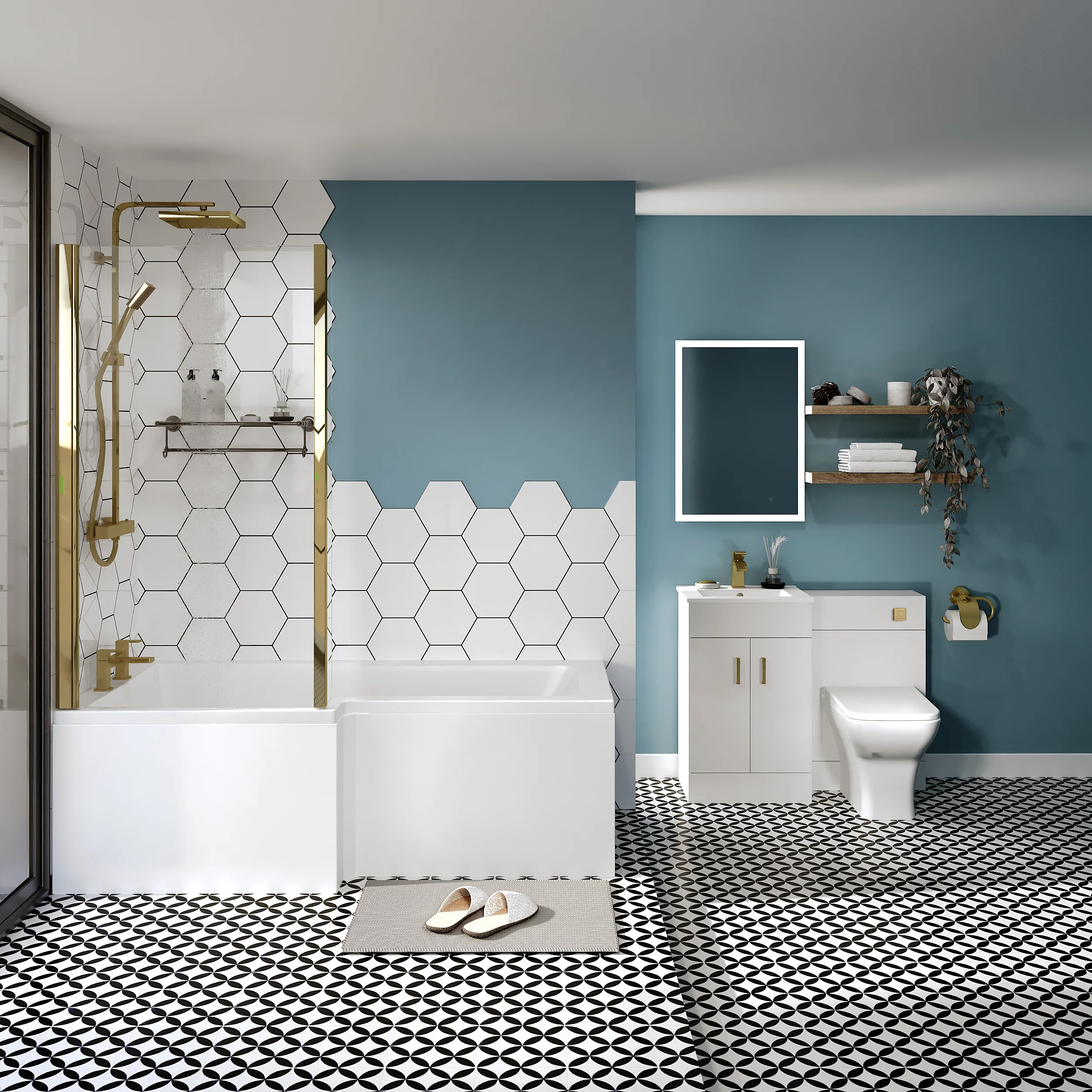

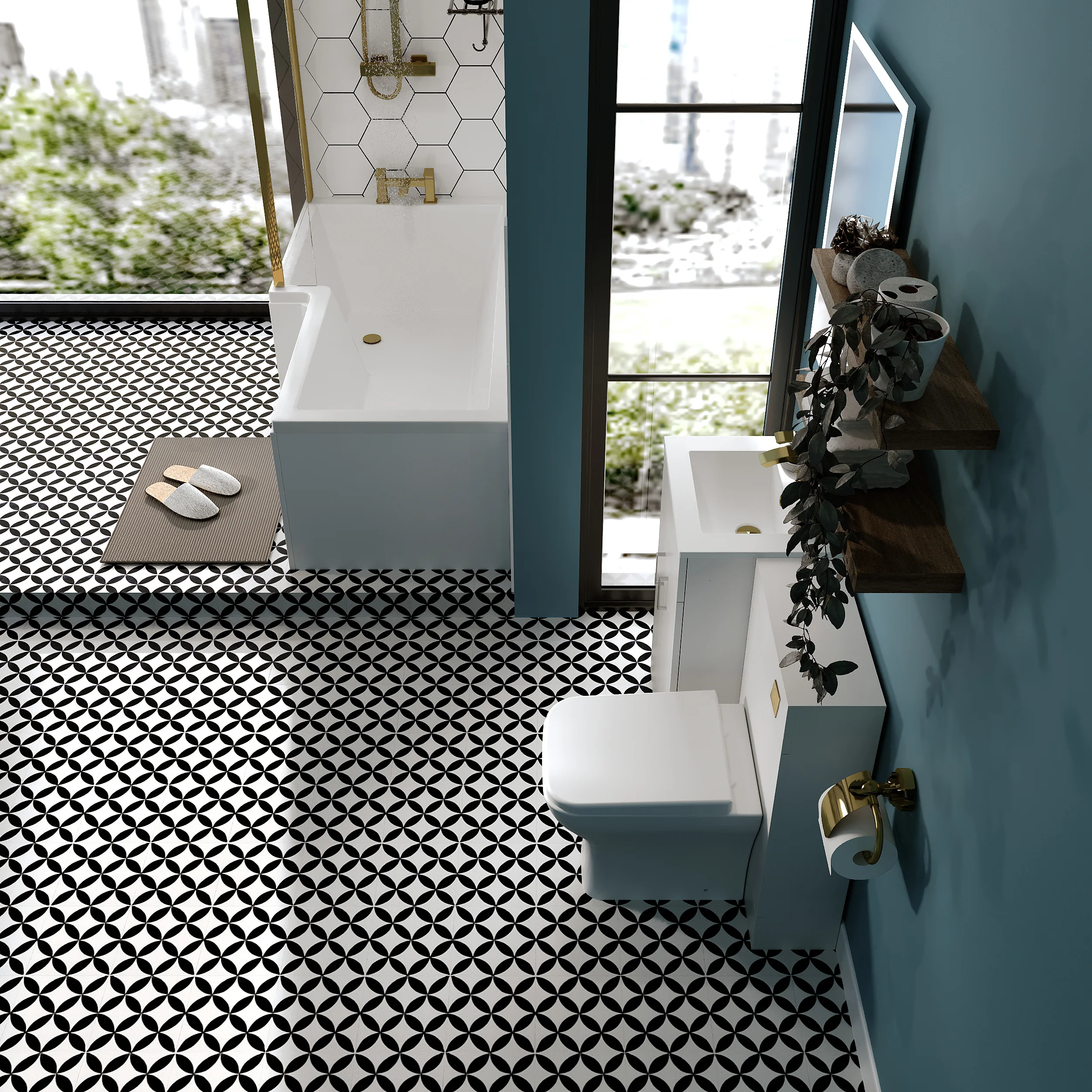

The sleek complete Nova Luxury L Shaped Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item compliments the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination vanity set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
1500mm Bath & Bath Front Panel
Brushed Brass Bath Screen
600mm Vanity Unit Brushed Brass Handles with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Shower
Brushed Brass Basin mono mixer and waste
Brushed Brass Bath Filler
Bath waste plug and chain

Technical Specification

Bath

• Length : 1500mm
• Width : 850mm / 700mm
• Height : 560mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Includes : Front Panel & Hinged Screen
• 6mm Toughened safety glass screen - 180 Pivot
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Excludes : End Panel (Sold separately)

Screen

• Height : 1400mm
• Width : 790mm
• Glass Thickness : 6mm
• Bath Screen Design : Straight
• Material : Glass

• Frame Finish : Brushed Brass

• Style : Modern
• Handed : Reversible

Basin Unit:

• Height: 800mm
• Width: 600mm
• Depth: 400mm
• Materials Specification: Vitrous China, Gloss White Finish
• Assembly Required: Unit comes pre-assembled (not flat packed)
• Available Storage: 1 cupboard, double doors with shelf, Brushed Brass handles
• D-Shape type handle and hinges included

Basin:

• Depth: 390mm
• Width: 610mm
• Height: 180mm
• Requires: Slotted basin waste

WC Unit:

• Depth: 800mm
• Width: 500mm
• Height: 200mm
• 18mm MDF Construction

• Finish: Gloss White

Concealed Cistern

• Flush: Brushed Brass Push Button
• Features: Suitable for Back to Wall Toilets

Toilet

• Height : 400mm
• Width : 350mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Seat Fixing Centres : 153mm
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Weight : 28.1kg
• Includes : Top Fixing Soft Close Seat

Shower

• Total Height : 690-1045mm
• Total Width : 263mm
• Total Projection : 344mm
• Material Specification : Brass
• Finish : Brushed Brass
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Length of Shower Head Arm : 344mm
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.1 and 5.0 Bar
• Easy installation
• Incorporating diverter to control flow between shower head & handset

Basin Tap

• Finish : Brushed Brass
• Height : 150.5mm
• Width : 42mm
• Tap Spout Reach : 165.5mm
• Base to Spout : 105mm
• Material Specification : Brass
• Inlet Connection Size : 1/2 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 7.4 Litres per Min
• Flow Rate 0.5 Bar : 9.2 Litres per Min
• Flow Rate 1 Bar : 11.7 Litres per Min
• Flow Rate 2 Bar : 15.5 Litres per Min
• Flow Rate 3 Bar : 18.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails
• Weight : 1.4kg


Bath Tap

• Finish : Brushed Brass
• Height : 119.5mm
• Tap Spout Reach : 152mm
• Width : 228mm
• Tap Inlet Centres : 180mm
• 3/4 water inlet feeds
• Working pressure between 0.2 and 5.0 bar pressure
• High quality design and build
• Latest 1/4 turn ceramic disc technology
• Material : brass body
• Hot and cold indicators
• Deck mounted
• Easy installation
• Gravity systems require minimum of 2 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.2 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
•


Waste

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
