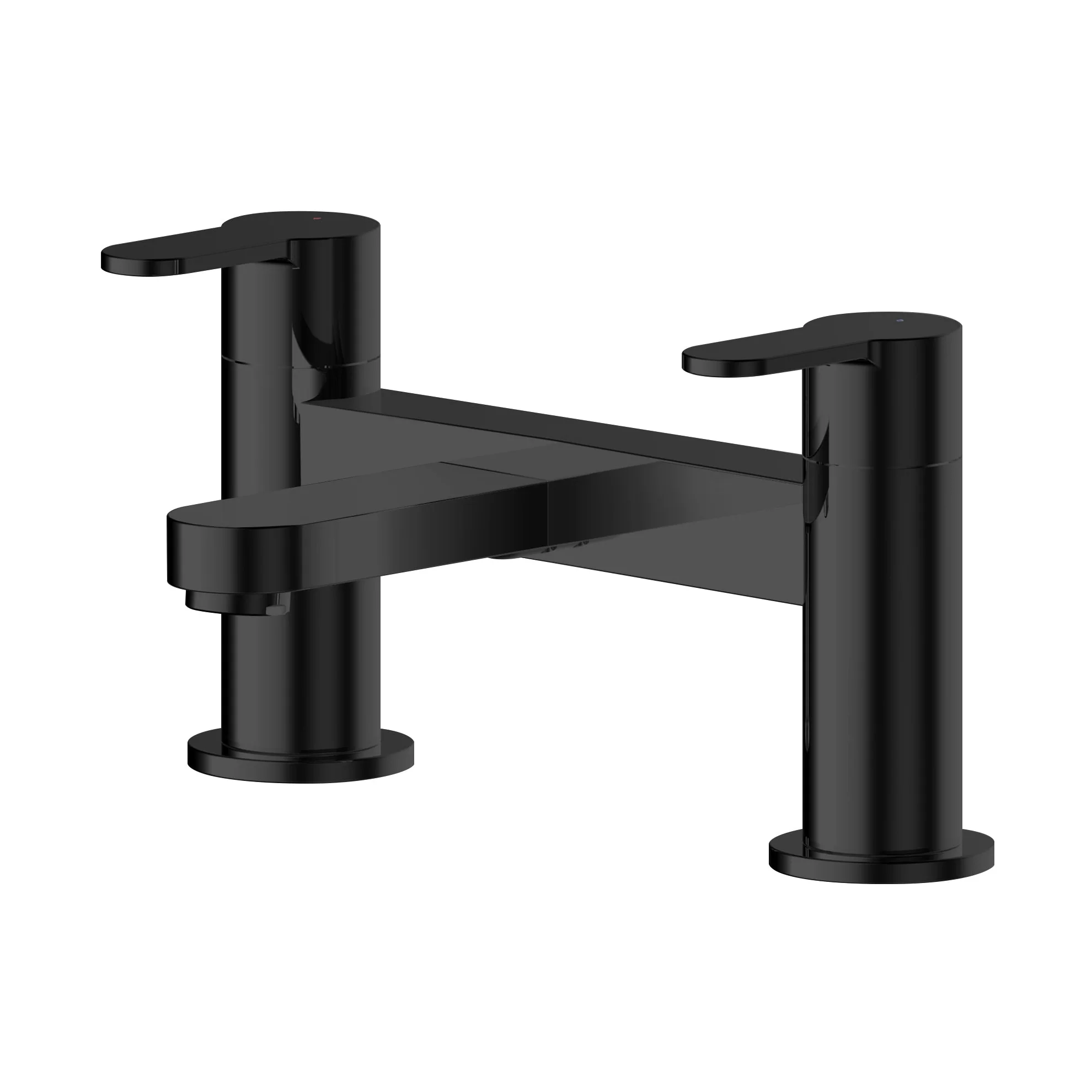

Stunning contemporary curved design with striking matt black finish. Ceramic disc technology provides smooth operation and long life. Co-ordinate your brassware with a matching matt black basin tap and shower. WRAS approved.

Technical Specification

Height: 120 mm

Weight: 1.77 kg

Width: 230 mm

Depth: 142 mm

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Lever/Round

Minimum Operating Pressure (Bar): 1 Bar

Valve/Cartirdge Type: 1/4 Turn Ceramic Disc

WRAS Approved: Yes

WRAS Approval Number: 2206032

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 6.0000

Flow Rate at 0.5 Bar (L/min): 16.1000

Flow Rate at 1 Bar (L/min): 23.3000

Flow Rate at 2 Bar (L/min): 3.3000

Flow Rate at 3 Bar (L/min): 41.1000

Tap Holes Required: 2

Tap Spout Projection: 110.0000 mm

Pipe Centres: 180

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
