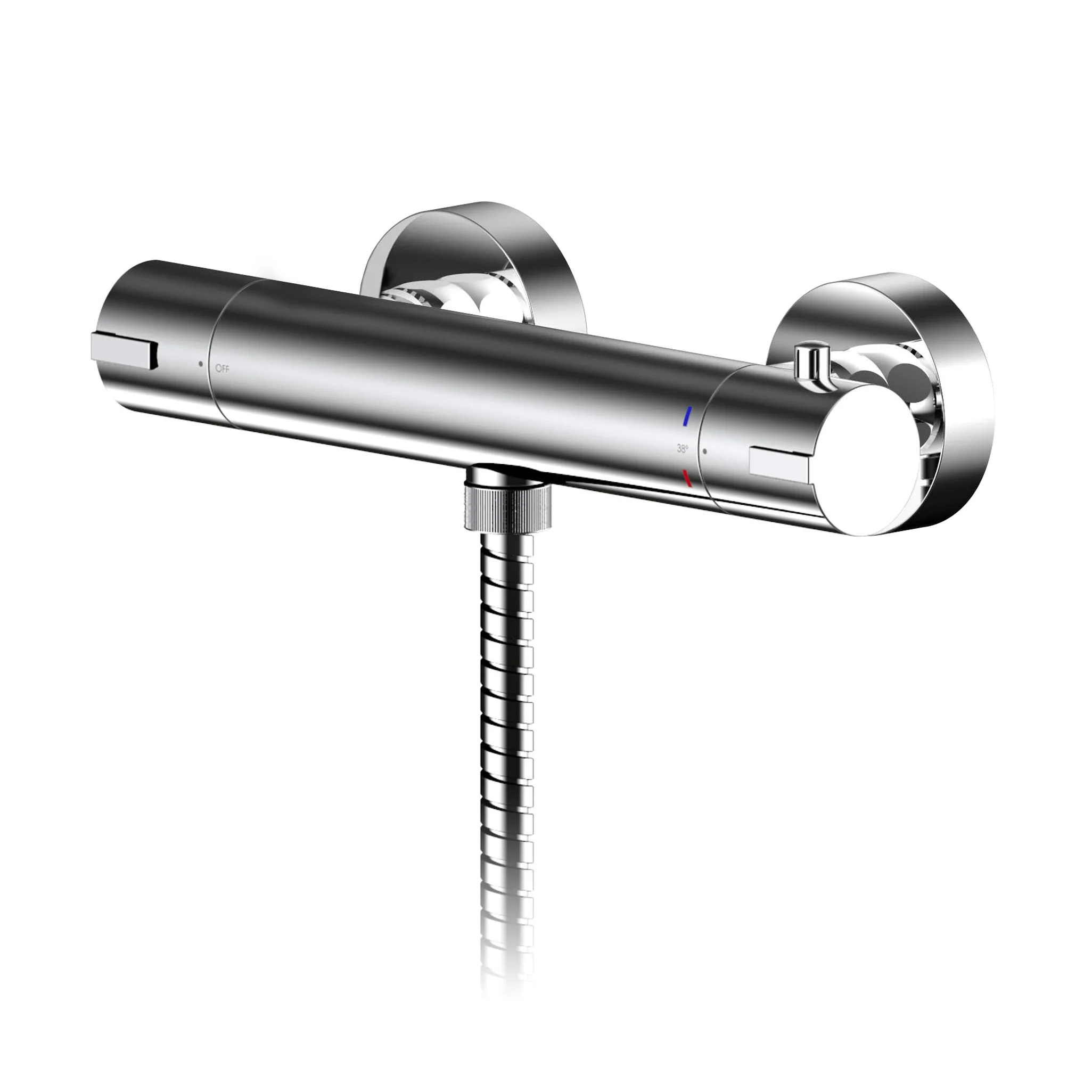

Thermostatically controlled. Bottom outlet. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. Suitable for unvented mains pressure systems. Suitable for shower pumps. Manufactured from high quality brass & ABS.

Technical Specification

Height: 55 mm

Weight: 1.41 kg

Width: 275 mm

Depth: 72 mm

Material: Brass Abs

Mount Type: Wall Hung

Handle Type: Lever/Round

Minimum Operating Pressure (Bar): 0.2 Bar

Valve/Cartirdge Type: 1/4 Turn

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 3.5000

Flow Rate at 0.5 Bar (L/min): 8.3000

Flow Rate at 1 Bar (L/min): 11.9000

Flow Rate at 2 Bar (L/min): 16.9000

Flow Rate at 3 Bar (L/min): 20.8000

Pipe Centres: 150

Manufacture Guarantee: 5 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
