Stunning contemporary curved design with luxury chrome finish. Ceramic disc technology provides smooth operation and long life. Perfect for use with wall mounted bath spout. Co-ordinate your brassware with a matching basin tap and shower.

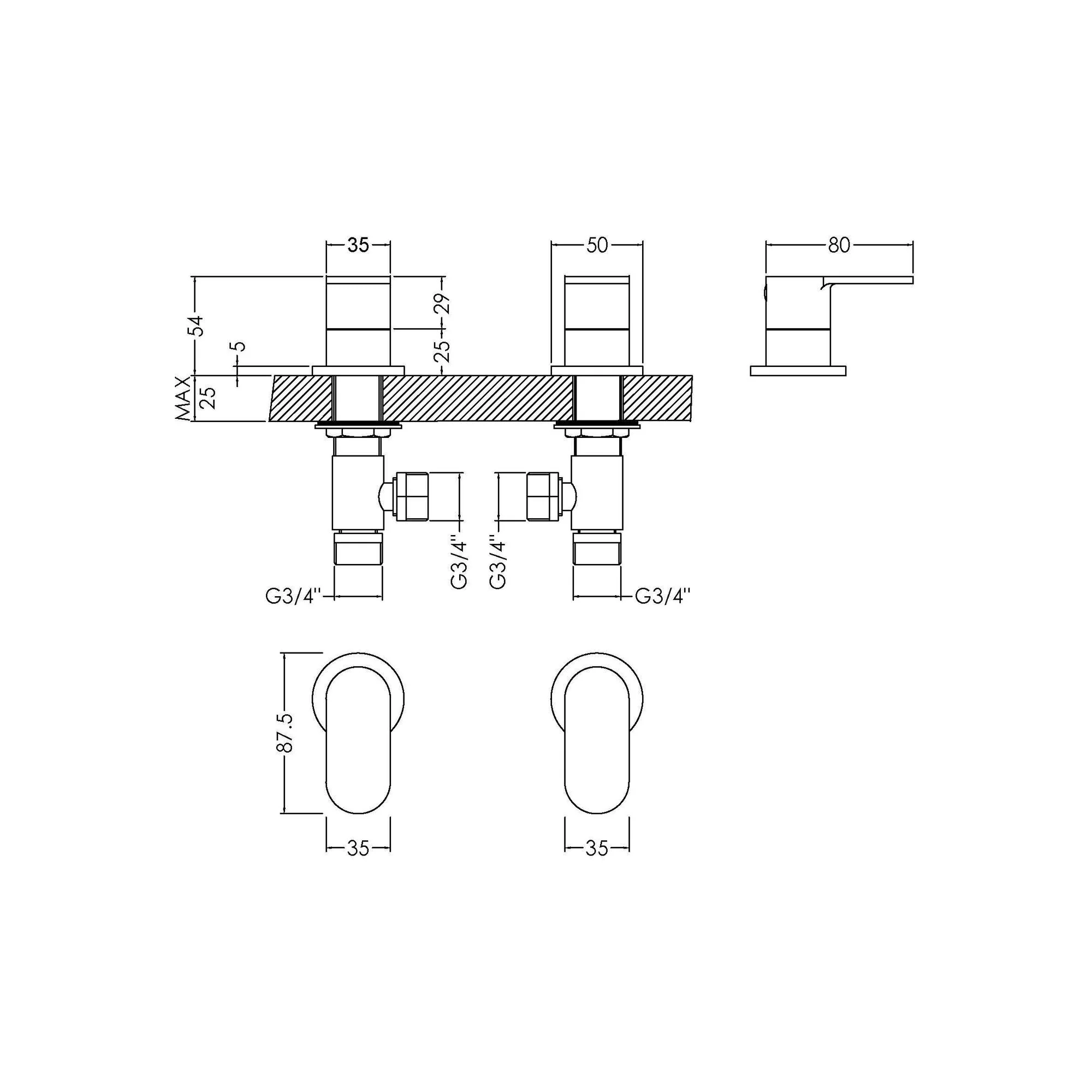

Technical Specification

Height: 54 mm

Weight: 1.32 kg

Width: 35 mm

Depth: 80 mm

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Lever/Round

Minimum Operating Pressure (Bar): 0.5 Bar

Valve/Cartirdge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 8.1000

Flow Rate at 0.5 Bar (L/min): 18.3000

Flow Rate at 1 Bar (L/min): 26.0000

Flow Rate at 2 Bar (L/min): 36.9000

Flow Rate at 3 Bar (L/min): 45.4000

Tap Holes Required: 2

Manufacture Guarantee: 5 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
