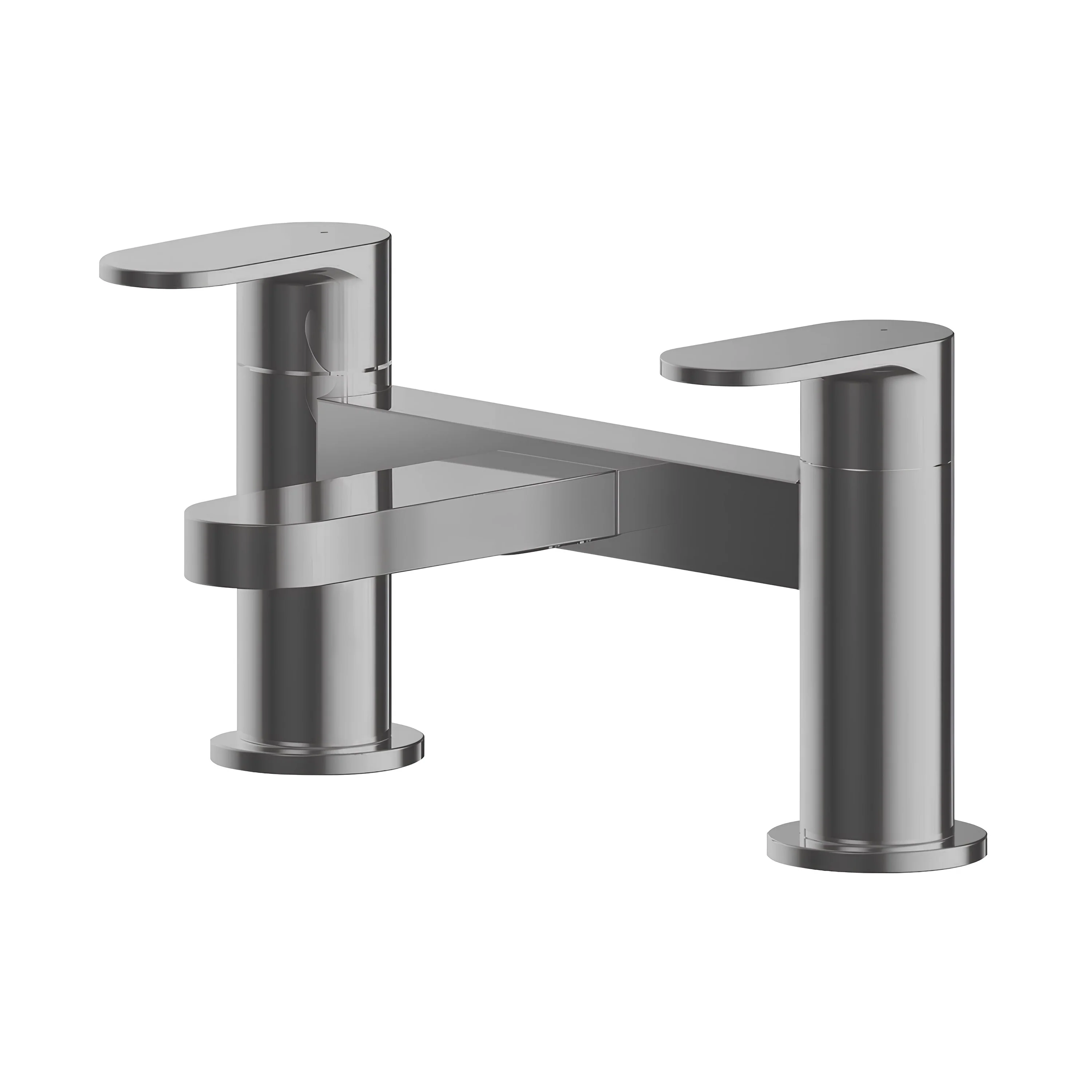

Stunning contemporary designed tap, available in a variety of luxury finishes. Taps throughout the range feature ceramic disc technology which provides smooth operation and long life. Co-ordinate your brassware with a matching and shower.

Technical Specification

Height: 120 mm

Weight: 1.77 kg

Width: 215 mm

Depth: 142 mm

Material: Brass

Waste: No

Mount Type: Deck

Handle Type: Lever/Round

Minimum Operating Pressure (Bar): 1 Bar

Valve/Cartirdge Type: 1/4 Turn

WRAS Approved: Yes

WRAS Approval Number: 250702014

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 6.3000

Flow Rate at 0.5 Bar (L/min): 16.0000

Flow Rate at 1 Bar (L/min): 23.1000

Flow Rate at 2 Bar (L/min): 33.3000

Flow Rate at 3 Bar (L/min): 41.0000

Tap Holes Required: 2

Tap Spout Projection: 110.0000 mm

Pipe Centres: 180

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
