Revolve Concealed Shower Valve with Diverter Triple Handle Chrome
Industrial design with stunning chrome finish. Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers. Accurate flow control. Excellent flow rates. High quality internal brassware.

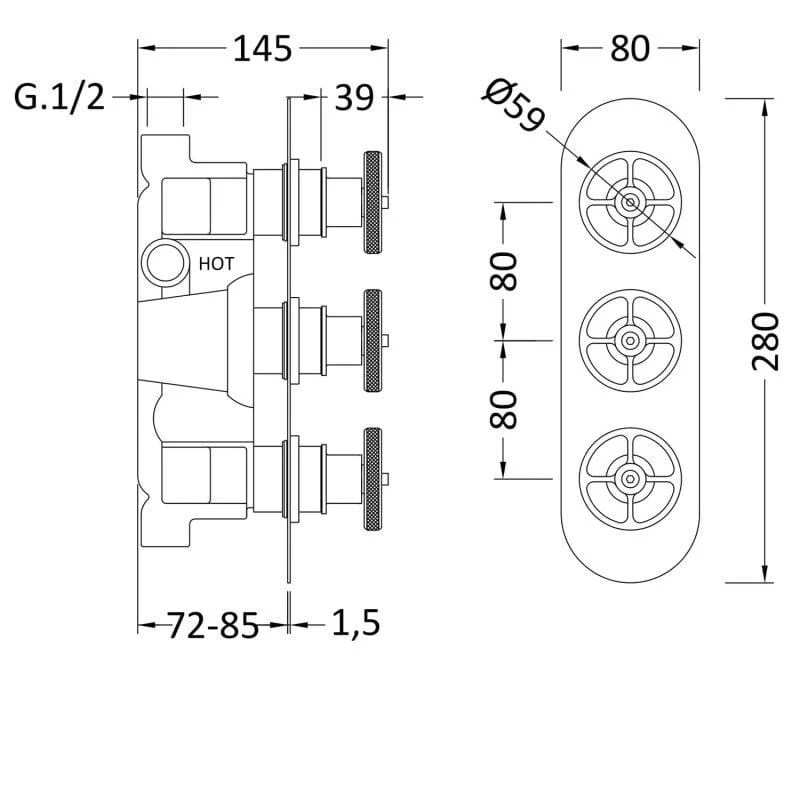

Technical Specification
- Height: 280 mm
- Weight: 3.5 kg
- Width: 95 mm
- Depth: 143 mm
- Material: Brass Abs
- Mount Type: Wall Hung
- Handle Type: Round
- Minimum Operating Pressure (Bar): 0.5 Bar
- Valve/Cartirdge Type: 1/4 Turn
- WRAS Approved: Yes
- WRAS Approval Number: 250602040
- TMV2 Approval Number: 2603035
- TMV3 Approved: No
- Flow Rate at 0.5 Bar (L/min): 13.0000
- Flow Rate at 1 Bar (L/min): 17.0000
- Flow Rate at 2 Bar (L/min): 24.0000
- Flow Rate at 3 Bar (L/min): 27.0000
- Pipe Centres: 125
- Manufacture Guarantee: 20 Years
Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
