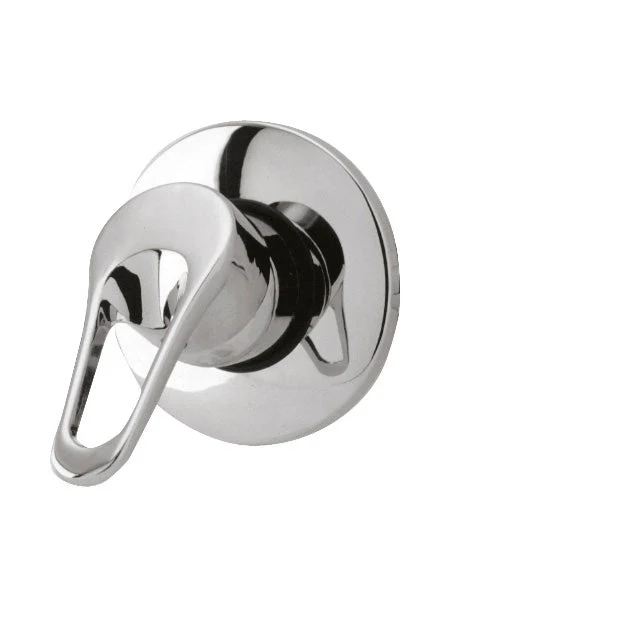

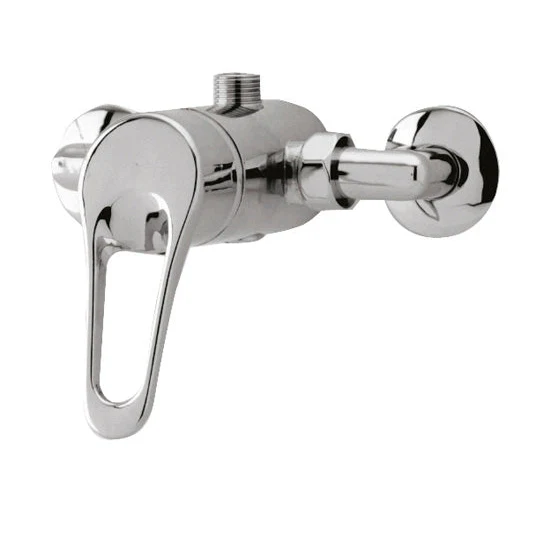

Minimalist sleek design. Can be exposed or concealed using cover plate provided15mm compression inlets. 1/2" BSP outlet. Excellent flow rates - even at low pressure. Manufactured from solid brass.

Technical Specification

Height: 117 mm

Weight: 1.72 kg

Width: 150 mm

Depth: 155 mm

Material: Brass

Mount Type: Surface/Wall

Handle Type: Lever

Minimum Operating Pressure (Bar): 0.2 Bar

Valve/Cartirdge Type: Single Lever Cartridge

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 5.0000

Flow Rate at 0.5 Bar (L/min): 10.0000

Flow Rate at 1 Bar (L/min): 14.0000

Flow Rate at 2 Bar (L/min): 20.0000

Flow Rate at 3 Bar (L/min): 26.0000

Pipe Centres: 150

Manufacture Guarantee: 5 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
