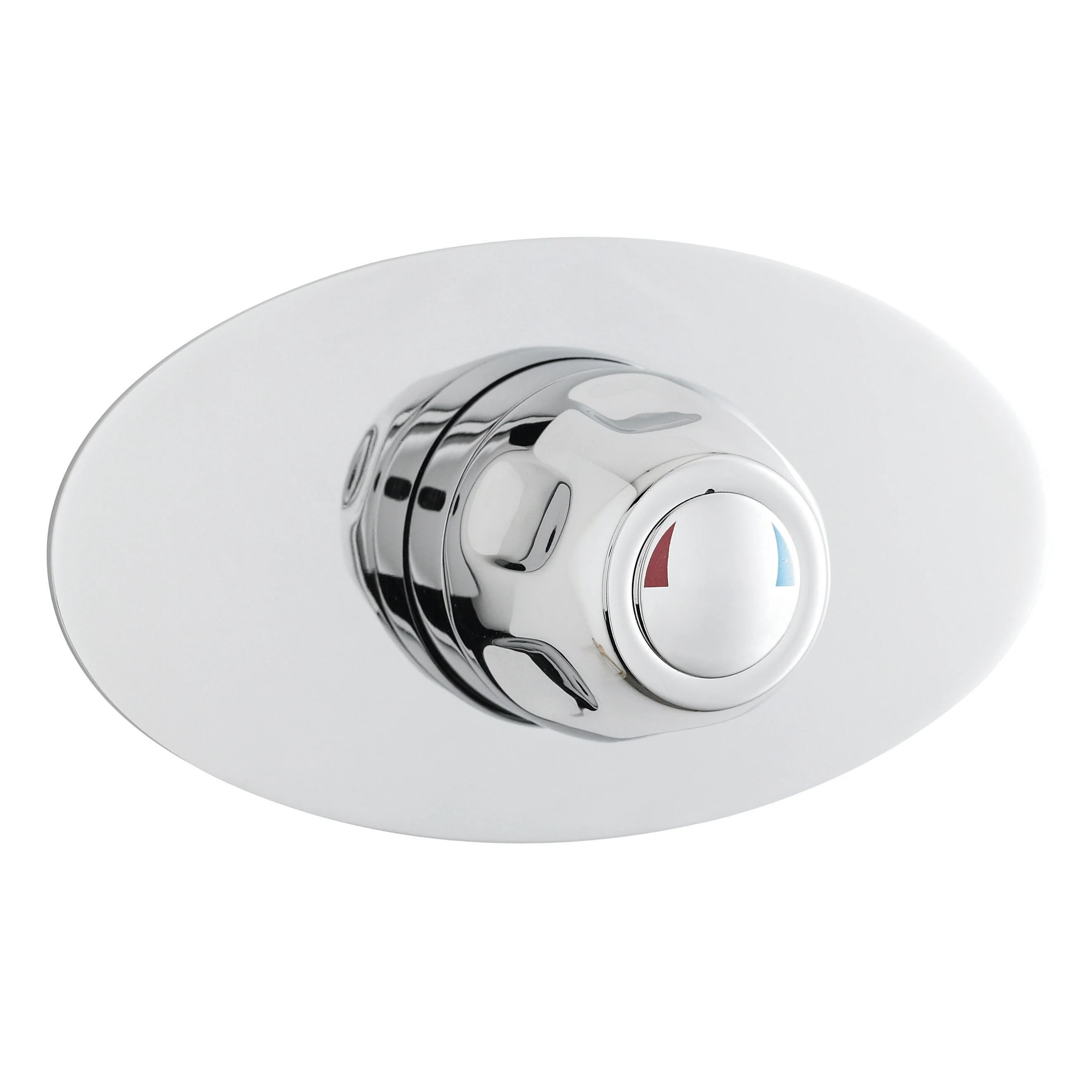

Sequential control shower valve for combined control of temperature and flow. Suitable for use with unvented supplies combi boilers gravity and mains pressure systems. Single-piece cartridge technology. Factory set at 43C to prevent scalding. Temperature stability of +/- 2 degrees. Failsafe on hot and cold supplies. Suitable for high pressure systems.

Technical Specification

Height: 110 mm

Weight: 3.09 kg

Width: 200 mm

Depth: 140 mm

Material: Brass

Mount Type: Wall Hung

Handle Type: Round

Minimum Operating Pressure (Bar): 0.2 Bar

Valve/Cartirdge Type: Sequential Valve

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 4.0000

Flow Rate at 0.5 Bar (L/min): 9.5000

Flow Rate at 1 Bar (L/min): 15.0000

Flow Rate at 2 Bar (L/min): 22.0000

Flow Rate at 3 Bar (L/min): 27.0000

Pipe Centres: 147

Manufacture Guarantee: 1 Year

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
