Nuie Volt Concealed Shower Valve With Diverter Dual Handle Chrome
Minimalist sleek design. With built in outlet. Accurate flow control. Thermostatic control to +/- 2 degree - even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. Our valves can deliver 5.5 litres per minute at 0.1 bar pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.

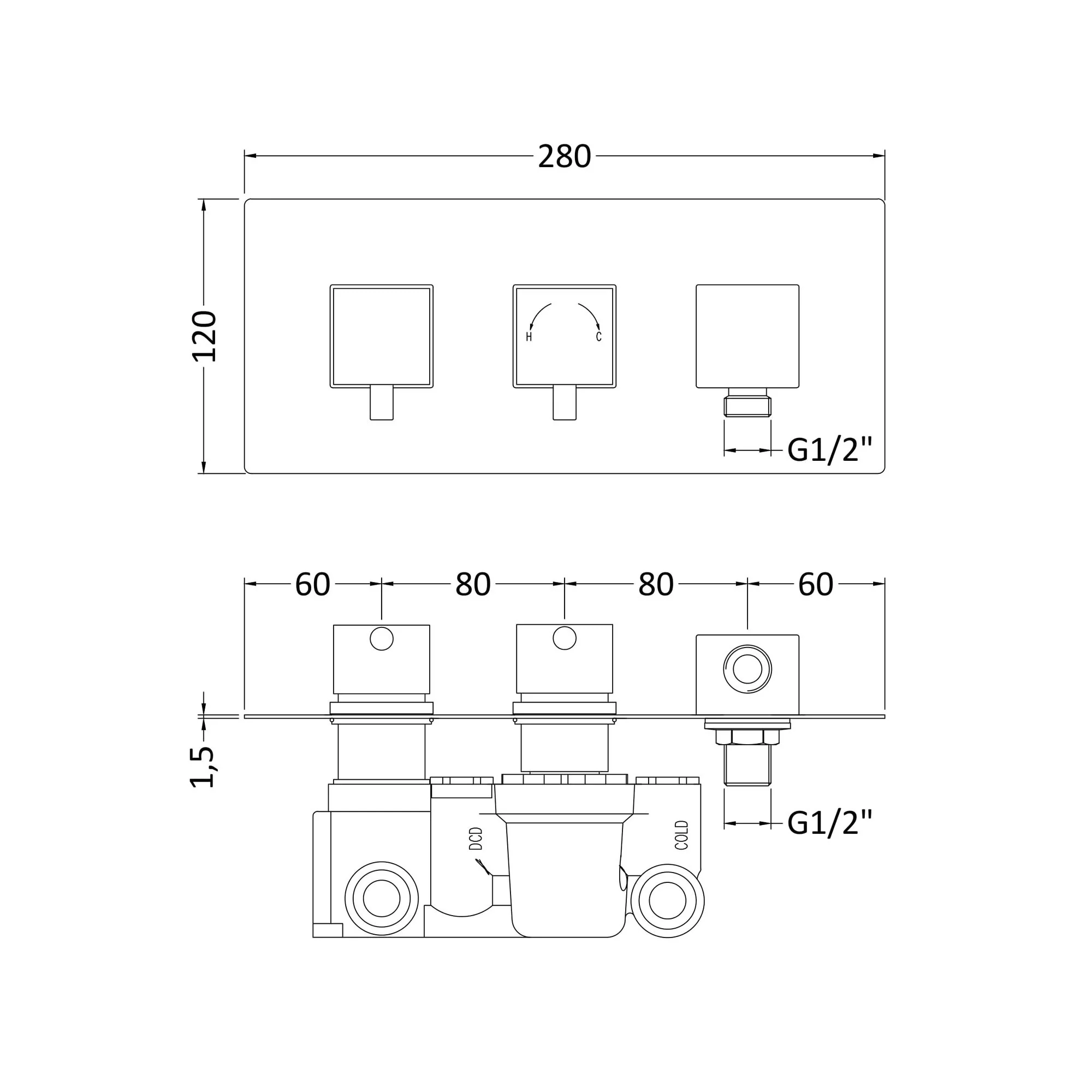

TECHNICAL SPECIFICATIONS
- Product Weight : 4.05 kg
- Pipe Centres : 125
- Pipe Size : 22 mm (3/4"" bsp)
- Product Depth : 136 mm
- Product Height : 120 mm
- Product Width : 280 mm
- Colour : Chrome
- Number of Handles : 2
- Product Material : Brass Abs
- Shower Valve Style Shape : Rectangular
- Valve Handle Type/Shape : Rectangular
- Stain Rust Resistant : Yes
- Assembly Required : No
- Connection Size : 22 mm (3/4"" BSP)
- Cartridge Included : Yes
- Handset Included : No
- Head Included : No
- Valve Included : Yes
- Control Type : Manual
- Flow Rate 0.2Bar 1/m : 6.5
- Flow Rate 0.5Bar l/m : 13
- Flow Rate 1Bar l/m : 17
- Flow Rate 2Bar l/m : 24
- Flow Rate 3Bar l/m : 27
- Handle Type : Square
- Mount Type : Wall Hung
- Operating Pressure : 0.2 Bar
- Valve Mount Type : Concealed Shower
- Valve/Cartridge Type : 1/4 Turn
- Guarantee no. of years : 5 Years
- TMV2 Approval Number : 2603035
- TMV2 Approved : Yes
- TMV3 Approved : No
- WRAS Approval Number : 250602040
- WRAS Approved : Yes
Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
