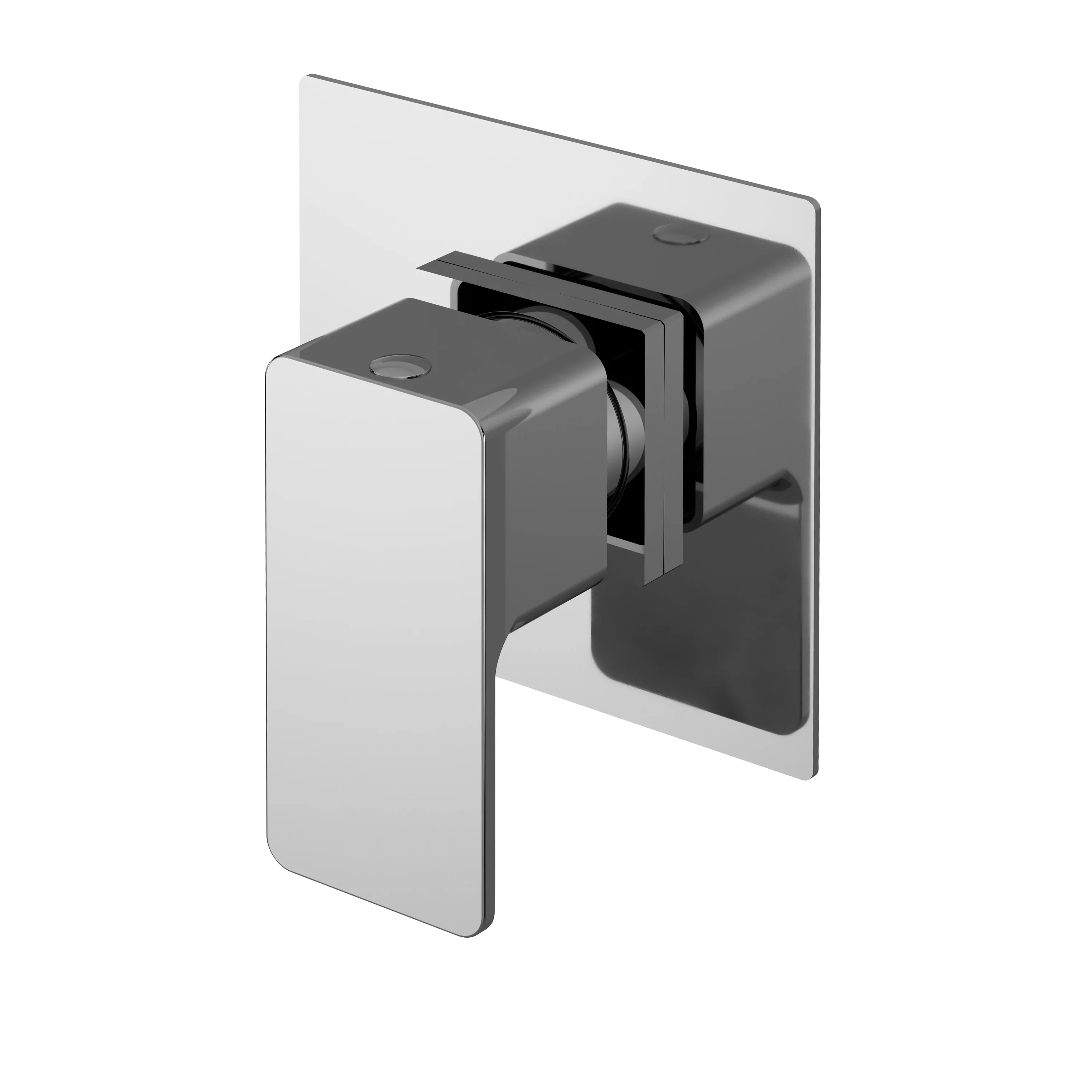

Manufactured from high quality brass. Designed for use with a thermostatic temperature control and stop tap. 1/4 turn ceramic disc technology for long life and smooth operation.

Technical Specification

Height: 100 mm

Weight: 1.05 kg

Width: 100 mm

Depth: 135 mm

Material: Brass

Mount Type: Recessed/Wall

Handle Type: Lever/Square

Minimum Operating Pressure (Bar): 0.2 Bar

Valve/Cartirdge Type: 1/4 Turn

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 5.2000

Flow Rate at 0.5 Bar (L/min): 13.3000

Flow Rate at 1 Bar (L/min): 19.1000

Flow Rate at 2 Bar (L/min): 27.0000

Flow Rate at 3 Bar (L/min): 33.2000

Manufacture Guarantee: 5 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
