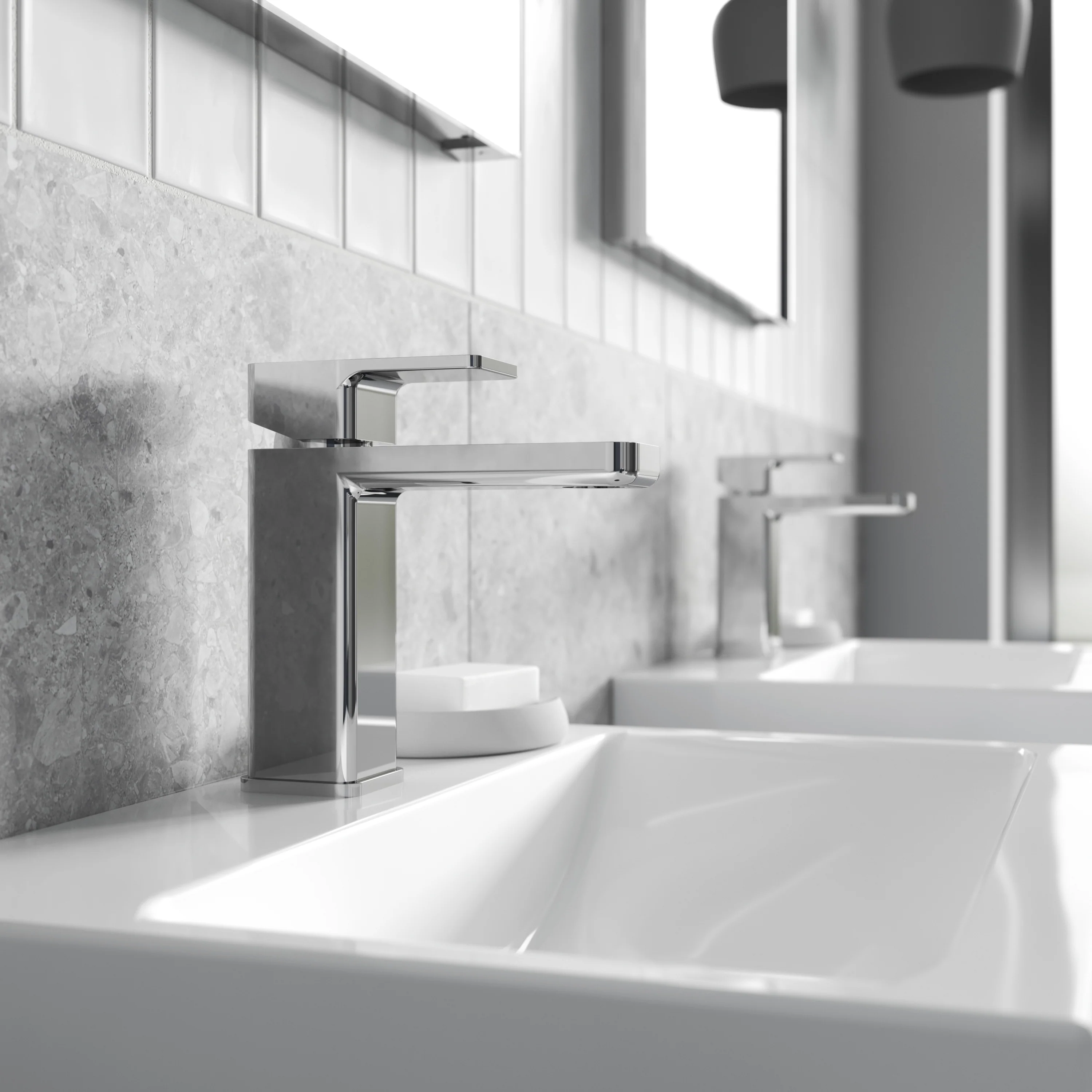

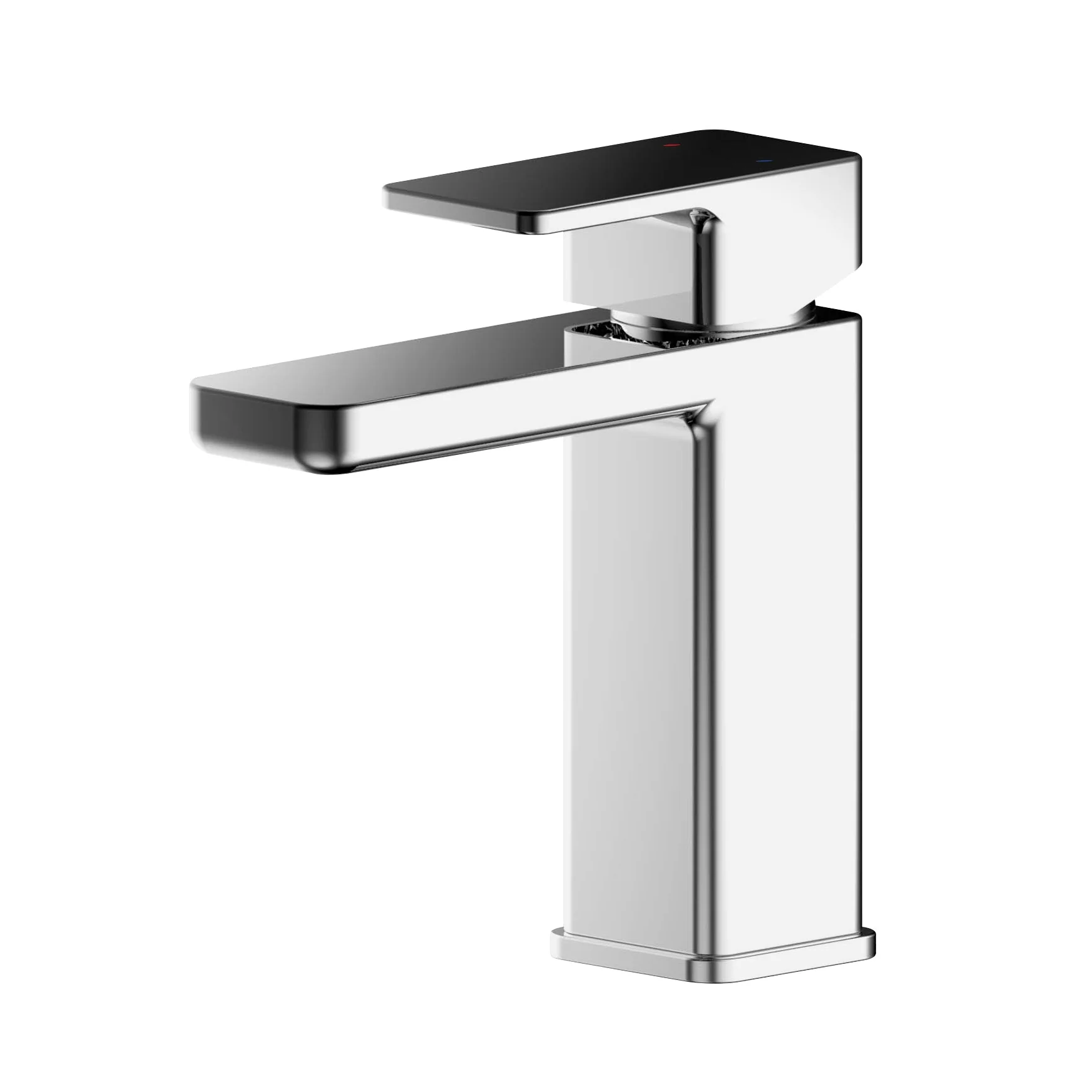

Nuie Windon Mono Basin Mixer With Push Button Waste - Chrome
Stunning contemporary angular design with luxury chrome finish. Ceramic disc technology provides smooth operation and long life. Excellent flow rates even at low pressure. Supplied with co-ordinating push button waste. WRAS approved (not including waste). Height: 160 mm Weight: 2.08 kg Width: 50 mm Depth: 152 mm Material: Brass,Plastic Waste: Yes Mount Type: Deck Handle Type: Lever/Square Minimum Operating Pressure (Bar): 0.2 Bar Valve/Cartirdge Type: Single Lever Cartridge WRAS Approved: Yes WRAS Approval Number: 2204060 TMV2 Approved: No TMV3 Approved: No Flow Rate at 0.1 Bar (L/min): 2.8000 Flow Rate at 0.5 Bar (L/min): 7.9000 Flow Rate at 1 Bar (L/min): 11.4000 Flow Rate at 2 Bar (L/min): 16.4000 Flow Rate at 3 Bar (L/min): 20.1000 Tap Holes Required: 1 Tap Spout Projection: 110.0000 mm Manufacture Guarantee: 5 Years Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
Technical Specification
$123.83
Nuie Windon Mono Basin Mixer With Push Button Waste - Chrome—
$123.83
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Stunning contemporary angular design with luxury chrome finish. Ceramic disc technology provides smooth operation and long life. Excellent flow rates even at low pressure. Supplied with co-ordinating push button waste. WRAS approved (not including waste). Height: 160 mm Weight: 2.08 kg Width: 50 mm Depth: 152 mm Material: Brass,Plastic Waste: Yes Mount Type: Deck Handle Type: Lever/Square Minimum Operating Pressure (Bar): 0.2 Bar Valve/Cartirdge Type: Single Lever Cartridge WRAS Approved: Yes WRAS Approval Number: 2204060 TMV2 Approved: No TMV3 Approved: No Flow Rate at 0.1 Bar (L/min): 2.8000 Flow Rate at 0.5 Bar (L/min): 7.9000 Flow Rate at 1 Bar (L/min): 11.4000 Flow Rate at 2 Bar (L/min): 16.4000 Flow Rate at 3 Bar (L/min): 20.1000 Tap Holes Required: 1 Tap Spout Projection: 110.0000 mm Manufacture Guarantee: 5 Years Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
