OAKLEY - Chrome Mono Basin Mixer Inc P/B Waste and Bath Shower Mixer Inc Handset
Effortlessly enhance your bathroom with the OAKLEY Chrome Mono Basin Mixer. This mixer comes with a convenient pop-up waste and a versatile bath shower mixer with a handheld option. Enjoy a sleek and modern design, high-quality chrome finish, and easy installation for an upgraded bathing experience.

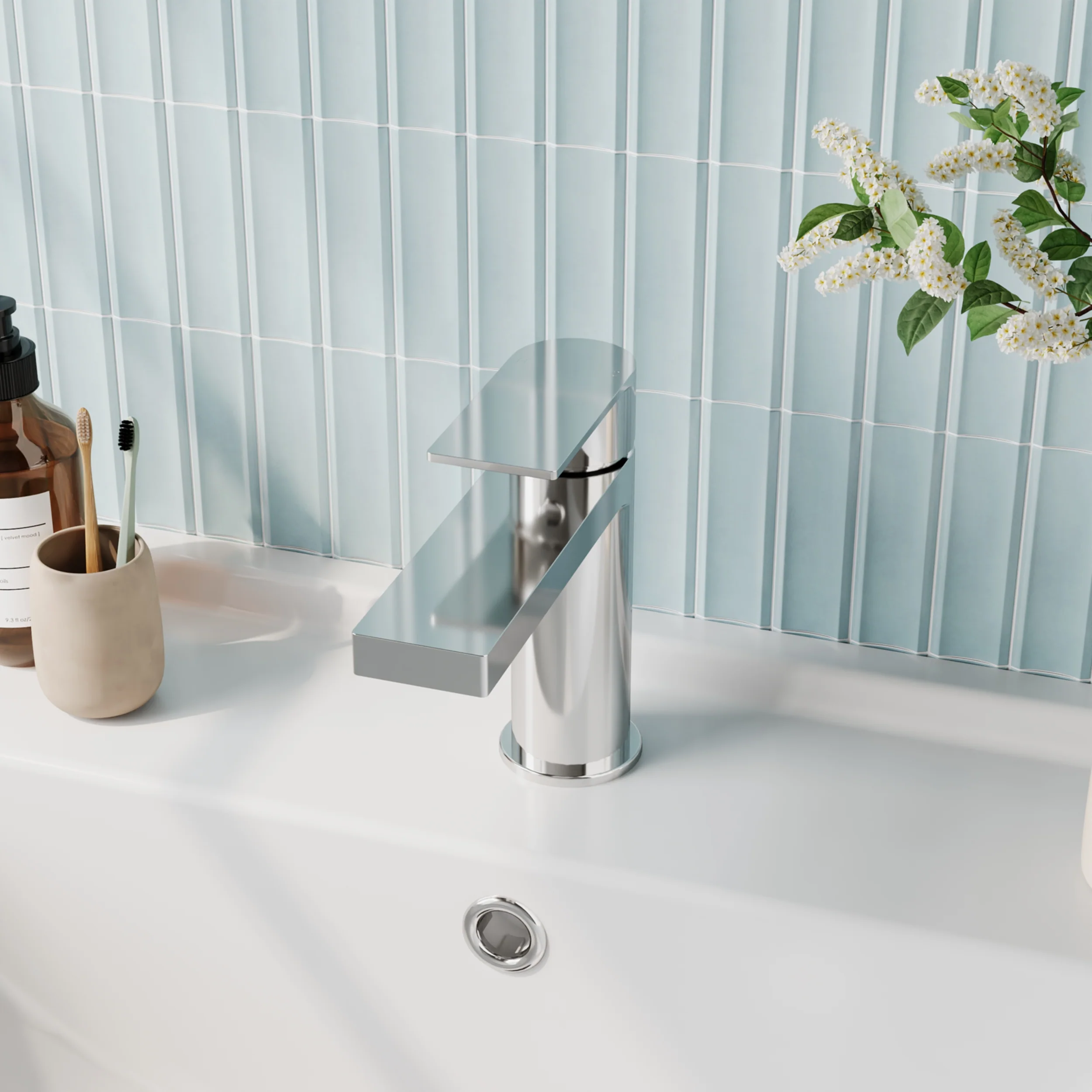

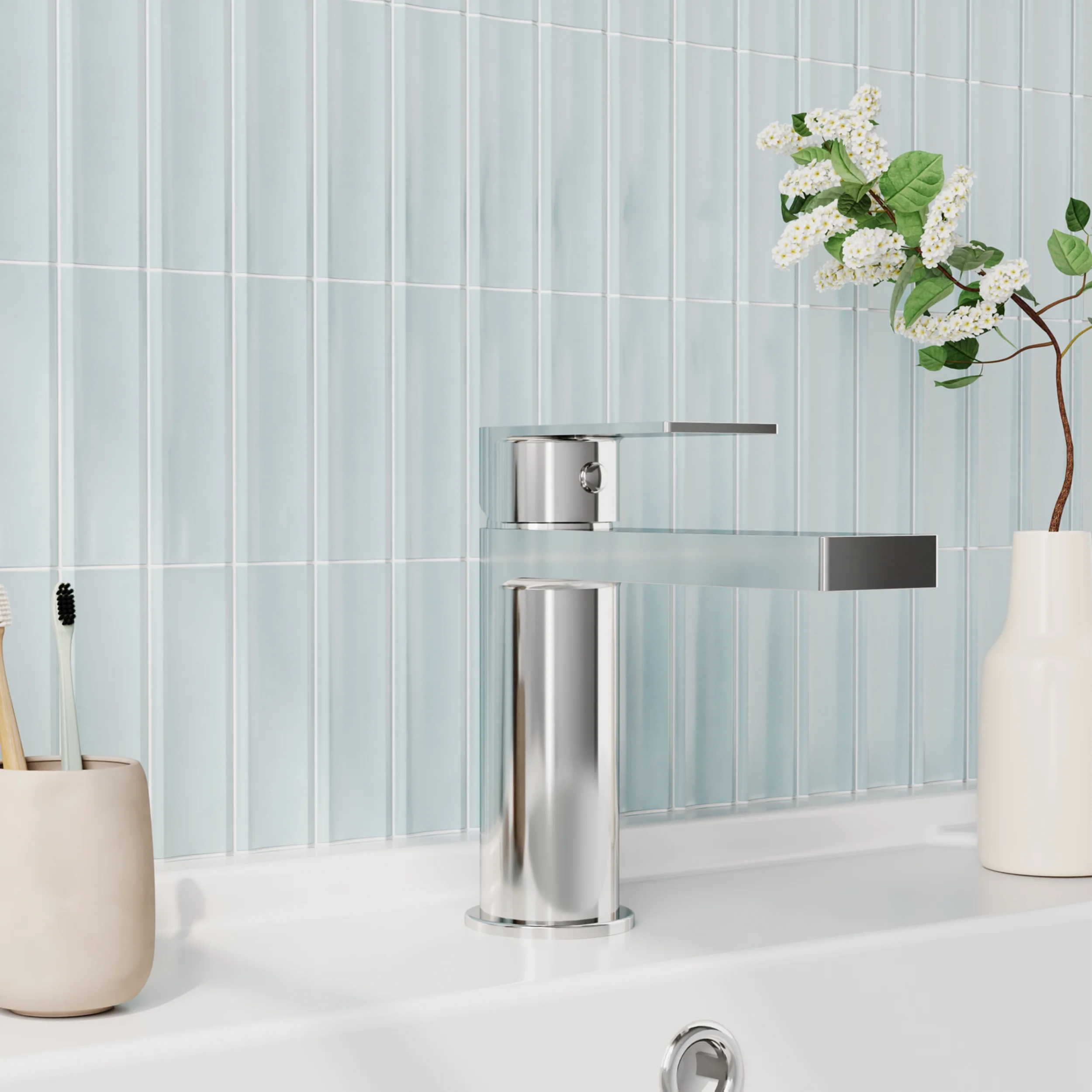

Technical Information - Basin Mono
- Finish : Chrome
- Height : 149mm
- Width : 42mm
- Tap Spout Reach : 165.5mm
- Base to Spout : 105mm
- Material Specification : Brass
- Inlet Connection Size : 1/2 BSP
- Flow Rate 0.2 Bar : 7.4 Litres per Min
- Flow Rate 0.5 Bar : 9.2 Litres per Min
- Flow Rate 1 Bar : 11.7 Litres per Min
- Flow Rate 2 Bar : 15.5 Litres per Min
- Flow Rate 3 Bar : 18.4 Litres per Min
- Accreditations : BS/EN 200
- Features : Ceramic Disc Technology
- Includes : Free Basin Waste & Flexi Tails
- Weight : 1.3kg

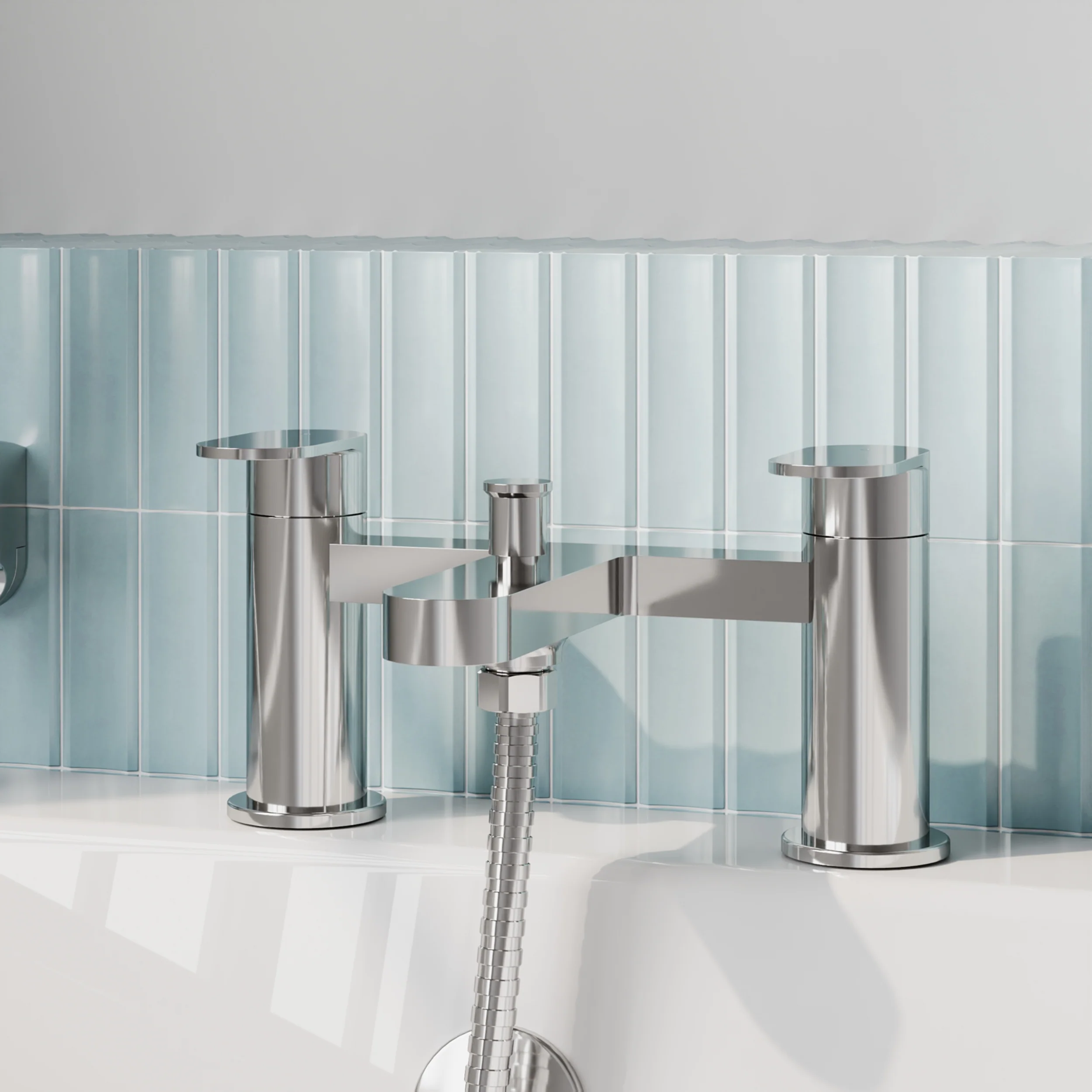

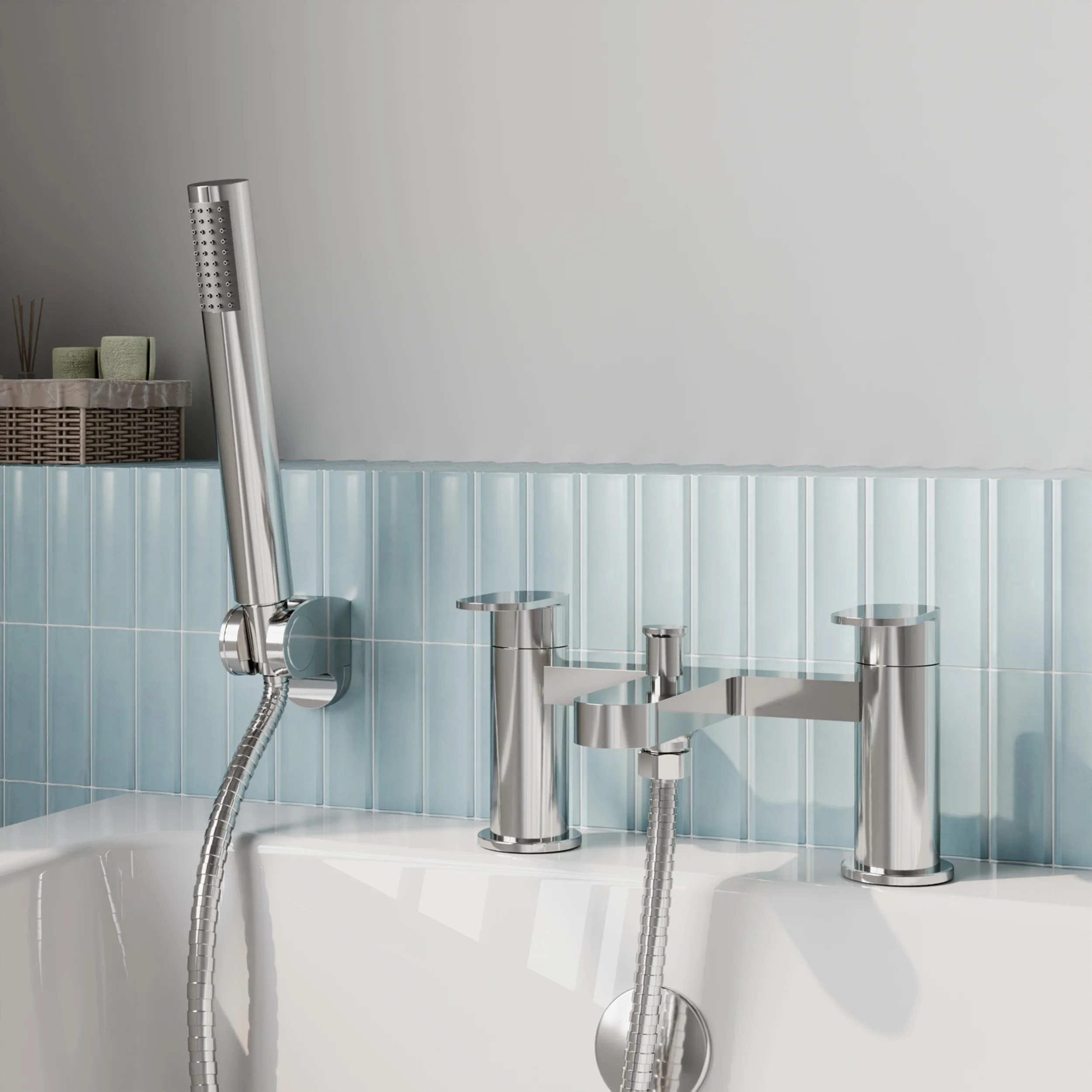

Technical information - Bath Shower Mixer
- Finish : Chrome
- Height :119mm
- Tap Spout Reach : 154mm
- Width : 230mm
- Tap Inlet Centres : 180mm
- 3/4 water inlet feeds
- Working pressure between 0.2 and 5.0 bar pressure
- High quality design and build
- Latest 1/4 turn ceramic disc technology
- Material : brass body
- Hot and cold indicators
- Deck mounted

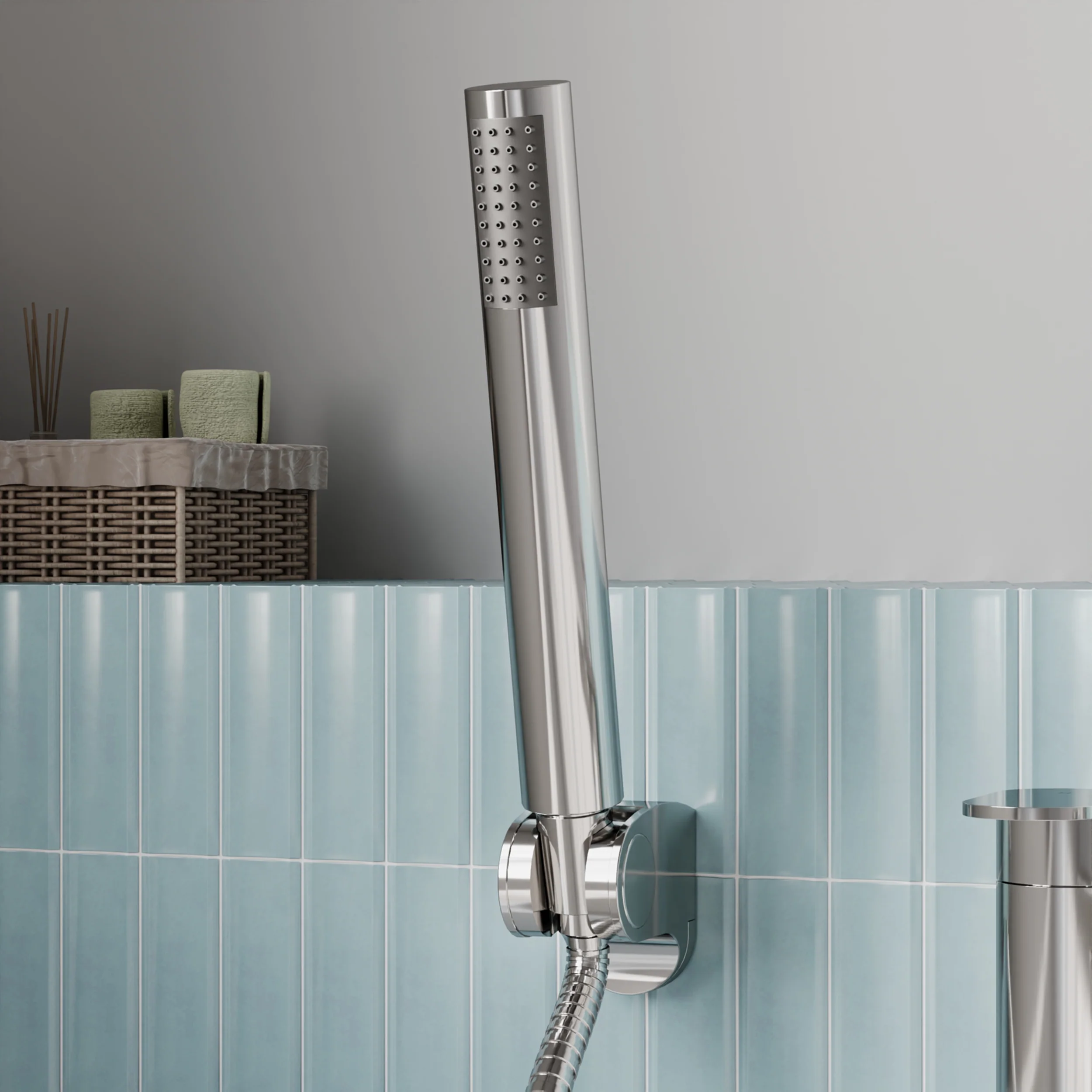

- Includes shower hose, handset and wall bracket
- Easy installation
- Gravity systems require minimum of 2 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
- Suitable for combi boilers and pressurised systems between 0.2 and 5.0 bar pressure
- Suitable for shower pumps
- Complete with installation instructions
- Guarantee : 5 Years
- Flow rates :-
- 0.5 Bar 29 Litres per minute
- 1.0 Bar 40 Litres per minute
- 2.0 bar 48 Litres per minute
NB: All measurements are approximate. In line with manufacturing policy we reserve the right to amend specification without prior notice.
