Add a classic feature to your room with this timeless radiator. All heating products come complete with fixing screws and brackets, valves sold separately. After installing any new radiators; when refilling the system it is recommended a suitable inhibitor is used. All tappings are 1/2″ British Standard Pipe. We recommend pipework is not installed until receipt of radiator or heated Radiator.

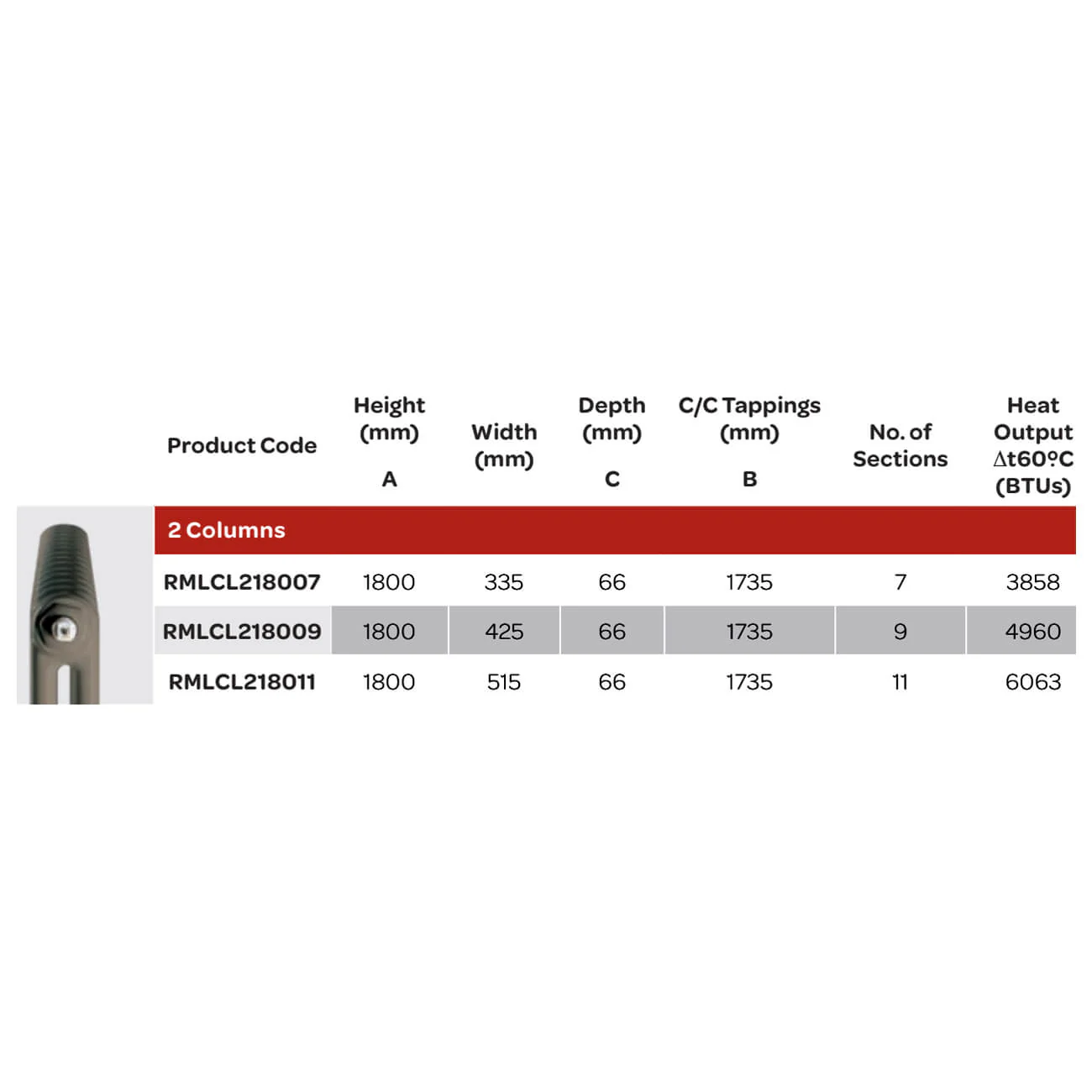

Technical Specification

• Radiator width available in 3 sizes : 335, 470 and 515mm
• Vertical height : 1800mm
• Colour : Lacquered raw metal
• Radiator Depth: Wall to back of radiator 30 / 40mm dependant on the position of the bracket
• Wall to Front: 130 / 140mm
• Output (BTU): 3858, 4960 or 6063 dependant of width of radiator
• Number of Columns : 2
• Number of Sections : 7, 9 or 11
• Fuel: Central Heating
• Suitable for Conversion: No
• Tested and Certified CE, BE EN 442 Standards
• Style: Traditional Vertical
• Inlet Connection Size: 1/2 BSP
• Outlet Connection Size: 1/2 BSP
• Orientation: Vertical
• Colour/Finish: Raw Metal
• Material: Steel
• Water Content: 91 l/min
• Includes wall fixings, wall plugs, blanking and bleed plug
• Radiator Valves not included but available separately
• 5 Year guarantee against any manufacturers defects

NB: The image shown is for illustration purposes only. All measurements are approximate. In line with manufacturing policy we reserve the right to amend specification without prior notice.
