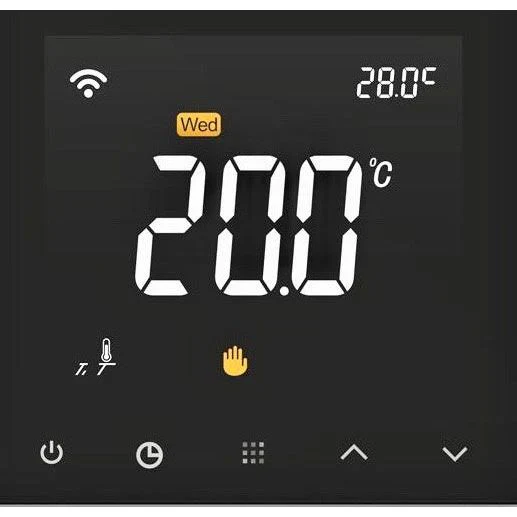

The SDG Programmable Thermostat Timer- Black monitors and controls the underfloor mat temperature for comfort. A clean, sharp design and a manual control of your floor heating accurate and effortless. Supplied with a 2 year guarantee from the manufacturer.

PRODUCT FEATURES

 4 inch large screen display
 Control for electric heat matt. Connects to your home Wifi.

 Permanent user setting retention during power loss
 Display temperature recalibrates
 Optional types of control for different heating application including room thermostat; floor thermostat or room thermostat with floor limitation. Digital programmable Wifi Timerstat Functions
 Optional programming Period: 7 individual day programming. Holiday mode.
 Touch button

SPECIFICATION:
 Power source ……………………………100-240VAC50/60Hz
 Maximum load electric current ……………………………16A/250VAC
 Room temperature setting range ……………………………5℃- 35℃
 External sensor control range ……………………………5 ℃-70 ℃ (not standard)
 Accuracy ……………………………0.1℃
 Working environment temperature ……………………………0℃- 50℃
 The storage temperature ……………………………-10℃- 60℃
 Dimensions …………………………….86mm X 86mm x 16mm(to wall)

IMPORTANT SAFETY INFORMATION:
 Read all of the information in this manual before installing this thermostat.
 Always turn off power at the main power source by unscrewing fuse or switching circuit
breaker to the off position before installing, removing, cleaning, or servicing this thermostat.
 Only a professional contractor should install this thermostat.
 All wiring must conform to local and national building and electrical codes and ordinances.
 Use this thermostat only as described in this manual.
