This stylish Serene L-Shaped Matt Black Complete Shower Bathroom Suite, make the most of our stylish and practical modern bathroom suites. Each item complements each other, creating a beautiful flowing design throughout your bathroom. The perfect way to have a stunningly designed bathroom, without compromising on the functionality.

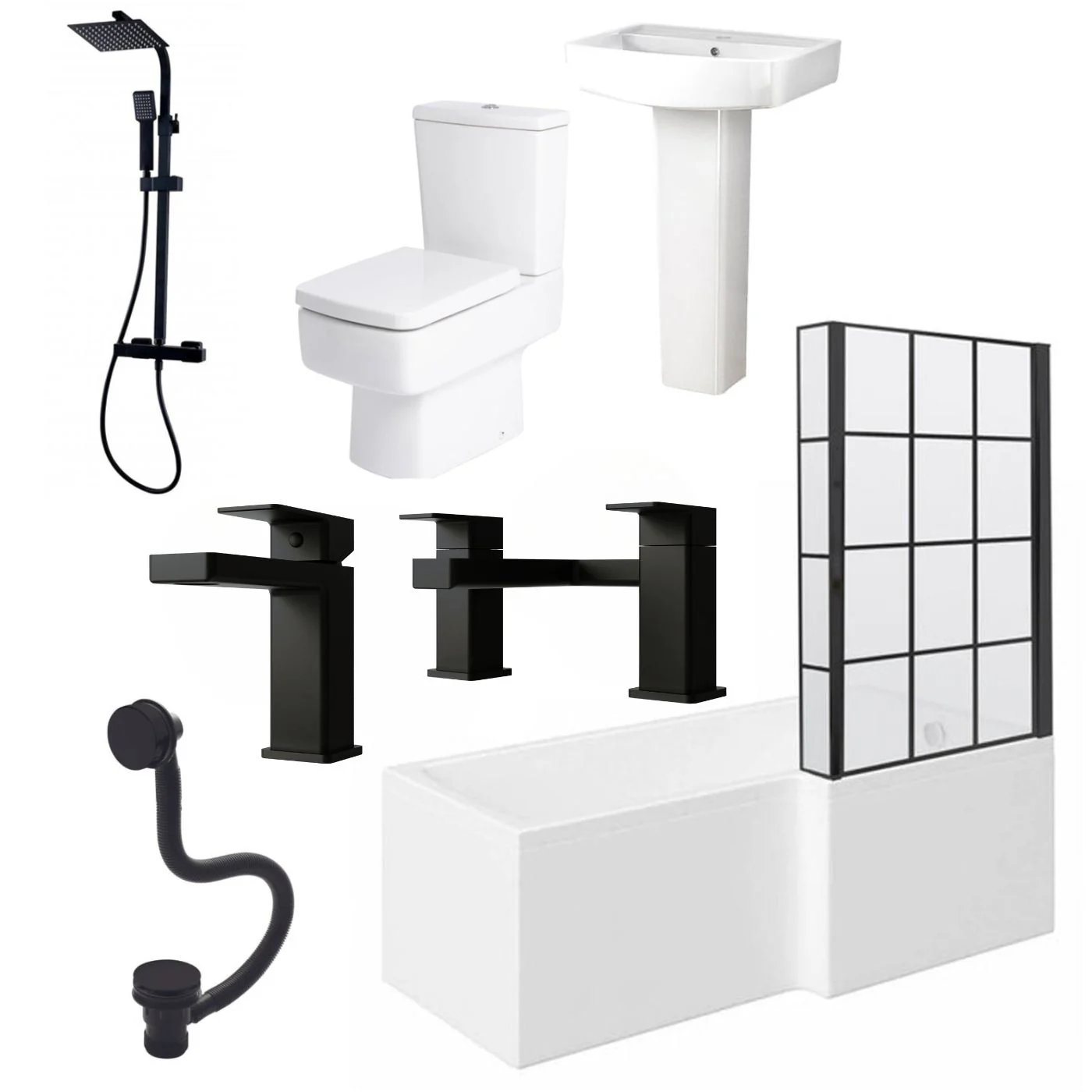

The Suite includes:

• Basin 520mm Width & Pedestal

• Toilet With Soft Close Seat

• Bath Screen

• Black Pop Up Bath Waste
• Black Bath Filler
• Black Basin Tap & Waste
• 1700mm L-Shaped Bath
• Black Thermostatic Shower System

Basin Technical Specification

• Total Height: 820mm
• Basin Width: 520mm
• Basin Projection: 420mm
• Basin Bowl Height: 155mm
• Wall to Waste Outlet: 180mm
• Wall to Tap Hole: 65mm
• Weight: 26.1kg
• Material: Vitreous China
• Colour: White
• Includes Overflow
• Style: Modern

Toilet Technical Specification

• Total Toilet Height: 785mm
• Total Width: 370mm
• Short Projection Toilet: 610mm
• Toilet Pan Height: 405mm
• Pan Width: 350mm
• Material: Vitreous China
• Dual Flush 3/6L Cistern
• Finish: White
• Total Weight: 43.9 kg
• Style: Modern

Bath Screen Technical Specification

• Bath Screen Height : 1430mm
• Bath Screen Width : 808mm
• Adjustment Range : 780 - 795mm
• Toughened Glass Thickness : 6mm
• Bath Screen Design : Hinged L-Shaped with Fixed small panel
• Material : Glass

• Frame Finish : Matt Black

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded
• 5 Year Manufacturers Guarantee

Bath Waste Technical Specification

• Height: 70mm
• Width: 70mm
• Depth: 100mm
• Finish: Matt Black
• Manufactured from high quality brass
• Connection Size: 1 1/2"
• Waste Shape: Round
• Waste Pipe Length: 50mm
• Waste Pipe Diameter: 25mm
• Overflow Projection: 19mm

Bath Filler Technical Specification

• Height: 129.5mm
• Tap Spout Reach: 96.1mm
• Inlet Connection Size: 3/4 BSP
• Shape : Square
• Material Specification : Brass
• Finish : Black
• Operation : Dual Lever
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Minimum Pressure: 0.5 Bar
• Flow Rate - 0.2 Bar 15.1 l/min
  Flow Rate - 0.5 Bar 31.1 l/min
  Flow Rate - 1.0 Bar 44 l/min
  Flow Rate - 2.0 Bar 61.8 l/min
  Flow Rate - 3.0 Bar 76 l/min

Basin Tap Technical Specification

• Height: 136.5mm
• Tap Spout Reach: 98mm
• Material Specification : Brass
• Finish : Black
• Operation : Single Lever
• Mounting : Deck Mounted
• Tap Hole Diameter: 35mm
• Includes Waste: Yes
• Inlet Connection: 1/2" M10
• Minimum Pressure : 0.2 Bar
• Flow Rate - 0.2 Bar 2.5 l/min
  Flow Rate - 0.5 Bar 5.6 l/min
  Flow Rate - 1.0 Bar 8.2 l/min
  Flow Rate - 2.0 Bar 11.5 l/min
  Flow Rate - 3.0 Bar 14.3 l/min

Bath Technical Specification

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 560mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Bath Panel not included

NB: All measurements are approximate. In line with manufacturing policy we reserve the right to amend the specification without prior notice.
