The ShowerWorX Atlantic Black Quadrant Shower Enclosure Bathroom Suite makes a powerful statement, transforming your bathroom into an even more luxurious and stylish which gives your bathroom that extra boost of modernness. Included is everything you'll need to innovate and rejuvenate your current bathroom setup.

Suite includes :-
Shower Quadrant
Shower Tray
450mm Vanity Unit
WC Unit
Concealed Cistern
Back to Wall Toilet
Shower
Basin mono mixer

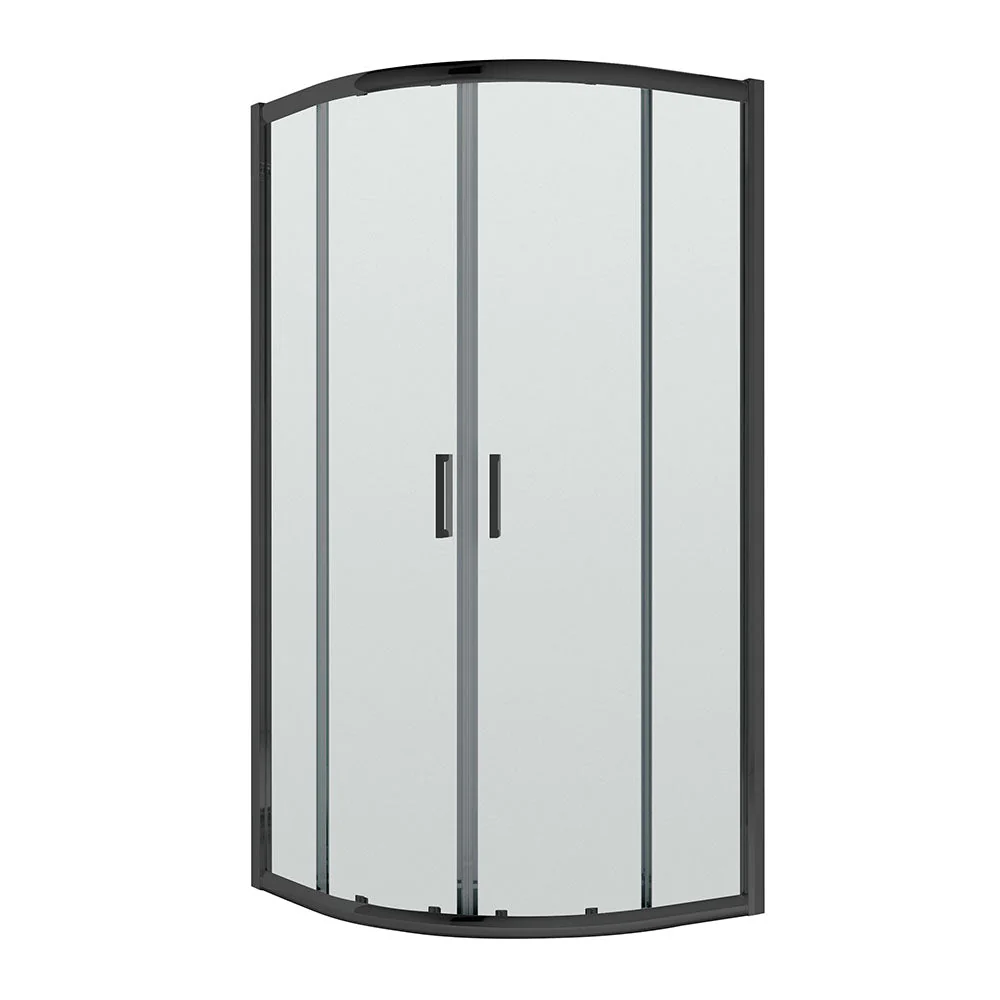

Enclosure Technical Specification

• Height : 1850mm
• Width : 880mm (Suitable for 900 Quad Tray)
• Depth : 880mm   (Suitable for 900 Quad Tray)
• Door Adjustment : 875 - 895mm
• Entry Width : 555mm
• Frame Finish : Matt Black
• Frame Material : Aluminium
• Glass Type : Toughened Safety Glass
• Glass Finish : Clear
• Glass Thickness : 6mm
• Handed : Reversible
• Shape : Quadrant
• Weight : 44.3kg
• Quick release door wheels for easy cleaning
• Magnetic door strips for sealing
• Patented Easyfit assembly system for quick installation

Shower Tray Technical Specification

• Type : Quadrant
• Size: 900 x 900mm
• Height : 40mm
• Waste position : Centre
• High quality design and build
• Flat top
• Low profile design
• Materials : Acrylic Capped/Resin Stone
• Finish : Slate Grey
• Made with Phthalate free materials

Toilet Technical Specification

• Height : 410mm
• Width : 365mm
• Depth : 500mm
• Pan Trap Style: P Trap
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Includes : Pan & Soft Close Seat
• Quick release for ease of cleaning toilet seat

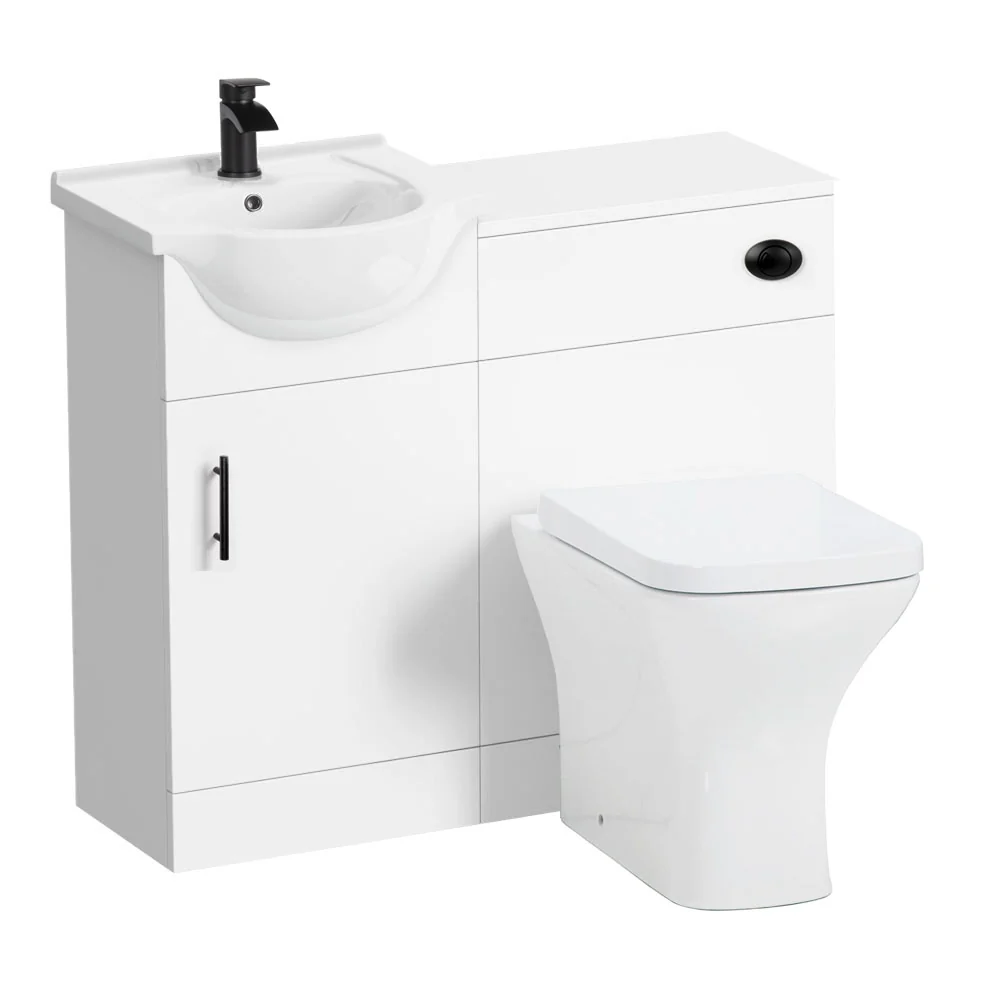

Vanity Unit Technical Specification

• Height (Unit & Basin): 839mm
• Width (Unit & Basin): 450mm
• Depth (Unit & Basin): 440mm
• 1-Door Design
• MDF Unit Construction
• Features Soft-Closing Door
• 1 Central Internal Shelf providing a split storage solution
• Chrome Door Handle
• Includes : Single Tap-Hole Ceramic Basin
• Manufacturers 5 year guarantee

WC Unit Technical Specification

• Width: 500mm
• Projection: 300mm
• White Gloss Finish

Shower Technical Specification

• Shower Valve Outlets: 2
• Shower Valve Controls: 2
• Shower Kit Height: 907-1337mm
• Shower Arm Length: 430mm
• Shower Head Width: 200mm
• Shower Head Depth: 200mm
• Minimum Pressure: 1.0 Bar
• Connection Centres: 150mm
• Inlet Connection Size: 1/2 BSP
• Material: Brass/ABS
• Colour: Matt Black
• Flow Rate - 0.5 Bar 5 l/min
  Flow Rate - 1.0 Bar 7.5 l/min
  Flow Rate - 2.0 Bar 11 l/min
  Flow Rate - 3.0 Bar 14 l/min

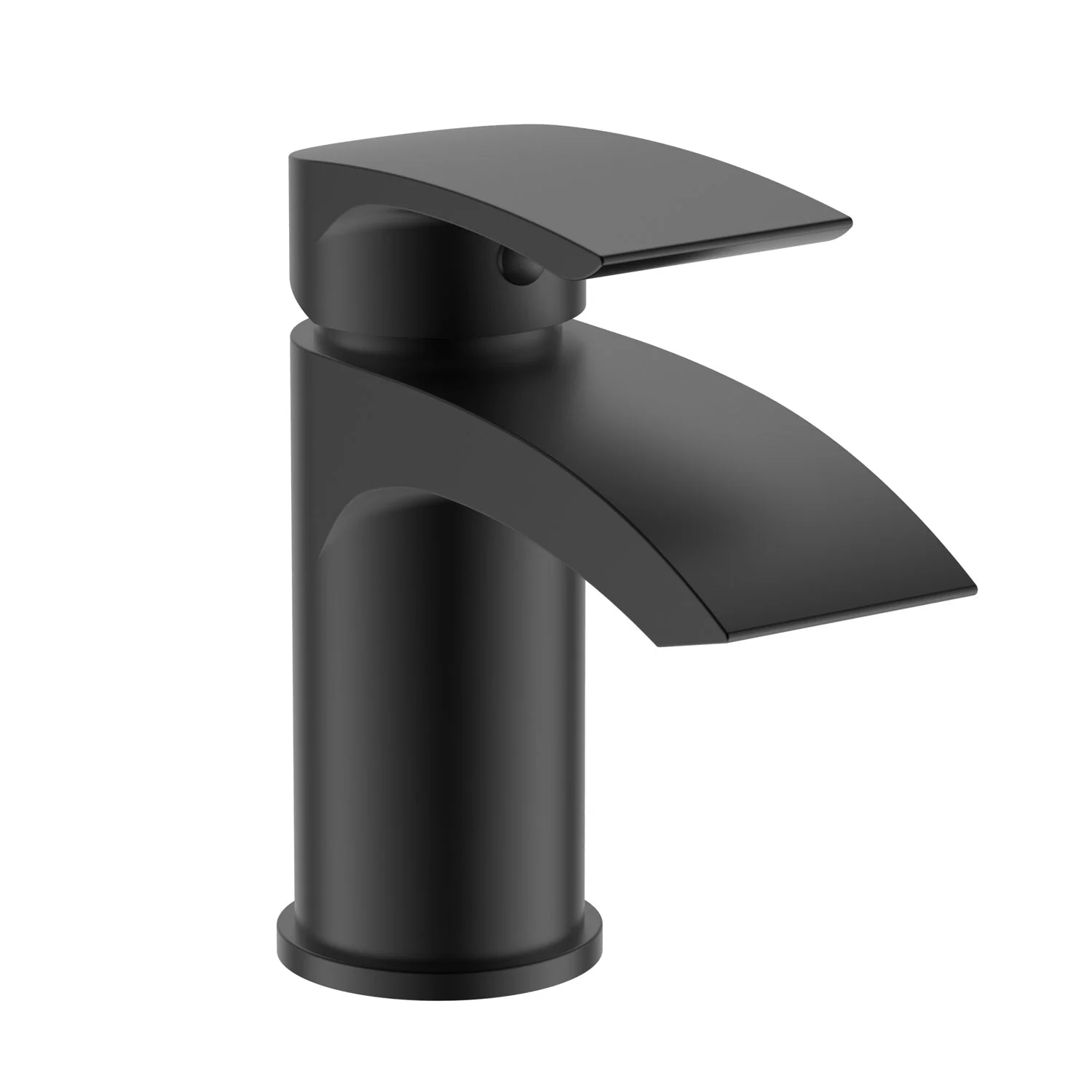

Basin Tap Technical Specification

• Height: 128mm
• Depth: 82mm
• Width: 54mm
• Material Specification : Brass
• Finish : Matt Black
• Simplistic lever control
• Suitable for low pressure systems
• Minimum pressure required: 0.5 bar
• Ceramic disc technology prevents any unwanted leaks or drips
• Includes sprung basin waste

Concealed Cistern Technical Specification

• Height: 296mm
• Width: 340mm
• Depth: 142mm
• Material: HD Polyethylene
• Colour: White
• Flush Plate Finish: Black
• Style: Modern

NB: All measurements are approximate. In line with manufacturing policy we reserve the right to amend specification without prior notice.
