The Showerworx 800mm Wet Room Bathroom Suite makes a powerful statement, transforming your bathroom into an even more luxurious and stylish which gives your bathroom that extra boost of modernness. Included is everything you'll need to innovate and rejuvenate your current bathroom setup.

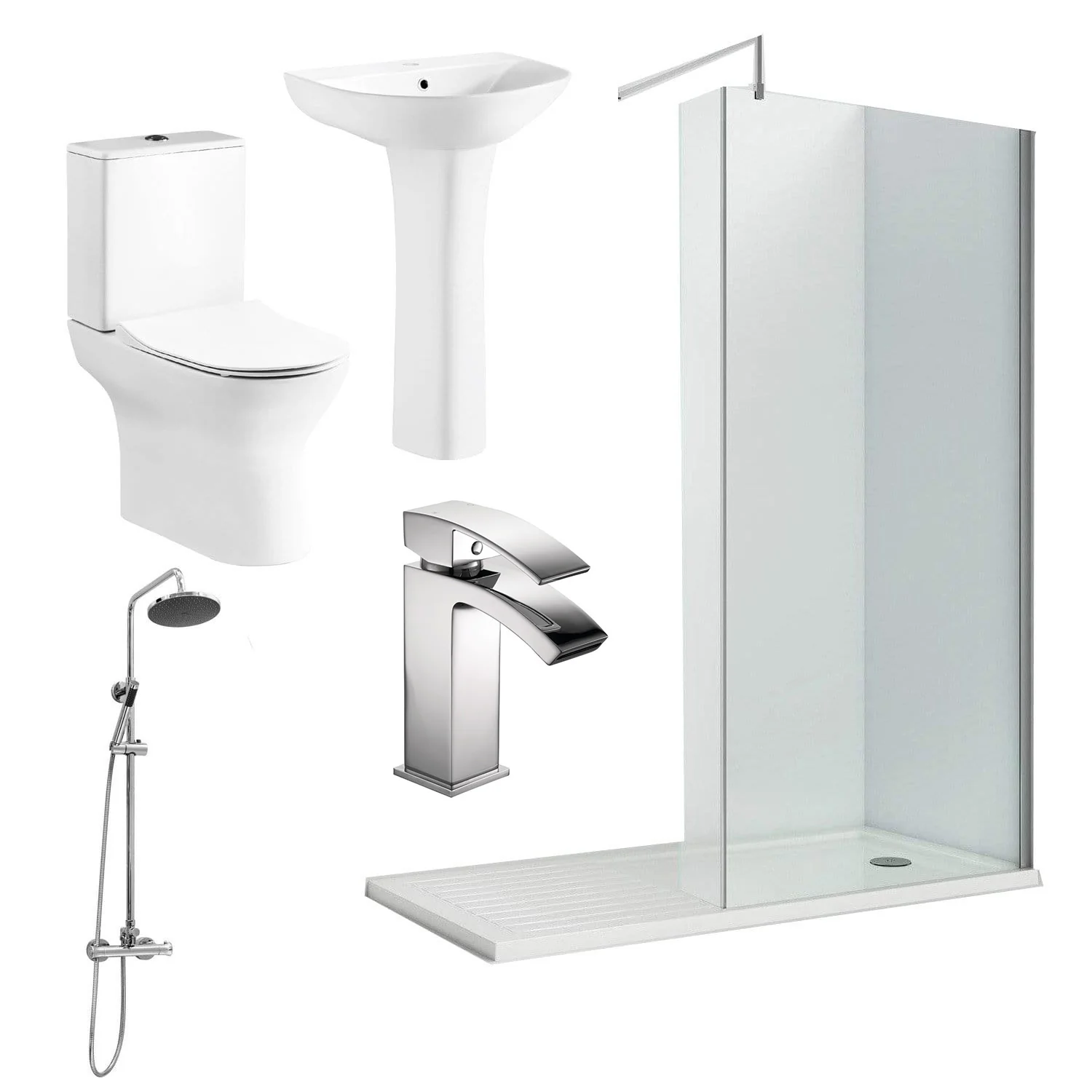

Suite includes :-

• Shower Screen

• Return Screen

• Shower Tray

• Basin and pedestal

• Close-coupled toilet and seat

• Shower

• Basin mono mixer and waste

Technical Specification

Screen

• Height : 1850mm
• Width : 800mm
• Adjustment : 775mm - 793mm
• Finish : Polished Chrome
• Material : Aluminium
• Glass Thickness : 8mm
• Weight : 34Kg

Return Screen

• Height : 1850mm
• Width : 215mm
• Depth : 28mm
• Glass Thickness : 8mm Toughened Safety Glass
• Enclosure Design : Frameless
• Finish : Polished Chrome
• Material : Aluminium
• Excludes : Support Bar

Tray

• Type : Walk In rectangular shower tray
• Colour : White
• Size : 1400mm x 800mm
• Height : 40mm
• Waste position : Centre
• High quality design and build
• Low profile design
• Raised Edge
• Slip Resistant
• Material : Acrylic capped top stone resin tray
• Made with Phthalate free materials

Toilet

• Total Height : 800mm
• Pan Height : 405mm
• Width : 375mm
• Projection : 610mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Close Coupled Rimless Pan
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Round
• Weight : 33kg
• Includes : Pan, Cistern & Soft Close Seat

Basin

• Total Height : 825mm
• Width : 550mm
• Projection : 460mm
• Basin Bowl Height : 150mm

• Basin Bowl Width : 460mm
• Basin Bowl Projection : 285mm
• Outlet Connection Size : 70mm
• Wall to Waste Outlet : 204mm
• Wall to Tap Hole : 60mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Round
• Includes : Overflow

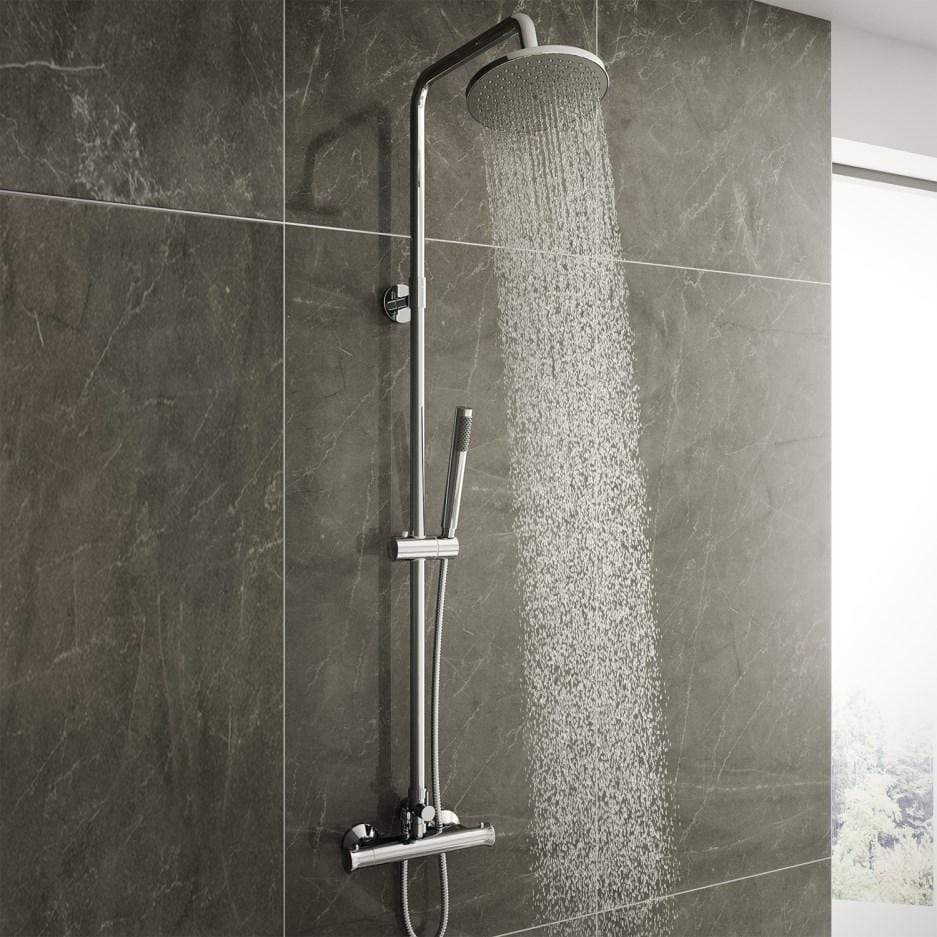

Shower

• Height : Adjustable from 850 to 1250mm
• Shower Head Size : 200mm
• Total Projection: 435mm
• Round modern thermostatic shower
• Latest ceramic disc technology
• High quality design and build
• Adjustable handset height
• Latest thermostatic system
• Working pressure between 0.5 and 5.0 bar pressure
• 1500mm shower hose
• Easyclean anticalc jets on both showerhead and handset
• Thermostatic shower incorporates diverter to control flow to either overhead rose or handset
• Set complete with one 200mm shower rose and one handset
• Lightweight handset provided to minimise risk of damage to shower tray or bath in case of accidental droppage
• Round thermostatic mixing valve of durable brass construction and chrome finish
• Rigid riser with polished chrome finish
• Easy installation

• 150mm inlet centres on thermostatic valve
• 15mm water inlet feeds
• Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised sytems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years

Shower Tray Waste - Optional

• Height : 78mm
• Width : 115mm
• Depth : 780mm
• Finish : Chrome
• Connection Size : 11/2"
• Shape : Round

Side Panel - Optional

• Height : 1850mm
• Width : 785mm
• Enclosure Adjustment : 760mm - 785mm
• Glass Thickness : 5mm
• Material : Glass
• Finish : Satin Chrome
• Glass Colour : Clear
