The beautiful complete Brava shower bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Bath Screen
Basin and pedestal
Close-coupled toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Technical Specification

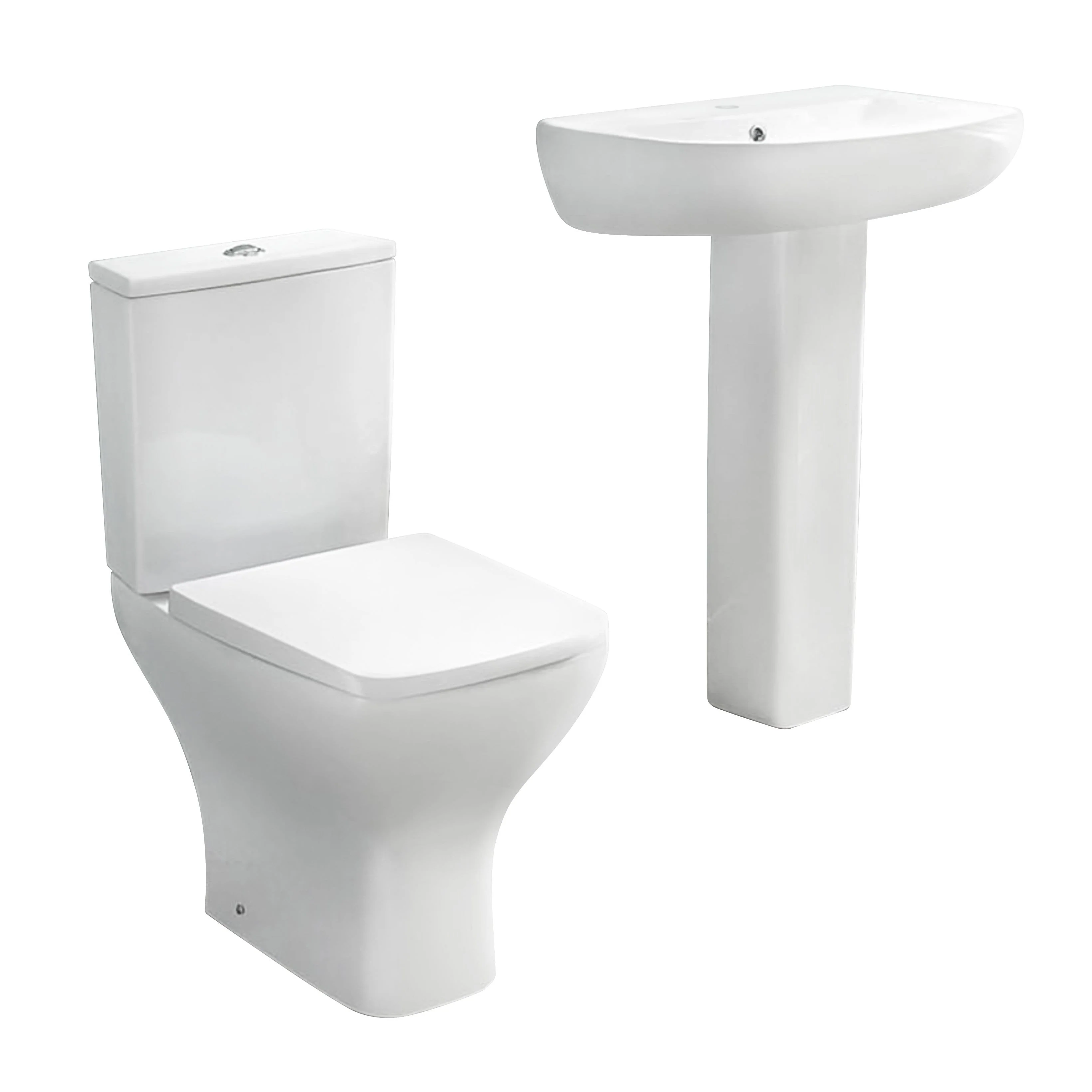

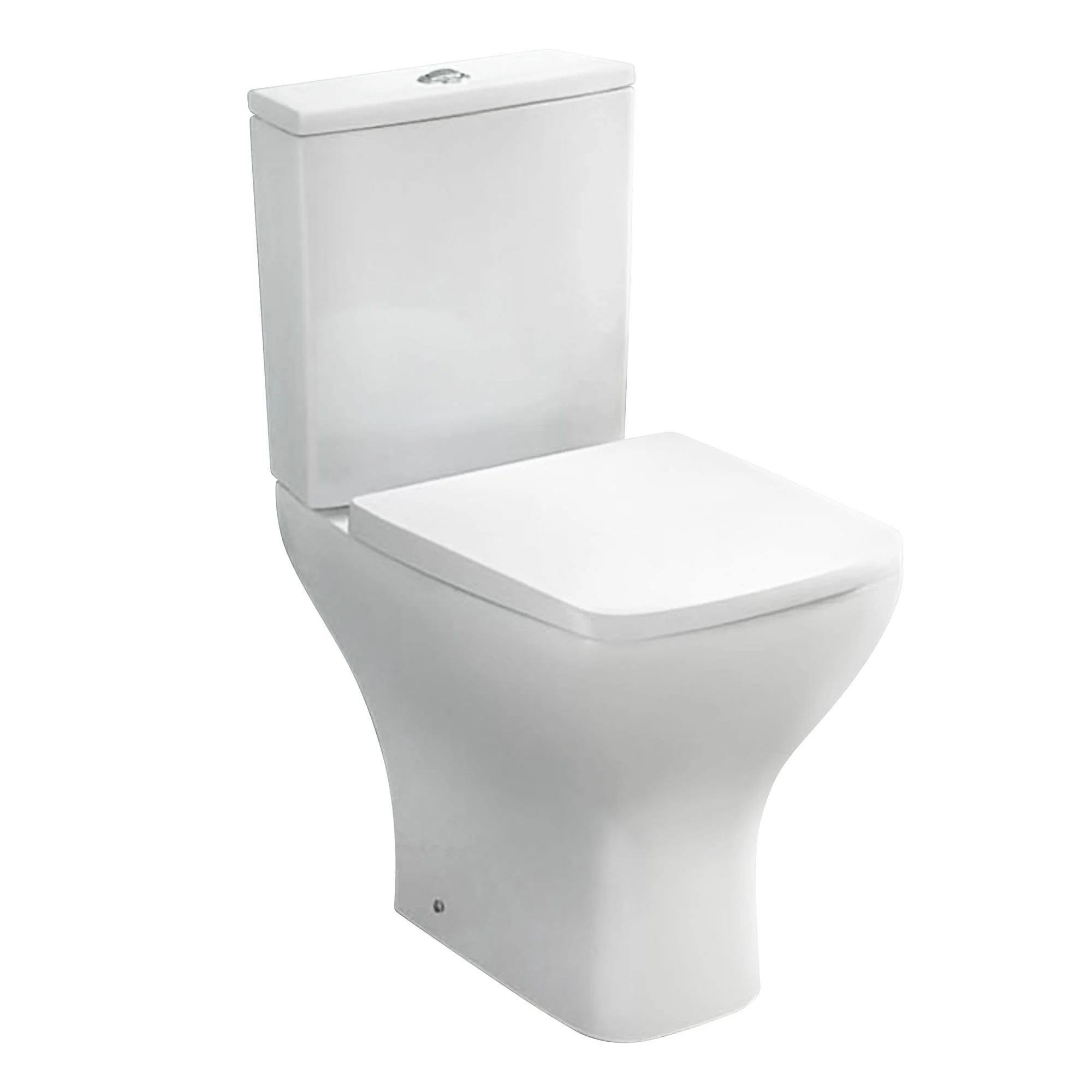

Toilet

• Total Height : 790mm
• Pan Height : 400mm
• Width : 375mm
• Projection : 612mm
• Toilet Pan Outlet : Horizontal
• Toilet Seat Fixing Centres : 105mm
• Outlet Connection Size : 102mm
• Toilet Type : Close Coupled
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Square
• Features : Short Projection Toilet
• Includes : Pan, Cistern & Soft Close Seat

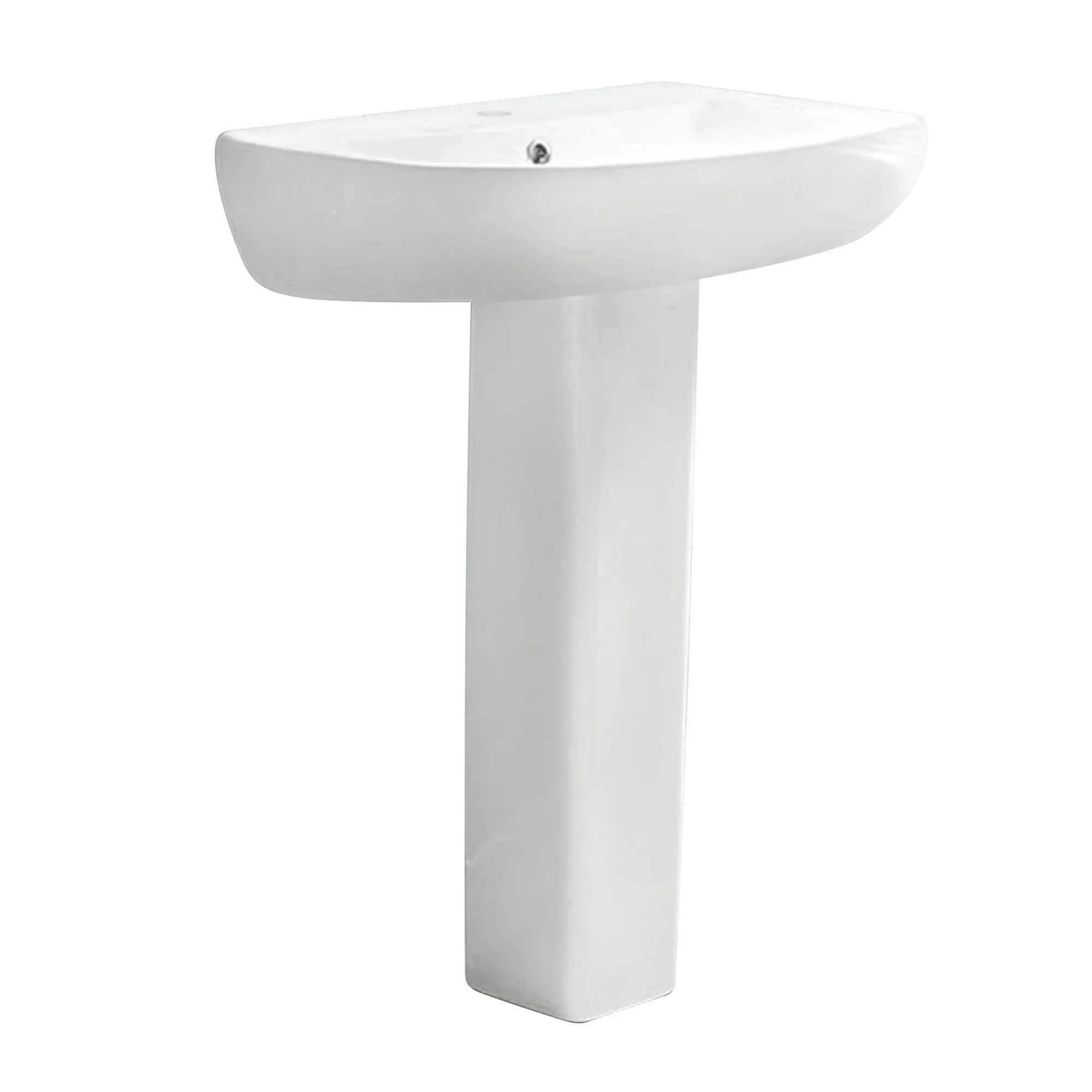

Basin

• Total Height : 840mm
• Width : 545mm
• Projection : 455mm
• Basin Bowl Height : 183mm

• Basin Bowl Width : 105mm
• Outlet Connection Size : 60mm
• Basin Bowl Projection : 290mm

• Wall to Waste Outlet : 183mm
• Wall to Tap Hole : 63mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Round
• Includes : Overflow

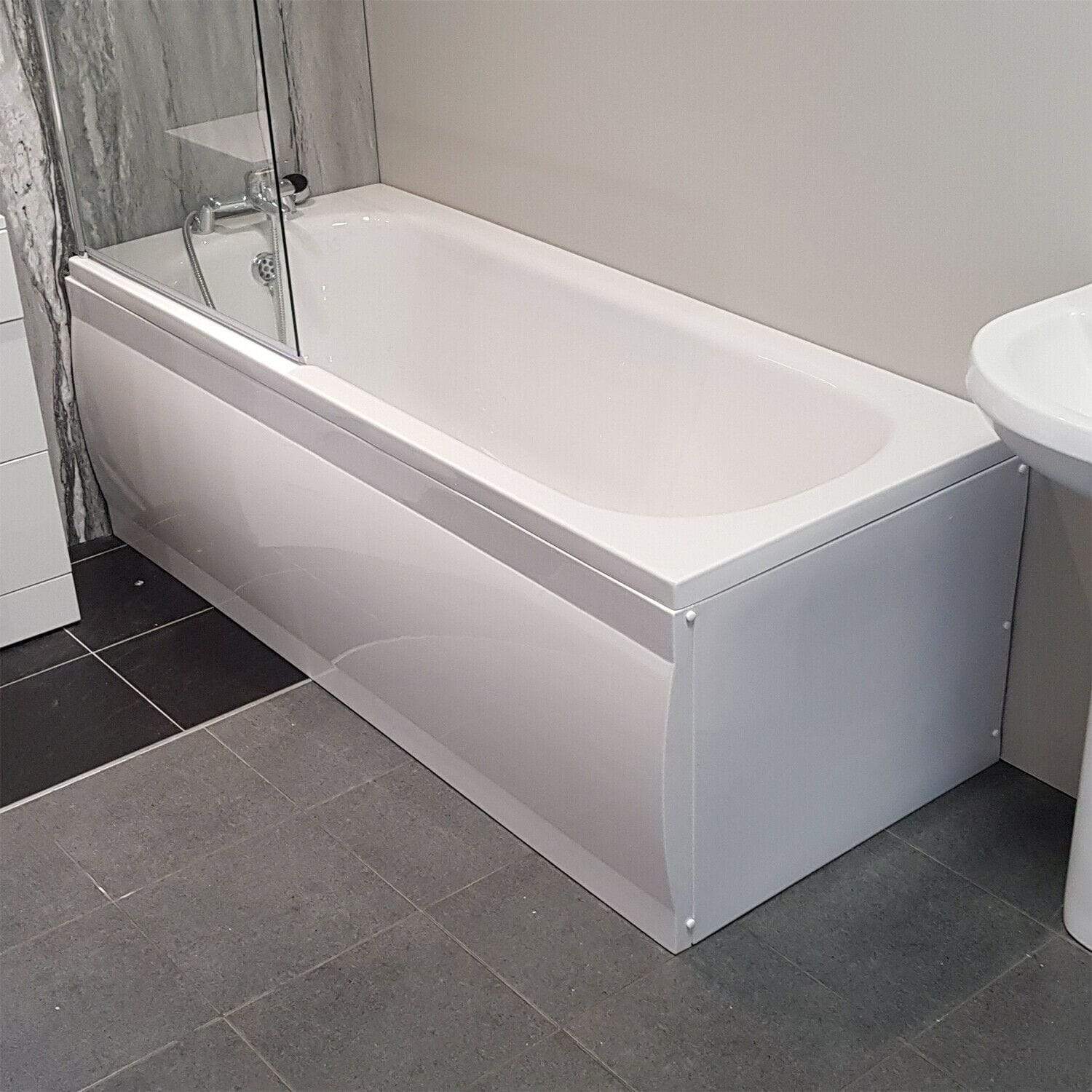

Bath

• Length : 1700mm
• Width : 700mm
• Height : 595mm (including legset)
• Material Specification : Acrylic
• Features : Single Ended
• Tap Holes : None Pre-Drilled
• Includes : Legset

Bath Screen

• Height : 1400mm
• Width : 790mm
• Glass Thickness : 6mm
• Bath Screen Design : Straight
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

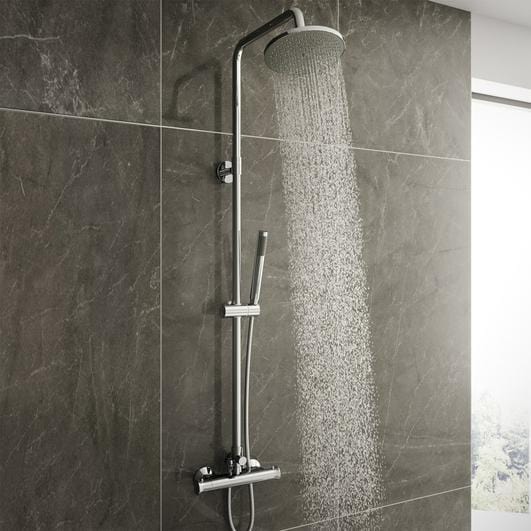

Shower

• Height : Adjustable from 850 to 1250mm
• Shower Head Size : 200mm
• Total Projection: 435mm
• Round modern thermostatic shower
• Latest ceramic disc technology
• High quality design and build
• Adjustable handset height
• Latest thermostatic system
• Working pressure between 0.5 and 5.0 bar pressure
• 1500mm shower hose
• 150mm inlet centres on thermostatic valve
• 15mm water inlet feeds
• Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps

Basin Tap

• Height : 137mm
• Width : 52mm
• Depth : 133mm
• Tap Spout Reach : 107mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 1/2 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 3.8 Litres per Min
• Flow Rate 0.5 Bar : 6.2 Litres per Min
• Flow Rate 1 Bar : 8.8 Litres per Min
• Flow Rate 2 Bar : 12.5 Litres per Min
• Flow Rate 3 Bar : 15.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails

Bath Tap

• Height : 153mm
• Width : 180mm
• Depth : 148mm
• Tap Spout Reach : 123mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 3/4 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 11 Litres per Min
• Flow Rate 0.5 Bar : 17.2 Litres per Min
• Flow Rate 1 Bar : 24.3 Litres per Min
• Flow Rate 2 Bar : 34 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Weight : 2.4kg

Bath Waste

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
