The beautiful complete Evo Waterfall bathroom suite. Make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality. Featuring fantastic stylish waterfall basin mono and bath filler taps

Suite includes :-

Bath
Basin and pedestal
Close-coupled toilet and seat
Basin mono mixer and waste
Bath Shower Mixer
Bath waste plug and chain

Excludes: bath panels (available separately)

Technical Specification

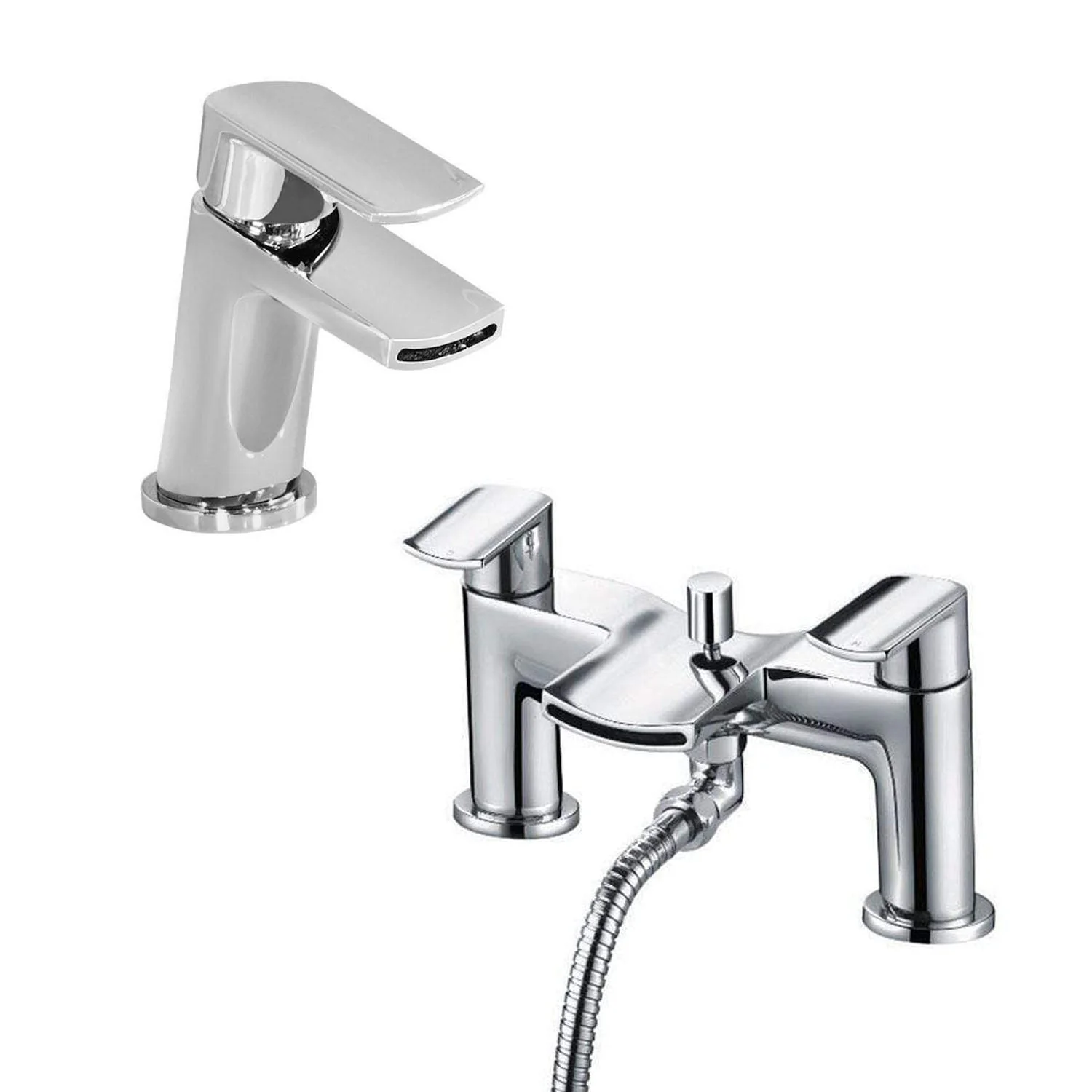

Basin Tap Technical Specification

• Height : 150mm
• Width : 52mm
• Depth : 121mm
• Tap Spout Reach : 95mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 1/2 BSP
• Shape : Round
• Flow Rate 0.2 Bar : 3.8 Litres per Min
• Flow Rate 0.5 Bar : 6.2 Litres per Min
• Flow Rate 1 Bar : 8.8 Litres per Min
• Flow Rate 2 Bar : 12.5 Litres per Min
• Flow Rate 3 Bar : 15.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology with Waterfall spouts
• Includes : Free Basin Waste & Flexi Tails

Bath Tap Technical Specification

• Height :132mm
• Total Projection : 123mm
• Width : 222mm
• Tap Inlet Centres : 180mm
• 3/4 water inlet feeds
• Working pressure between 0.5 and 5.0 bar pressure
• High quality design and build
• Latest 1/4 turn ceramic disc technology
• Material : brass body
• Highly polished chrome finish
• Hot and cold indicators (H & C) on lever controls
• Comes complete with shower handset, hose and wall bracket
• Deck mounted
• Easy installation
• Gravity systems require minimum of 5 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years
• Flow Rates :-
• 0.5 Bar   15.0 Litres per minute

• 1.0 Bar   22.4 Litres per minute
• 2.0 Bar   31.8 Litres per minute
• 3.0 Bar   33.5 Litres per minute

Bath Waste Technical Specification

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
