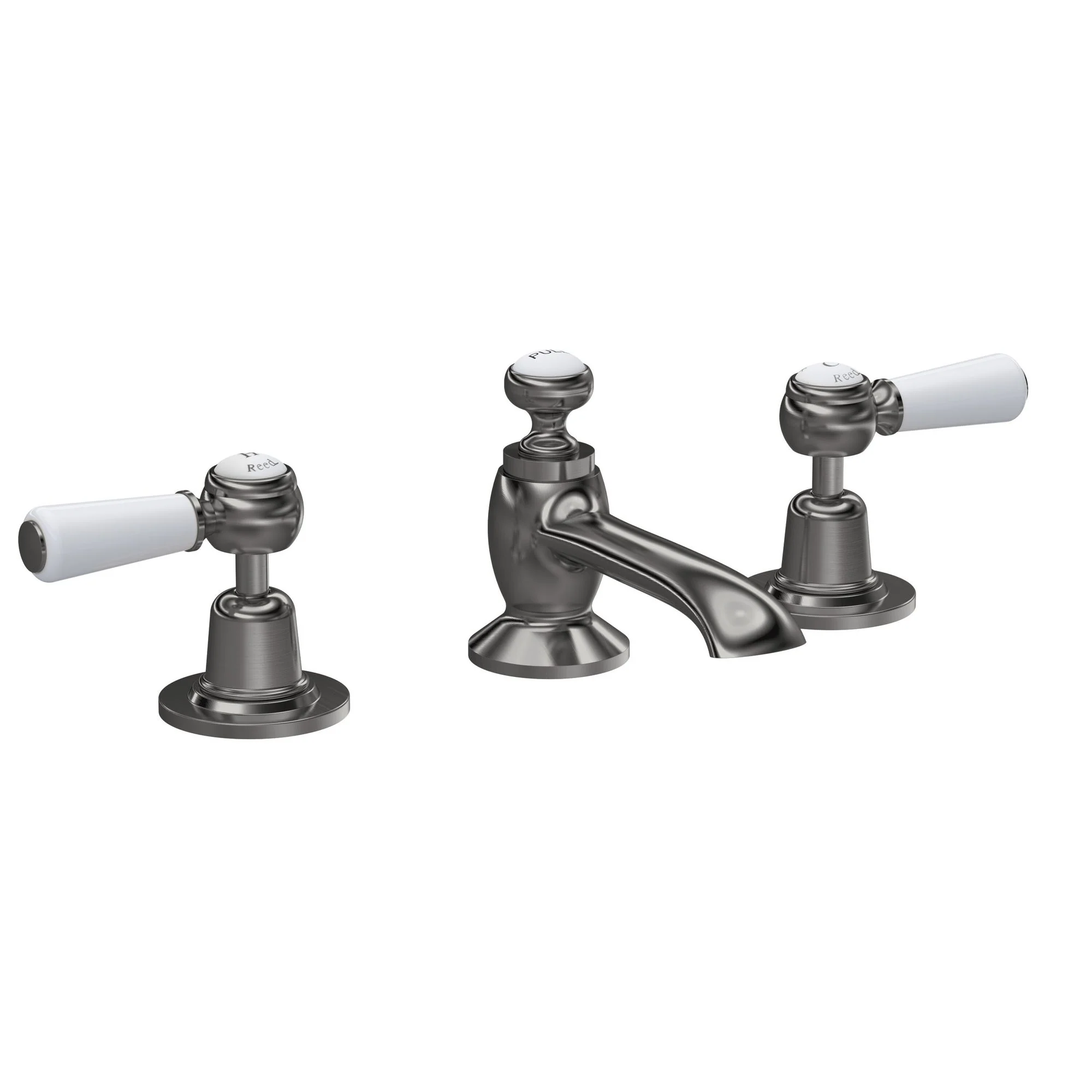

Part of the Hudson Reed Topaz range, this Hudson Reed basin mixer delivers smooth water control with sleek, design-led styling and a traditional finish. Built with solid brass body for long-lasting, dependable use. A well-finished fitting that coordinates with a range of basin and bath styles.

Technical Specification

Height: 94 mm

Weight: 2.8 kg

Width: 246 mm

Depth: 140 mm

Length:

Material: Brass

Waste: Yes

Mount Type: Deck

Handle Type: Lever

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 5.6

Flow Rate at 0.5 Bar (L/min): 14

Flow Rate at 1 Bar (L/min): 20.2

Flow Rate at 2 Bar (L/min): 29

Flow Rate at 3 Bar (L/min): 35.4

Tap Holes Required: 3

Tap Spout Projection: 110

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
