The beautiful complete Brava Showerbath suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Each item complements the other as they follow the same style throughout, featuring contemporary edges and straight lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

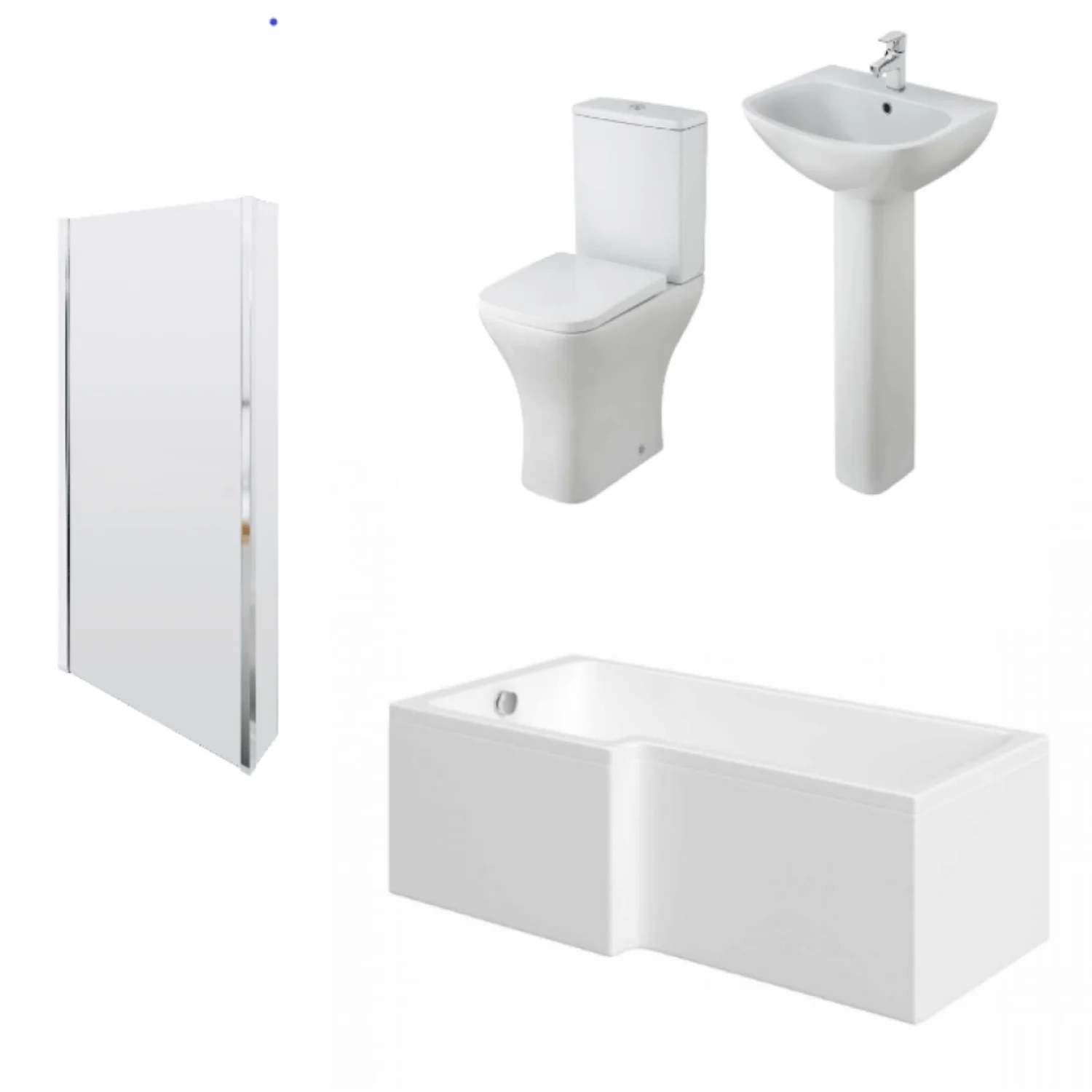

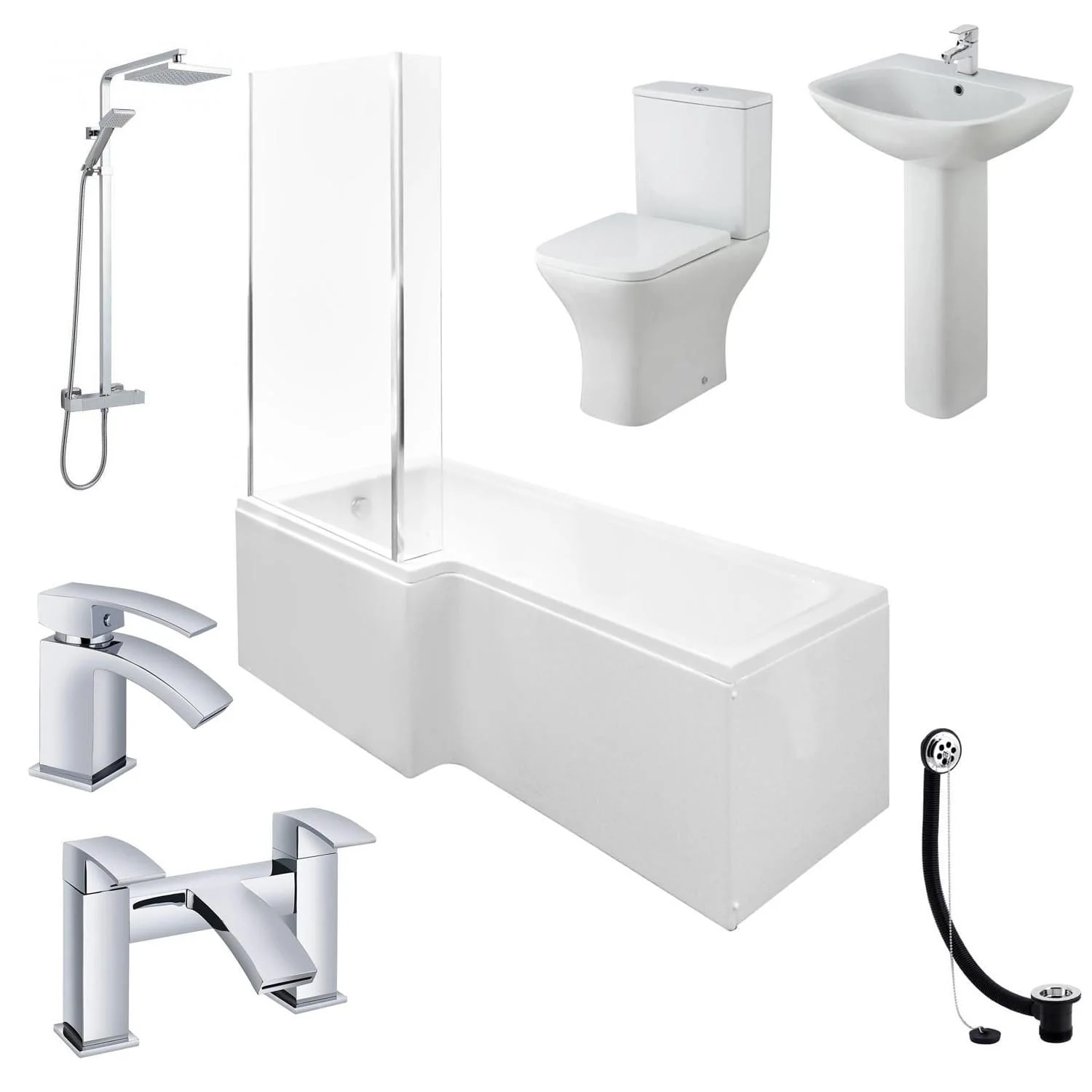

Suite includes :-
Bath
Bath Screen
Basin and pedestal
Close-coupled toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Toilet Technical Specification

• Toilet Total Height : 790mm
• Toilet Width : 375mm
• Short Projection Rimless Toilet : 612mm
• Toilet Pan Height : 400mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 43.9kg
• Features : Short Projection Pan
• Includes : Modern Rimless Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

Basin Technical Specification

• Total Height : 840mm
• Width : 545mm
• Projection : 455mm
• Basin Bowl Height : 183mm
• Basin Bowl Width : 105mm
• Wall to Tap Hole : 63mm
• Material Specification : Ceramic
• Number of Tap Holes : 1, Central
• Basin Shape : Square
• Includes : Overflow

Bath Technical Specification

• Bath Length : 1600mm
• Bath Width : 850 / 700mm
• Bath Height : 560mm
• Bath Material : Quality Acrylic
• Colour : White

Hinged Bath Screen Technical Specification

• Height : 1400mm
• Width : 805mm
• Wall Adjustment Range - 800-810mm
• Glass Thickness : 6mm
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible and hinged



Shower Technical Specification

• Total Height : 690-1045mm
• Total Width : 263mm
• Total Projection : 344mm
• Material Specification : Brass
• Finish : Chrome
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Length of Shower Head Arm : 344mm
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.1 and 5.0 Bar
• Easy installation
• Incorporating diverter to control flow between shower head & handset



Basin Tap Technical Specification

• Height : 137mm
• Width : 52mm
• Depth : 133mm
• Tap Spout Reach : 107mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 1/2 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 3.8 Litres per Min
• Flow Rate 0.5 Bar : 6.2 Litres per Min
• Flow Rate 1 Bar : 8.8 Litres per Min
• Flow Rate 2 Bar : 12.5 Litres per Min
• Flow Rate 3 Bar : 15.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails



Bath Tap Technical Specification

• Height : 153mm
• Width : 180mm
• Depth : 148mm
• Tap Spout Reach : 123mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 3/4 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 11 Litres per Min
• Flow Rate 0.5 Bar : 17.2 Litres per Min
• Flow Rate 1 Bar : 24.3 Litres per Min
• Flow Rate 2 Bar : 34 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Weight : 2.4kg



Waste Technical Specification

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
