Make the most of your bathroom with our stylish and practical modern Brava l-shaped vanity bathroom suite. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

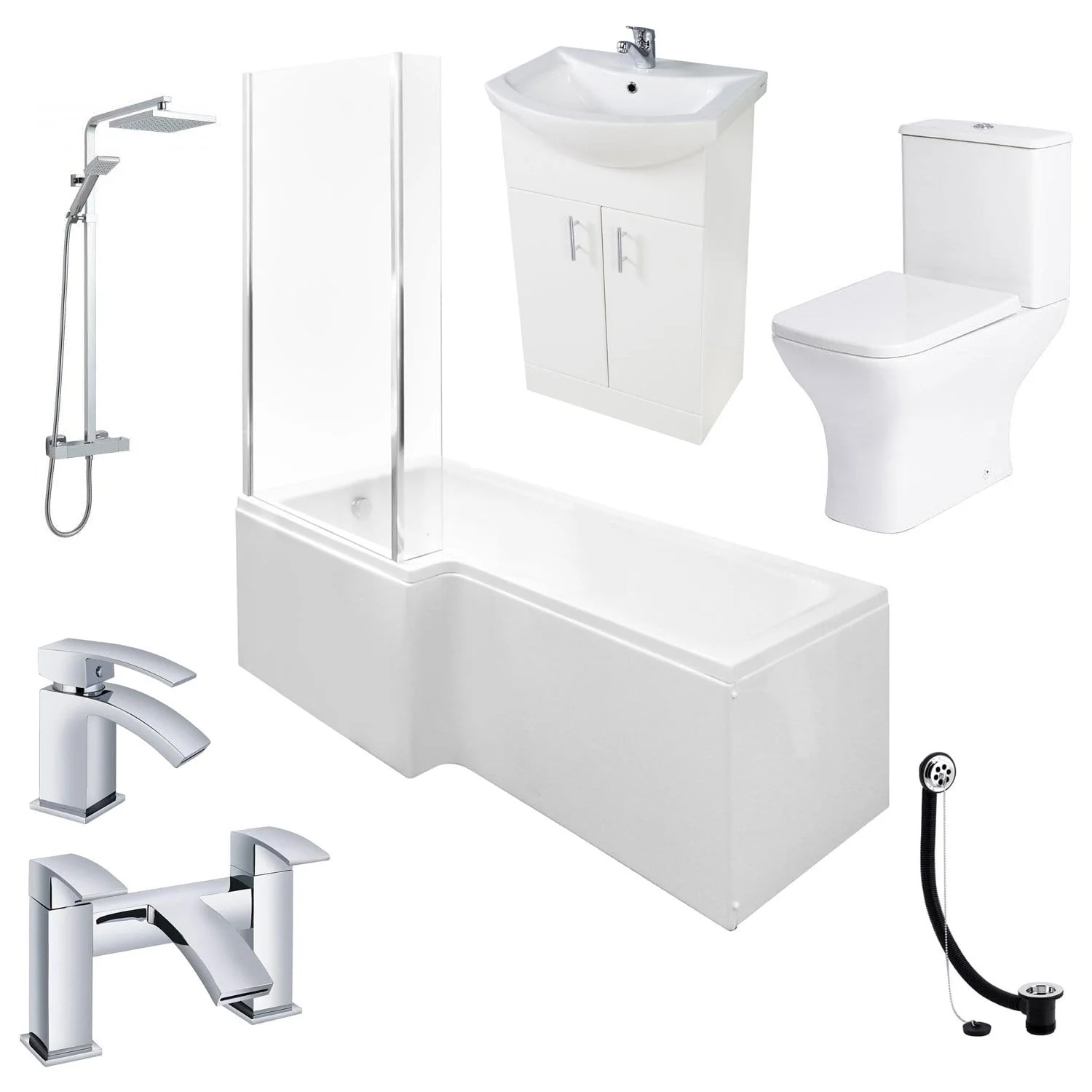

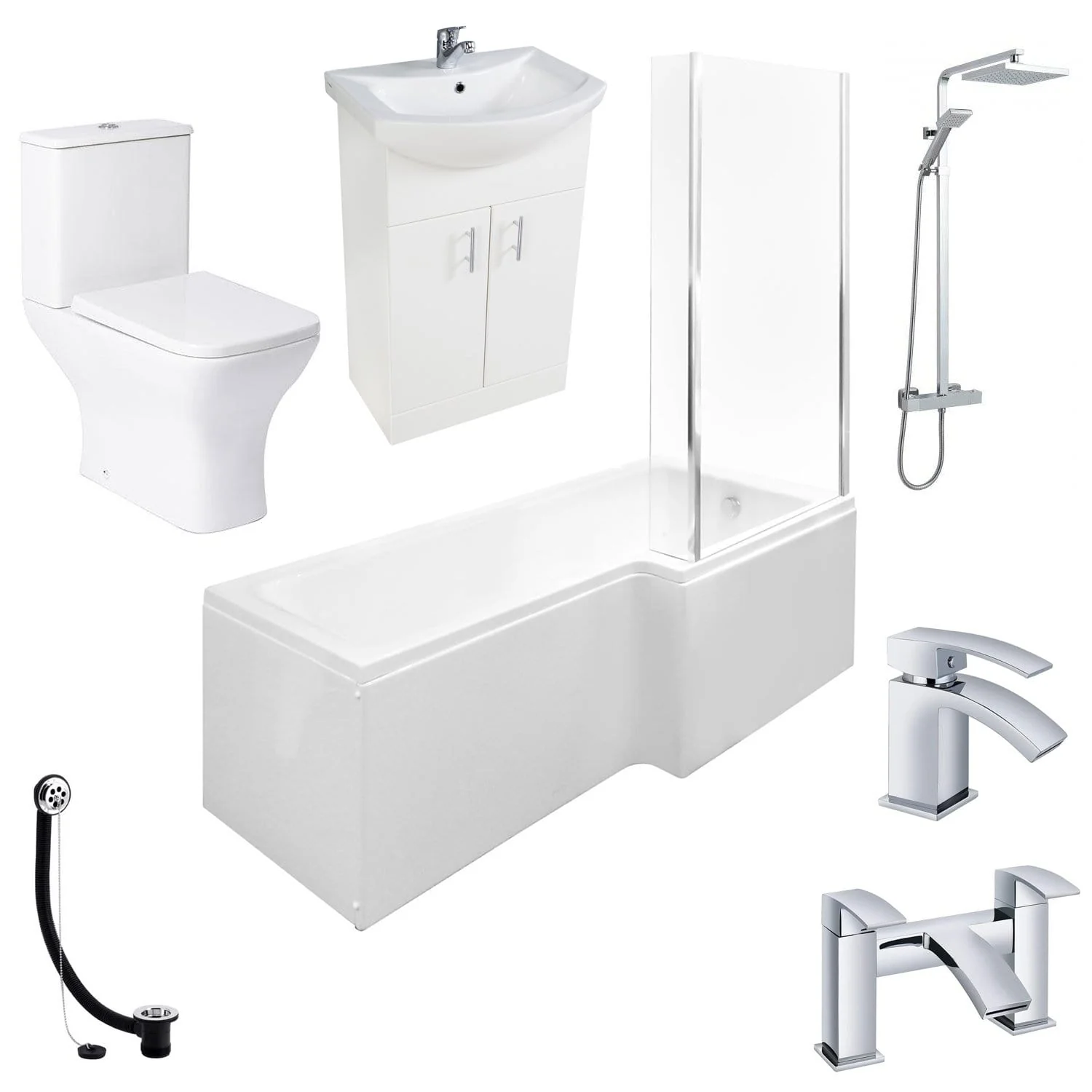

Suite includes :-
Bath
Bath Screen
650mm Vanity Unit with Basin
Close-coupled toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

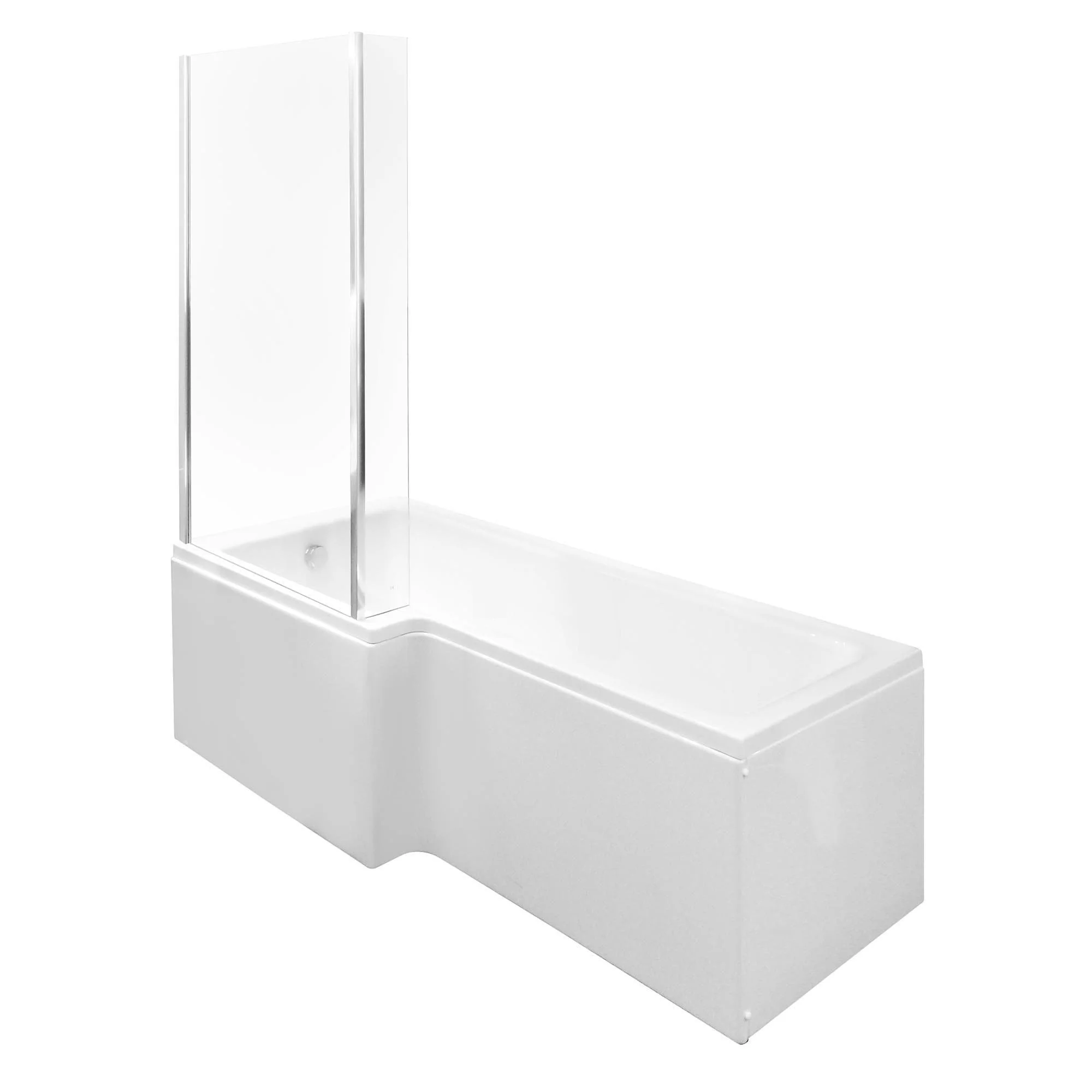

Bath Technical Specification

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 560mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Bath Thickness : 4mm
• Finish : White

Bath Screen Technical Specification

• Bath Screen Height : 1400mm
• Bath Screen Width : 805mm
• Adjustment Range : 800 - 810mm
• Glass Thickness : 6mm
• Swing Raduis : 550mm
• Bath Screen Design : L-Shaped
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded

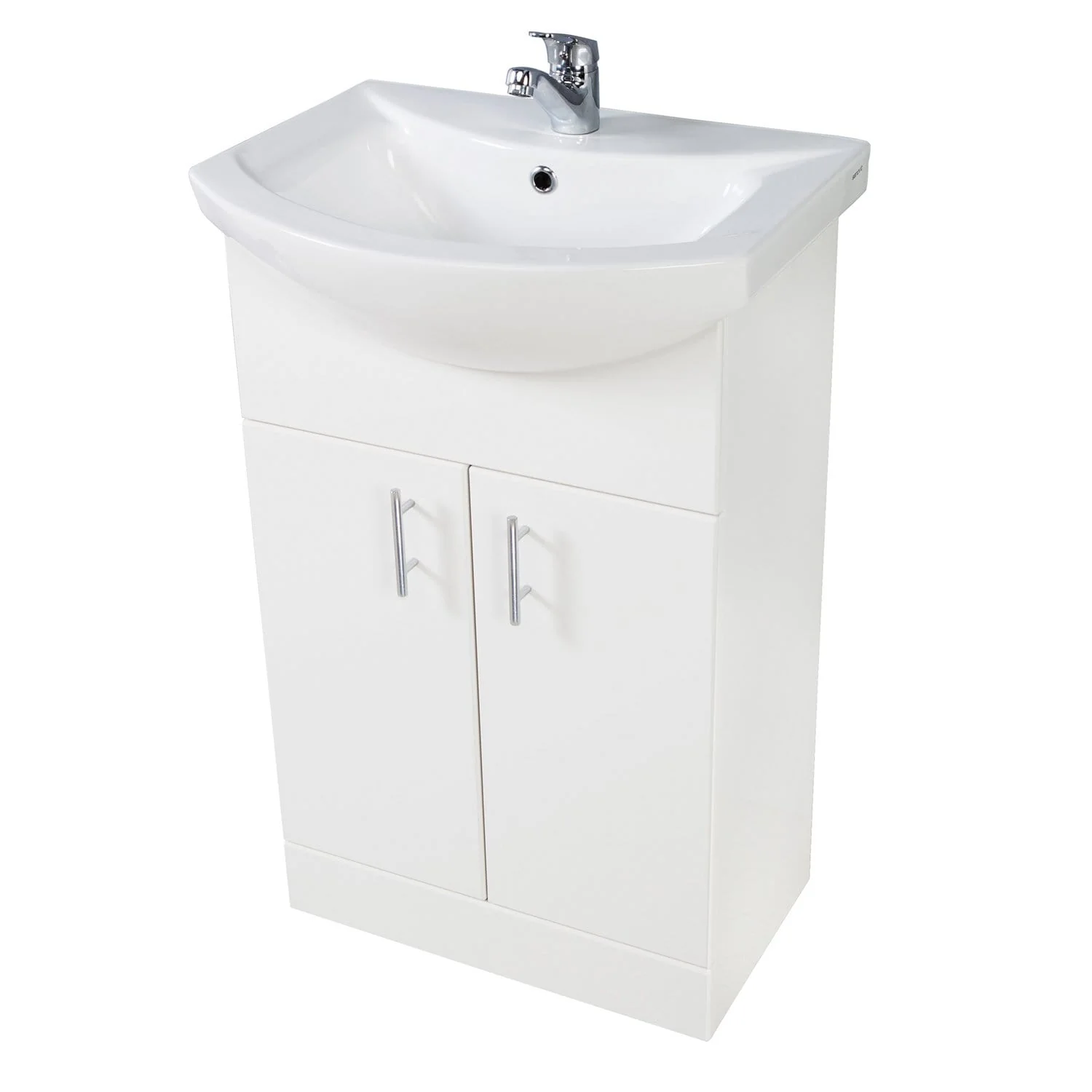

Vanity Unit Technical Specification

• Furniture Type: Vanity Unit
• Style: Floor Standing
• Finish : White
• Materials Specification: Moisture Resistant MDF
• Assembly Required: Unit comes pre-assembled (not flat packed)
• Available Storage: 1 Internal Shelf
• Features: Soft closing door mechanism
• Height : 860mm
• Width : 550mm
• 18mm Solid Carcass

Toilet Technical Specification

• Total Height : 790mm
• Pan Height : 400mm
• Width : 375mm
• Projection : 612mm
• Toilet Pan Outlet : Horizontal
• Toilet Seat Fixing Centres : 105mm
• Outlet Connection Size : 102mm
• Toilet Type : Close Coupled
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Square
• Features : Short Projection Toilet
• Includes : Pan, Cistern & Soft Close Seat

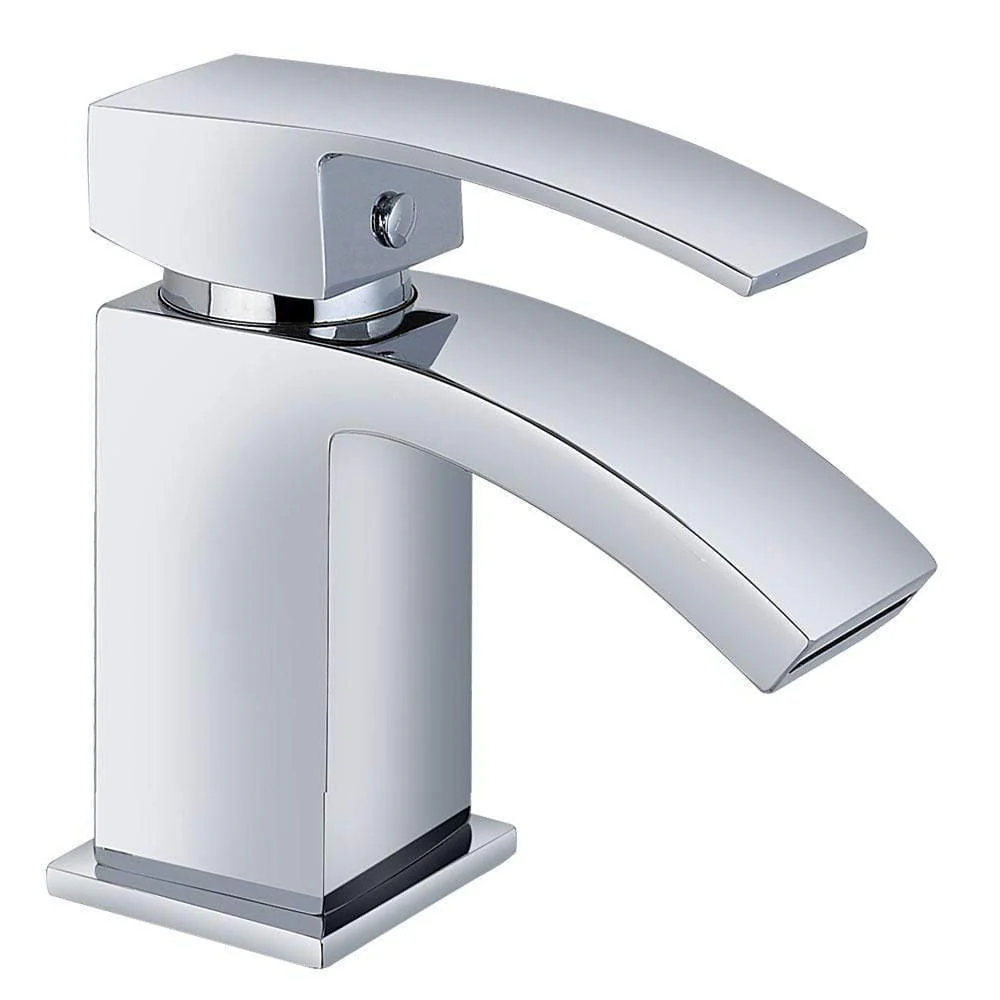

Basin Tap Technical Specification

• Height : 137mm
• Width : 52mm
• Depth : 133mm
• Tap Spout Reach : 107mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 1/2 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 3.8 Litres per Min
• Flow Rate 0.5 Bar : 6.2 Litres per Min
• Flow Rate 1 Bar : 8.8 Litres per Min
• Flow Rate 2 Bar : 12.5 Litres per Min
• Flow Rate 3 Bar : 15.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails

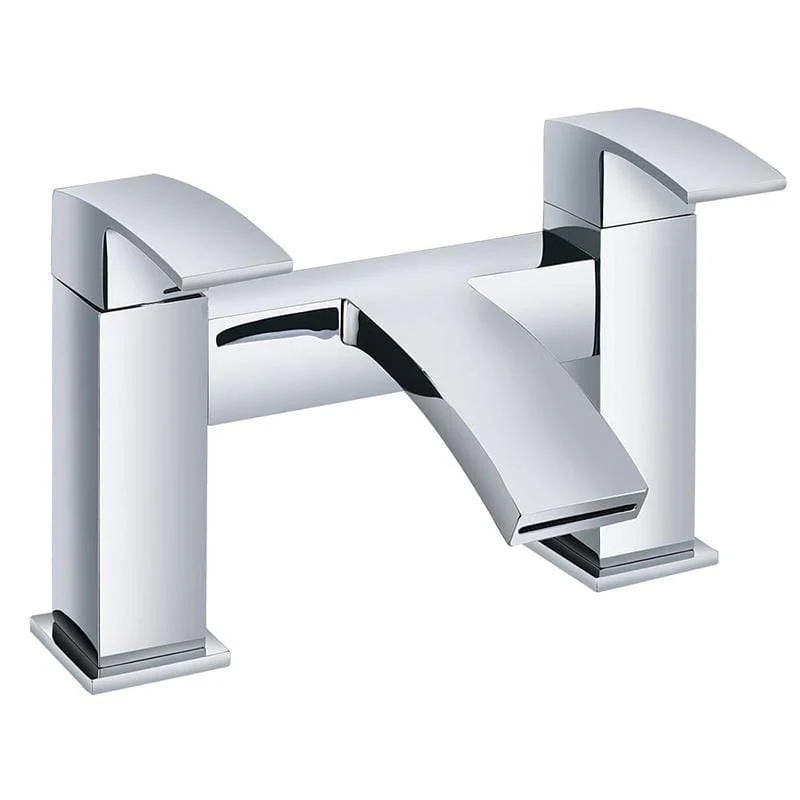

Bath Tap Technical Specification

• Height : 153mm
• Width : 180mm
• Depth : 148mm
• Tap Spout Reach : 123mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 3/4 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 11 Litres per Min
• Flow Rate 0.5 Bar : 17.2 Litres per Min
• Flow Rate 1 Bar : 24.3 Litres per Min
• Flow Rate 2 Bar : 34 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Weight : 2.4kg

Shower Technical Specification

• Total Height : 690-1045mm
• Total Width : 263mm
• Total Projection : 344mm
• Material Specification : Brass
• Finish : Chrome
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Length of Shower Head Arm : 344mm
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.1 and 5.0 Bar
• Easy installation
• Incorporating diverter to control flow between shower head & handset

Waste Technical Specification

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
