The beautiful complete Brava vanity bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

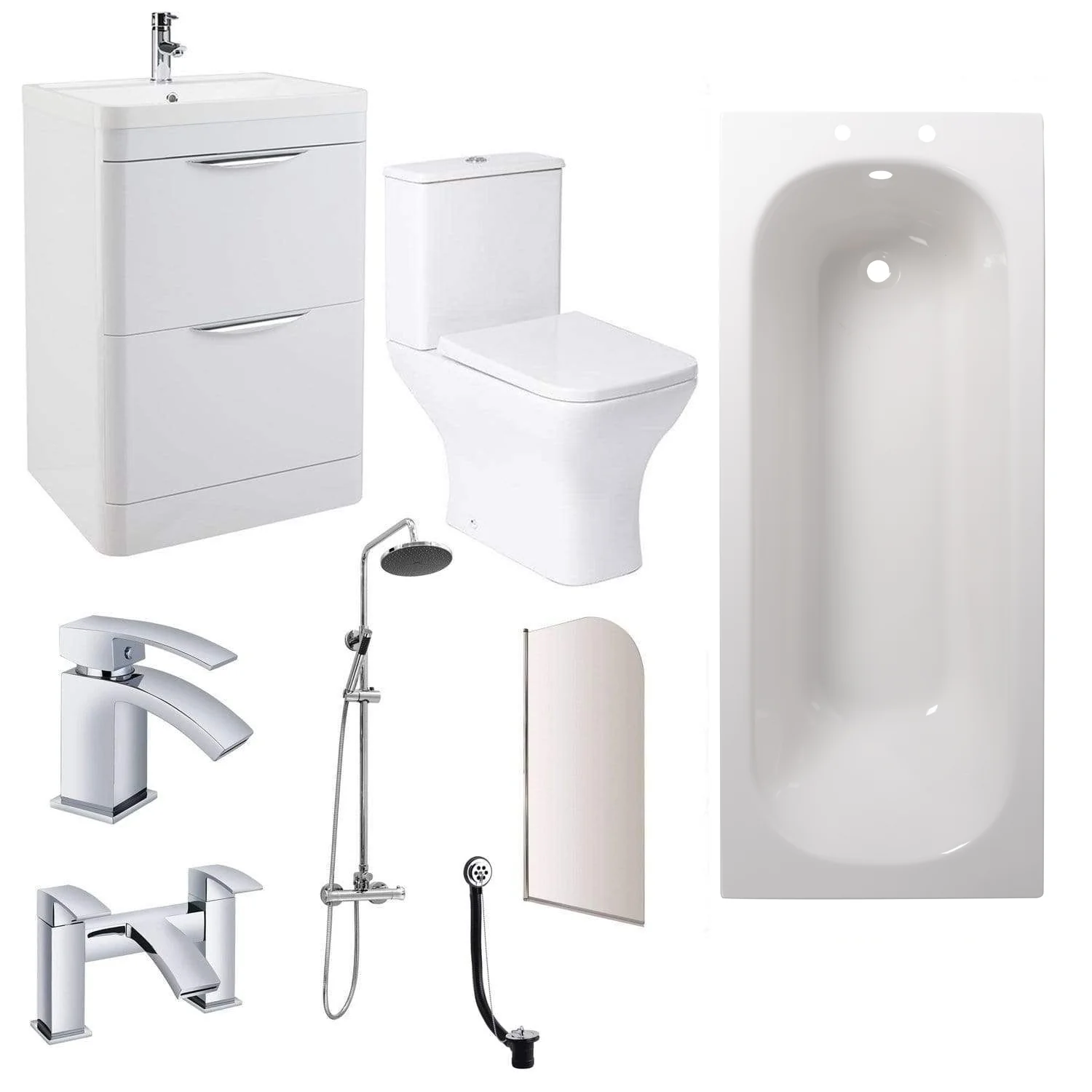

Suite includes :-
Bath
Bath Screen
600mm Vanity Unit with Basin
Close-coupled toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Technical Specification

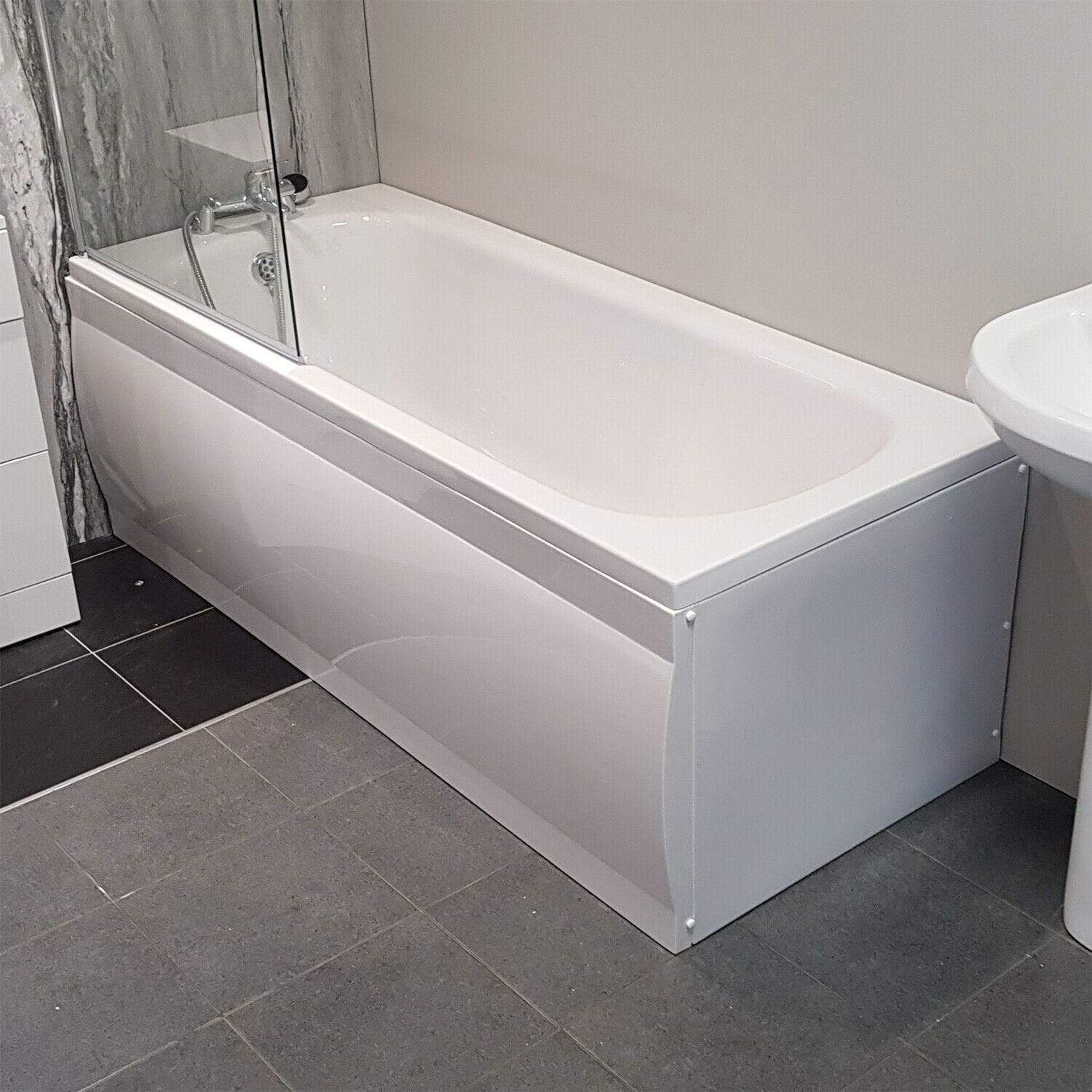

Bath

• Length : 1700mm
• Width : 700mm
• Height : 595mm (including legset)
• Material Specification : Acrylic
• Features : Single Ended
• Tap Holes : None Pre-Drilled
• Includes : Legset

Screen

• Height : 1435mm
• Width : 790mm
• Projection : 38mm
• Glass Thickness : 6mm
• Bath Screen Design : Curved
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

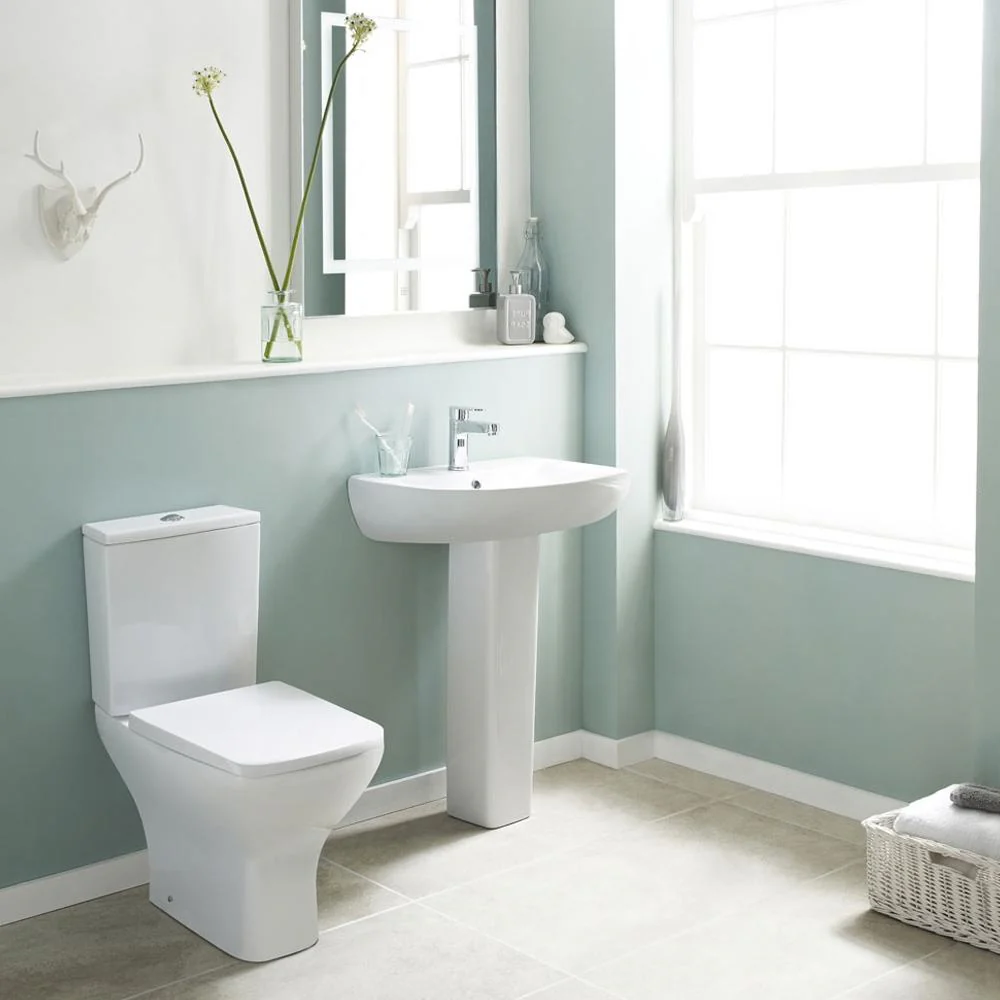

Toilet

• Total Height : 790mm
• Pan Height : 400mm
• Width : 375mm
• Projection : 612mm
• Toilet Pan Outlet : Horizontal
• Toilet Seat Fixing Centres : 105mm
• Outlet Connection Size : 102mm
• Toilet Type : Close Coupled
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Square
• Features : Short Projection Toilet
• Includes : Pan, Cistern & Soft Close Seat

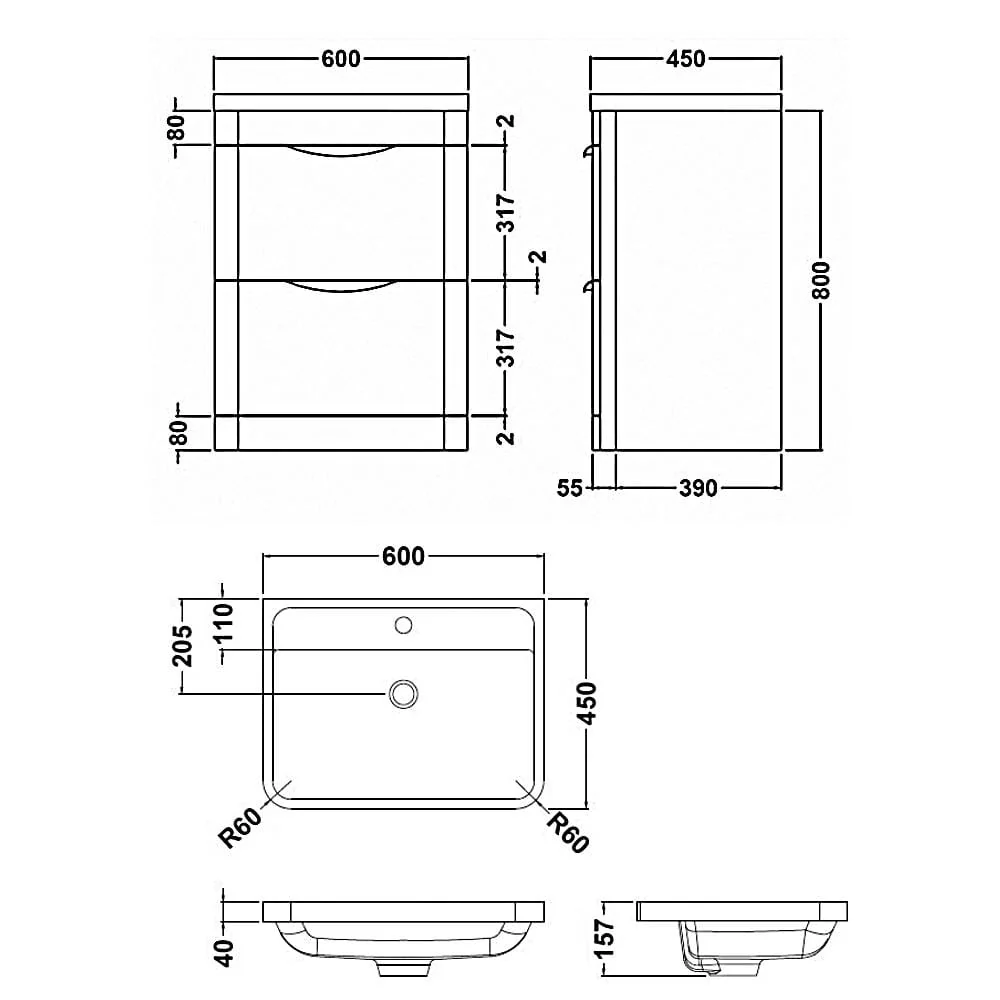

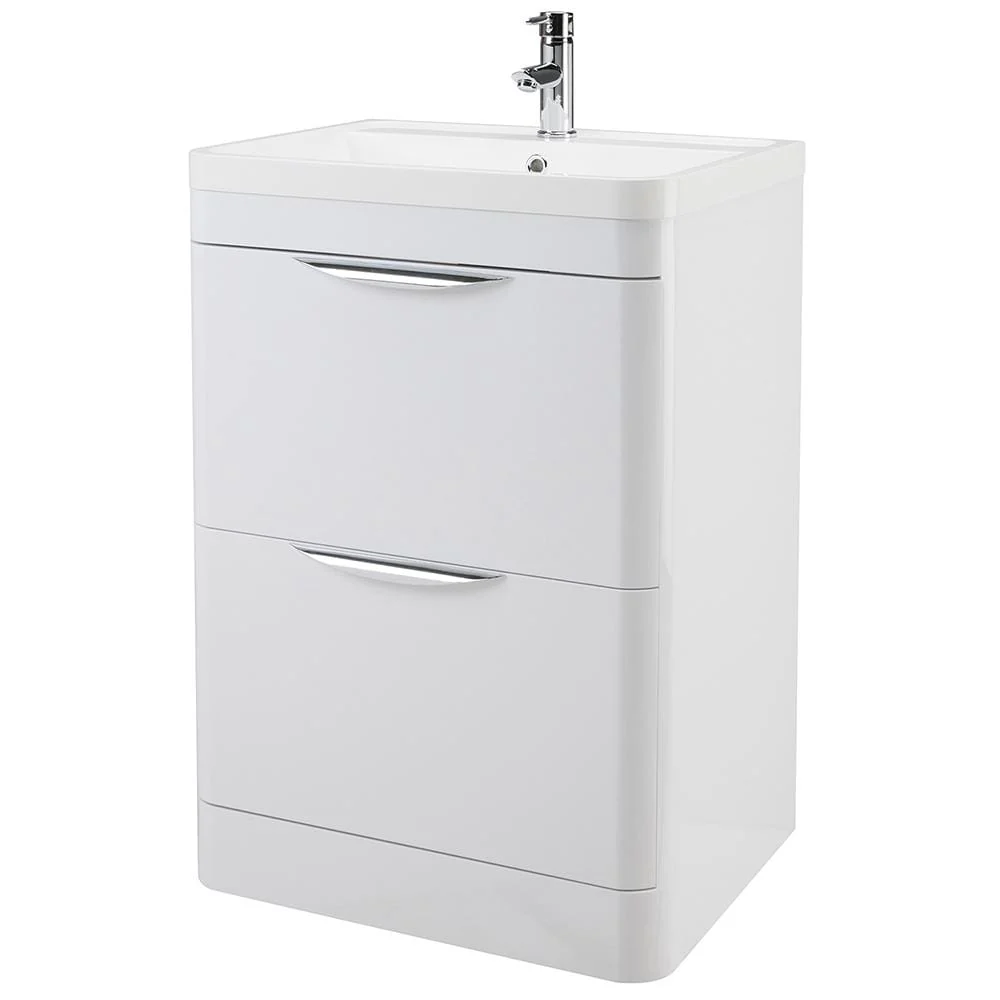

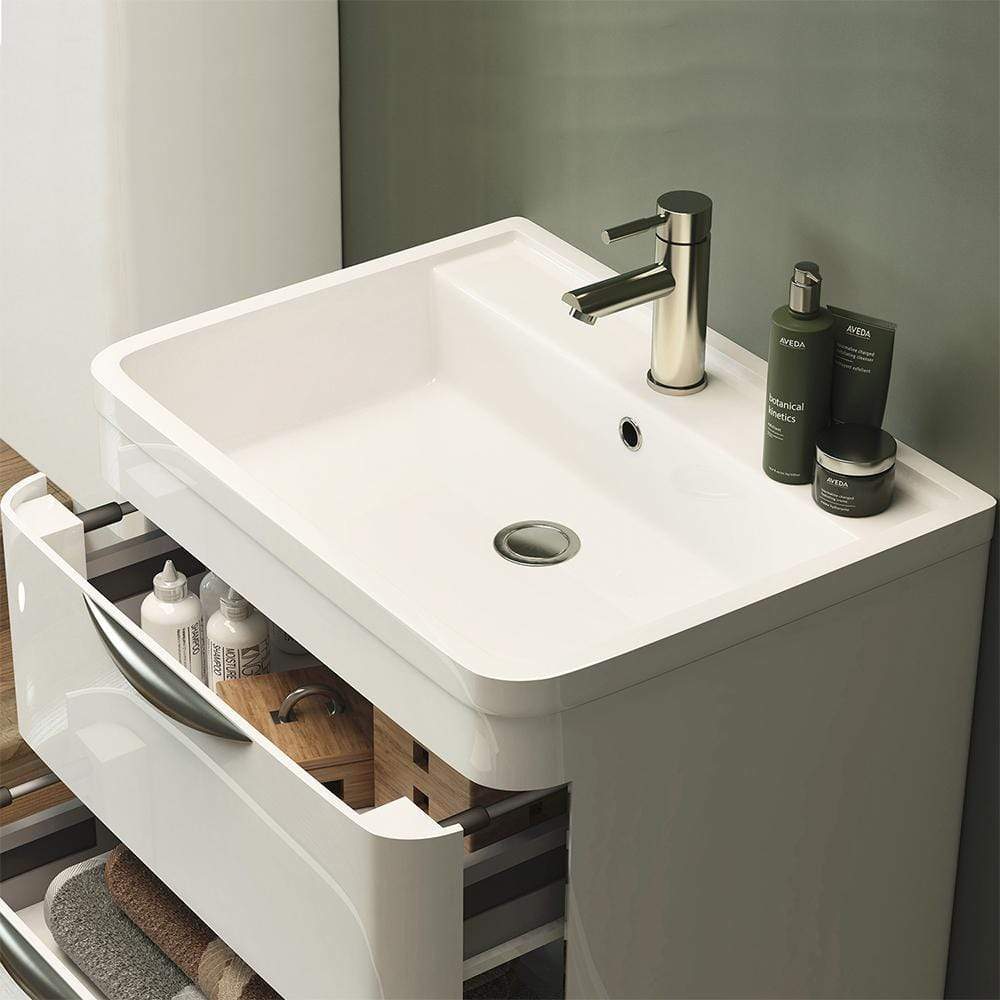

Vanity Unit

• Height : 840mm
• Width : 600mm
• Projection : 450mm
• Unit Material Specification : Moisture Resistant MDF
• Basin Material Specification : Polymarble
• Finish : Gloss White
• Tap Holes : 1, Central
• Number of Drawers : 2
• Basin Type : Inset Countertop
• Mounting : Floor Standing
• Weight : 34kg

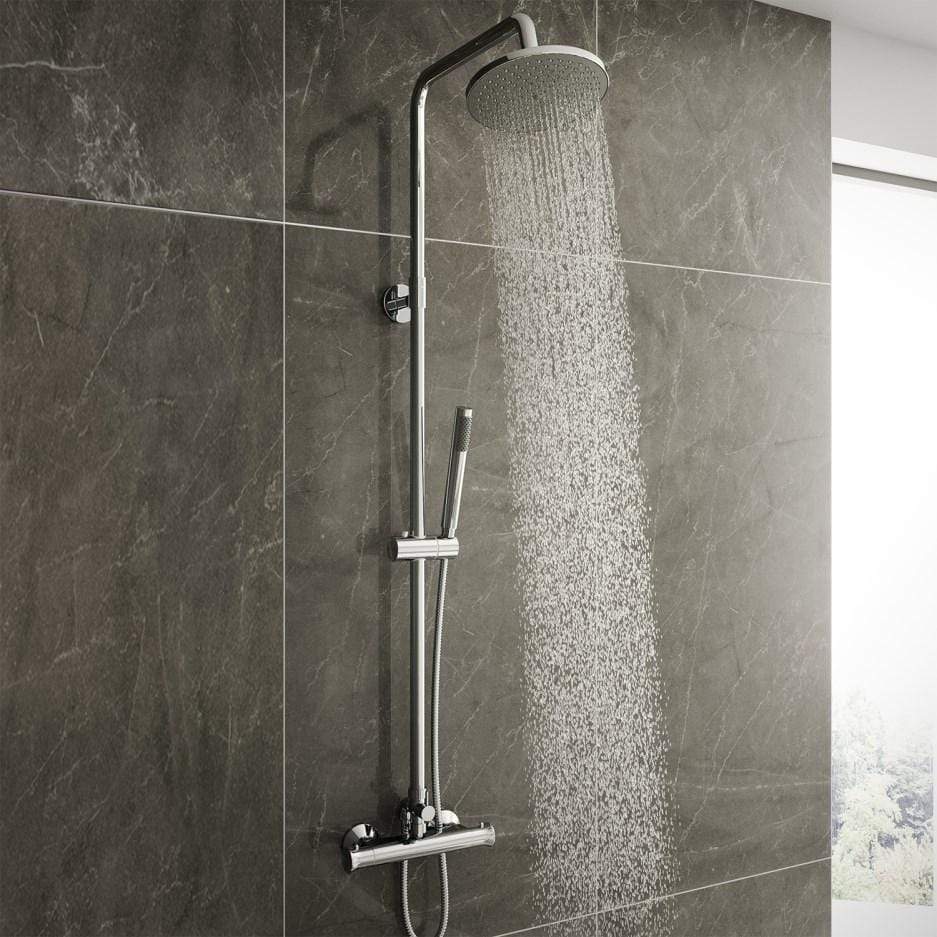

Shower

• Height : Adjustable from 850 to 1250mm
• Shower Head Size : 200mm
• Total Projection: 435mm
• Round modern thermostatic shower
• Latest ceramic disc technology
• High quality design and build
• Adjustable handset height
• Latest thermostatic system
• Working pressure between 0.5 and 5.0 bar pressure
• 1500mm shower hose
• Easyclean anticalc jets on both showerhead and handset
• Thermostatic shower incorporates diverter to control flow to either overhead rose or handset
• Set complete with one 200mm shower rose and one handset
• Lightweight handset provided to minimise risk of damage to shower tray or bath in case of accidental droppage
• Round thermostatic mixing valve of durable brass construction and chrome finish
• Rigid riser with polished chrome finish
• Easy installation

• 150mm inlet centres on thermostatic valve
• 15mm water inlet feeds
• Gravity systems require minimum of 5 metre drop between bottom of water tank and shower head (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised sytems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years

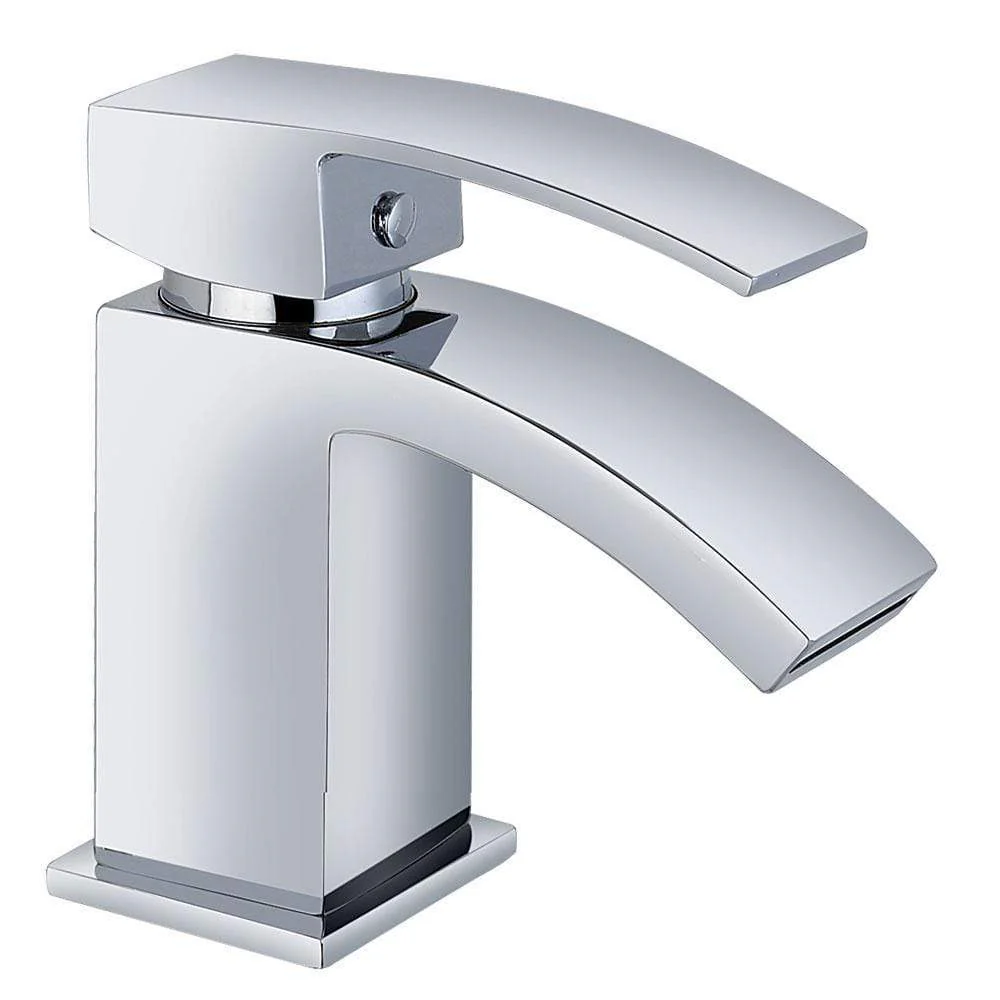

Basin Tap

• Height : 137mm
• Width : 52mm
• Depth : 133mm
• Tap Spout Reach : 107mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 1/2 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 3.8 Litres per Min
• Flow Rate 0.5 Bar : 6.2 Litres per Min
• Flow Rate 1 Bar : 8.8 Litres per Min
• Flow Rate 2 Bar : 12.5 Litres per Min
• Flow Rate 3 Bar : 15.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails

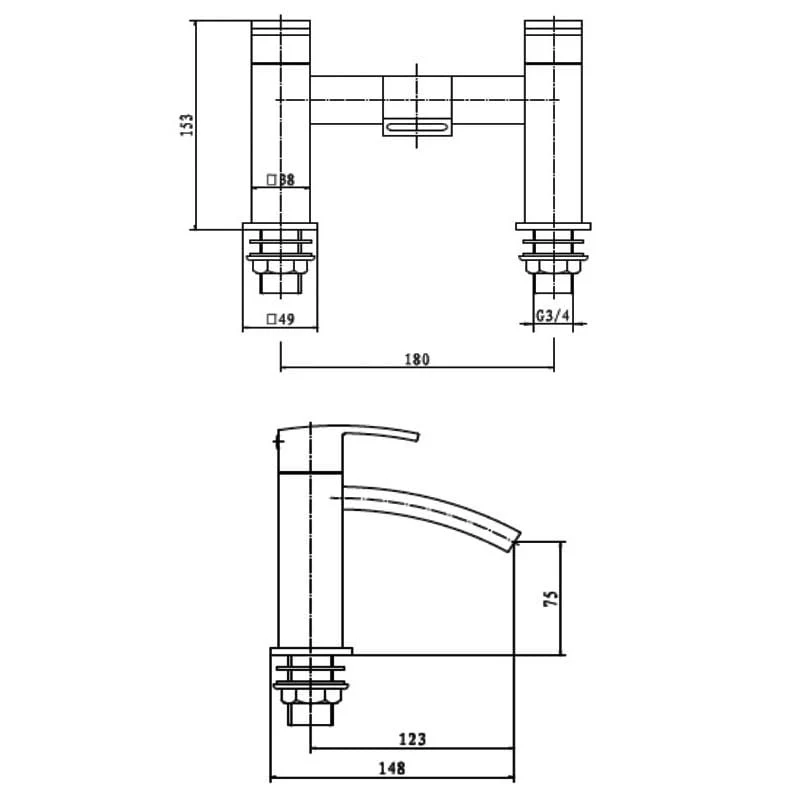

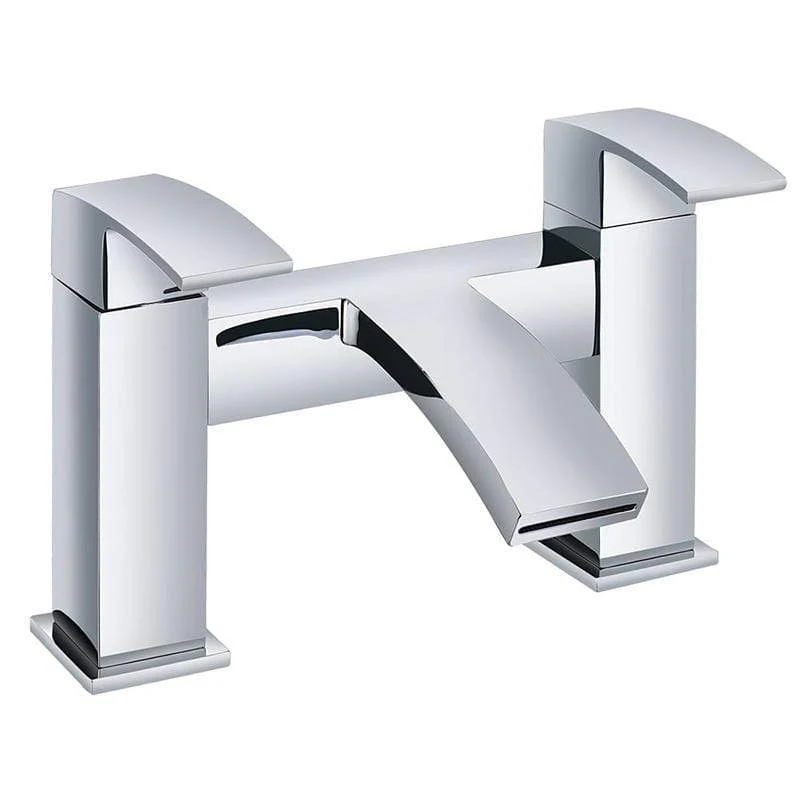

Bath Tap

• Height : 153mm
• Width : 180mm
• Depth : 148mm
• Tap Spout Reach : 123mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 3/4 BSP
• Shape : Square
• Flow Rate 0.2 Bar : 11 Litres per Min
• Flow Rate 0.5 Bar : 17.2 Litres per Min
• Flow Rate 1 Bar : 24.3 Litres per Min
• Flow Rate 2 Bar : 34 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Weight : 2.4kg

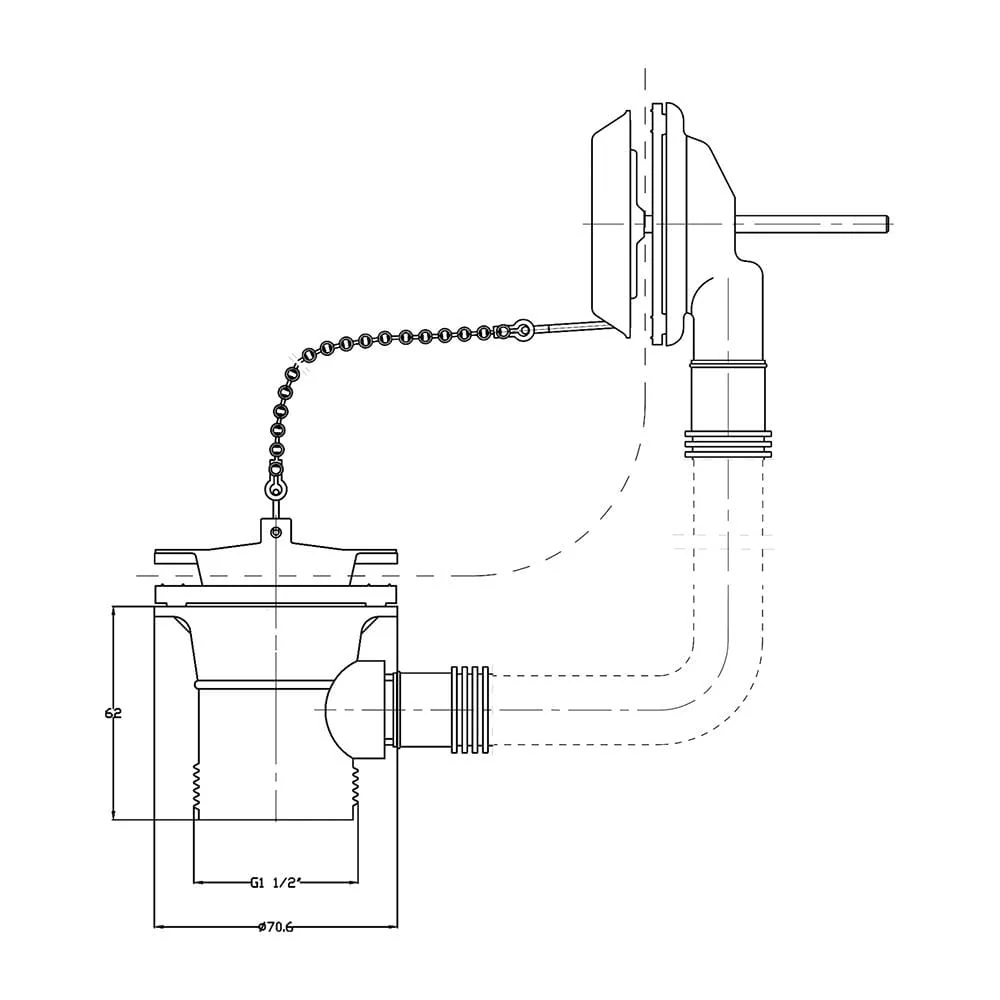

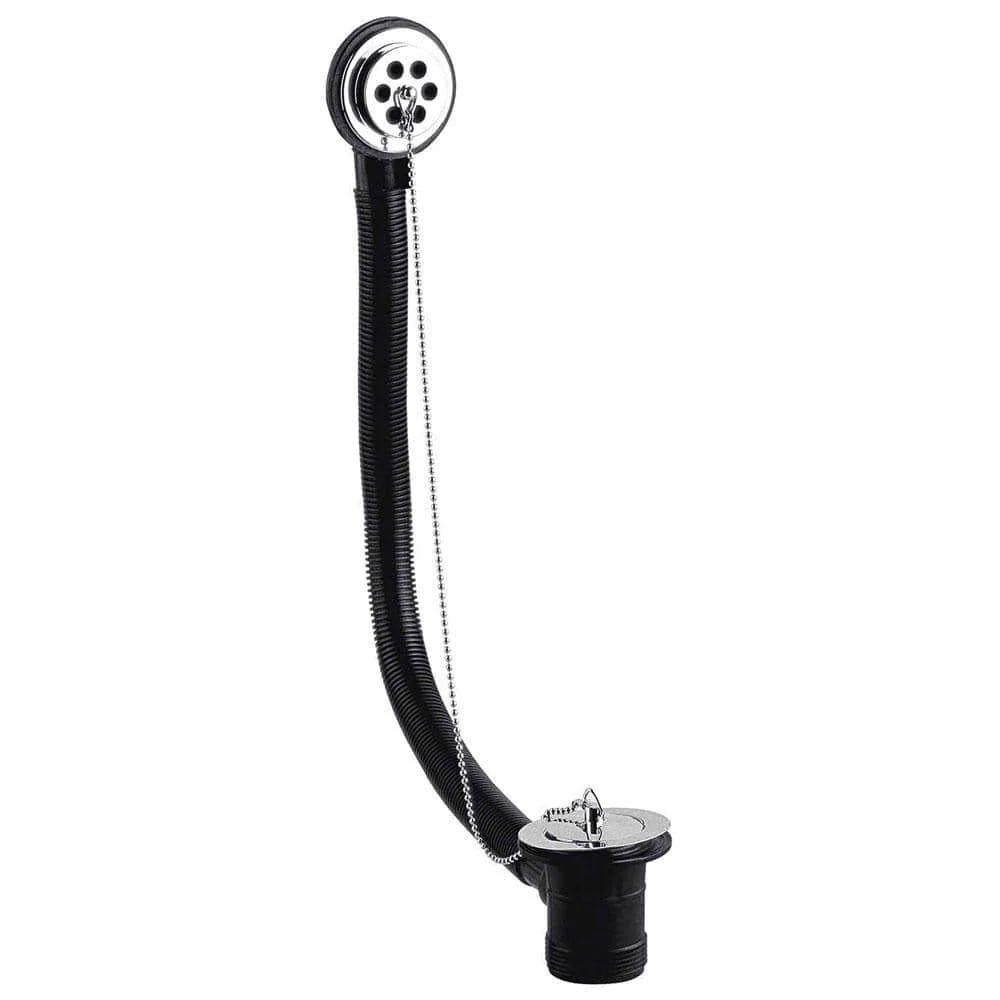

Bath Waste

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
