The beautiful complete Evo vanity bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
500mm Vanity Unit with basin
Close-coupled toilet and seat
Basin mono mixer and waste
Bath Shower mixer, hose and handset
Bath waste plug and chain

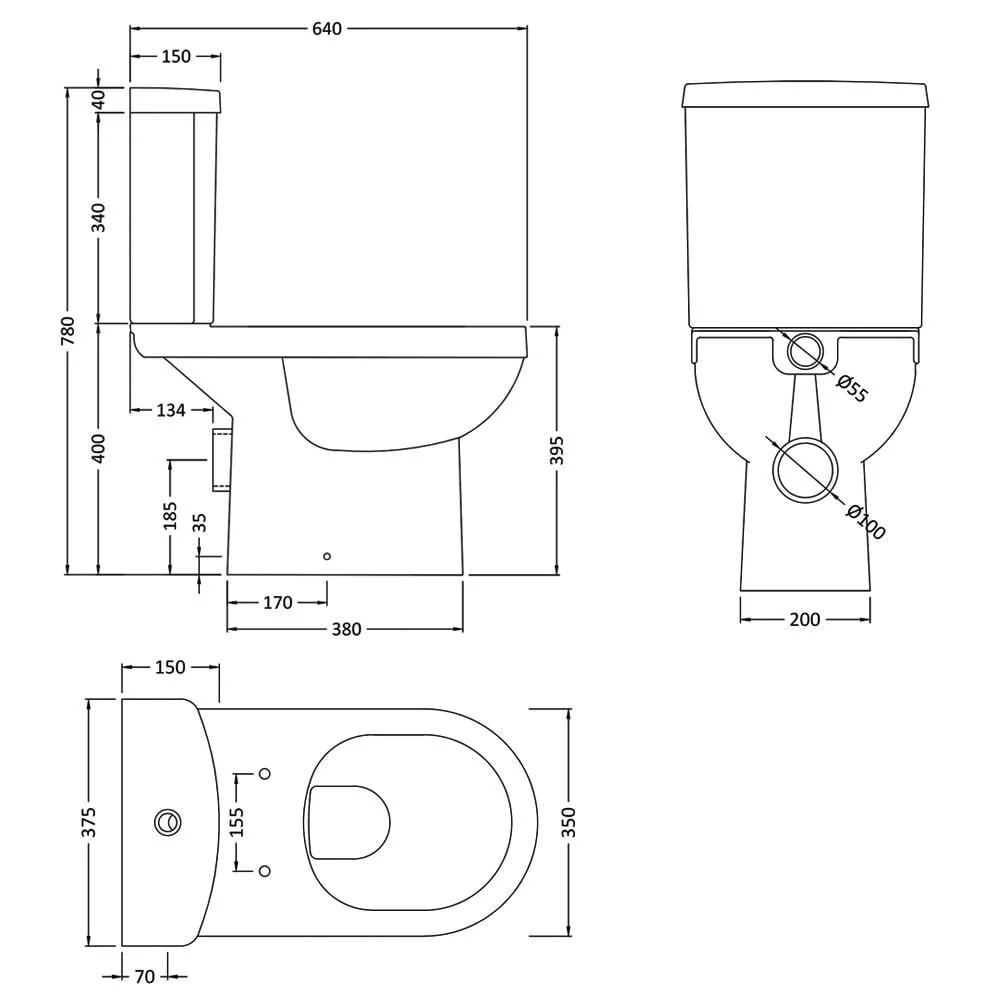

Toilet Technical Specification

• Total Height : 780mm
• Pan Height : 395mm
• Width : 375mm
• Projection : 640mm
• Outlet Connection Size : 185mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Close Coupled
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Round
• Weight : 33.85kg
• Features : 3/6 Litre Dual Flush Cistern
• Includes : Pan, Cistern & Soft Close Seat
• Seat Material Specification : Polypropylene

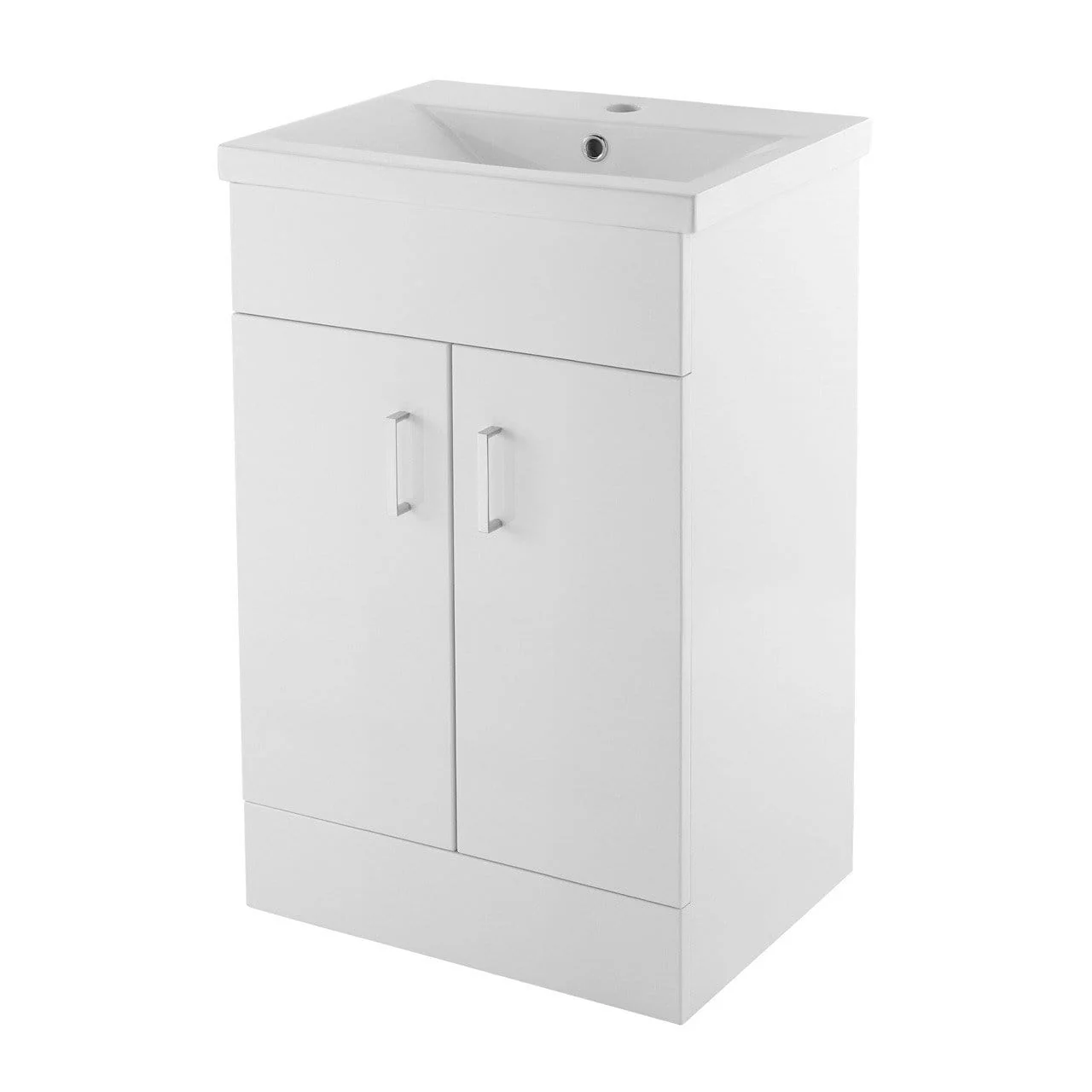

Vanity Unit Specification

• Height (Unit + Basin) : 840mm
• Width : 510mm
• Projection : 400mm
• Furniture Type: Vanity Unit
• Style: Floor Standing
• Finish: Gloss White
• Materials Specification: MDF cabinet
• Available Storage: 1 Internal Shelf
• Features: Soft closing doors
• Weight : 31.04kg
• 2 chrome handle
• Complete with 1 Tap Hole Luxury Vitreous China Basin
• Manufacturers 5 year guarantee

Bath Technical Specification

• Length : 1700mm
• Width : 700mm
• Height : 595mm (including legset)
• Material Specification : Acrylic
• Features : Single Ended
• Tap Holes : None Pre-Drilled
• Includes : Legset

Basin Tap Technical Specification

• Height : 150mm
• Width : 52mm
• Depth : 121mm
• Tap Spout Reach : 95mm
• Material Specification : Brass
• Finish : Chrome
• Inlet Connection Size : 1/2 BSP
• Shape : Round
• Flow Rate 0.2 Bar : 3.8 Litres per Min
• Flow Rate 0.5 Bar : 6.2 Litres per Min
• Flow Rate 1 Bar : 8.8 Litres per Min
• Flow Rate 2 Bar : 12.5 Litres per Min
• Flow Rate 3 Bar : 15.4 Litres per Min
• Accreditations : BS/EN 200
• Features : Ceramic Disc Technology
• Includes : Free Basin Waste & Flexi Tails

Bath Tap Technical Specification

• Height : 155mm
• Tap Spout Reach : 94mm
• Base to Spout : 79mm

• Inlet Connection Size : 3/4 BSP
• Shape : Round
• Material Specification : Brass
• Finish : Chrome
• Operation : Dual Lever
• Weight : 2.52kg
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Flow Rate 0.1 Bar : 7 Litres per Min
• Flow Rate 3.0 Bar : 40 Litres per Min

Bath Waste Technical Specification

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
