This Stylish Mayford Combination Complete Shower 1700 Bathroom Suite, make the most of our stylish and practical modern bathroom suites. Each item complements each other, creating a beautiful flowing design throughout your bathroom. The perfect way to have a stunningly designed bathroom, with out compromising on the functionality.

The Suite Includes:

• Vanity Unit

• WC Unit

• Concealed Cistern
• Back to Wall Toilet
• 1700 Straight Bath
• Hinged Bath Screen
• Basin Mixer Tap C/W Waste
• Bath Filler
• Bath Waste
• Thermostatic Shower Valve
• Multi Mode Shower Slide Rail Kit
• Bath Panels Not Included

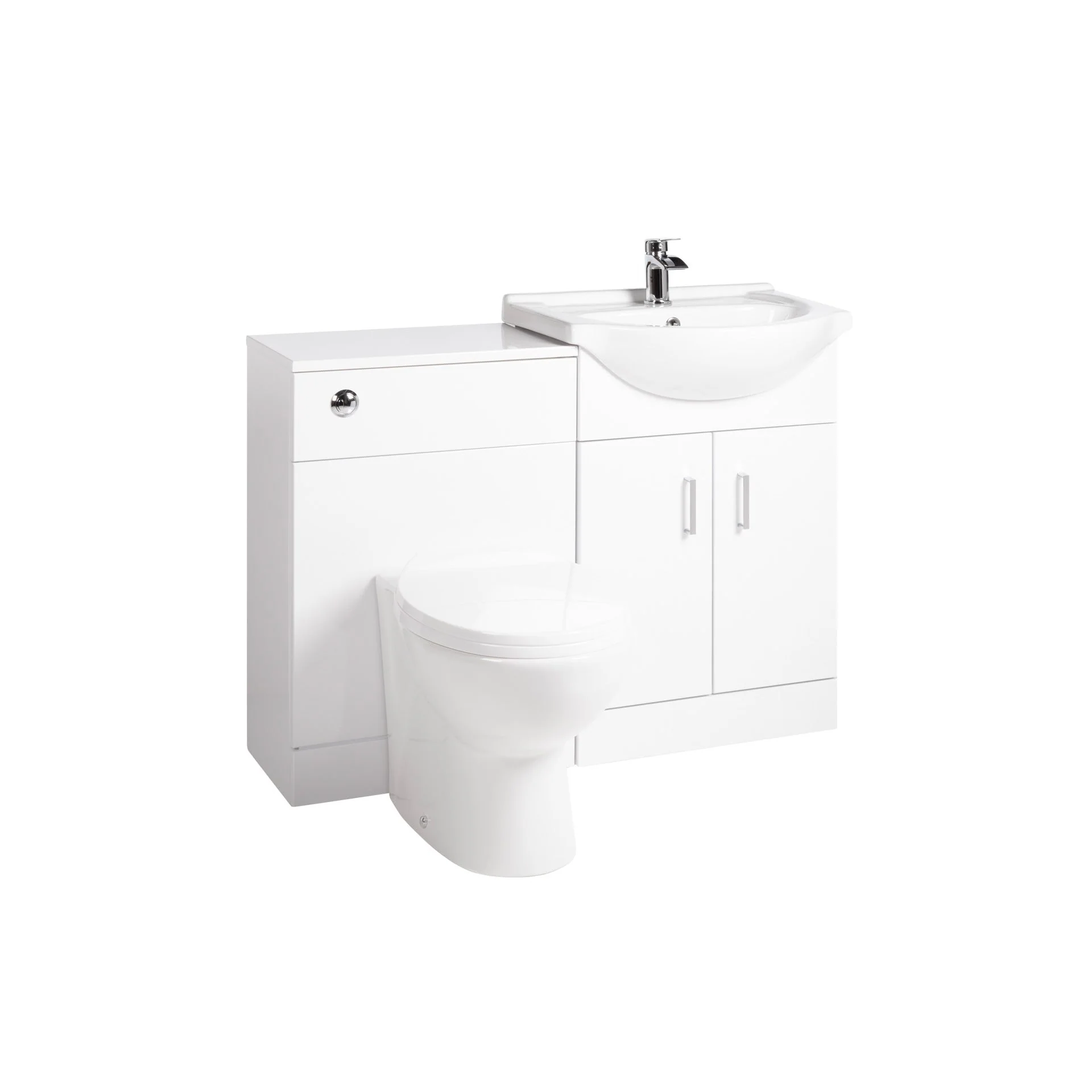

Vanity Unit Technical Specification

• Width : 514mm
• Projection : 300mm
• Finished in High Gloss White
• Double Door Cupboard
• Hinge type : 95 Degree Clip-On Soft Close
• Internal Shelf
• Chrome Handles
• Supplied Flat Pack for ease of transportation and manoeuvrability

• Ceramic Basin:

  • Width: 550mm
  • Projection: 440mm
  • 1 Tap Hole For Mono Basin Mixer

WC Unit Technical Specification

• Width: 500mm
• Projection: 300mm
• White Gloss Finish
• Supplied Flat Pack for ease of transportation and manoeuvrability

Back to Wall Toilet Technical Specification

• Height : 400mm
• Width : 355mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Weight : 17kg
• Bottom Fixing Soft Close Seat

Concealed Cistern Technical Specification

• Height : 303mm
• Width : 334mm
• Depth : 136mm
• Cable concealed dual flush
• Operating Type : Push Button
• Cistern Lever Type : Chrome finished dual flush button
• Button is not fixed but cable connected so can be moved to position of choice
• Cable from cistern to button is 450mm
• Internal overflow
• Water inlet can be left or right hand side
• Material Specification : Plastic
• Connection Size : 1/2" BSP
• Finish : Chrome
• Features : Water Saving Dual Flush 3 / 6 Litre Action
• WRAS approved product

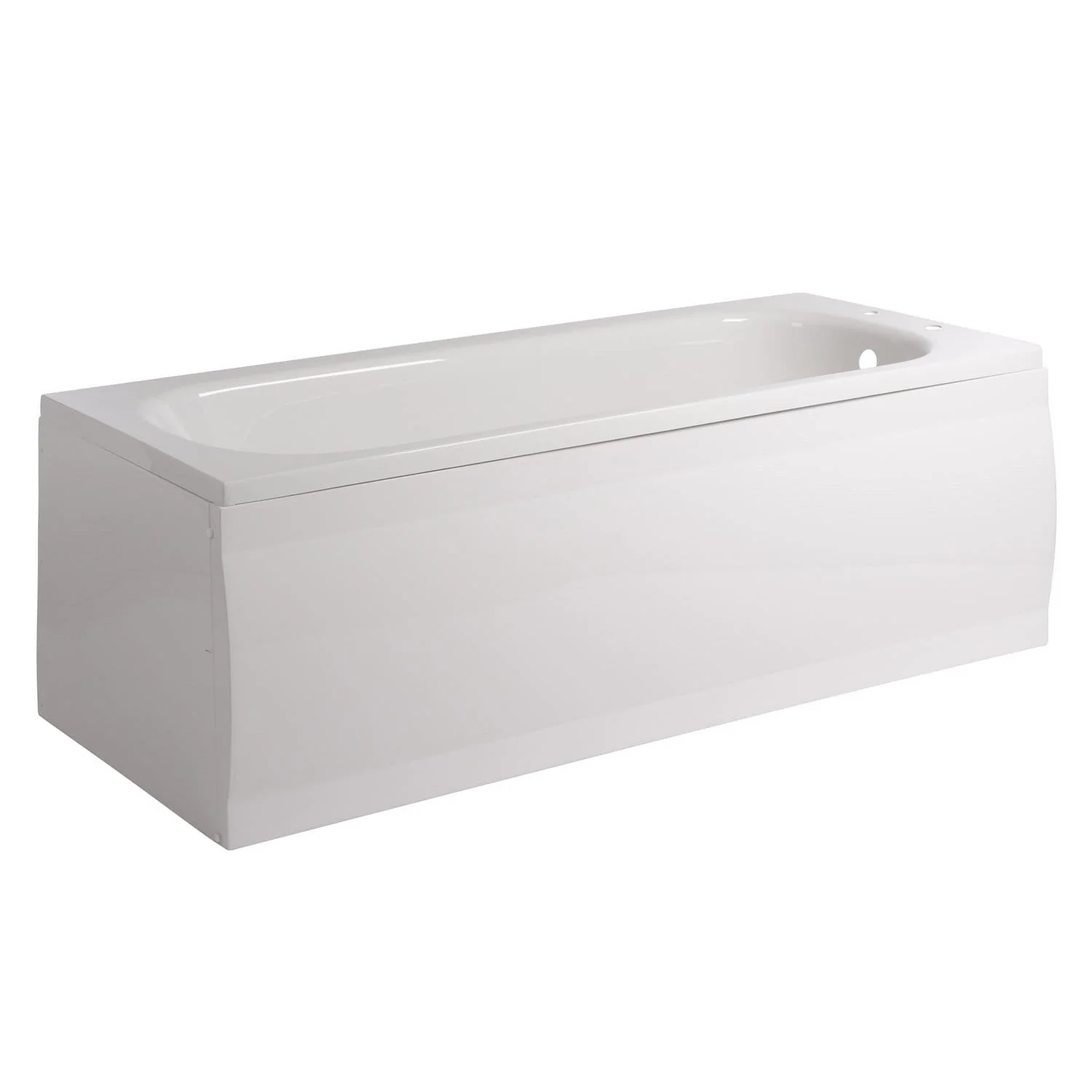

Bath Technical Specification

• Length : 1700mm
• Width : 700mm
• Height : 595mm (including legset)
• Material Specification : Acrylic
• Features : Single Ended
• Tap Holes : None Pre-Drilled
• Includes : Legset

Bath Screen Technical Specification

• Height : 1400mm
• Adjustable Width : 770 to 790mm
• Glass Thickness : 6mm Toughened
• Bath Screen Design : Sail Hinged
• Material : Toughened Glass / Aluminimum

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

Bath Waste Technical Specification

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick

Bar Shower Valve with Kit Technical Specification

• Contemporary round design exposed thermostatic bar shower valve
• Separate controls for temperature and flow.
• 150mm inlet water centres
• Finish in polished chrome
• Manufactured from brass
• Water pressure 0.2 bar minimum
• Suitable for combination boilers, pumps and pressurised systems
• Thermostatic cartridge with anti-scald protection
• Water temperature controlled to +/- 2 degrees
• Mixed water bottom outlet
• Does not include shower hose
• Dimensions : H40mm x W285mm x D65mm
• Flow Rates

  0.1 Bar - 3 l/m
  0.5 Bar - 8 l/m
  1.0 Bar - 11.5 l/m
  2.0 Bar - 17 l/m
  3.0 Bar - 21 l/m
• Includes multi-function round handset , rail and hose
• Rail height 655mm
• Supplied with soap dish
• Manufacturers guarantee

Taps Technical Specification
