The beautiful complete Mia Vanity Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

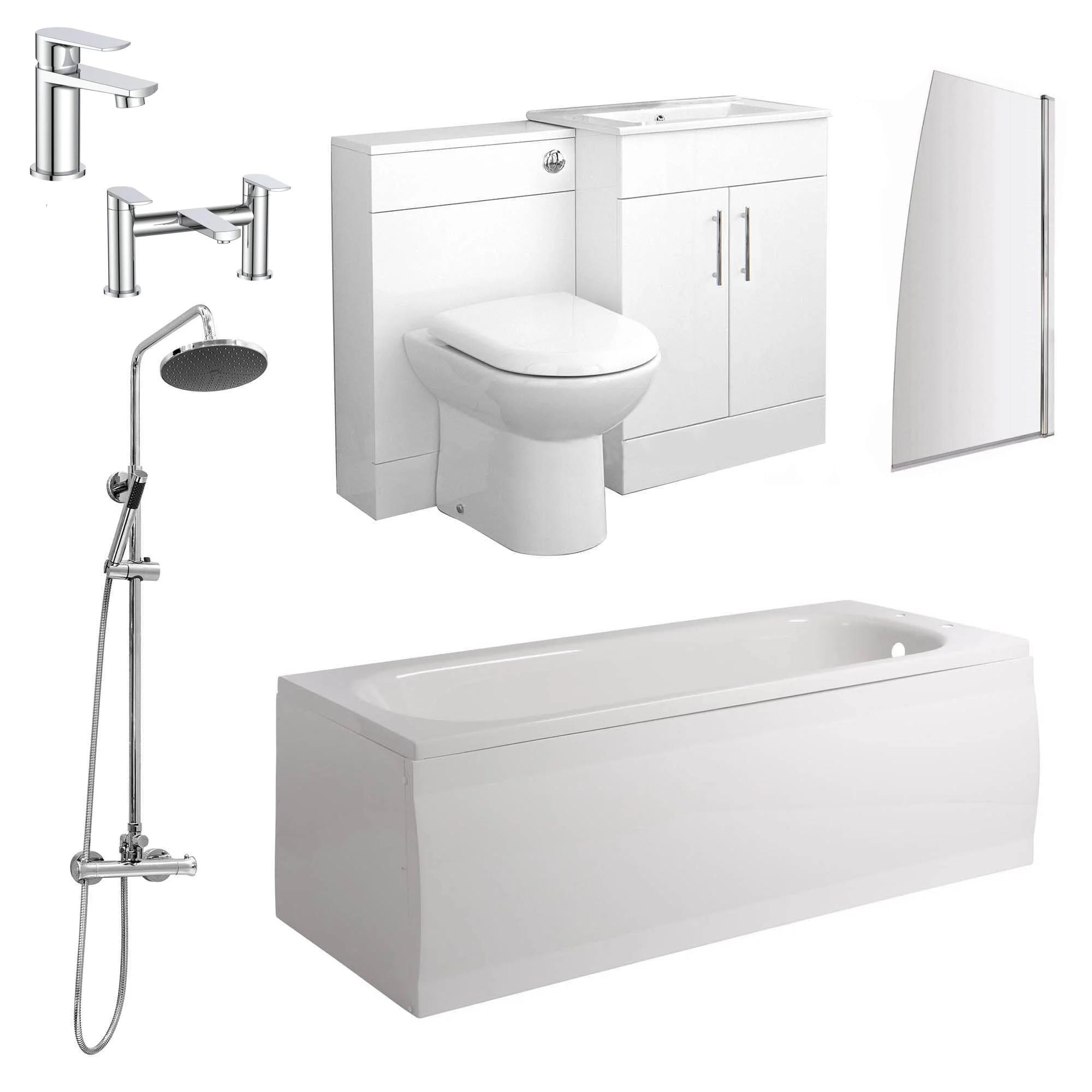

Suite includes :-
Bath - excludes panels
Bath Screen
500mm Vanity Unit with basin
WC Unit
Concealed Cistern
Back to Wall toilet and seat
Shower
Basin mono mixer & waste
Bath Filler
Bath waste plug and chain

Technical Specification

Basin Unit

• Height: 800mm
• Width: 500mm
• Depth: 400mm
• Carcase : 18mm MDF Construction, White gloss finish
• Basin Materials Specification: Vitrous China, Gloss White Finish
• Assembly : Unit comes pre-assembled (not flat packed)
• Available Storage: 1 cupboard, double doors with shelf, polished aluminium handles
• D-Shape type handle and hinges included

Basin

• Depth: 400mm
• Width: 500mm

WC Unit

• Depth: 200mm
• Width: 500mm
• Height: 800mm
• 18mm MDF Construction

• Finish: Gloss White
• Carcase : Unit comes pre-assembled

Concealed Cistern

• Flush: Chrome Finish Dual Flush 3 / 6 Litre Push Button
• Features: Suitable for Back to Wall Toilets

Back to Wall Toilet

• Height : 400mm
• Width : 355mm
• Projection : 520mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Weight : 17kg
• Bottom Fixing Soft Close Seat

Bath

• Length : 1500mm
• Width : 700mm
• Height : 355mm
• Bath Internal Length : 882mm
• Bath Internal Width : 384mm
• Outlet Connection Size : 52mm
• Material Specification : Acrylic
• Bath Thickness : 4mm
• Capacity : 131 Litres
• Tap Holes : 0 (Suitable for drilling by your installer)
• Waste Position : Side
• Colour : White
• Includes : Legset

Bath Screen

• Height : 1400mm
• Adjustable Width : 770 to 790mm
• Glass Thickness : 6mm Toughened
• Bath Screen Design : Sail
• Material : Toughened Glass / Aluminium

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible

Shower

• 200mm shower rose swivel head
• Hose and Multi-function Shower Handset on adjustable height bracket
• Thermostatically controlled
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• Height : 800-1200mm
• Width : 268mm
• Depth : 330mm
• Rubber easy clean soft rubber nozzles on main
• Minimum 0.5 Bar to 3 bar maximum pressure
• Brass thermostatic cartridge
• Fully thermostatic valve
• Chrome Finish
• Inlet Centres – 150mm
• Anti limescale cartridge
• WRAS Approved
• TMV2 Scheme

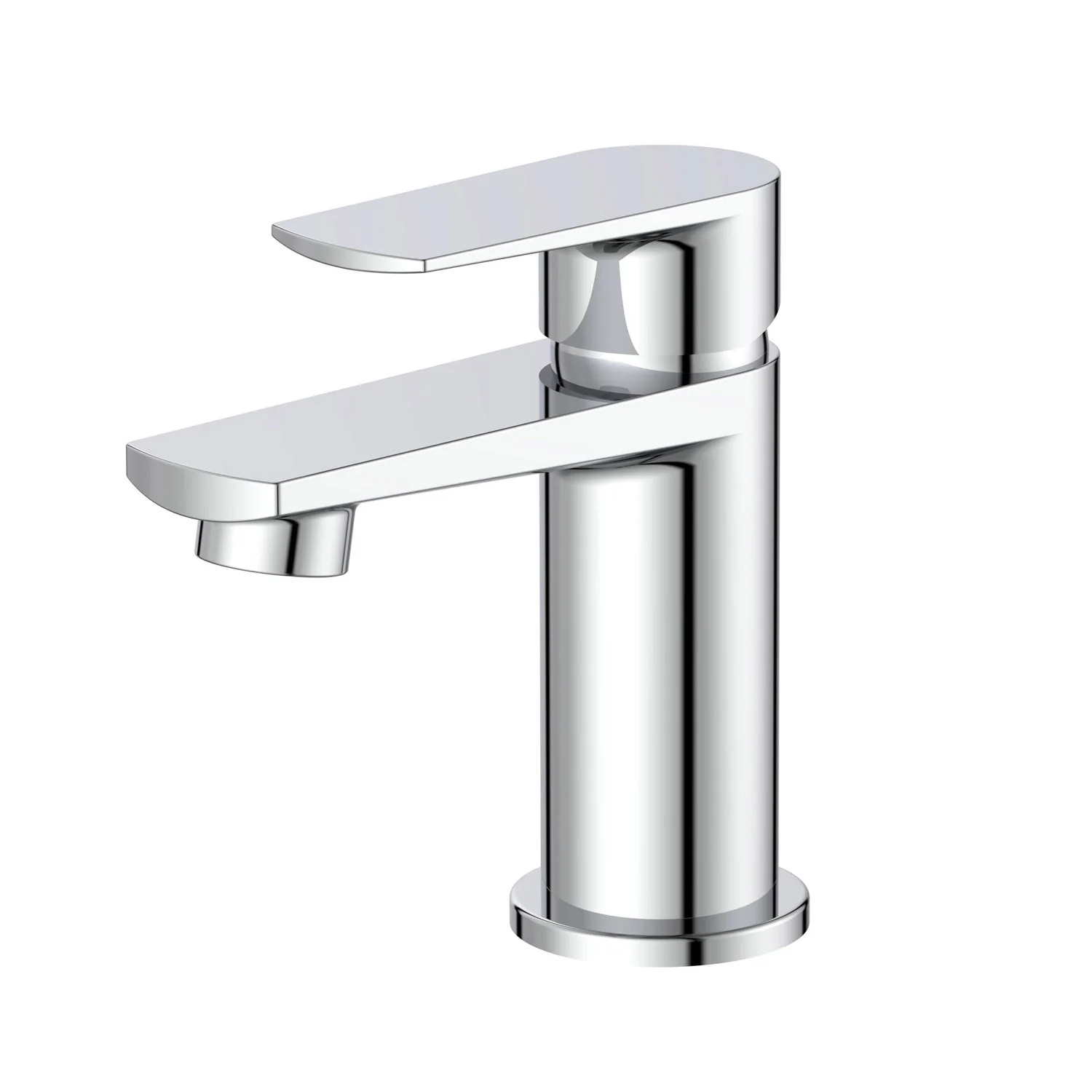

Basin Tap

• Height: 124mm
• Depth: 119.5mm
• Material: Brass
• Finish: Chrome
• Handle: Zinc Alloy
• Aerator Spout
• Cartridge: 30mm Ceramic Disc
• Waste Included

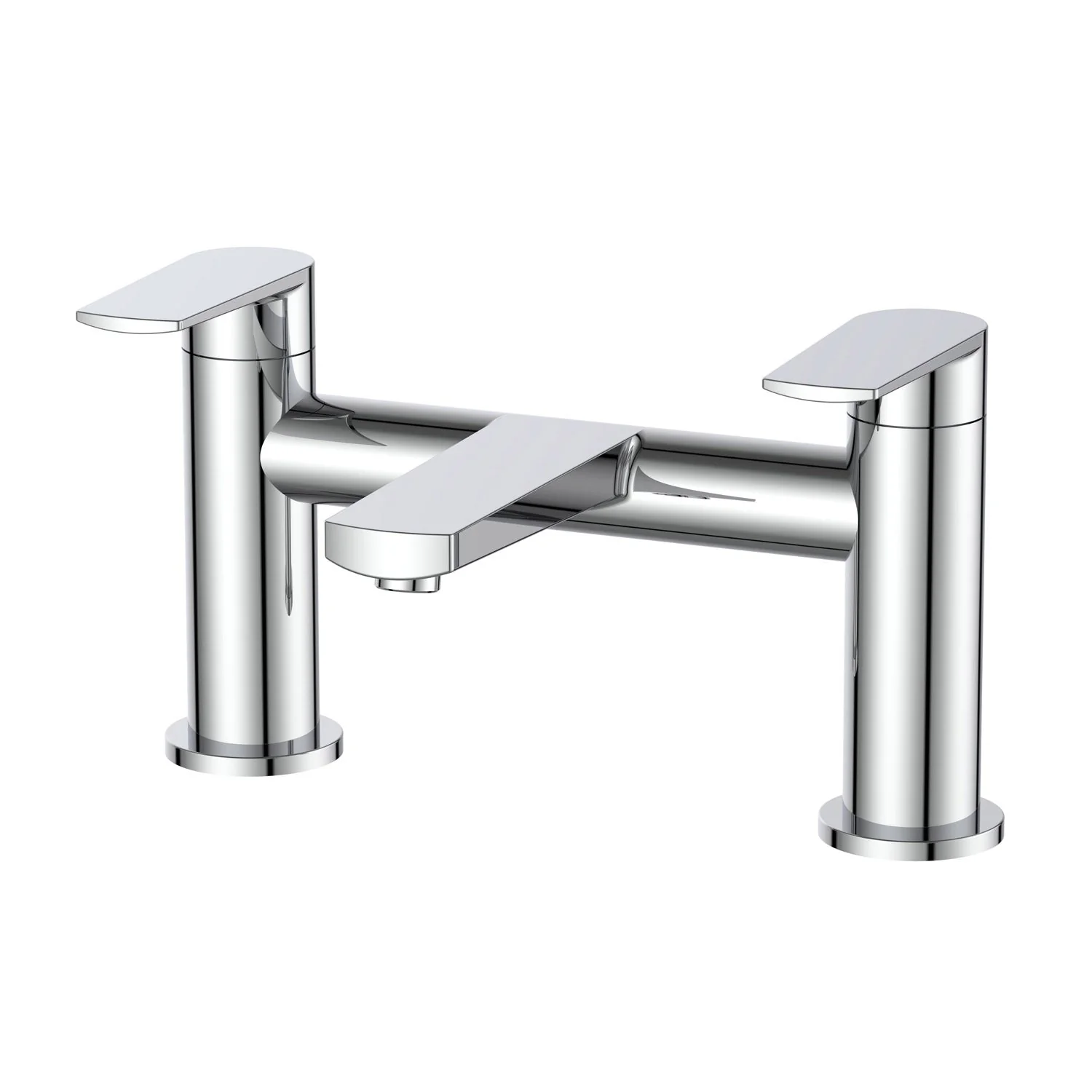

Bath Filler

• Height: 130mm
• Depth: 132mm
• Pipe Centres : 180mm
• Inlet Connection Size : 3/4 BSP
• Material: Brass
• Finish: Chrome
• Handle: Zinc Alloy
• Aerator Spout
• Cartridge: 30mm Ceramic Disc

Bath Waste

• Materials : Brass
• Finish : Chrome
• Connection Size: 1 1/2"
• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Suitable for baths up to 5mm thick
