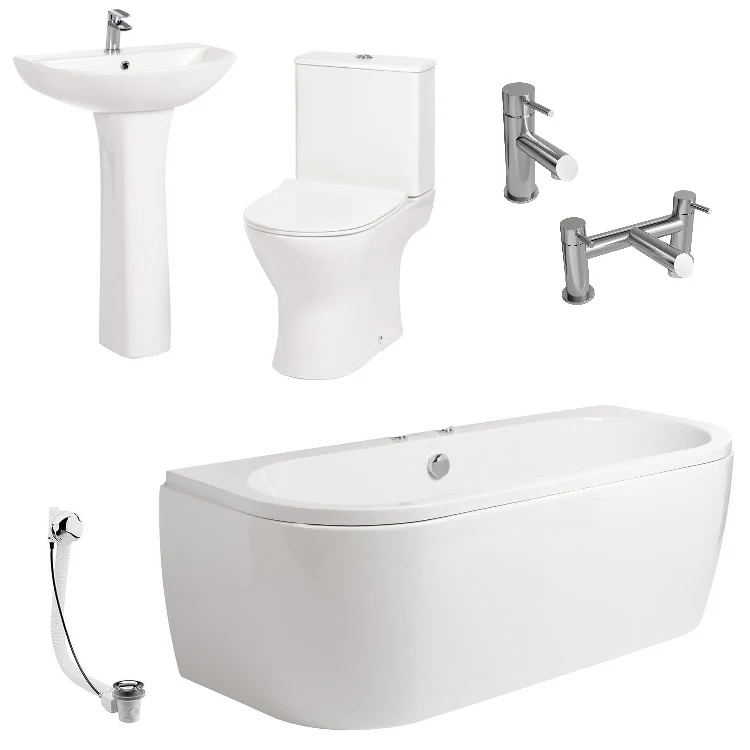

The sleek complete Misirlou Shingle Complete Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring a modern full pedestal basin, close coupled toilet, paired with stylish chrome taps and d shape bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines.

Technical Specification

Bath

• Double ended bath including panel
• Lucite Acrylic for lightweight strength
• Capacity: 200 Litres
• 4mm Thick Acrylic
• Dimensions: L1700 x H410 x W750mm
• Leg set included
• Waste located on the back wall side of the bath
• Waste and tap sold separately
• 5 year guarantee

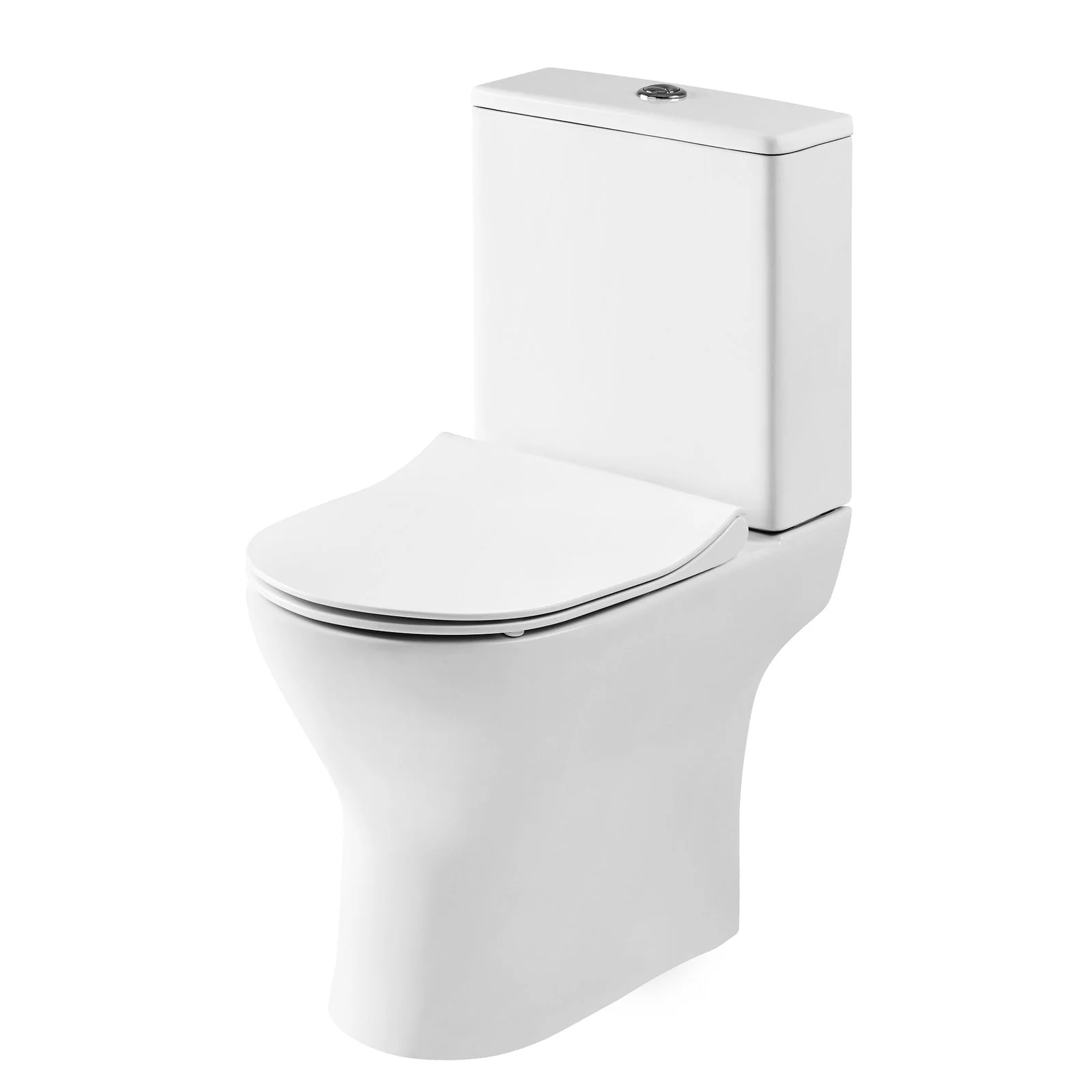

Close Coupled Toilet

• Total Height : 800mm
• Pan Height : 405mm
• Width : 375mm
• Short Projection Rimless Pan : 610mm
• Toilet Pan Outlet : Horizontal
• Quick release for ease of cleaning slimline toilet seat
• Toilet Type : Close Coupled Rimless
• Material Specification : Vitreous China
• Cistern Type : 3/6 Litre Dual Flush
• Shape : Round
• Weight : 33kg
• Includes : Pan, Cistern & Soft Close Seat

Basin

• Total Height : 825mm
• Width : 550mm
• Projection : 460mm
• Basin Bowl Height : 150mm

• Basin Bowl Width : 460mm
• Basin Bowl Projection : 285mm
• Outlet Connection Size : 70mm
• Wall to Waste Outlet : 204mm
• Wall to Tap Hole : 60mm
• Material Specification : Vitreous China
• Number of Tap Holes  : 1, Central
• Basin Shape : Round
• Includes : Overflow

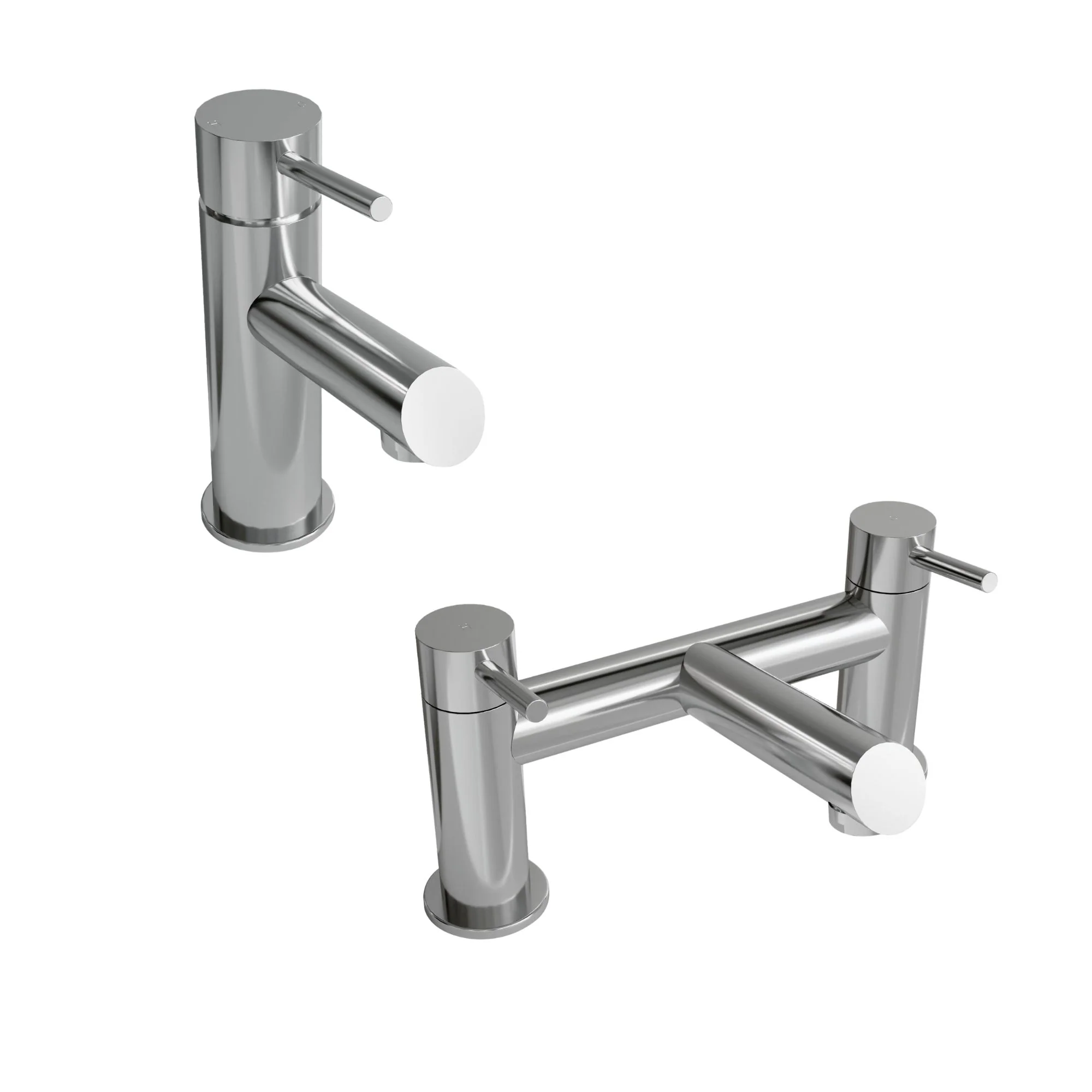

Basin Tap

• Height: 125mm
• Height Base to Spout: 65mm
• Projection: 80mm
• Finish: Chrome
• Manufactured: Solid Brass
• Cartridge: 30mm Ceramic Disc Cartridge
• Min Pressure & Flow Rate: 1 Bar (Flow Rate 6L per min)
• Max Pressure & Flow Rate: 3 Bar (Flow Rate 10.7L per min)
• Complete with push button basin waste

Bath Filler Tap

• Height :132mm
• Total Projection : 123mm
• Width : 222mm
• Tap Inlet Centres : 180mm
• 3/4 water inlet feeds
• Working pressure between 0.5 and 5.0 bar pressure
• High quality design and build
• Latest 1/4 turn ceramic disc technology
• Material : brass body
• Highly polished chrome finish
• Hot and cold indicators (H & C) on lever controls
• Deck mounted
• Easy installation
• Gravity systems require minimum of 5 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years
• Flow Rates :-
• 0.5 Bar   15.0 Litres per minute
• 1.0 Bar   22.4 Litres per minute
• 2.0 Bar   31.8 Litres per minute
• 3.0 Bar   33.5 Litres per minute

Bath Waste

• Finish : Chrome
• Materials : Brass
• Hands-dry drainage
• Simple twist to open/close plug

• Suitable for Baths up to 10mm Thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 740mm
• Waste Pipe Diameter : 33mm
• Product Diameter : 76mm
