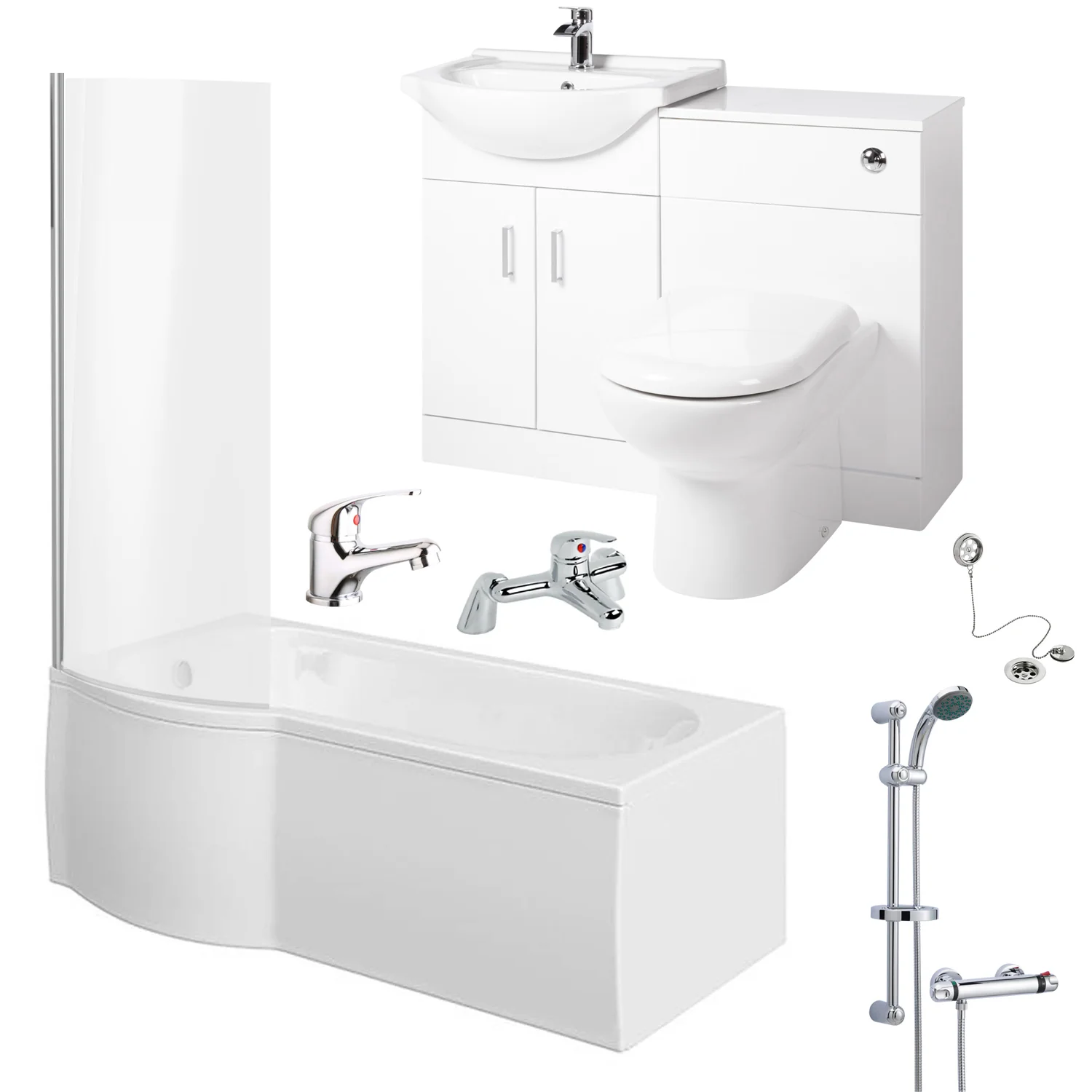

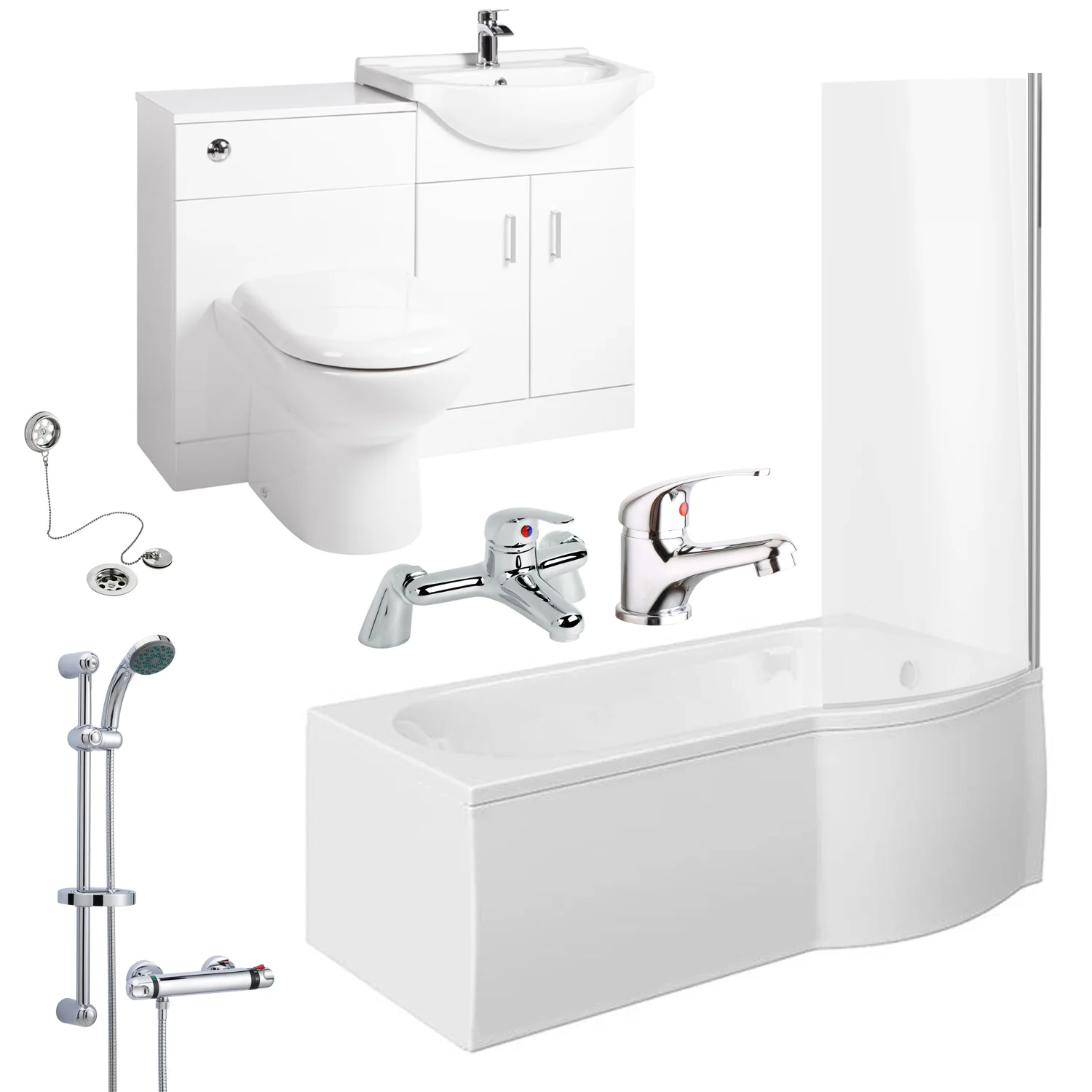

This stylish Monty 1700 P-Shape Complete Combination Bathroom Suite, perfect for any bathroom! Make the most of our stylish and practical modern bathroom suites. Each item complements each other, creating a beautiful flowing design throughout your bathroom. The perfect way to have a stunningly designed bathroom, without compromising on the functionality.

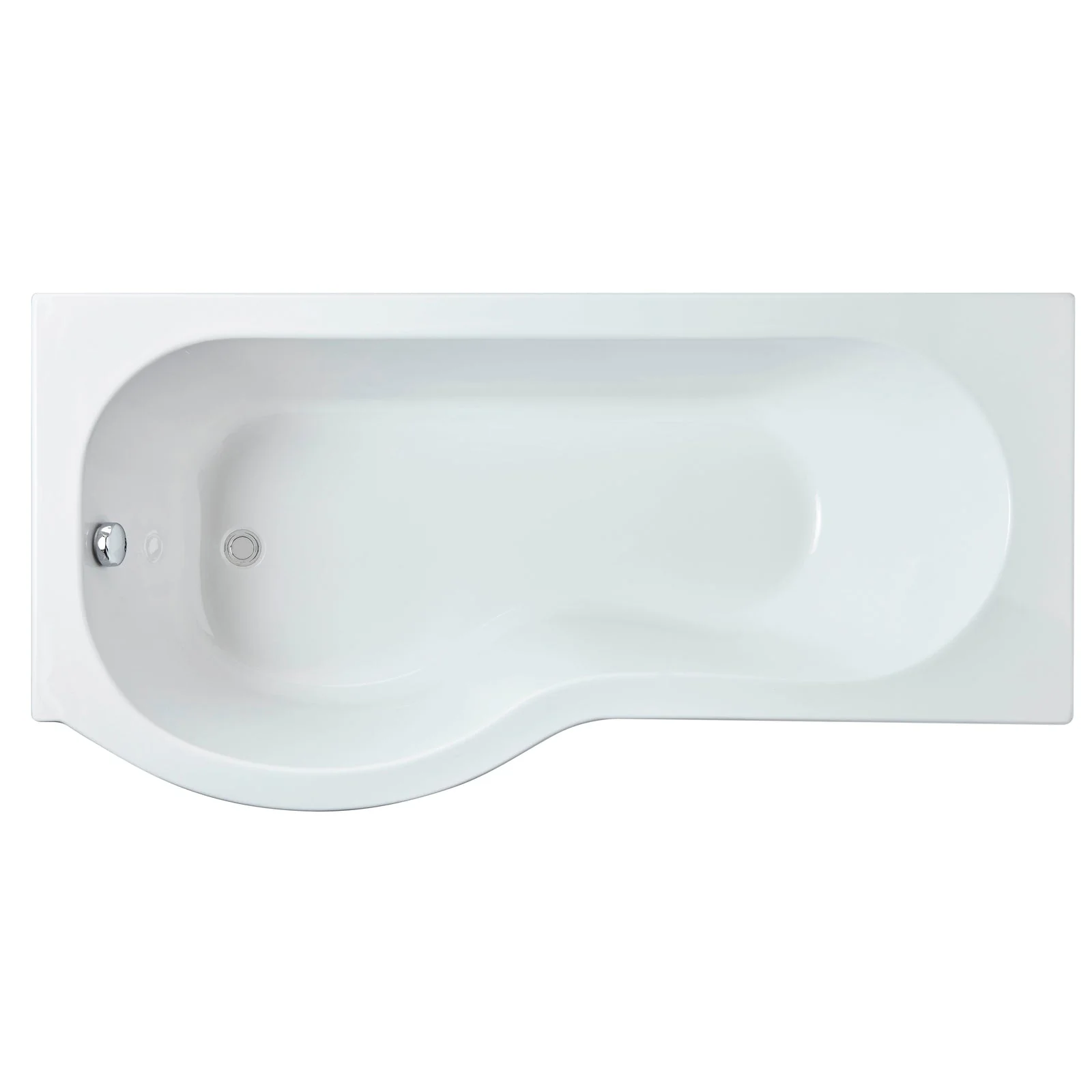

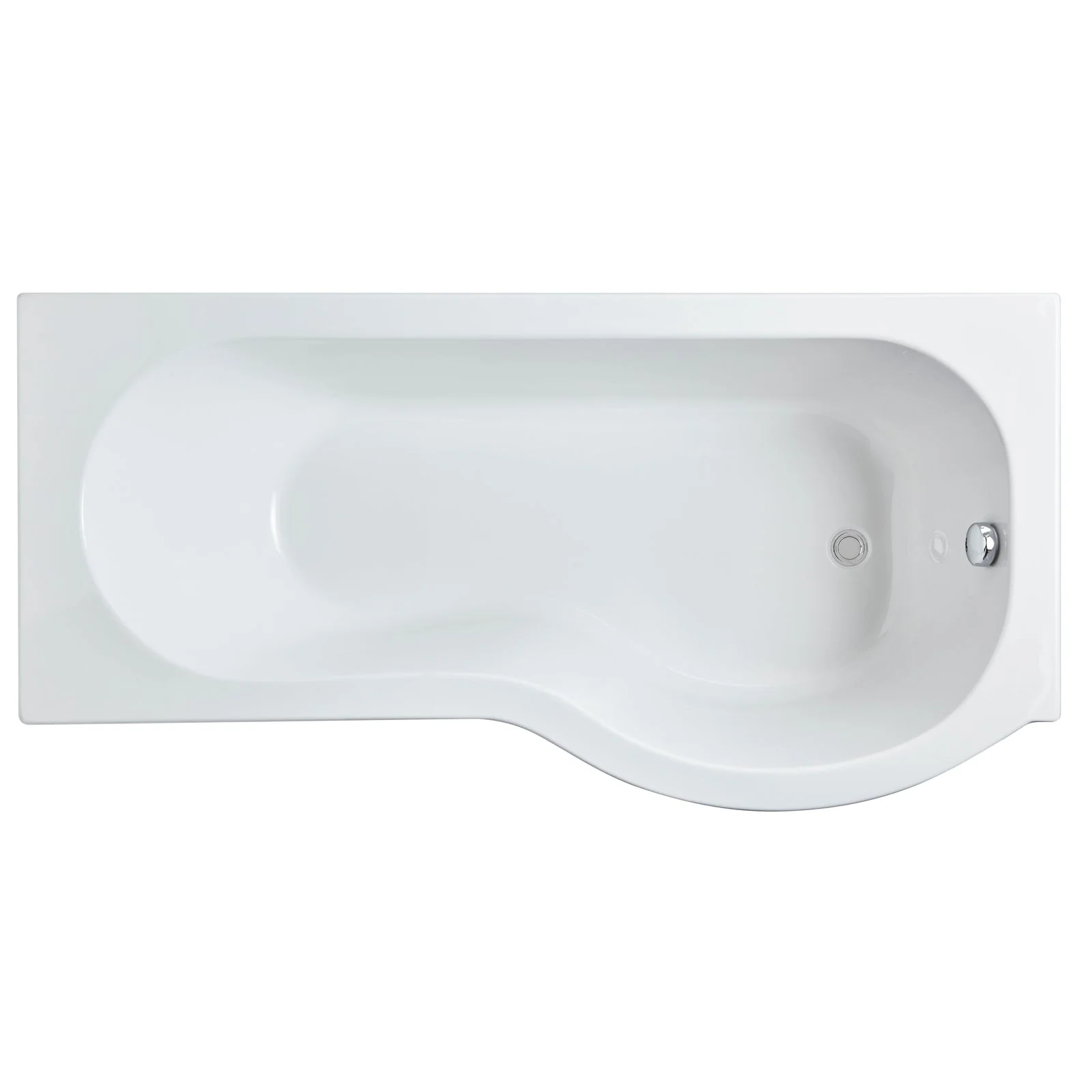

Bath Technical Specification

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 415mm
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Excludes : End Panel (Sold separately)
• Bath Thickness: 4mm
• Capacity: 200 Litre
• Configurable left or right hand options

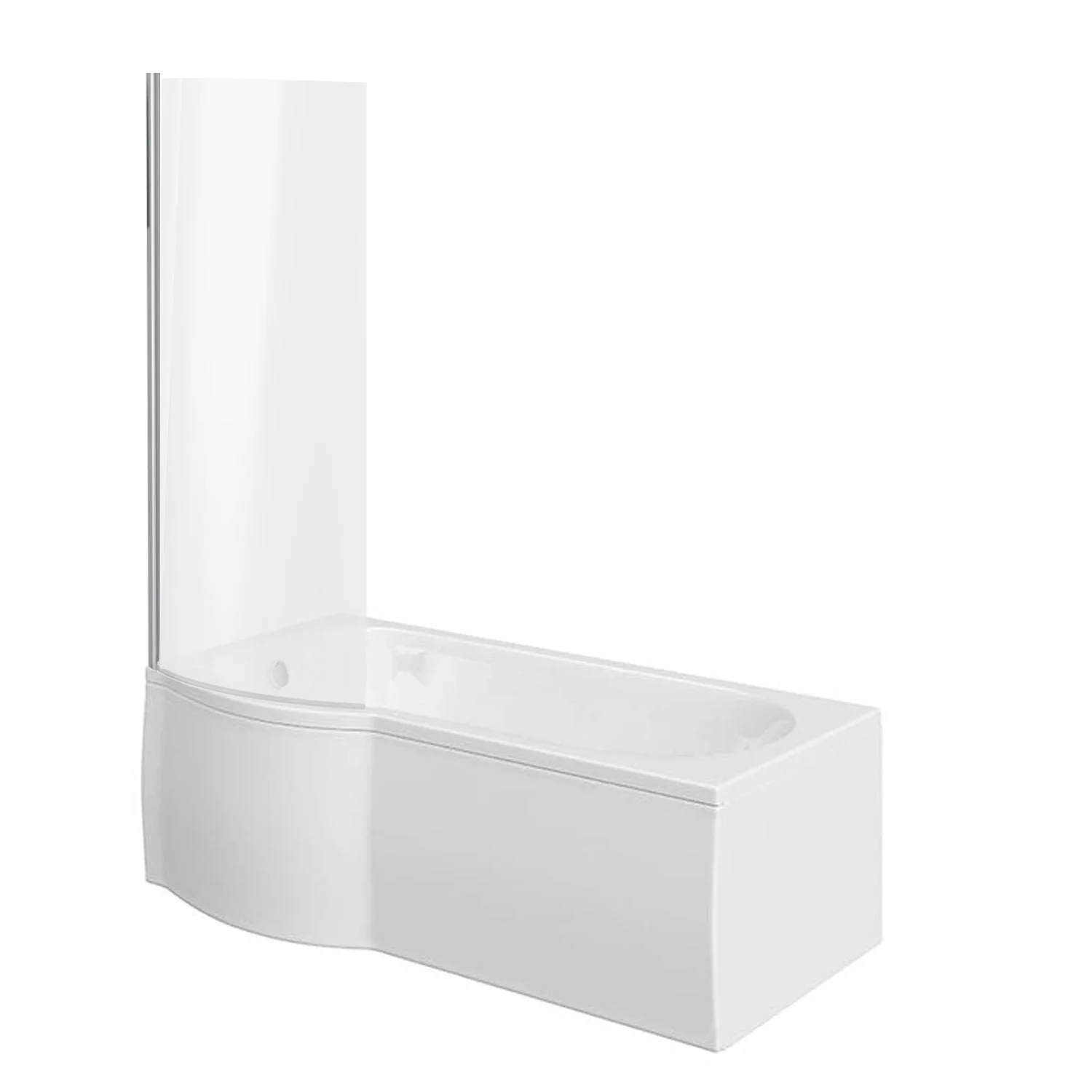

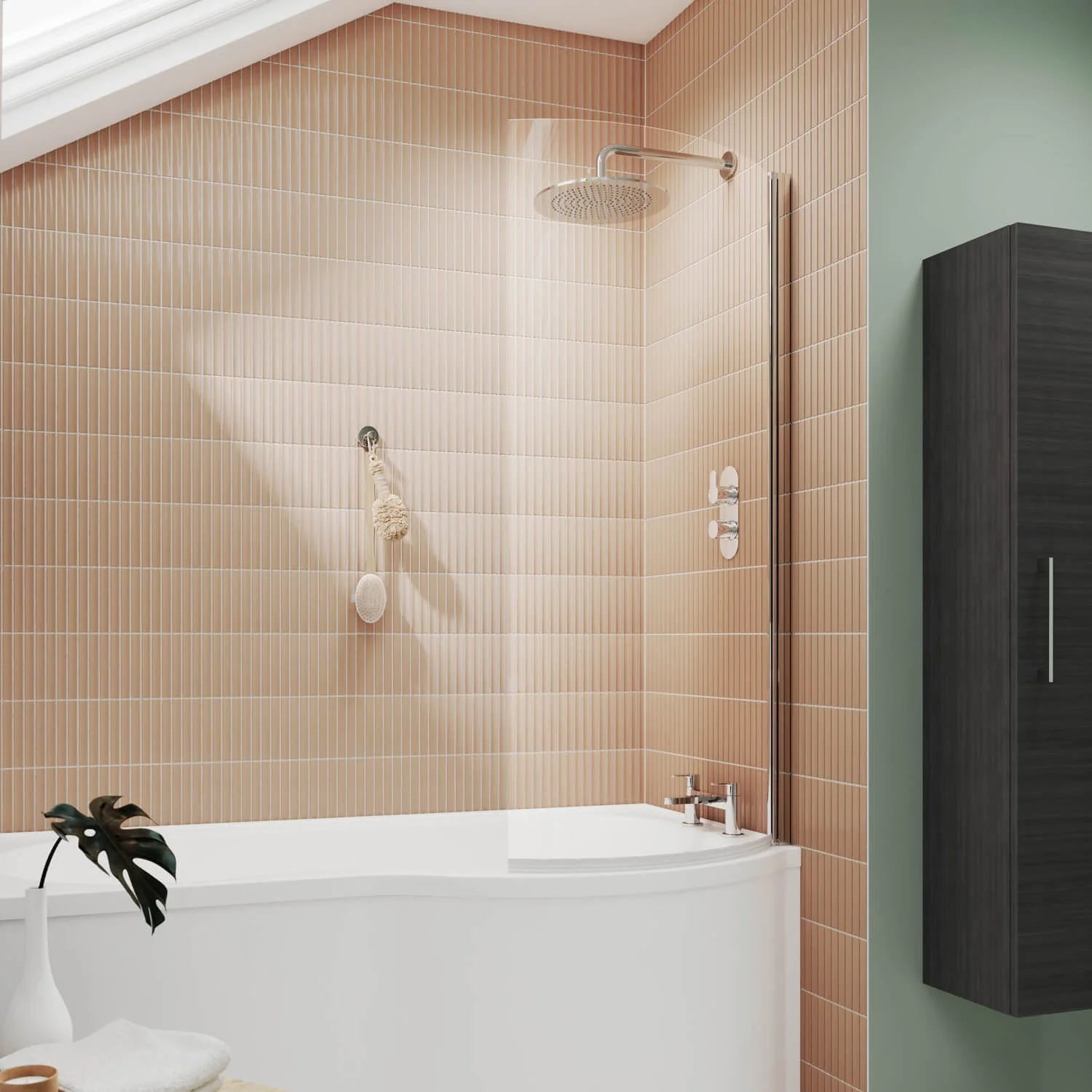

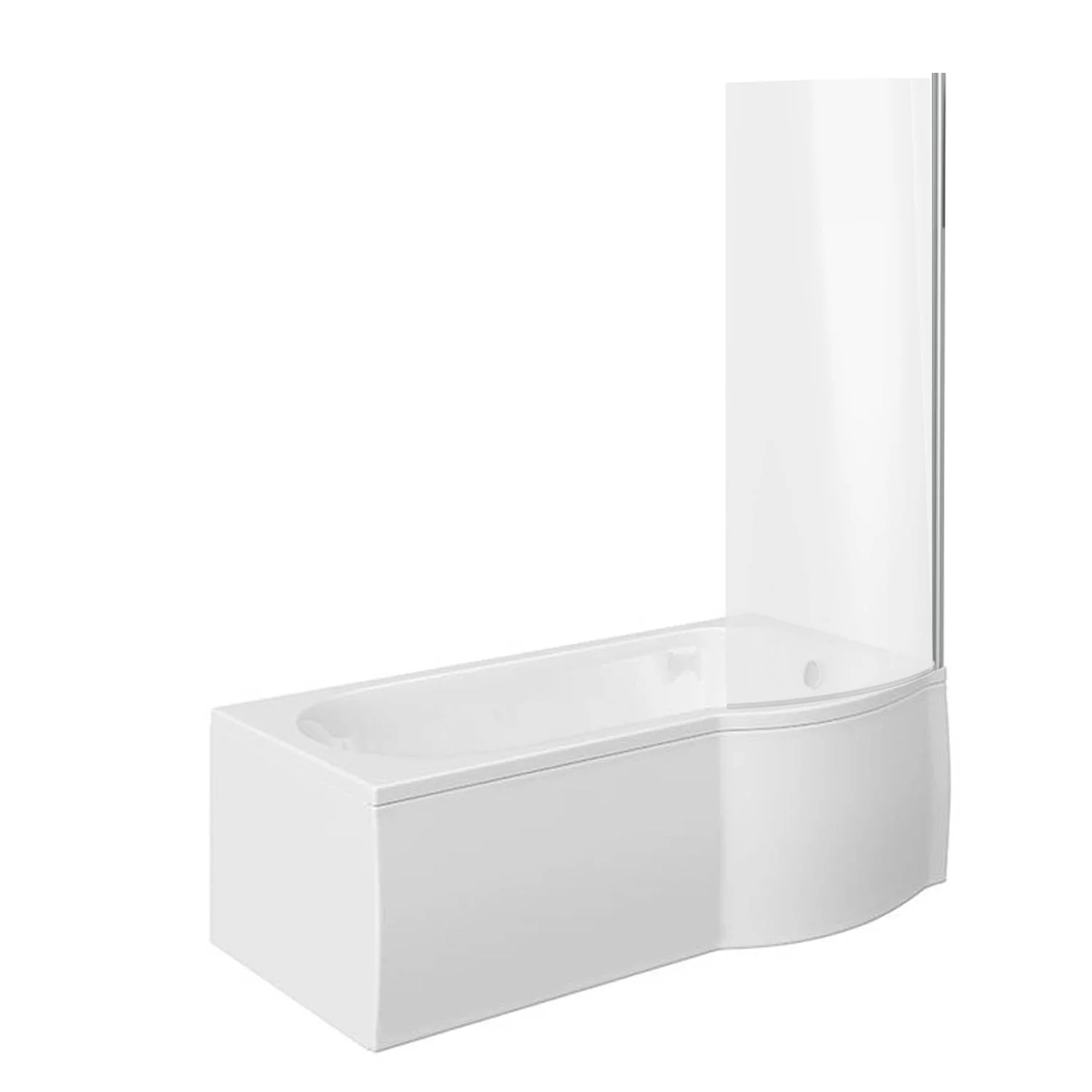

Bath Screen Technical Specification

• Bath Screen Height : 1435mm
• Bath Screen Width : 720mm
• Adjustment Range : 720 - 740mm
• Glass Thickness : 6mm
• Swing Radius : 550mm
• Bath Screen Design : Curved
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded

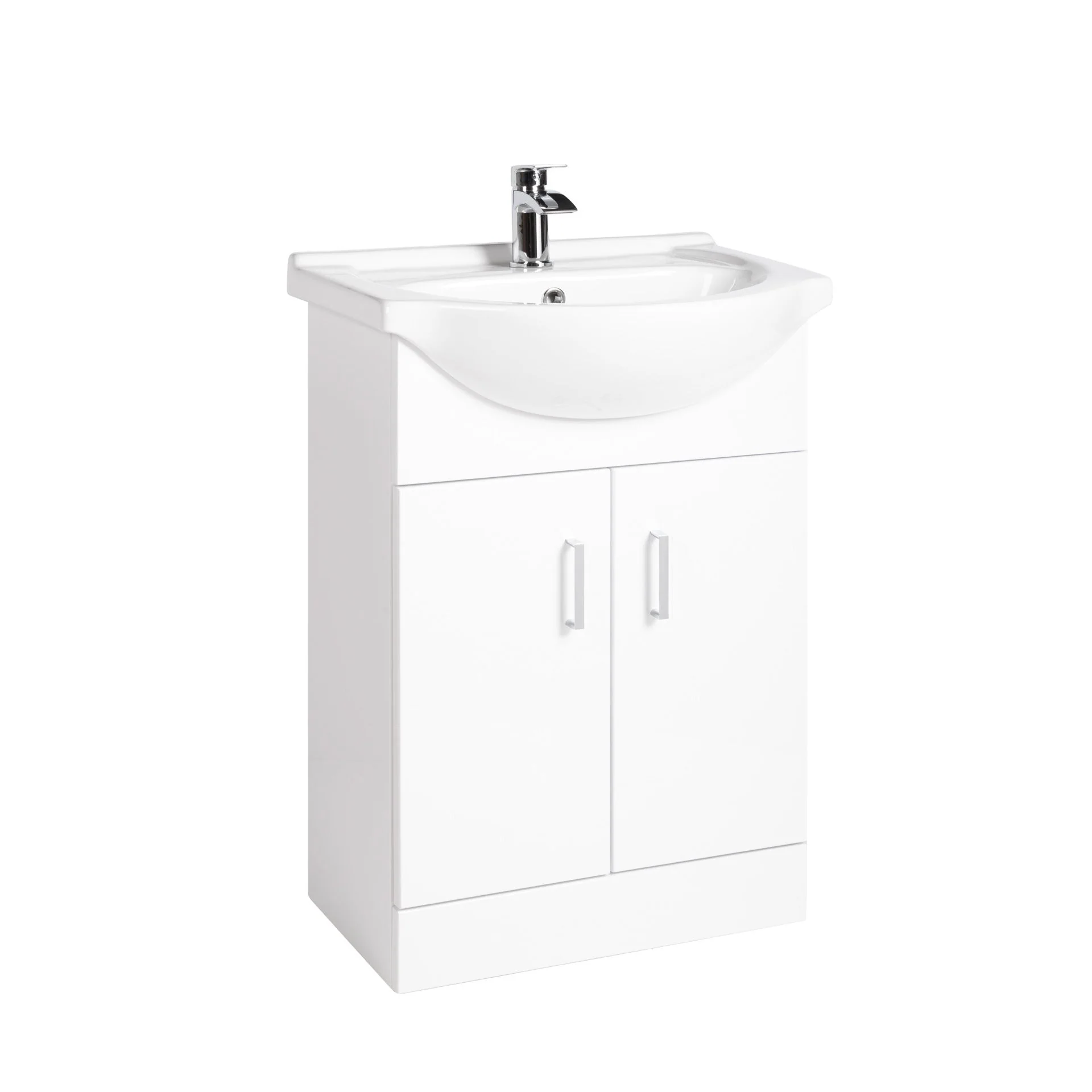

Vanity Unit Technical Specification

• Width : 514mm
• Projection : 300mm
• Finished in High Gloss White
• Double Door Cupboard
• Hinge type : 95 Degree Clip-On Soft Close
• Internal Shelf
• Chrome Handles
• Chrome Overflow
• Supplied Flat Pack for ease of transportation and manoeuvrability
• Basin Width: 550mm
• Basin Projection: 440mm
• 1 Tap Hole For Mono Basin Mixer

WC Unit Technical Specification

• Width: 500mm
• Projection: 300mm
• White Gloss Finish
• Supplied Flat Pack for ease of transportation and manoeuvrability

Concealed Cistern Technical Specification

• Height : 303mm
• Width : 334mm
• Depth : 136mm
• Cable concealed dual flush
• Operating Type : Push Button
• Cistern Lever Type : Chrome finished dual flush button
• Button is not fixed but cable connected so can be moved to position of choice
• Cable from cistern to button is 450mm
• Internal overflow
• Water inlet can be left or right hand side
• Material Specification : Plastic
• Connection Size : 1/2" BSP
• Features : Water Saving Dual Flush 3 / 6 Litre Action
• WRAS approved product

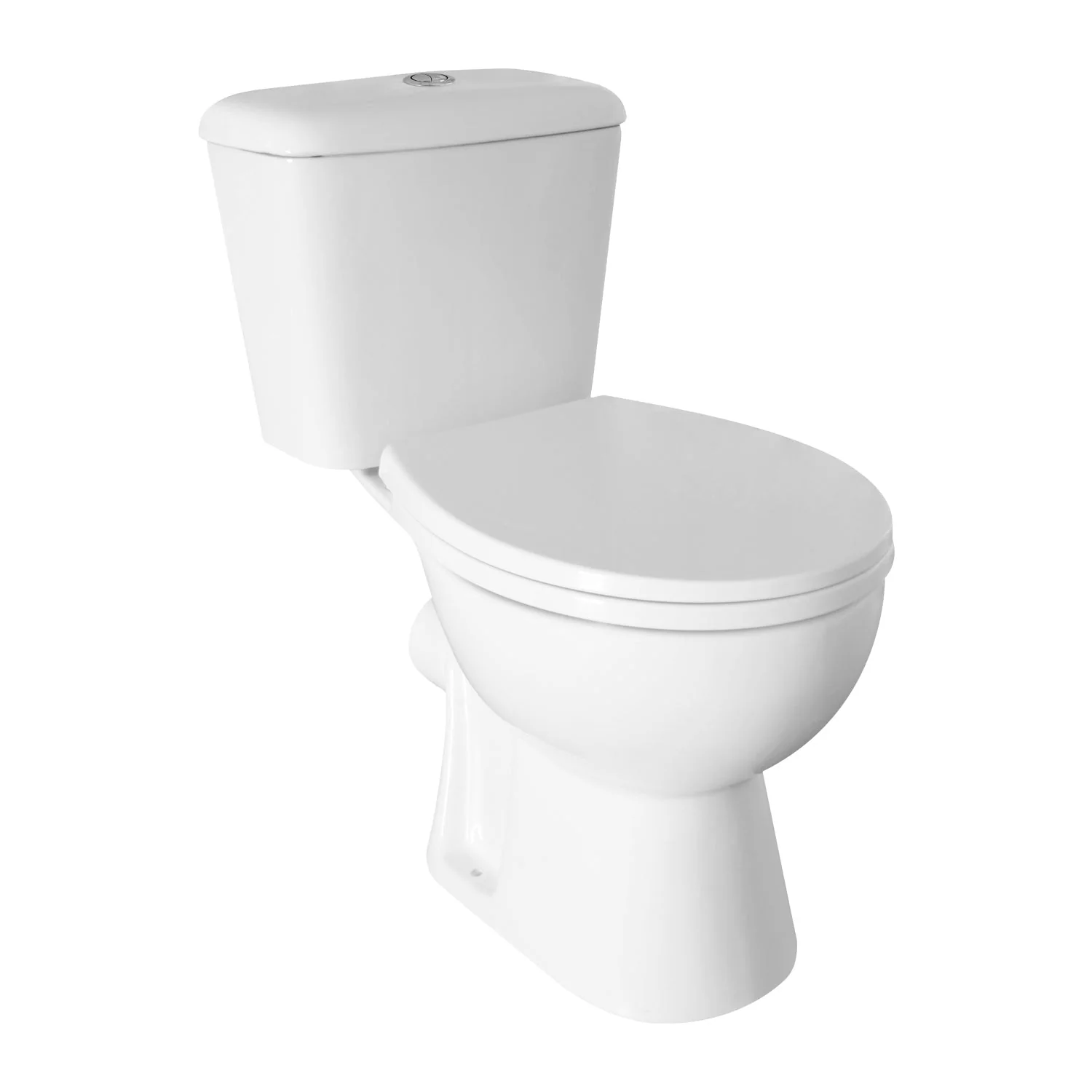

Toilet Technical Specification

• Height : 400mm
• Width : 370mm
• Projection : 530mm
• Toilet Pan Outlet : Horizontal
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Round
• Includes Toilet Seat

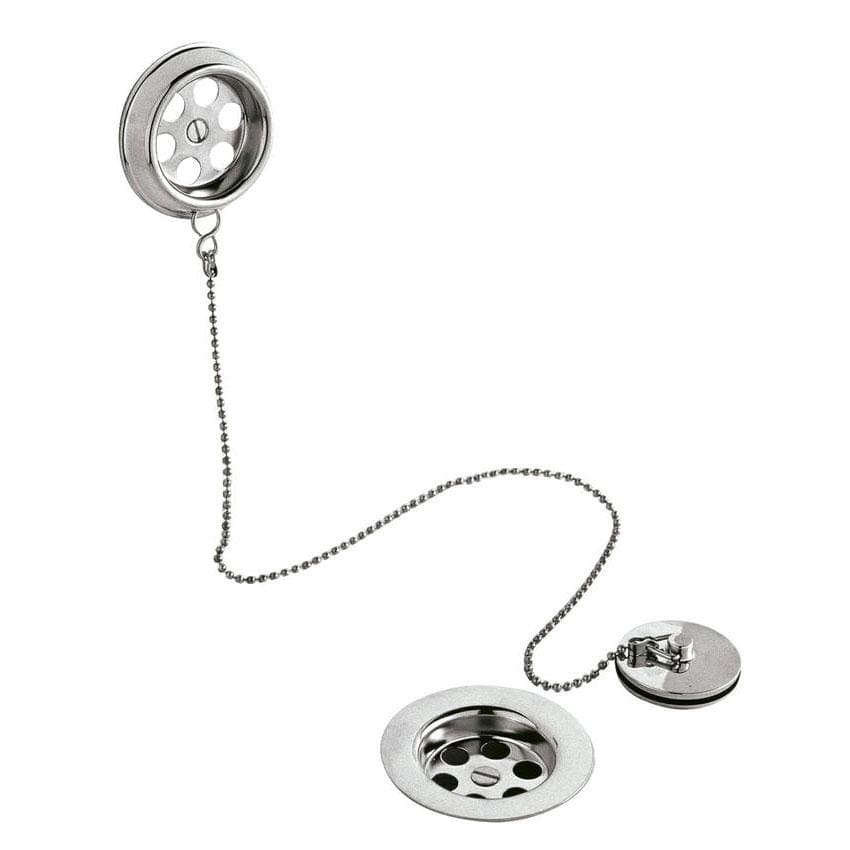

Bath Waste Technical Specification

• Height : 70mm
• Width : 70mm
• Depth : 62mm
• Connection Size : 11/2"
• Waste Pipe Length: 515mm
• Waste Pipe Diameter: 23mm
• Overflow Projection: 10mm
• Type : Retainer Bath Waste
• Finish : Polished Chrome
• Includes : brass plug and ball chain
• Suitable for baths up to 20mm thick

• Manufactured in accordance with BS EN 274-1: 2002

• Plug is manufactured from solid brass

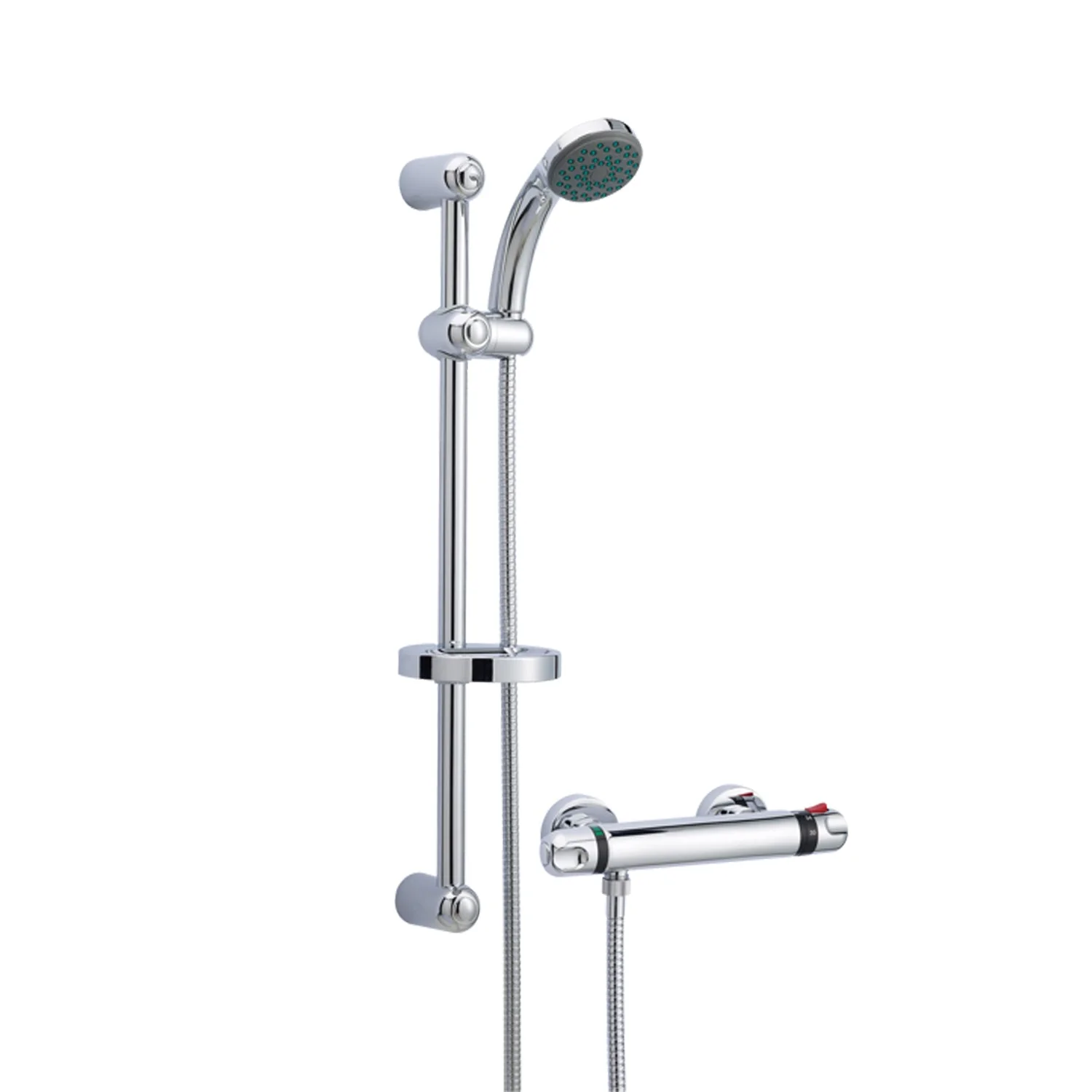

Bar Shower With Kit Technical Specification

• Contemporary round design exposed thermostatic bar shower valve
• Separate controls for temperature and flow.
• 150mm inlet water centres
• Finish in polished chrome
• Manufactured from brass
• Water pressure 0.2 bar minimum
• Suitable for combination boilers, pumps and pressurised systems
• Thermostatic cartridge with anti-scald protection
• Water temperature controlled to +/- 2 degrees
• Mixed water bottom outlet
• Does not include shower hose
• Dimensions : H40mm x W285mm x D65mm
• Flow Rates

  0.1 Bar - 3 l/m
  0.5 Bar - 8 l/m
  1.0 Bar - 11.5 l/m
  2.0 Bar - 17 l/m
  3.0 Bar - 21 l/m
• Includes multi-function round handset , rail and hose
• Rail height 655mm
• Supplied with soap dish

Taps Technical Specification
